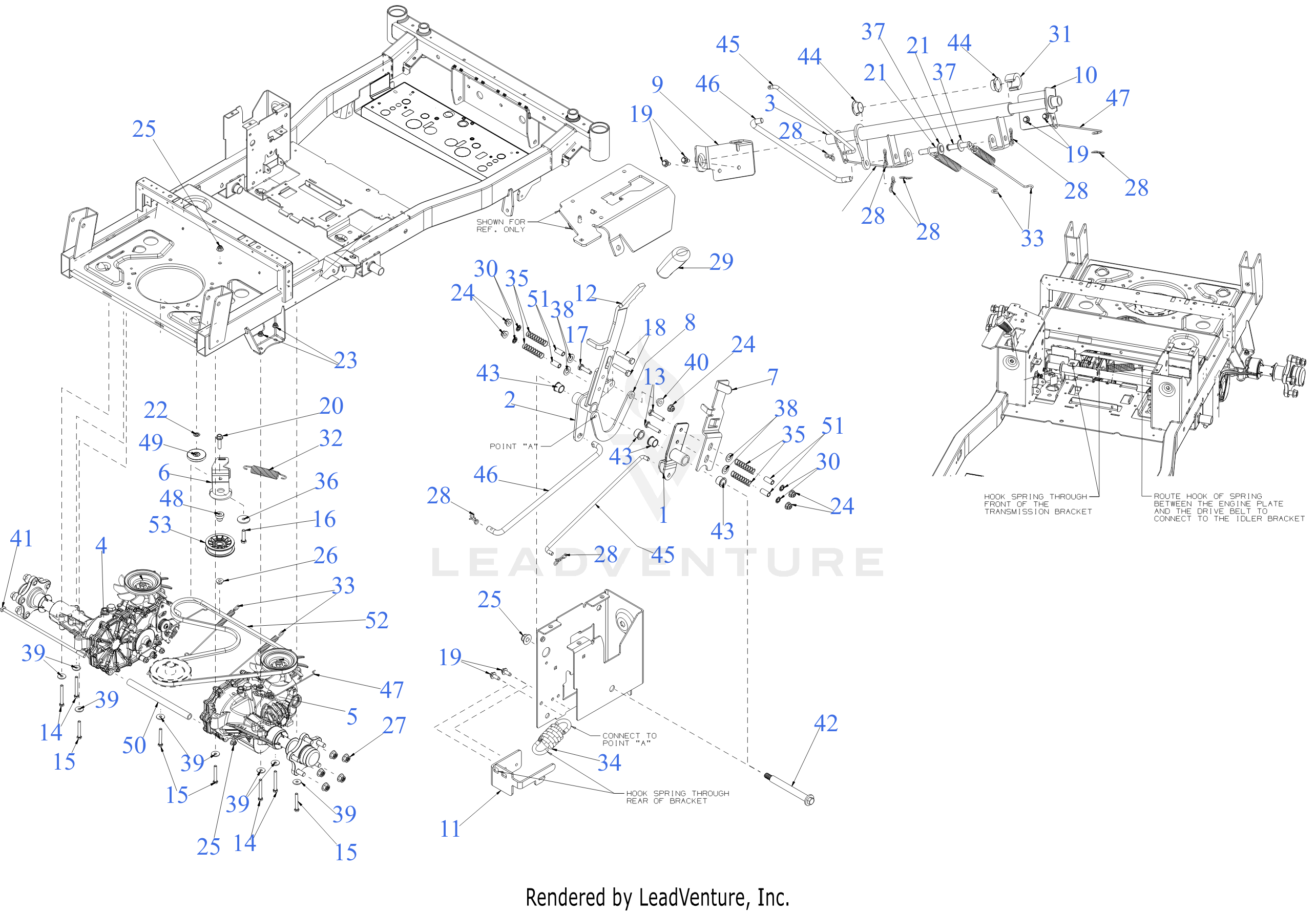

ZTXS4-54 KW FAB (47AICAB7330) (2023) (ULTIMA ZTXS) Drive

Specifications

Brand Cub Cadet

Engine Kawasaki FR730V-GS05

Engine Oil Type SAE 10W30

Engine Oil Capacity 74 oz

Deck Size 54-Inch

Manual 769-26660

Downloads

Operators Manual

603E08816A - BRAKE PIVOT SHAFT

Part Number: 603E08816A

In stock

$91.15 Inc. GST

603Z08714A - BYPASS LEVER PIVOT ARM

Part Number: 603Z08714A

In stock

$40.41 Inc. GST

603Z08802 - PARK BRAKE PIVOT ARM

Part Number: 603Z08802

In stock

$45.30 Inc. GST

618P10019 - HYDRO TRANSMISSION (LH)

Part Number: 618P10019

In stock

$1,561.10 Inc. GST

618P10020 - HYDRO TRANSMISSION (RH)

Part Number: 618P10020

In stock

$1,561.10 Inc. GST

703-26999A - TRANSMISSION BYPASS LEVER

Part Number: 703-26999A

In stock

$9.68 Inc. GST

703-27003A - OVER CENTER LINK

Part Number: 703-27003A

In stock

$7.40 Inc. GST

703-27899 - BRAKE SHAFT SUPPORT (RH)

Part Number: 703-27899

In stock

$11.96 Inc. GST

703-27911 - BRAKE SHAFT SUPPORT (LH)

Part Number: 703-27911

In stock

$11.96 Inc. GST

703-28118 - SPRING MOUNTING BRACKET

Part Number: 703-28118

In stock

$22.78 Inc. GST

703E26186 - HYDRO DRIVE IDLER BRACKET

Part Number: 703E26186

In stock

$22.82 Inc. GST

703Z28136 - PARK BRAKE LEVER

Part Number: 703Z28136

In stock

$31.90 Inc. GST

710-0106 - Hex Bolt 1/4-20 x 1-1/4"

Part Number: 710-0106

In stock

$3.66 Inc. GST

710-0176 - Hex Bolt 5/16-18 x 2.75" Lg.

Part Number: 710-0176

In stock

$3.89 Inc. GST

710-0395 - Hex Bolt 5/16-18 x 2.25" Lg.

Part Number: 710-0395

In stock

$4.08 Inc. GST

710-0520 - Hex Bolt 3/8-16 x 1.5" Lg.

Part Number: 710-0520

In stock

$3.93 Inc. GST

710-0597 - SCREW 1/4-20 X1.00 GR5

Part Number: 710-0597

In stock

$3.66 Inc. GST

710-0606 - Hex Scr. 1/4-20 x 1.50" Lg.*

Part Number: 710-0606

In stock

$4.67 Inc. GST

710-06133 - Screw, M6-1 x .625

Part Number: 710-06133

In stock

$3.08 Inc. GST

710-06749 - HEX HEAD BOLT (3/8-16:1.50 GR8)

Part Number: 710-06749

In stock

$5.95 Inc. GST

711-04469A - Clevis Pin, 3/8 x 1.87

Part Number: 711-04469A

In stock

$5.15 Inc. GST

712-0229 - Push Nut, Retainer, 3/8 ID

Part Number: 712-0229

In stock

$3.14 Inc. GST

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

712-04064 - Nut, Hx Insert Flange Lk, 1/4-20

Part Number: 712-04064

In stock

$3.64 Inc. GST

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

712-04217 - Flange Lock Nut, 3/8-16

Part Number: 712-04217

In stock

$3.75 Inc. GST

712-05381 - HEX FLANGE NUT 1/2-20 GR8

Part Number: 712-05381

In stock

$3.04 Inc. GST

714-04040 - Pin, Cotter, Bow-Tie 72

Part Number: 714-04040

In stock

$1.28 Inc. GST

720-04163 - GRIP

Part Number: 720-04163

In stock

$8.03 Inc. GST

726-0233 - Push Nut Fastener

Part Number: 726-0233

In stock

$3.93 Inc. GST

731-05297 - Spacer, .76 x .75

Part Number: 731-05297

In stock

$8.47 Inc. GST

732-07926A - EXTENSION SPRING .925 x 5.37

Part Number: 732-07926A

In stock

$9.13 Inc. GST

732-08320A - EXTENSION SPRING .60 DIAx9.09

Part Number: 732-08320A

In stock

$9.17 Inc. GST

732-08386 - EXTENSION SPRING 1.09x3.25

Part Number: 732-08386

In stock

$20.50 Inc. GST

732-0962 - Compression Spring

Part Number: 732-0962

In stock

$3.75 Inc. GST

736-0227 - Washer, Flat, .390 X 1.50 X .134 Thk

Part Number: 736-0227

In stock

$5.78 Inc. GST

736-0300 - Fl-Wash. .406" I D x .875" O.D.

Part Number: 736-0300

In stock

$3.93 Inc. GST

736-0314 - Thrust Wash. .382" I.D. x .70" O.D.

Part Number: 736-0314

In stock

$6.01 Inc. GST

736-04117 - FLAT WASHER 1.0 OD:.331 ID

Part Number: 736-04117

In stock

$2.85 Inc. GST

738-04483 - SHOULDER SPACER

Part Number: 738-04483

In stock

$3.53 Inc. GST

738-05554A - SUPPORT TUBE ROD

Part Number: 738-05554A

In stock

$11.73 Inc. GST

738-05694 - SHOULDER SCREW .491x3.937 3/8-16

Part Number: 738-05694

In stock

$4.69 Inc. GST

741-0748 - Bushing

Part Number: 741-0748

In stock

$10.38 Inc. GST

741-3084 - Bearing, Flange

Part Number: 741-3084

In stock

$4.55 Inc. GST

747-11727 - BYPASS LINK

Part Number: 747-11727

In stock

$10.81 Inc. GST

747-11740 - BRAKE LINK

Part Number: 747-11740

In stock

$11.38 Inc. GST

747-11763 - HYDRO BYPASS ROD .100 DIA

Part Number: 747-11763

In stock

$2.27 Inc. GST

748-05029A - Shoulder Spacer, Idler

Part Number: 748-05029A

In stock

$4.19 Inc. GST

748-06624 - SHOULDER SPACER

Part Number: 748-06624

In stock

$8.60 Inc. GST

750-07350 - SUPPORT TUBE

Part Number: 750-07350

In stock

$21.16 Inc. GST

750-10995 - SPACER .252x.350x.760

Part Number: 750-10995

In stock

$1.82 Inc. GST

756-05032 - FLAT IDLER PULLEY 3.00 OD

Part Number: 756-05032

In stock

$23.03 Inc. GST

954-04317A - Drive Belt (Trans)

Part Number: 954-04317A

In stock

$46.63 Inc. GST
