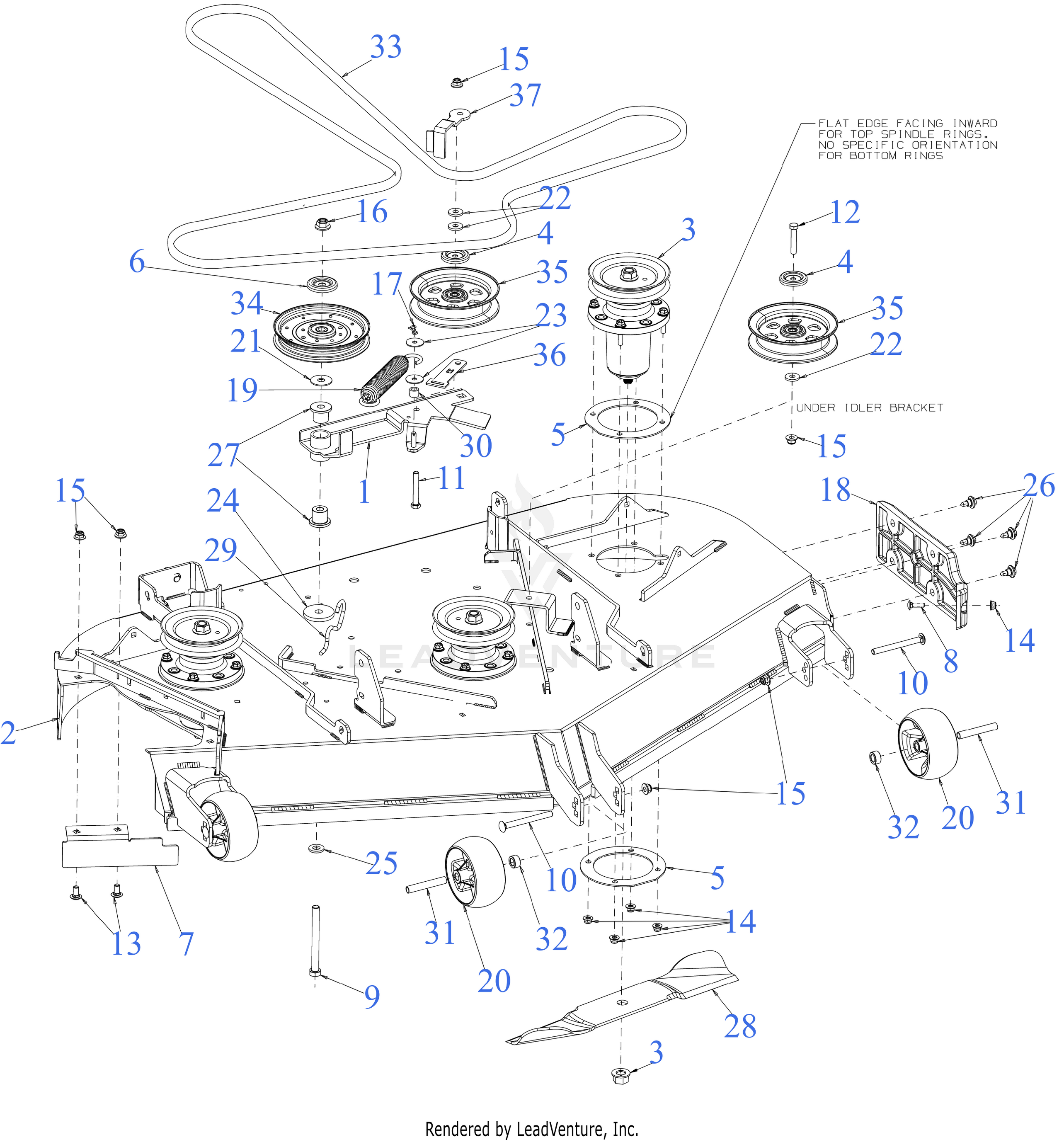

ZTX5-54 KW FAB (47AIAAA7330) (2025) (ULTIMA ZTX5) Deck

Specifications

Brand Cub Cadet

Engine Kawasaki FR730V-KS05

Engine Oil Type SAE 5W 30 SYN

Engine Oil Capacity 74 oz

Deck Size 54-Inch

Manual 769-27018

Categories

37 parts

1

603E06959 - 54/60" DECK IDLER ASSEMBLY

603E06959 - 54/60" DECK IDLER ASSEMBLY

Part Number: 603E06959

In stock

$94.39 Inc. GST

2

603P07222B - 54" FAB DECK SHELL

603P07222B - 54" FAB DECK SHELL

Part Number: 603P07222B

In stock

$1,296.18 Inc. GST

4

703-11504 - PULLEY CAP 1.875 DIA

703-11504 - PULLEY CAP 1.875 DIA

Part Number: 703-11504

In stock

$5.25 Inc. GST

6

703-24504 - PULLEY CAP (.540 x 2.041 DIA)

703-24504 - PULLEY CAP (.540 x 2.041 DIA)

Part Number: 703-24504

In stock

$7.94 Inc. GST

7

703-26535 - BAFFLE

703-26535 - BAFFLE

Part Number: 703-26535

In stock

$12.97 Inc. GST

5

703E18464 - SPINDLE PLATE

703E18464 - SPINDLE PLATE

Part Number: 703E18464

In stock

$29.67 Inc. GST

8

710-0276 - Carriage Bolt 5/16-18 x 1" Lg.

710-0276 - Carriage Bolt 5/16-18 x 1" Lg.

Part Number: 710-0276

In stock

$3.68 Inc. GST

9

710-0382 - Screw, Hex Cap, 1/2-13 X 5.0 Lg GR5

710-0382 - Screw, Hex Cap, 1/2-13 X 5.0 Lg GR5

Part Number: 710-0382

In stock

$10.57 Inc. GST

10

710-05384 - Carriage Bolt, 3/8-16 x 4.00

710-05384 - Carriage Bolt, 3/8-16 x 4.00

Part Number: 710-05384

In stock

$4.69 Inc. GST

11

710-0859 - Hex Cap Screw, 3/8-16 x 2.5

710-0859 - Hex Cap Screw, 3/8-16 x 2.5

Part Number: 710-0859

In stock

$5.99 Inc. GST

12

710-3144 - Hex Bolt 3/8-16 x 2" Lg. (Gr. 5)

710-3144 - Hex Bolt 3/8-16 x 2" Lg. (Gr. 5)

Part Number: 710-3144

In stock

$4.02 Inc. GST

13

710-3178 - CARRIAGE BOLT 3/8-16 x .75

710-3178 - CARRIAGE BOLT 3/8-16 x .75

Part Number: 710-3178

In stock

$3.93 Inc. GST

14

712-04063 - 5/16-18 Nylon Flange Lock Nut

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

15

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

16

712-04150 - Nut, 1/2-13, Flangelock

712-04150 - Nut, 1/2-13, Flangelock

Part Number: 712-04150

In stock

$3.74 Inc. GST

17

714-04040 - Pin, Cotter, Bow-Tie 72

714-04040 - Pin, Cotter, Bow-Tie 72

Part Number: 714-04040

In stock

$1.28 Inc. GST

18

731-13530 - DECK SKID PLATE

731-13530 - DECK SKID PLATE

Part Number: 731-13530

In stock

$38.06 Inc. GST

19

732-05360B - SPRING 1.25" DIA x 8.5" LONG

732-05360B - SPRING 1.25" DIA x 8.5" LONG

Part Number: 732-05360B

In stock

$30.00 Inc. GST

20

734-04155 - Deck Wheels

734-04155 - Deck Wheels

Part Number: 734-04155

In stock

$19.04 Inc. GST

21

736-0208 - WASHER-FL .51IDX1.50ODX.075

736-0208 - WASHER-FL .51IDX1.50ODX.075

Part Number: 736-0208

In stock

$4.02 Inc. GST

22

736-0258 - Fl-Wash. 3/8" I.D.

736-0258 - Fl-Wash. 3/8" I.D.

Part Number: 736-0258

In stock

$3.93 Inc. GST

23

736-0362 - Fl-Wash. .33" I.D. x 1.25" O.D.

736-0362 - Fl-Wash. .33" I.D. x 1.25" O.D.

Part Number: 736-0362

In stock

$3.93 Inc. GST

24

736-05642 - FLAT WASHER .53"x2.125"x.25"

736-05642 - FLAT WASHER .53"x2.125"x.25"

Part Number: 736-05642

In stock

$6.20 Inc. GST

25

736-3019 - Flat Washer, .31 x 1.062 x .134

736-3019 - Flat Washer, .31 x 1.062 x .134

Part Number: 736-3019

In stock

$5.45 Inc. GST

26

738-04091A - Screw, Shoulder, .43x.29, 5/16-18

738-04091A - Screw, Shoulder, .43x.29, 5/16-18

Part Number: 738-04091A

In stock

$3.50 Inc. GST

27

741-06810 - FLANGE BEARING

741-06810 - FLANGE BEARING

Part Number: 741-06810

In stock

$8.34 Inc. GST

28

742P05533 - 19" BLADE

742P05533 - 19" BLADE

Part Number: 742P05533

In stock

$37.58 Inc. GST

29

747-10430 - DECK SPRING HOOK

747-10430 - DECK SPRING HOOK

Part Number: 747-10430

In stock

$3.04 Inc. GST

30

750-05563 - Spacer, .385 x .625 x .500

750-05563 - Spacer, .385 x .625 x .500

Part Number: 750-05563

In stock

$6.51 Inc. GST

31

750-06199 - Spacer, .380 x .495 x 3.450

750-06199 - Spacer, .380 x .495 x 3.450

Part Number: 750-06199

In stock

$7.44 Inc. GST

32

750-0664 - Spacer

750-0664 - Spacer

Part Number: 750-0664

In stock

$6.01 Inc. GST

34

756-05212 - IDLER PULLEY 6.0" DIA

756-05212 - IDLER PULLEY 6.0" DIA

Part Number: 756-05212

In stock

$73.74 Inc. GST

35

756-05332 - 5" FLAT IDLER PULLEY

756-05332 - 5" FLAT IDLER PULLEY

Part Number: 756-05332

In stock

$43.89 Inc. GST

36

783E11808 - BELT KEEPER

783E11808 - BELT KEEPER

Part Number: 783E11808

In stock

$12.92 Inc. GST

37

783E11828 - 54/60" IDLER KEEPER

783E11828 - 54/60" IDLER KEEPER

Part Number: 783E11828

In stock

$22.82 Inc. GST

3

918-07416 - Spindle Assembly

918-07416 - Spindle Assembly

Part Number: 918-07416

In stock

$194.51 Inc. GST

33

954-04329A - V-BELT B SEC x 148.25

954-04329A - V-BELT B SEC x 148.25

Part Number: 954-04329A

In stock

$93.27 Inc. GST
