RZT-50 (17AFCACP330) (2013)

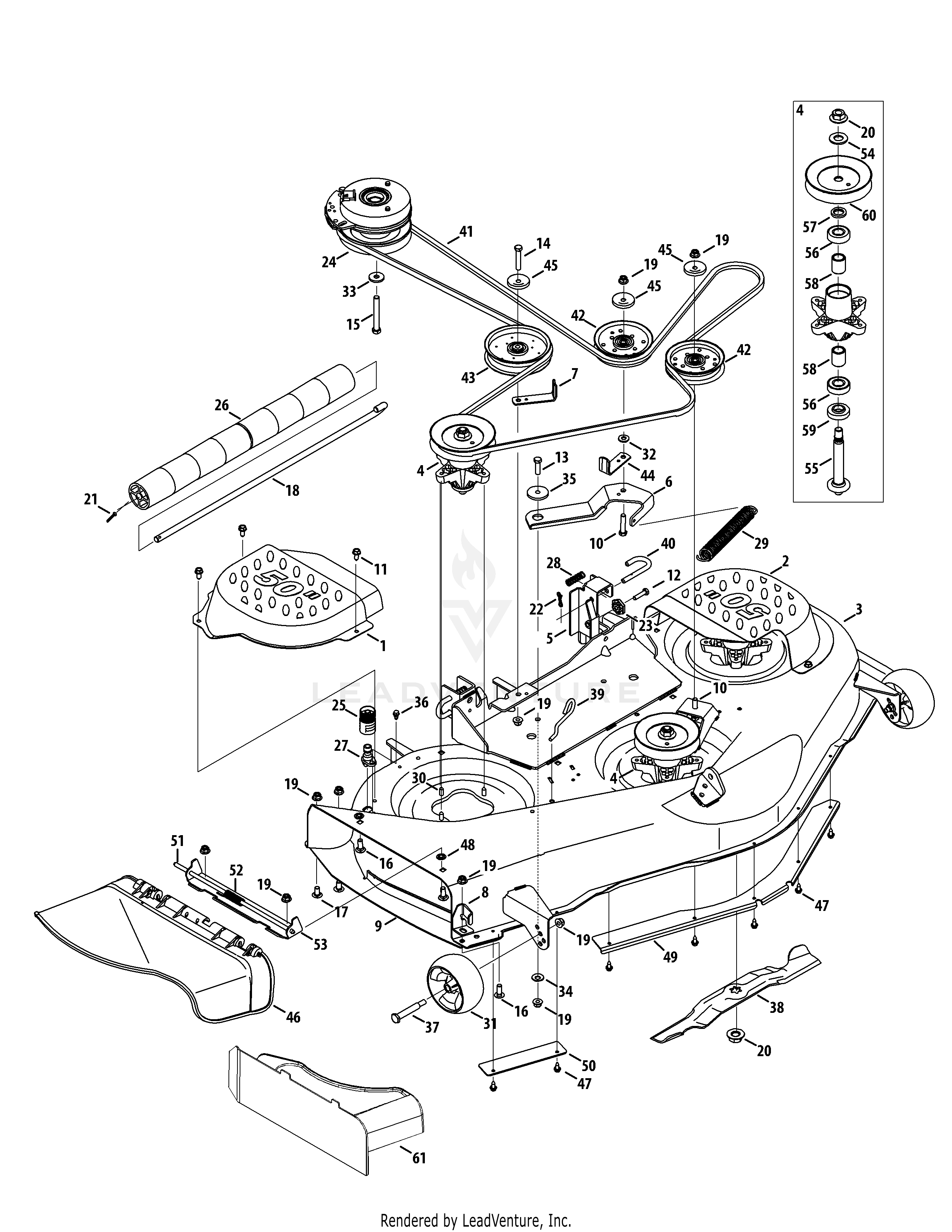

Mower Deck 50-Inch

RZT-50 (17AFCACP330) (2013) Mower Deck 50-Inch

Specifications

Brand Cub Cadet

Engine Kohler SV730-3053

Engine Oil Type SAE 10W30

Engine Oil Capacity 64 oz

Deck Size 50-Inch

Manual 769-01545F

IPL Manual 769-08889

Downloads

Manual

603-04947-4021 - Belt Cover, RH

Part Number: 603-04947-4021

Out of stock

$87.85 Inc. GST

603-04948-4021 - BELT COVER ASSEMBLY (LH) (CUB YELLOW 2)

Part Number: 603-04948-4021

Out of stock

Enquire for price

631-05057 - CHUTE ASSEMBLY

Part Number: 631-05057

Out of stock

Enquire for price

683-05031-4021 - DECK HANGER BRACKET (LH) (CUB YELLOW 2)

Part Number: 683-05031-4021

Out of stock

Enquire for price

703-05825C-4021 - Idler Arm

Part Number: 703-05825C-4021

In stock

$47.55 Inc. GST

703-08705-0637 - Bracket, Belt Guard

Part Number: 703-08705-0637

Out of stock

$12.11 Inc. GST

703-09219 - Chute Bracket

Part Number: 703-09219

Out of stock

$21.97 Inc. GST

703-3279-4021 - Stop, Chute, Deflector

Part Number: 703-3279-4021

In stock

$35.25 Inc. GST

703-3511B-0637 - Finger Guard

Part Number: 703-3511B-0637

In stock

$61.47 Inc. GST

710-0347 - Hex Bolt 3/8-16 x 1.75" Lg. (Gr. 5)

Part Number: 710-0347

In stock

$4.39 Inc. GST

710-04484 - SCREW 5/16-18 x .750

Part Number: 710-04484

In stock

$3.19 Inc. GST

710-0573 - Bolt, Hex Patch, 5/16-18 X 1.25 Lg GR5

Part Number: 710-0573

In stock

$5.53 Inc. GST

710-1260A - Self Tapping Screw, 5/16-18 x .75

Part Number: 710-1260A

In stock

$3.34 Inc. GST

710-1652 - Hex Washer Screw 1/4-20 x .625

Part Number: 710-1652

In stock

$3.86 Inc. GST

710-3005 - Hex Cap Screw 3/8-16 x 1.25

Part Number: 710-3005

In stock

$3.61 Inc. GST

710-3144 - Hex Bolt 3/8-16 x 2" Lg. (Gr. 5)

Part Number: 710-3144

In stock

$4.02 Inc. GST

710-3157A - Screw, 7/16-20 x 3.25

Part Number: 710-3157A

In stock

$9.67 Inc. GST

710-3168 - Carriage Bolt 3/8-16 x 1" Lg. (Gr. 5)

Part Number: 710-3168

In stock

$3.61 Inc. GST

710-3178 - CARRIAGE BOLT 3/8-16 x .75

Part Number: 710-3178

In stock

$3.93 Inc. GST

711-04565 - Pin, Hinge, .3175 Dia. x 14.06 ,1

Part Number: 711-04565

In stock

$13.59 Inc. GST

711-06092 - Roller J-hook, 26"

Part Number: 711-06092

In stock

$26.08 Inc. GST

712-0229 - Push Nut, Retainer, 3/8 ID

Part Number: 712-0229

In stock

$3.14 Inc. GST

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

712-0417A - HEX NUT

Part Number: 712-0417A

In stock

$6.50 Inc. GST

714-0162 - Pin, Cot, 5/32, 1.25

Part Number: 714-0162

In stock

$4.29 Inc. GST

714-04040 - Pin, Cotter, Bow-Tie 72

Part Number: 714-04040

In stock

$1.28 Inc. GST

731-04651 - Mulch Kit

Part Number: 731-04651

In stock

$64.66 Inc. GST

731-05679 - Front Roller

Part Number: 731-05679

In stock

$15.80 Inc. GST

731-07487 - Deck Wash Nozzle

Part Number: 731-07487

In stock

$3.86 Inc. GST

732-04502 - Torsion Spring

Part Number: 732-04502

Out of stock

$3.70 Inc. GST

732-04652 - Spring, Compr’, .535 OD x 1.751

Part Number: 732-04652

In stock

$5.88 Inc. GST

732-04927 - Spring, Extension, 1.25 OD x 8.5

Part Number: 732-04927

In stock

$19.91 Inc. GST

734-04155 - Deck Wheels

Part Number: 734-04155

In stock

$19.04 Inc. GST

736-0262 - Fl-Wash. .375" I.D. x.87" O.D.

Part Number: 736-0262

In stock

$3.66 Inc. GST

736-0315 - WASHER-FL

Part Number: 736-0315

In stock

$5.94 Inc. GST

736-0322 - Fl-Wash. 7/16" I.D. x 1.25" O.D.

Part Number: 736-0322

In stock

$8.42 Inc. GST

736-0407 - Bell Washer, .45 x 1.0 x .062

Part Number: 736-0407

In stock

$3.64 Inc. GST

738-04162C - Spacer, Shoulder, .8840 x .190

Part Number: 738-04162C

In stock

$12.76 Inc. GST

738-04278 - Shoulder Screw, 1/4-20 x 0.50

Part Number: 738-04278

In stock

$5.99 Inc. GST

738-1010A - Shaft, Spindle, 5.75

Part Number: 738-1010A

In stock

$43.21 Inc. GST

747-05608 - Rod, Deck Spring Hook

Part Number: 747-05608

In stock

$2.94 Inc. GST

747-06082 - Deck Hanger Rod

Part Number: 747-06082

In stock

$9.29 Inc. GST

748-0160A - Spacer, .79 ID x 1.25 OD x .175

Part Number: 748-0160A

In stock

$5.87 Inc. GST

750-1000 - Spacer, .80 x 1.10 x 1.330

Part Number: 750-1000

In stock

$3.90 Inc. GST

750-1349A - Spacer, .79 x 1.82 x .55

Part Number: 750-1349A

In stock

$12.22 Inc. GST

756-04129B - Idler Pulley

Part Number: 756-04129B

In stock

$33.06 Inc. GST

756-04216 - Pulley, Deck, 5.39 Dia.

Part Number: 756-04216

In stock

$29.13 Inc. GST

756-04511A - Idler Pulley, 5.00 Dia.

Part Number: 756-04511A

In stock

$49.33 Inc. GST

783-04415 - Skirt RH

Part Number: 783-04415

In stock

$25.09 Inc. GST

783-06125 - DECK SKIRT-CENTER

Part Number: 783-06125

Out of stock

$62.70 Inc. GST

783-06368A - Bracket, Belt Guard

Part Number: 783-06368A

In stock

$17.37 Inc. GST

783-07236 - Pulley Cap

Part Number: 783-07236

In stock

$4.64 Inc. GST

903-05037-4021 - 50" Deck

Part Number: 903-05037-4021

In stock

$773.21 Inc. GST

917-04074 - Gear: Deck Adjustment

Part Number: 917-04074

In stock

$11.45 Inc. GST

917-05122 - Clutch, Electric PTO

Part Number: 917-05122

In stock

$453.12 Inc. GST

918-04125B - Spindle Assembly, Pulley, 5.39 Dia.

Part Number: 918-04125B

In stock

$123.95 Inc. GST

921-04041 - Water Nozzle Adapter

Part Number: 921-04041

In stock

$20.19 Inc. GST

938-3056 - Bolt, Shoulder, 1/2 x 2.5

Part Number: 938-3056

In stock

$8.53 Inc. GST

941-0919A - Bearing, Ball, .787id x 1.85 Od x .551

Part Number: 941-0919A

In stock

$18.90 Inc. GST

942-04053C - Blade, 17.90 Star 2 In 1

Part Number: 942-04053C

In stock

$26.85 Inc. GST

954-05008 - P.T.O. / Deck Belt

Part Number: 954-05008

In stock

$71.19 Inc. GST
