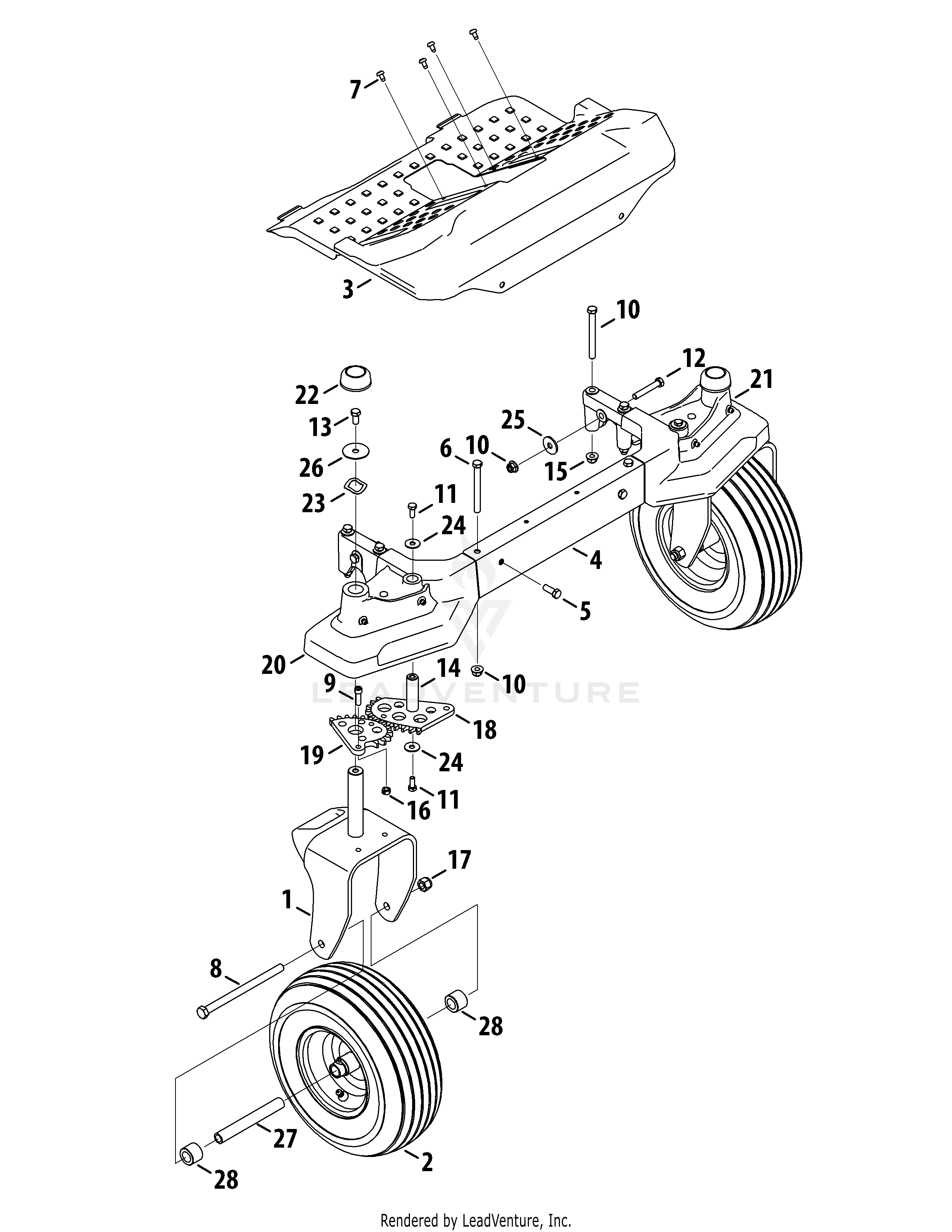

RZT-S46 (17AF2BDT330) (2012) Front Axle

Specifications

Brand Cub Cadet

Engine Kohler SV715-3023

Engine Oil Type SAE 10W30

Engine Oil Capacity 64 oz

Deck Size 46-Inch

Manual 769-07461A

IPL Manual 769-07790

Downloads

Categories

Drive System

Electrical Schematic

Engine Accessories

Frame & Electrical

Label Map RZT-S46

Mower Deck 46-Inch

Operator's Platform

Seat Adjustment

Steering Column & Pedal Controls

Steering Linkage

27 parts

1

603-04961-0637 - Caster Wheel Bracket

603-04961-0637 - Caster Wheel Bracket

Part Number: 603-04961-0637

Out of stock

$134.14 Inc. GST

2

634-04711-0931 - WHEEL ASSEMBLY (13 x 5-6) (BEIGE-CARLISLE)

634-04711-0931 - WHEEL ASSEMBLY (13 x 5-6) (BEIGE-CARLISLE)

Part Number: 634-04711-0931

In stock

$148.73 Inc. GST

3

703-08642-4021 - Floor Board

703-08642-4021 - Floor Board

Part Number: 703-08642-4021

In stock

$130.39 Inc. GST

4

703-08663-0637 - FRONT BUMPER

703-08663-0637 - FRONT BUMPER

Part Number: 703-08663-0637

Out of stock

Enquire for price

5

710-0347 - Hex Bolt 3/8-16 x 1.75" Lg. (Gr. 5)

710-0347 - Hex Bolt 3/8-16 x 1.75" Lg. (Gr. 5)

Part Number: 710-0347

In stock

$4.39 Inc. GST

6

710-0411 - Hex Bolt 3/8-16 x 4.75" Lg.

710-0411 - Hex Bolt 3/8-16 x 4.75" Lg.

Part Number: 710-0411

In stock

$7.16 Inc. GST

11

710-04483 - SCREW 1/4-20 x .500

710-04483 - SCREW 1/4-20 x .500

Part Number: 710-04483

In stock

$5.97 Inc. GST

8

710-04652 - Hex cap Screw, 1/2-20 x 7.25

710-04652 - Hex cap Screw, 1/2-20 x 7.25

Part Number: 710-04652

In stock

$5.68 Inc. GST

9

710-05398 - Socket Head Screw, 5/16-18 x 1.00

710-05398 - Socket Head Screw, 5/16-18 x 1.00

Part Number: 710-05398

In stock

$2.77 Inc. GST

10

710-0859 - Hex Cap Screw, 3/8-16 x 2.5

710-0859 - Hex Cap Screw, 3/8-16 x 2.5

Part Number: 710-0859

In stock

$5.99 Inc. GST

12

710-3011 - Bolt, 3/8 X 2-1/4 Type 5

710-3011 - Bolt, 3/8 X 2-1/4 Type 5

Part Number: 710-3011

In stock

$6.49 Inc. GST

13

710-3119 - Bolt, Hex Patch, 3/8-16 X .75 Lg GR5

710-3119 - Bolt, Hex Patch, 3/8-16 X .75 Lg GR5

Part Number: 710-3119

In stock

$5.91 Inc. GST

14

711-05742 - Pivot Gear Steering Shaft

711-05742 - Pivot Gear Steering Shaft

Part Number: 711-05742

In stock

$23.29 Inc. GST

15

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

18

717-04952 - 12-Tooth Variable gear

717-04952 - 12-Tooth Variable gear

Part Number: 717-04952

In stock

$47.01 Inc. GST

19

717-04953 - 13-Tooth Variable gear

717-04953 - 13-Tooth Variable gear

Part Number: 717-04953

Out of stock

$33.39 Inc. GST

20

719-04751 - PIVOT AXLE HOUSING (RH)

719-04751 - PIVOT AXLE HOUSING (RH)

Part Number: 719-04751

Out of stock

Enquire for price

21

719-04752 - PIVOT AXLE HOUSING (LH)

719-04752 - PIVOT AXLE HOUSING (LH)

Part Number: 719-04752

Out of stock

Enquire for price

22

731-08637A - CAP

731-08637A - CAP

Part Number: 731-08637A

In stock

$4.69 Inc. GST

24

736-04620 - FLAT WASHER .344X1.25X.063

736-04620 - FLAT WASHER .344X1.25X.063

Part Number: 736-04620

Out of stock

Enquire for price

26

736-3040 - Washer, .406 X 1.92 X .06

736-3040 - Washer, .406 X 1.92 X .06

Part Number: 736-3040

In stock

$5.52 Inc. GST

27

750-04775A - Spacer, .51 x .75 x 5.825

750-04775A - Spacer, .51 x .75 x 5.825

Part Number: 750-04775A

In stock

$24.72 Inc. GST

28

750-04792 - Hub, .76 x 1.23 x .92

750-04792 - Hub, .76 x 1.23 x .92

Part Number: 750-04792

In stock

$6.90 Inc. GST

16

912-3009 - Hex Lock Nut, 5/16-18

912-3009 - Hex Lock Nut, 5/16-18

Part Number: 912-3009

In stock

$5.99 Inc. GST

17

912-3058 - Hex Lock Nut, 1/2-20

912-3058 - Hex Lock Nut, 1/2-20

Part Number: 912-3058

In stock

$4.92 Inc. GST

23

936-0447 - Wave Washer, 1.5 x 1.0 x .029

936-0447 - Wave Washer, 1.5 x 1.0 x .029

Part Number: 936-0447

In stock

$3.90 Inc. GST

25

936-3004 - Flat Washer, .406 x .875 x .105

936-3004 - Flat Washer, .406 x .875 x .105

Part Number: 936-3004

In stock

$4.08 Inc. GST
