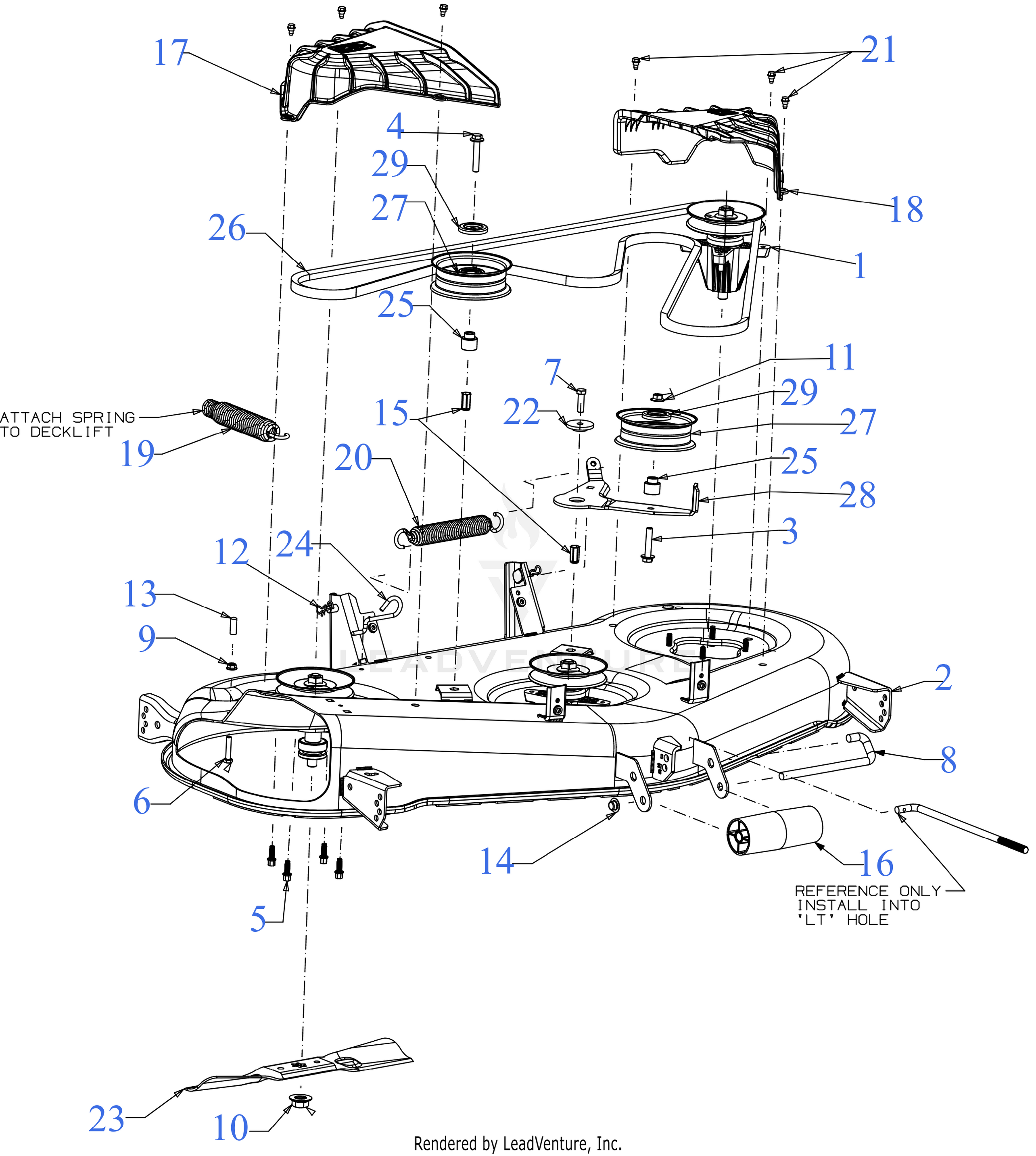

XT2-LX50 KH (13AQA1CQ328) (2019) Deck

Specifications

Brand Cub Cadet

Engine Kohler KT730-3050

Engine Oil Type SAE 10W30

Engine Oil Capacity 64 oz

Deck Size 50-Inch

Manual 769-15870

IPL Manual n/a

Downloads

Operators Manual

Categories

Discharge Chute

29 parts

3

710-06178 - SCREW 3/8-16 x 2.0

710-06178 - SCREW 3/8-16 x 2.0

Part Number: 710-06178

In stock

$5.52 Inc. GST

4

710-06215 - SCREW 3/8-16 x 2.25 GR5

710-06215 - SCREW 3/8-16 x 2.25 GR5

Part Number: 710-06215

In stock

$5.97 Inc. GST

5

710-06322 - SCREW 5/16-18 X .875

710-06322 - SCREW 5/16-18 X .875

Part Number: 710-06322

In stock

$4.55 Inc. GST

6

710-0805A - Hex Cap Screw, 5/16-18 x 1.50

710-0805A - Hex Cap Screw, 5/16-18 x 1.50

Part Number: 710-0805A

In stock

$3.75 Inc. GST

7

710-3005 - Hex Cap Screw 3/8-16 x 1.25

710-3005 - Hex Cap Screw 3/8-16 x 1.25

Part Number: 710-3005

In stock

$3.61 Inc. GST

8

711-06377 - ROLLER PIN 1/2 x 7.31

711-06377 - ROLLER PIN 1/2 x 7.31

Part Number: 711-06377

In stock

$18.42 Inc. GST

9

712-04063 - 5/16-18 Nylon Flange Lock Nut

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

10

712-0417A - HEX NUT

712-0417A - HEX NUT

Part Number: 712-0417A

In stock

$6.50 Inc. GST

11

712-04217 - Flange Lock Nut, 3/8-16

712-04217 - Flange Lock Nut, 3/8-16

Part Number: 712-04217

In stock

$3.75 Inc. GST

12

714-05005 - Bow-Tie Cotter Pin

714-05005 - Bow-Tie Cotter Pin

Part Number: 714-05005

In stock

$4.24 Inc. GST

13

720-05075 - VINYL CAP

720-05075 - VINYL CAP

Part Number: 720-05075

In stock

$3.66 Inc. GST

14

726-0299 - Push Cap

726-0299 - Push Cap

Part Number: 726-0299

In stock

$7.03 Inc. GST

15

728-05016 - NUT RIVET 3/8-16

728-05016 - NUT RIVET 3/8-16

Part Number: 728-05016

In stock

$5.23 Inc. GST

16

731-05679B - Front Roller

731-05679B - Front Roller

Part Number: 731-05679B

In stock

$15.80 Inc. GST

17

731-09968 - Belt Cover, RH

731-09968 - Belt Cover, RH

Part Number: 731-09968

In stock

$25.19 Inc. GST

18

731-09969A - SPINDLE COVER (LH)

731-09969A - SPINDLE COVER (LH)

Part Number: 731-09969A

In stock

$24.94 Inc. GST

19

732-05242A - LIFT ASSIST SPRING (LARGE)

732-05242A - LIFT ASSIST SPRING (LARGE)

Part Number: 732-05242A

In stock

$19.33 Inc. GST

20

732-05360A - SPRING 1.25" DIA X 8.5" LONG

732-05360A - SPRING 1.25" DIA X 8.5" LONG

Part Number: 732-05360A

In stock

$30.00 Inc. GST

21

738-04502 - Shdr. Screw, .50 x 1/4-20

738-04502 - Shdr. Screw, .50 x 1/4-20

Part Number: 738-04502

In stock

$3.75 Inc. GST

22

738-05082 - Shoulder Spacer, .970 x .190

738-05082 - Shoulder Spacer, .970 x .190

Part Number: 738-05082

In stock

$7.32 Inc. GST

24

747-05608 - Rod, Deck Spring Hook

747-05608 - Rod, Deck Spring Hook

Part Number: 747-05608

In stock

$2.94 Inc. GST

25

748-05037B - SHOULDER SPACER

748-05037B - SHOULDER SPACER

Part Number: 748-05037B

In stock

$4.64 Inc. GST

27

756-05034A - IDLER PULLEY 4.50" DIA

756-05034A - IDLER PULLEY 4.50" DIA

Part Number: 756-05034A

In stock

$40.14 Inc. GST

29

783-08389 - Pulley Cap

783-08389 - Pulley Cap

Part Number: 783-08389

In stock

$5.23 Inc. GST

28

783E08309B - IDLER PIVOT BRACKET

783E08309B - IDLER PIVOT BRACKET

Part Number: 783E08309B

In stock

$36.90 Inc. GST

1

918-06981 - SPINDLE ASSEMBLY

918-06981 - SPINDLE ASSEMBLY

Part Number: 918-06981

In stock

$137.52 Inc. GST

23

942-05052A - 17.27" BLADE (2N1)

942-05052A - 17.27" BLADE (2N1)

Part Number: 942-05052A

In stock

$26.85 Inc. GST

26

954-04077A - Belt (Deck)

954-04077A - Belt (Deck)

Part Number: 954-04077A

In stock

$76.31 Inc. GST

2

983-05103C - 50" DECK SHELL

983-05103C - 50" DECK SHELL

Part Number: 983-05103C

In stock

$767.15 Inc. GST
