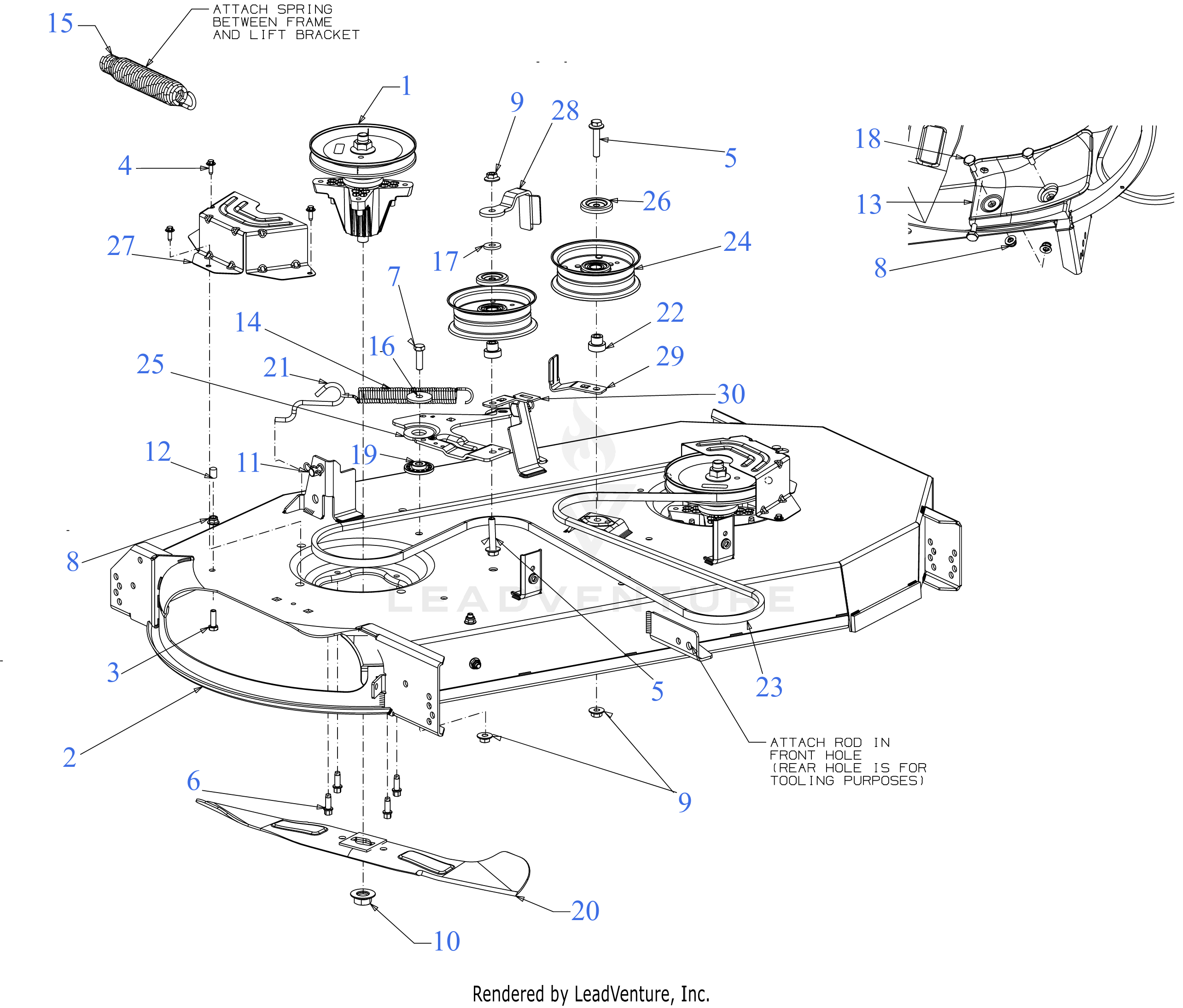

XT2-LX46 KH (13AZA4TN330) (2022) Deck

Specifications

Brand Cub Cadet

Engine Cub Cadet OHV 9Q78HW

Engine Oil Type SAE 5W 30 SYN

Engine Oil Capacity 60 oz

Deck Size 46-Inch

Manual 769-25738

Downloads

Operators Manual

Categories

30 parts

1

618P09258 - SPINDLE ASSEMBLY (6.93 DIA)

618P09258 - SPINDLE ASSEMBLY (6.93 DIA)

Part Number: 618P09258

In stock

$122.95 Inc. GST

3

710-0376 - Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

710-0376 - Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

Part Number: 710-0376

In stock

$3.66 Inc. GST

4

710-06133 - Screw, M6-1 x .625

710-06133 - Screw, M6-1 x .625

Part Number: 710-06133

In stock

$3.08 Inc. GST

5

710-06178 - SCREW 3/8-16 x 2.0

710-06178 - SCREW 3/8-16 x 2.0

Part Number: 710-06178

In stock

$5.52 Inc. GST

6

710-06322 - SCREW 5/16-18 X .875

710-06322 - SCREW 5/16-18 X .875

Part Number: 710-06322

In stock

$4.55 Inc. GST

7

710-3005 - Hex Cap Screw 3/8-16 x 1.25

710-3005 - Hex Cap Screw 3/8-16 x 1.25

Part Number: 710-3005

In stock

$3.61 Inc. GST

8

712-04063 - 5/16-18 Nylon Flange Lock Nut

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

9

712-04217 - Flange Lock Nut, 3/8-16

712-04217 - Flange Lock Nut, 3/8-16

Part Number: 712-04217

In stock

$3.75 Inc. GST

10

712-07050 - HEX FLANGE NUT 5/8-18 GR5

712-07050 - HEX FLANGE NUT 5/8-18 GR5

Part Number: 712-07050

In stock

$5.16 Inc. GST

11

714-05005 - Bow-Tie Cotter Pin

714-05005 - Bow-Tie Cotter Pin

Part Number: 714-05005

In stock

$4.24 Inc. GST

12

720-05010 - Cap, .290 x .500

720-05010 - Cap, .290 x .500

Part Number: 720-05010

In stock

$3.70 Inc. GST

13

731-10629A - DISCHARGE BAFFLE

731-10629A - DISCHARGE BAFFLE

Part Number: 731-10629A

In stock

$18.25 Inc. GST

14

732-04960 - Hook Ext. Spring, .94 x 7.57 x .14

732-04960 - Hook Ext. Spring, .94 x 7.57 x .14

Part Number: 732-04960

In stock

$13.05 Inc. GST

15

732-05242C - LIFT ASSIST SPRING (LARGE)

732-05242C - LIFT ASSIST SPRING (LARGE)

Part Number: 732-05242C

In stock

$19.33 Inc. GST

16

736-0227 - Washer, Flat, .390 X 1.50 X .134 Thk

736-0227 - Washer, Flat, .390 X 1.50 X .134 Thk

Part Number: 736-0227

In stock

$5.78 Inc. GST

17

736-0258 - Fl-Wash. 3/8" I.D.

736-0258 - Fl-Wash. 3/8" I.D.

Part Number: 736-0258

In stock

$3.93 Inc. GST

19

738-05099 - SHOULDER SPACER

738-05099 - SHOULDER SPACER

Part Number: 738-05099

In stock

$6.47 Inc. GST

20

742P05510 - 23.25" BLADE (2IN1) (S MOUNT)

742P05510 - 23.25" BLADE (2IN1) (S MOUNT)

Part Number: 742P05510

In stock

$33.39 Inc. GST

21

747-05608A - DECK SPRING HOOK

747-05608A - DECK SPRING HOOK

Part Number: 747-05608A

In stock

$2.94 Inc. GST

22

748-05029A - Shoulder Spacer, Idler

748-05029A - Shoulder Spacer, Idler

Part Number: 748-05029A

In stock

$4.19 Inc. GST

24

756-05034A - IDLER PULLEY 4.50" DIA

756-05034A - IDLER PULLEY 4.50" DIA

Part Number: 756-05034A

In stock

$40.14 Inc. GST

25

783-08284A - IDLER PIVOT BRACKET

783-08284A - IDLER PIVOT BRACKET

Part Number: 783-08284A

In stock

$29.56 Inc. GST

26

783-08389 - Pulley Cap

783-08389 - Pulley Cap

Part Number: 783-08389

In stock

$5.23 Inc. GST

27

783-08547 - DECK BELT COVER 46"

783-08547 - DECK BELT COVER 46"

Part Number: 783-08547

In stock

$10.58 Inc. GST

29

783-08690A - BELT KEEPER

783-08690A - BELT KEEPER

Part Number: 783-08690A

In stock

$9.89 Inc. GST

30

783-08867 - BELT KEEPER

783-08867 - BELT KEEPER

Part Number: 783-08867

In stock

$11.94 Inc. GST

28

783E08619A - BELT KEEPER

783E08619A - BELT KEEPER

Part Number: 783E08619A

In stock

$21.88 Inc. GST

18

938-04033 - SHOULDER SCREW

938-04033 - SHOULDER SCREW

Part Number: 938-04033

In stock

$4.38 Inc. GST

23

954-05087A - V-BELT A SEC X108.3LG 46FAB

954-05087A - V-BELT A SEC X108.3LG 46FAB

Part Number: 954-05087A

In stock

$72.07 Inc. GST

2

983-05153A - DECK

983-05153A - DECK

Part Number: 983-05153A

In stock

$1,304.19 Inc. GST
