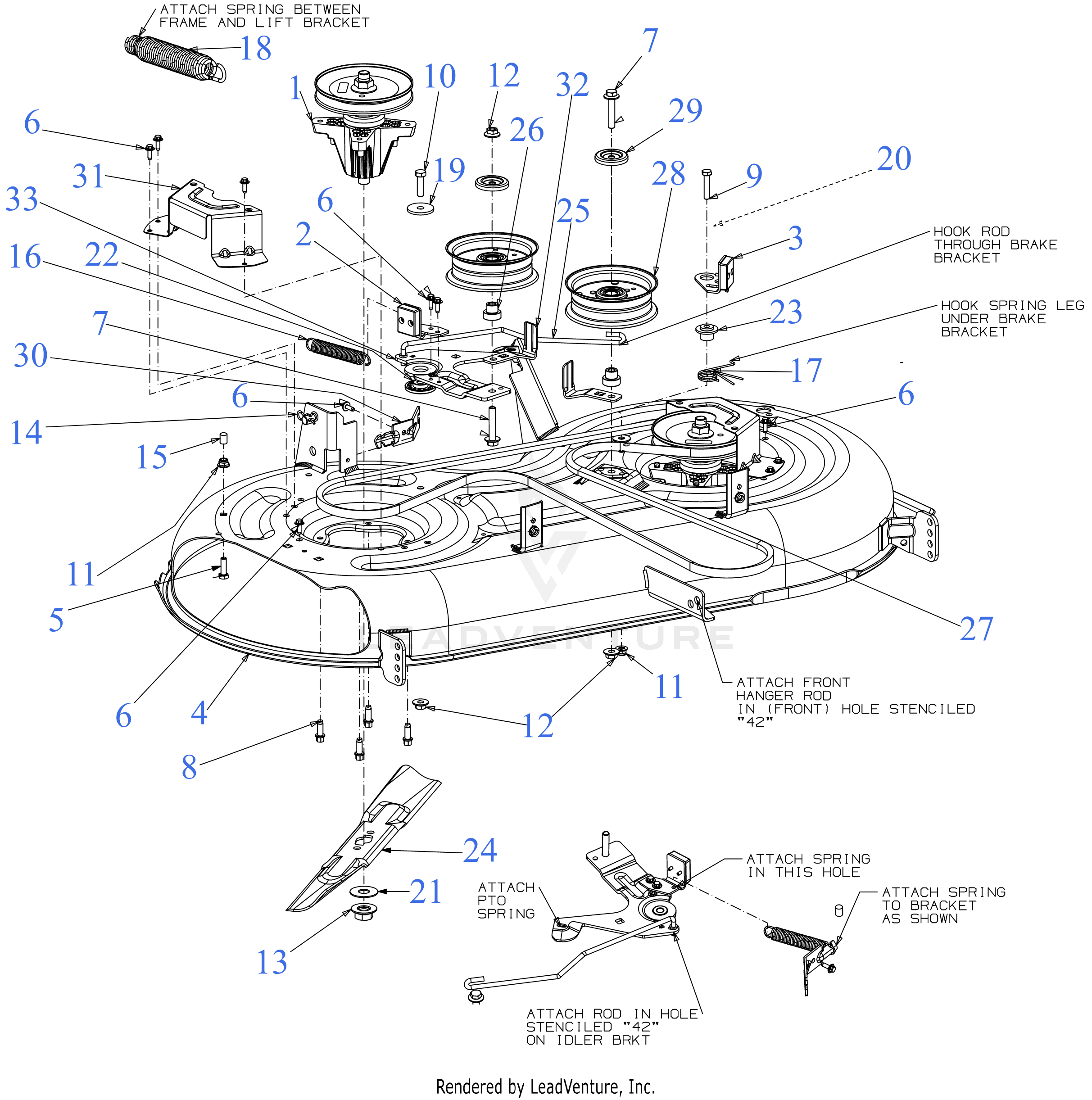

XT1-LT42 (13B6A9TS330) (2024) Deck

Specifications

Brand Cub Cadet

Engine Cub CAdet OHV AX90HUC

Engine Oil Type SAE 5W 30 SYN

Engine Oil Capacity 56 oz

Deck Size 42-Inch

Manual 769-26860

Downloads

Operators Manual

Categories

33 parts

1

618P09259 - SPINDLE ASSEMBLY (6.3 DIA)

618P09259 - SPINDLE ASSEMBLY (6.3 DIA)

Part Number: 618P09259

In stock

$122.95 Inc. GST

4

683P05654 - 42" DECK SHELL (2W)

683P05654 - 42" DECK SHELL (2W)

Part Number: 683P05654

In stock

$671.17 Inc. GST

5

710-0376 - Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

710-0376 - Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

Part Number: 710-0376

In stock

$3.66 Inc. GST

6

710-06133 - Screw, M6-1 x .625

710-06133 - Screw, M6-1 x .625

Part Number: 710-06133

In stock

$3.08 Inc. GST

7

710-06178 - SCREW 3/8-16 x 2.0

710-06178 - SCREW 3/8-16 x 2.0

Part Number: 710-06178

In stock

$5.52 Inc. GST

8

710-06322 - SCREW 5/16-18 X .875

710-06322 - SCREW 5/16-18 X .875

Part Number: 710-06322

In stock

$4.55 Inc. GST

9

710-0805A - Hex Cap Screw, 5/16-18 x 1.50

710-0805A - Hex Cap Screw, 5/16-18 x 1.50

Part Number: 710-0805A

In stock

$3.75 Inc. GST

10

710-3005 - Hex Cap Screw 3/8-16 x 1.25

710-3005 - Hex Cap Screw 3/8-16 x 1.25

Part Number: 710-3005

In stock

$3.61 Inc. GST

11

712-04063 - 5/16-18 Nylon Flange Lock Nut

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

12

712-04217 - Flange Lock Nut, 3/8-16

712-04217 - Flange Lock Nut, 3/8-16

Part Number: 712-04217

In stock

$3.75 Inc. GST

13

712-07050 - HEX FLANGE NUT 5/8-18 GR5

712-07050 - HEX FLANGE NUT 5/8-18 GR5

Part Number: 712-07050

In stock

$5.16 Inc. GST

14

714-05005 - Bow-Tie Cotter Pin

714-05005 - Bow-Tie Cotter Pin

Part Number: 714-05005

In stock

$4.24 Inc. GST

15

720-05010 - Cap, .290 x .500

720-05010 - Cap, .290 x .500

Part Number: 720-05010

In stock

$3.70 Inc. GST

16

732-04629 - Extension Spring, .75 x 4.280

732-04629 - Extension Spring, .75 x 4.280

Part Number: 732-04629

In stock

$25.15 Inc. GST

17

732-05151A - TORSION SPRING

732-05151A - TORSION SPRING

Part Number: 732-05151A

In stock

$3.70 Inc. GST

18

732-05241A - LIFT ASSIST SPRING (SMALL)

732-05241A - LIFT ASSIST SPRING (SMALL)

Part Number: 732-05241A

In stock

$18.42 Inc. GST

19

736-0227 - Washer, Flat, .390 X 1.50 X .134 Thk

736-0227 - Washer, Flat, .390 X 1.50 X .134 Thk

Part Number: 736-0227

In stock

$5.78 Inc. GST

20

736-3078 - Fl-Wash. .34" I.D. x 1" O.D.

736-3078 - Fl-Wash. .34" I.D. x 1" O.D.

Part Number: 736-3078

In stock

$3.95 Inc. GST

21

736-3088 - Fl-Wash. .635" I.D.

736-3088 - Fl-Wash. .635" I.D.

Part Number: 736-3088

In stock

$3.90 Inc. GST

22

738-05099 - SHOULDER SPACER

738-05099 - SHOULDER SPACER

Part Number: 738-05099

In stock

$6.47 Inc. GST

23

738-05272 - DOUBLE SHOULDER SPACER .750 x .135

738-05272 - DOUBLE SHOULDER SPACER .750 x .135

Part Number: 738-05272

In stock

$6.24 Inc. GST

24

742P05177 - 21.23" BLADE (2IN1) (S MOUNT)

742P05177 - 21.23" BLADE (2IN1) (S MOUNT)

Part Number: 742P05177

In stock

$29.15 Inc. GST

25

747-06452 - DECK BRAKE ROD

747-06452 - DECK BRAKE ROD

Part Number: 747-06452

In stock

$12.90 Inc. GST

26

748-05029A - Shoulder Spacer, Idler

748-05029A - Shoulder Spacer, Idler

Part Number: 748-05029A

In stock

$4.19 Inc. GST

28

756-05034A - IDLER PULLEY 4.50" DIA

756-05034A - IDLER PULLEY 4.50" DIA

Part Number: 756-05034A

In stock

$40.14 Inc. GST

29

783-08389 - Pulley Cap

783-08389 - Pulley Cap

Part Number: 783-08389

In stock

$5.23 Inc. GST

30

783-08406-0637 - ENGAGEMENT CABLE BRACKET

783-08406-0637 - ENGAGEMENT CABLE BRACKET

Part Number: 783-08406-0637

In stock

$8.29 Inc. GST

31

783-08510A - DECK BELT COVER

783-08510A - DECK BELT COVER

Part Number: 783-08510A

In stock

$11.70 Inc. GST

32

783-08690A - BELT KEEPER

783-08690A - BELT KEEPER

Part Number: 783-08690A

In stock

$9.89 Inc. GST

33

783E08863A - 42" IDLER BRACKET PIVOT 42"

783E08863A - 42" IDLER BRACKET PIVOT 42"

Part Number: 783E08863A

In stock

$25.71 Inc. GST

27

954-05021 - Belt

954-05021 - Belt

Part Number: 954-05021

In stock

$46.63 Inc. GST

2

983-05182A - DECK BRAKE ASSEMBLY (RH)

983-05182A - DECK BRAKE ASSEMBLY (RH)

Part Number: 983-05182A

In stock

$87.42 Inc. GST

3

983-05396 - DECK BRAKE ASSEMBLY

983-05396 - DECK BRAKE ASSEMBLY

Part Number: 983-05396

In stock

$88.32 Inc. GST
