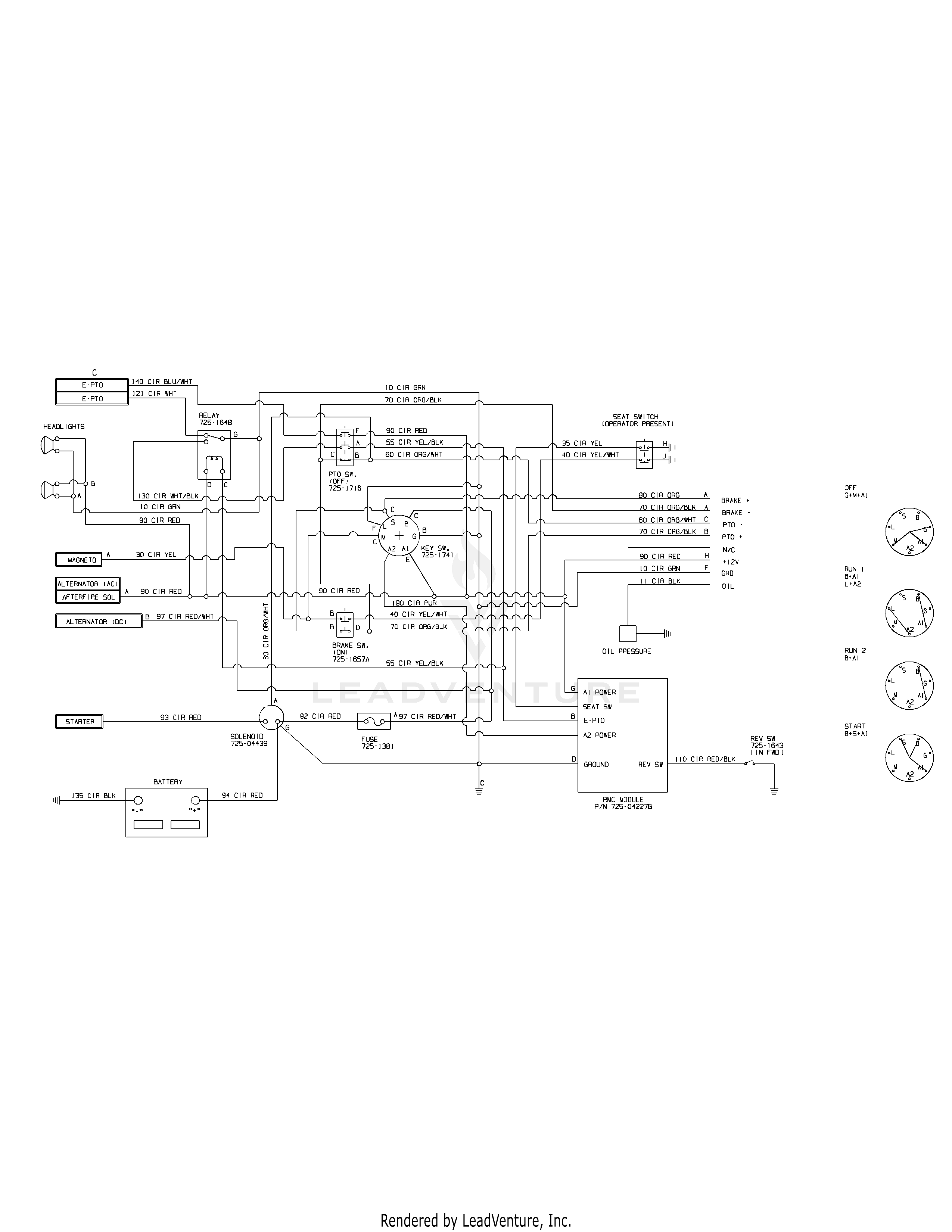

SLTX1054 (13AQ92AK330) (2009) Wire Diagram

Specifications
Brand Cub Cadet
Engine Kohler SV730-0039
Engine Oil Type SAE 10W30
Engine Oil Capacity 64 oz
Deck Size 54-Inch
Manual 769-04407A
IPL Manual 769-04804
Downloads
Manual
Categories
Drive System Engine Accessories Frame, Battery & PTO Hood & Dash Assembly Label Map SLTX1054 Mower Deck 54-Inch Seat, Fender & Deck Lift Steering & Front Axle Assembly Wire Diagram
0 parts

No parts were found for this diagram.
