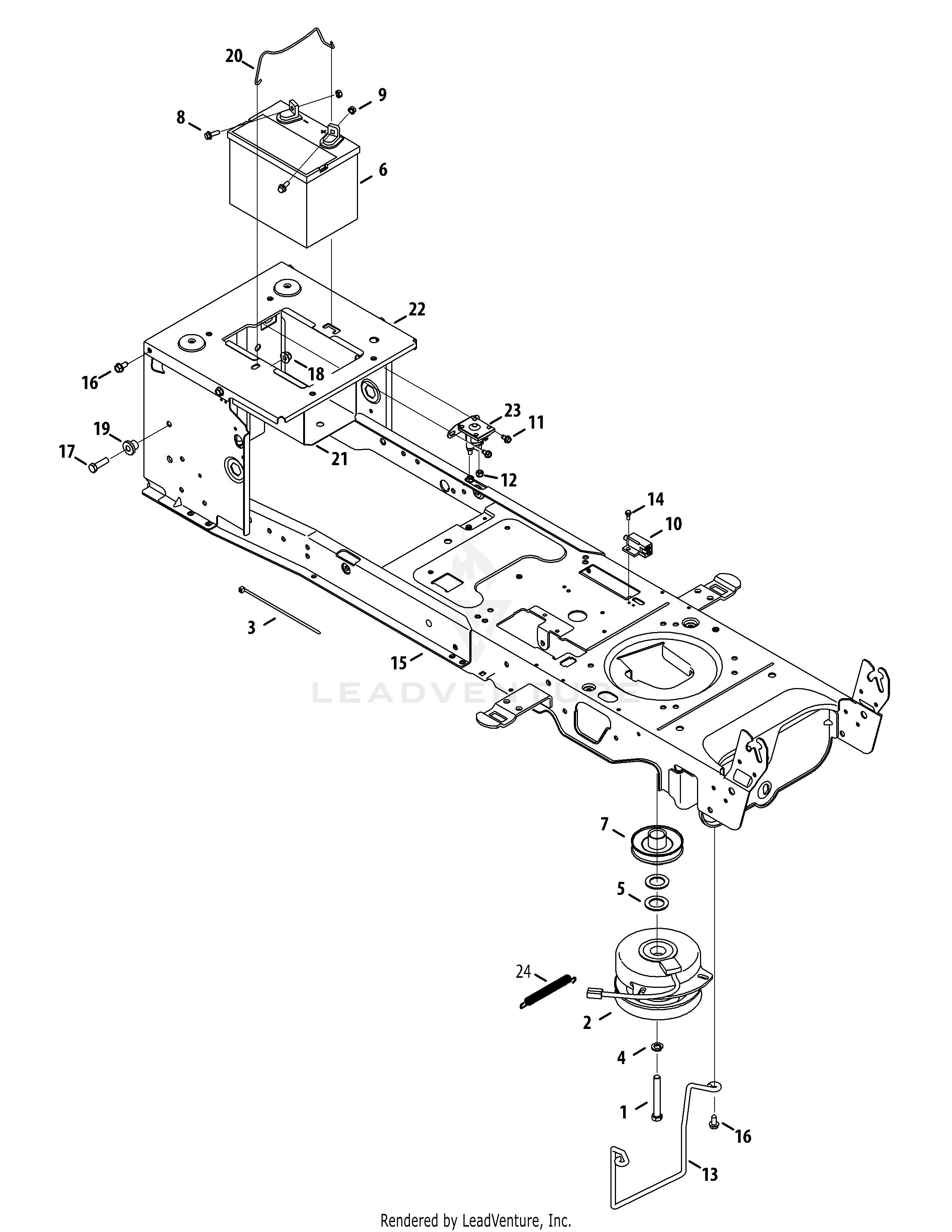

LTX1050 (13AP91AP330) (2011) Frame, Electrical & PTO

Specifications

Brand Cub Cadet

Engine Kohler SV720-3042

Engine Oil Type SAE 10W30

Engine Oil Capacity 64 oz

Deck Size 50-Inch

Manual 769-04407B

IPL Manual 769-06725

Downloads

Categories

Drive System

Engine Accessories

Frame, Electrical & PTO

Front & Rear Wheels

Fuel Tank, Hood & Dash

Hydrostatic Transmission

Mower Deck 50-Inch

Seat, Fender & Lift

24 parts

15

683-04469B - LOWER FRAME ASSEMBLY

683-04469B - LOWER FRAME ASSEMBLY

Part Number: 683-04469B

Out of stock

Enquire for price

1

710-04379A - Screw, Hex Cap, Lock, 7/16-20 x 3.5 GR5

710-04379A - Screw, Hex Cap, Lock, 7/16-20 x 3.5 GR5

Part Number: 710-04379A

In stock

$5.35 Inc. GST

16

710-04484 - SCREW 5/16-18 x .750

710-04484 - SCREW 5/16-18 x .750

Part Number: 710-04484

In stock

$3.19 Inc. GST

8

710-04666 - Hex Flange Screw, 1/4-20, .75, Gr5

710-04666 - Hex Flange Screw, 1/4-20, .75, Gr5

Part Number: 710-04666

In stock

$6.04 Inc. GST

11

710-0653 - Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

710-0653 - Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

Part Number: 710-0653

In stock

$3.78 Inc. GST

17

710-3005 - Hex Cap Screw 3/8-16 x 1.25

710-3005 - Hex Cap Screw 3/8-16 x 1.25

Part Number: 710-3005

In stock

$3.61 Inc. GST

9

712-0271 - Hex Sems Nut 1/4-20 Thd

712-0271 - Hex Sems Nut 1/4-20 Thd

Part Number: 712-0271

In stock

$3.78 Inc. GST

12

712-04064 - Nut, Hx Insert Flange Lk, 1/4-20

712-04064 - Nut, Hx Insert Flange Lk, 1/4-20

Part Number: 712-04064

In stock

$3.64 Inc. GST

18

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

3

725-0157 - Cable Tie

725-0157 - Cable Tie

Part Number: 725-0157

In stock

$3.46 Inc. GST

10

725-04363 - Switch, Interlock

725-04363 - Switch, Interlock

Part Number: 725-04363

In stock

$13.25 Inc. GST

23

725-04439 - Solenoid

725-04439 - Solenoid

Part Number: 725-04439

In stock

$35.10 Inc. GST

24

732-0814 - Spr, Extn, .56 Dia X 5.52

732-0814 - Spr, Extn, .56 Dia X 5.52

Part Number: 732-0814

In stock

$7.29 Inc. GST

4

736-0171 - L-Wash. 7/16n l.D.

736-0171 - L-Wash. 7/16n l.D.

Part Number: 736-0171

In stock

$3.86 Inc. GST

5

736-0277 - Washer, Flat, 1.031 x 1.62 x .095

736-0277 - Washer, Flat, 1.031 x 1.62 x .095

Part Number: 736-0277

In stock

$3.90 Inc. GST

19

738-04058 - Shoulder Spacer

738-04058 - Shoulder Spacer

Part Number: 738-04058

In stock

$3.86 Inc. GST

14

738-04237A - Screw, Shoulder, #10-32, .50

738-04237A - Screw, Shoulder, #10-32, .50

Part Number: 738-04237A

In stock

$5.30 Inc. GST

20

747-04121A - Battery Hold-Down Rod

747-04121A - Battery Hold-Down Rod

Part Number: 747-04121A

In stock

$5.52 Inc. GST

13

747-05171 - Rod, Keeper

747-05171 - Rod, Keeper

Part Number: 747-05171

In stock

$28.39 Inc. GST

7

756-0978B - Engine Pulley, Electric PTO

756-0978B - Engine Pulley, Electric PTO

Part Number: 756-0978B

In stock

$58.13 Inc. GST

21

783-0349 - BATTERY TRAY

783-0349 - BATTERY TRAY

Part Number: 783-0349

Out of stock

Enquire for price

22

783-06089 - SEAT FRAME BRACKET

783-06089 - SEAT FRAME BRACKET

Part Number: 783-06089

Out of stock

Enquire for price

2

917-04174A - P.T.O. Clutch

917-04174A - P.T.O. Clutch

Part Number: 917-04174A

In stock

$596.44 Inc. GST

6

925-1707D - BATTERY

925-1707D - BATTERY

Part Number: 925-1707D

Out of stock

Enquire for price
