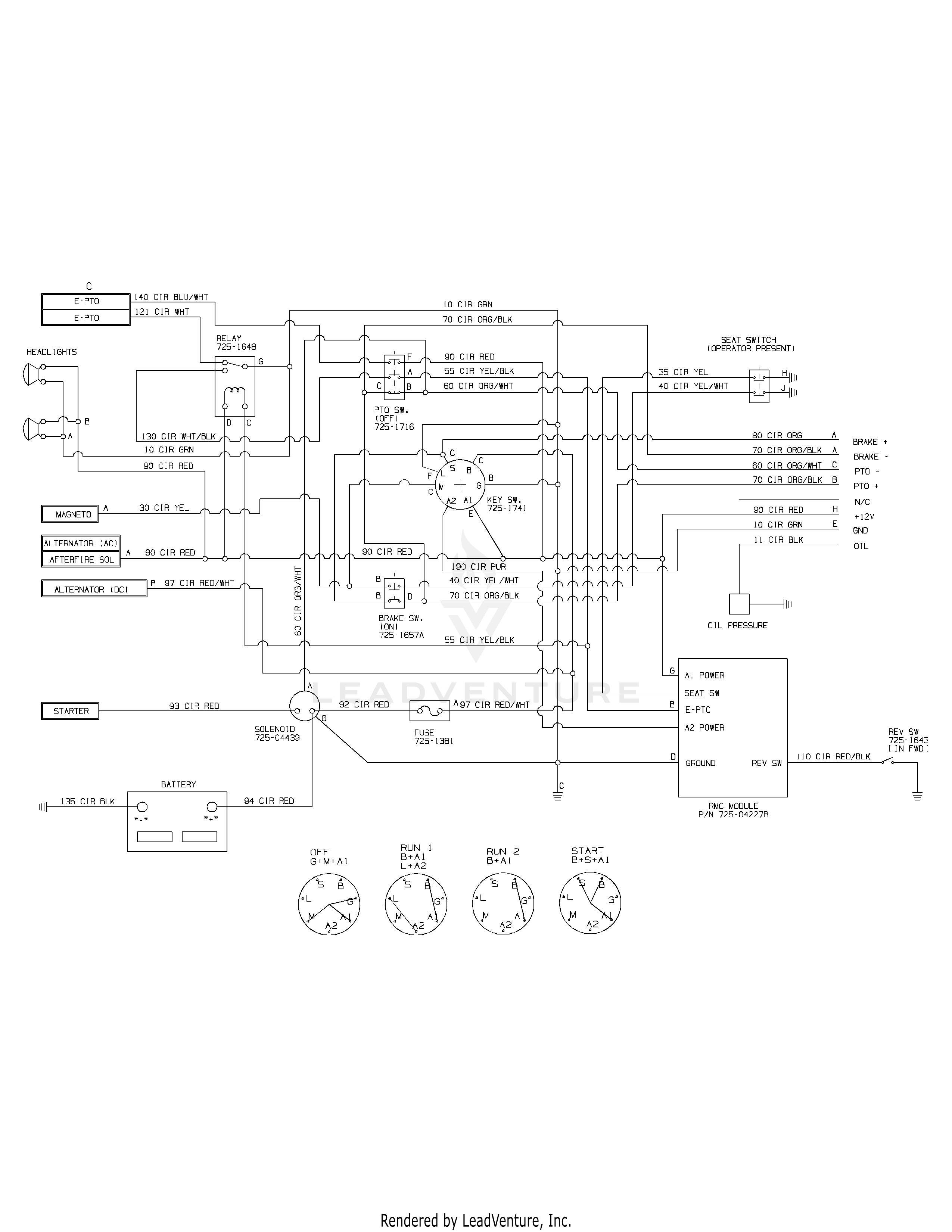

LTX1042 (13AP91AS330) (2012) Electrical Schematic

Specifications
Brand Cub Cadet
Engine Kohler SV710-30331
Engine Oil Type SAE 10W30
Engine Oil Capacity 64 oz
Deck Size 42-Inch
Manual 769-04407C
IPL Manual 769-07488
Downloads
Manual
Categories
Drive System (Hydro Gear) Electrical Schematic Engine Accessories (Kohler Twin) Frame, Electrical & PTO Front & Rear Wheels Fuel Tank, Hood & Dash Hydrostatic Transmission (Hydro-Gear 311-0510) Label Map Mower Deck Seat, Fender & Lift Steering
0 parts

No parts were found for this diagram.
