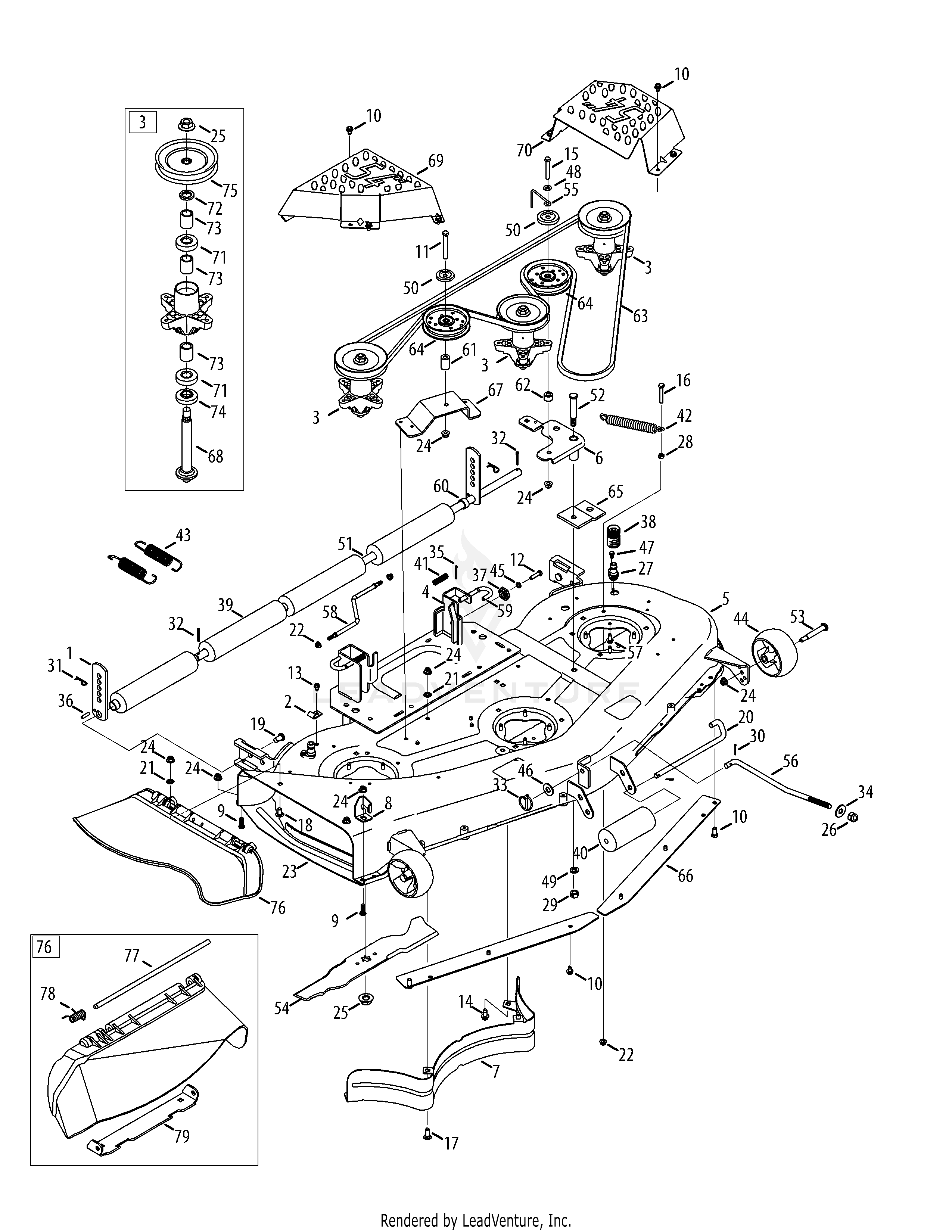

GTX1054 Tractor (14AZ94AK330) (2013) Mower Deck 54-Inch

Specifications

Brand Cub Cadet

Engine Kohler SV740-3028

Engine Oil Type SAE 10W30

Engine Oil Capacity 64 oz

Deck Size 54-Inch

Manual 769-04407C

IPL Manual 769-08878

Downloads

Manual

12650 - Height Adjust Bracket

Part Number: 12650

In stock

$31.14 Inc. GST

631-04092B - Discharge Chute Ass’y

Part Number: 631-04092B

In stock

$52.87 Inc. GST

683-0254B-4021 - DECK HANGER BRACKET ASSEMBLY (LH) (CUB YELLOW 2)

Part Number: 683-0254B-4021

Out of stock

$41.32 Inc. GST

683-0459-0637 - Idler Assembly

Part Number: 683-0459-0637

In stock

$65.55 Inc. GST

703-2093C-0637 - Inner Baffle

Part Number: 703-2093C-0637

In stock

$84.77 Inc. GST

703-3279-4021 - Stop, Chute, Deflector

Part Number: 703-3279-4021

In stock

$35.25 Inc. GST

703-3511B-0637 - Finger Guard

Part Number: 703-3511B-0637

In stock

$61.47 Inc. GST

710-04095 - Hex Cap Screw, 3/8-16, 1.00

Part Number: 710-04095

In stock

$4.39 Inc. GST

710-04484 - SCREW 5/16-18 x .750

Part Number: 710-04484

In stock

$3.19 Inc. GST

710-0521 - SCREW-HEX 3/8-16 X 3.00

Part Number: 710-0521

In stock

$4.54 Inc. GST

710-0528 - Screw, Hex Cap, 5/16-18 X 1.25 Lg

Part Number: 710-0528

In stock

$3.90 Inc. GST

710-0599 - Hex Wash. TT-Tap Scr. 1/4-20 x 5" Lg.

Part Number: 710-0599

In stock

$3.86 Inc. GST

710-0623 - Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

Part Number: 710-0623

In stock

$3.93 Inc. GST

710-0859 - Hex Cap Screw, 3/8-16 x 2.5

Part Number: 710-0859

In stock

$5.99 Inc. GST

710-1260A - Self Tapping Screw, 5/16-18 x .75

Part Number: 710-1260A

In stock

$3.34 Inc. GST

710-3103 - Hex Cap Screw 5/16-18 x 2.0

Part Number: 710-3103

In stock

$4.02 Inc. GST

710-3168 - Carriage Bolt 3/8-16 x 1" Lg. (Gr. 5)

Part Number: 710-3168

In stock

$3.61 Inc. GST

710-3178 - CARRIAGE BOLT 3/8-16 x .75

Part Number: 710-3178

In stock

$3.93 Inc. GST

711-04565 - Pin, Hinge, .3175 Dia. x 14.06 ,1

Part Number: 711-04565

In stock

$13.59 Inc. GST

712-0229 - Push Nut, Retainer, 3/8 ID

Part Number: 712-0229

In stock

$3.14 Inc. GST

712-04063 - 5/16-18 Nylon Flange Lock Nut

Part Number: 712-04063

In stock

$3.56 Inc. GST

712-04065 - Nut, Hx. Insert Flange Lck, 3/8-16 GRF

Part Number: 712-04065

In stock

$3.68 Inc. GST

712-0417A - HEX NUT

Part Number: 712-0417A

In stock

$6.50 Inc. GST

712-04243 - Flex Lock Nut, 1/2-13

Part Number: 712-04243

In stock

$3.52 Inc. GST

712-3022 - Hex Cent. L-Nut 1/2-13 Thd. (Gr. 5)

Part Number: 712-3022

In stock

$3.61 Inc. GST

714-0162 - Pin, Cot, 5/32, 1.25

Part Number: 714-0162

In stock

$4.29 Inc. GST

715-0108 - Pin, Spiral Spring, 1/4 Dia X 1.0

Part Number: 715-0108

In stock

$4.38 Inc. GST

731-0335 - Deck Roller

Part Number: 731-0335

In stock

$63.49 Inc. GST

731-05679 - Front Roller

Part Number: 731-05679

In stock

$15.80 Inc. GST

731-07487 - Deck Wash Nozzle

Part Number: 731-07487

In stock

$3.86 Inc. GST

732-04372 - Spring, Torsion, .44 I.D. x 2.0,

Part Number: 732-04372

In stock

$8.93 Inc. GST

732-04652 - Spring, Compr’, .535 OD x 1.751

Part Number: 732-04652

In stock

$5.88 Inc. GST

732-04692 - Extension Spring, .85 OD x 5.915 LG

Part Number: 732-04692

In stock

$8.33 Inc. GST

732-0934 - Lift-assist Spring, 1.15 x 5.99

Part Number: 732-0934

In stock

$10.43 Inc. GST

734-04155 - Deck Wheels

Part Number: 734-04155

In stock

$19.04 Inc. GST

736-0317 - Bell-Wash. .630" I.D. x 1.25"

Part Number: 736-0317

In stock

$6.99 Inc. GST

738-0295 - Shaft, .750 x .47.12

Part Number: 738-0295

In stock

$109.39 Inc. GST

738-1197 - Spindle Shaft, 6.95 LG

Part Number: 738-1197

In stock

$36.67 Inc. GST

738-1229A - Shield Screw, .625 x 2.50:1/2-13

Part Number: 738-1229A

In stock

$11.65 Inc. GST

747-04938 - Belt Keeper Rod

Part Number: 747-04938

In stock

$7.00 Inc. GST

747-05141A - Deck Lift Rod

Part Number: 747-05141A

In stock

$19.44 Inc. GST

747-05462 - Anti-Sway Deck Rod

Part Number: 747-05462

In stock

$29.83 Inc. GST

747-1116 - Deck Release Pin

Part Number: 747-1116

In stock

$11.17 Inc. GST

748-0160A - Spacer, .79 ID x 1.25 OD x .175

Part Number: 748-0160A

In stock

$5.87 Inc. GST

750-04597 - SPACER:.380 x .900

Part Number: 750-04597

Out of stock

Enquire for price

750-0933 - SPACER

Part Number: 750-0933

Out of stock

Enquire for price

750-1000 - Spacer, .80 x 1.10 x 1.330

Part Number: 750-1000

In stock

$3.90 Inc. GST

750-1349A - Spacer, .79 x 1.82 x .55

Part Number: 750-1349A

In stock

$12.22 Inc. GST

753-04070 - Pin, Lynch, .1875

Part Number: 753-04070

In stock

$8.64 Inc. GST

756-04129B - Idler Pulley

Part Number: 756-04129B

In stock

$33.06 Inc. GST

756-04216 - Pulley, Deck, 5.39 Dia.

Part Number: 756-04216

In stock

$29.13 Inc. GST

783-04013A-0637 - Pulley Stabilizer Bracket

Part Number: 783-04013A-0637

In stock

$20.51 Inc. GST

783-04690B - Deck Skirt

Part Number: 783-04690B

In stock

$32.33 Inc. GST

783-04726-0637 - Stationary Idler Bracket

Part Number: 783-04726-0637

In stock

$32.33 Inc. GST

783-05030 - Bracket, Chute 50/54"

Part Number: 783-05030

In stock

$25.57 Inc. GST

783-07236 - Pulley Cap

Part Number: 783-07236

In stock

$4.64 Inc. GST

783-1470A-4021 - RH Spindle Cover

Part Number: 783-1470A-4021

In stock

$94.35 Inc. GST

783-1471A-4021 - LH Spindle Cover

Part Number: 783-1471A-4021

In stock

$70.63 Inc. GST

911-0332 - Clevis Pin, .50 x .78

Part Number: 911-0332

In stock

$14.98 Inc. GST

911-3314 - Pin, Roller, 1/2 Dia x 7.31 Lg

Part Number: 911-3314

In stock

$22.55 Inc. GST

912-3010 - Nut, Hex, 5/16-18 GR5

Part Number: 912-3010

In stock

$3.89 Inc. GST

914-0111 - PIN, 3/32 x 1-1/8 C-Z COTTER

Part Number: 914-0111

In stock

$4.20 Inc. GST

914-0145 - Intern. Cotter Pin 3/8 Dia.

Part Number: 914-0145

In stock

$4.42 Inc. GST

914-0470 - Cotter Pin, 1/8 x 1.25

Part Number: 914-0470

In stock

$3.90 Inc. GST

917-04074 - Gear: Deck Adjustment

Part Number: 917-04074

In stock

$11.45 Inc. GST

918-04608A - Deck Spindles

Part Number: 918-04608A

In stock

$142.94 Inc. GST

921-04041 - Water Nozzle Adapter

Part Number: 921-04041

In stock

$20.19 Inc. GST

936-0119 - Washer, Lock, 5/16

Part Number: 936-0119

In stock

$4.29 Inc. GST

936-0179 - Washer, Flat, .531 x 1.25 x .100

Part Number: 936-0179

In stock

$4.02 Inc. GST

936-0300 - Flat Washer, .406 x .875 x .059

Part Number: 936-0300

In stock

$3.93 Inc. GST

936-0921 - Washer, Lock, 1/2

Part Number: 936-0921

In stock

$3.90 Inc. GST

938-3056 - Bolt, Shoulder, 1/2 x 2.5

Part Number: 938-3056

In stock

$8.53 Inc. GST

941-0919A - Bearing, Ball, .787id x 1.85 Od x .551

Part Number: 941-0919A

In stock

$18.90 Inc. GST

942-0677B - Blades

Part Number: 942-0677B

In stock

$28.62 Inc. GST

950-0212 - Spacer, .82 ID x 1.00 OD x .53

Part Number: 950-0212

In stock

$9.97 Inc. GST

954-04083 - PTO/Deck Spindle Belt

Part Number: 954-04083

In stock

$84.08 Inc. GST

96606 - Retainer Hook

Part Number: 96606

In stock

$6.71 Inc. GST

983-04652A-4021 - 54" DECK SHELL

Part Number: 983-04652A-4021

Out of stock

$911.62 Inc. GST
