BC70M0 196cc Engine
BC70M0 General Assembly

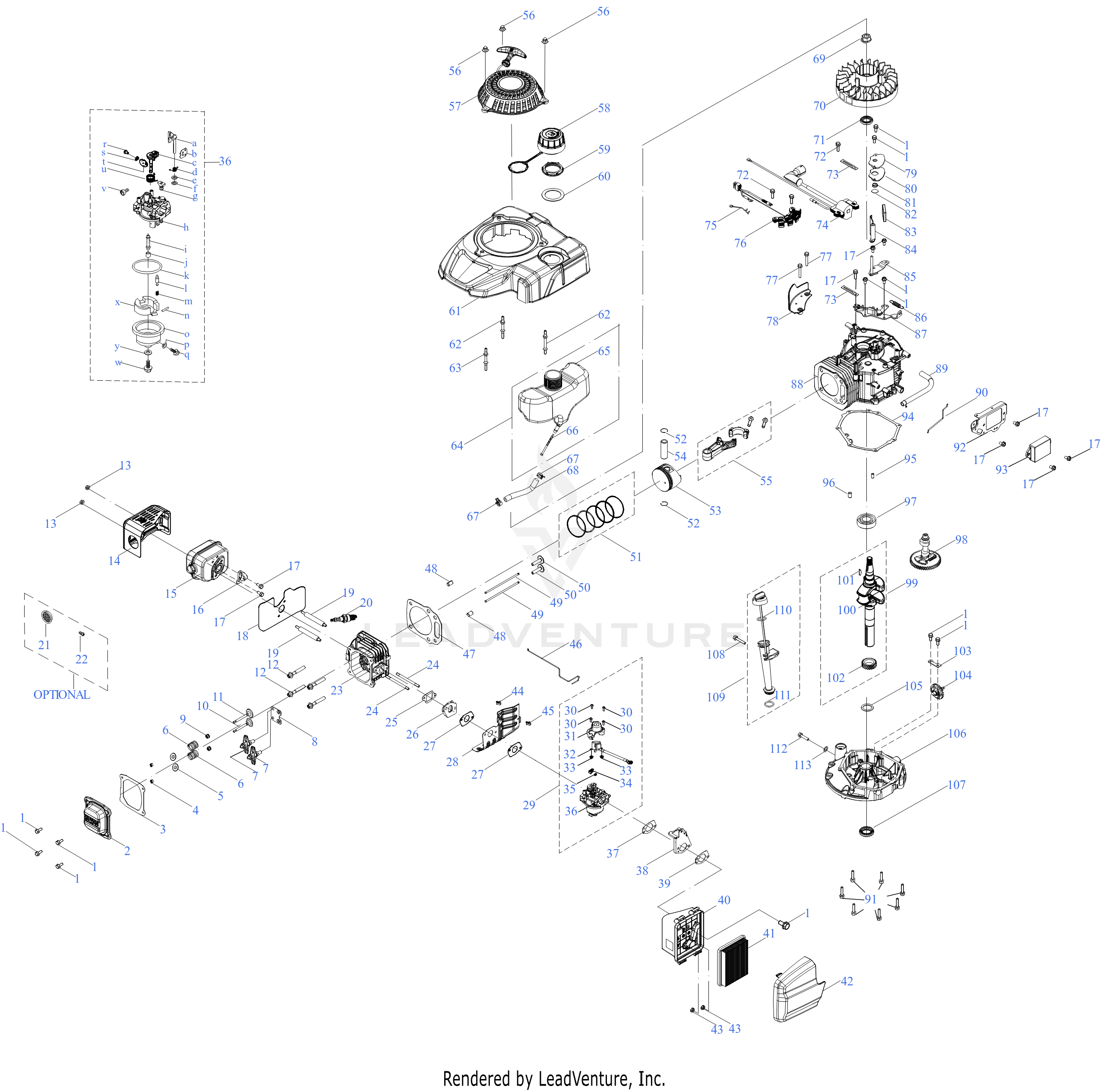

BC70M0 196cc Engine BC70M0 General Assembly

608P05002 - FUEL BOWL

Part Number: 608P05002

In stock

$4.92 Inc. GST

631P06879 - ENGINE SHROUD

Part Number: 631P06879

In stock

$16.02 Inc. GST

651-05539A - CONNECTING ROD

Part Number: 651-05539A

In stock

$24.48 Inc. GST

651-08781 - CRANKSHAFT

Part Number: 651-08781

In stock

$47.99 Inc. GST

109

651-08782 - DIPSTICK

Part Number: 651-08782

In stock

$4.23 Inc. GST

651-08908 - CARBURETOR ASSEMBLY

Part Number: 651-08908

In stock

$128.99 Inc. GST

651-08909 - CARBURETOR (COMPLETE)

Part Number: 651-08909

In stock

$174.49 Inc. GST

708-06067 - CONTROL MODULE BRACKET

Part Number: 708-06067

In stock

$6.03 Inc. GST

708P05018 - THROTTLE PLATE

Part Number: 708P05018

In stock

$2.45 Inc. GST

112

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04916 - Bolt M6×14

Part Number: 710-04916

In stock

$3.86 Inc. GST

710-04918 - Bolt M6×20

Part Number: 710-04918

In stock

$3.56 Inc. GST

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04943 - Bolt M6×28

Part Number: 710-04943

In stock

$3.76 Inc. GST

108

710-04980 - Bolt M6X35

Part Number: 710-04980

In stock

$3.42 Inc. GST

710-04983 - Spark Arrestor Screw

Part Number: 710-04983

In stock

$3.65 Inc. GST

710-05094 - Muffler Stud M6x95

Part Number: 710-05094

In stock

$3.78 Inc. GST

710-05268 - SCREW M4-0.7x10

Part Number: 710-05268

In stock

$1.92 Inc. GST

710-06200 - SCREW M8 x 54 GR10

Part Number: 710-06200

In stock

$5.59 Inc. GST

710-06226 - FUEL BOWL BOLT

Part Number: 710-06226

In stock

$2.98 Inc. GST

710-06227 - FUEL DRAIN PLUG

Part Number: 710-06227

In stock

$2.98 Inc. GST

710-06230 - SCREW-3Mx6

Part Number: 710-06230

In stock

$2.98 Inc. GST

710P06038A - SPEED IDLE SCREW

Part Number: 710P06038A

In stock

$2.45 Inc. GST

711P06053A - FLOAT PIN

Part Number: 711P06053A

In stock

$2.45 Inc. GST

711P06281A - CHOKE SHAFT

Part Number: 711P06281A

In stock

$2.45 Inc. GST

712-04276A - ACORN NUT M6-1

Part Number: 712-04276A

In stock

$5.38 Inc. GST

712-04287A - FLYWHEEL NUT M14-1.5

Part Number: 712-04287A

In stock

$5.33 Inc. GST

712-05015 - Nut M6

Part Number: 712-05015

In stock

$5.78 Inc. GST

712-05056 - FLANGE NUT M4-0.8

Part Number: 712-05056

In stock

$2.15 Inc. GST

712-05071 - NUT HEX M6-1

Part Number: 712-05071

In stock

$1.70 Inc. GST

715-04092A - DOWEL PIN 7 X 14

Part Number: 715-04092A

In stock

$2.97 Inc. GST

715-04096A - DOWEL PIN 9 X 14

Part Number: 715-04096A

In stock

$3.66 Inc. GST

715P04090A - PIN (10MMx16MM)

Part Number: 715P04090A

In stock

$2.95 Inc. GST

721-04257A - CYLINDER HEAD GASKET

Part Number: 721-04257A

In stock

$12.04 Inc. GST

721-04709A - FLOAT BOWL GASKET

Part Number: 721-04709A

In stock

$2.15 Inc. GST

721-04710A - FLOAT BOWL O-RING

Part Number: 721-04710A

In stock

$2.15 Inc. GST

721P04711A - FUEL DRAIN PLUG GASKET

Part Number: 721P04711A

In stock

$1.48 Inc. GST

721P05941A - CARBURETOR GASKET

Part Number: 721P05941A

In stock

$2.98 Inc. GST

721P05942A - AIR FILTER BRACKET GASKET

Part Number: 721P05942A

In stock

$5.20 Inc. GST

725-12105 - IGNITION COIL

Part Number: 725-12105

In stock

$75.99 Inc. GST

725-17326 - CARB SERVOMOTOR

Part Number: 725-17326

In stock

$8.47 Inc. GST

725-18795 - CONTROL MODULE

Part Number: 725-18795

In stock

$206.99 Inc. GST

725-18812 - ALTERNATOR

Part Number: 725-18812

In stock

$76.99 Inc. GST

731P19431 - THROTTLE MOTOR COVER

Part Number: 731P19431

In stock

$5.29 Inc. GST

731P19432 - CARBURETOR DAMPER

Part Number: 731P19432

In stock

$5.29 Inc. GST

731P24131 - WIRE SUPPORT CLAMP

Part Number: 731P24131

In stock

$2.45 Inc. GST

732-04718A - BREATHER VALVE SPRING

Part Number: 732-04718A

In stock

$3.30 Inc. GST

732P05138A - NEEDLE VALVE SPRING

Part Number: 732P05138A

In stock

$2.63 Inc. GST

732P05200A - CHOKE RETURN SPRING

Part Number: 732P05200A

In stock

$2.45 Inc. GST

732P06906 - DAMPER SPRING

Part Number: 732P06906

In stock

$3.95 Inc. GST

735-05202A - FUEL HOSE

Part Number: 735-05202A

In stock

$3.99 Inc. GST

113

736-04440A - FLAT WASHER

Part Number: 736-04440A

In stock

$6.01 Inc. GST

105

736-04491A - THRUST WASHER

Part Number: 736-04491A

In stock

$3.30 Inc. GST

736P05209A - LOCK WASHER 3MM

Part Number: 736P05209A

In stock

$2.45 Inc. GST

106

751-15685A - CRANKCASE COVER

Part Number: 751-15685A

In stock

$77.88 Inc. GST

751-16026A - PUSH ROD

Part Number: 751-16026A

In stock

$6.88 Inc. GST

751-18969A - CHOKE LINKAGE

Part Number: 751-18969A

In stock

Enquire for price

751-19648A - PISTON

Part Number: 751-19648A

In stock

$10.22 Inc. GST

751-22730 - VALVE SPRING

Part Number: 751-22730

In stock

$1.49 Inc. GST

751-22731 - EXHAUST VALVE

Part Number: 751-22731

In stock

$3.70 Inc. GST

751-22732 - INTAKE VALVE

Part Number: 751-22732

In stock

$3.70 Inc. GST

751-22733 - CYLINDER HEAD

Part Number: 751-22733

In stock

$44.51 Inc. GST

751-22734 - PISTON RING SET

Part Number: 751-22734

In stock

$8.49 Inc. GST

100

751-22736 - CRANKSHAFT

Part Number: 751-22736

In stock

$36.99 Inc. GST

751-22737 - CAMSHAFT

Part Number: 751-22737

In stock

$12.99 Inc. GST

751-22934 - CARB HEAT SHIELD

Part Number: 751-22934

In stock

$2.11 Inc. GST

751-22942 - WIRE GUIDE

Part Number: 751-22942

In stock

$1.58 Inc. GST

751-22956 - CRANKCASE

Part Number: 751-22956

In stock

$384.99 Inc. GST

101

751P10307A - WOODRUFF KEY

Part Number: 751P10307A

In stock

$2.01 Inc. GST

751P11369A - BEARING

Part Number: 751P11369A

In stock

$5.19 Inc. GST

751P11633A - PISTON PIN

Part Number: 751P11633A

In stock

$1.53 Inc. GST

751P16830A - VALVE CLIP

Part Number: 751P16830A

In stock

$1.26 Inc. GST

751P16831A - VALVE SPRING SEAT

Part Number: 751P16831A

In stock

$1.86 Inc. GST

751P18586A - VALVE COVER GASKET

Part Number: 751P18586A

In stock

$3.94 Inc. GST

751P18908A - CRANKCASE COVER GASKET

Part Number: 751P18908A

In stock

$6.63 Inc. GST

751P18909A - MUFFLER GASKET

Part Number: 751P18909A

In stock

$5.60 Inc. GST

751P18910A - MUFFLER GASKET

Part Number: 751P18910A

In stock

$4.45 Inc. GST

751P18911 - AIR VANE BRACKET

Part Number: 751P18911

In stock

$5.00 Inc. GST

751P18990 - ENGINE BRAKE

Part Number: 751P18990

In stock

$14.79 Inc. GST

751P19109 - FLYWHEEL

Part Number: 751P19109

In stock

$56.24 Inc. GST

104

751P19129 - GOVERNOR GEAR

Part Number: 751P19129

In stock

$6.16 Inc. GST

102

751P22699 - TIMING GEAR

Part Number: 751P22699

In stock

$5.68 Inc. GST

793P00165A - NEEDLE VALVE

Part Number: 793P00165A

In stock

$4.13 Inc. GST

908-05265 - AIR FILTER BRACKET

Part Number: 908-05265

In stock

$8.03 Inc. GST

110

921-04663A - O-RING

Part Number: 921-04663A

In stock

$5.05 Inc. GST

111

921-04697A - O-RING

Part Number: 921-04697A

In stock

$2.45 Inc. GST

921-04705A - INTAKE VALVE SEAL

Part Number: 921-04705A

In stock

$5.10 Inc. GST

931-10290A - FUEL TANK NUT

Part Number: 931-10290A

In stock

$4.85 Inc. GST

931-10630A - WIRE SUPPORT CLAMP

Part Number: 931-10630A

In stock

$4.75 Inc. GST

931-12771A - FUEL TANK

Part Number: 931-12771A

In stock

$43.89 Inc. GST

931-13118A - AIR FILTER HOUSING BASE

Part Number: 931-13118A

In stock

$11.56 Inc. GST

931-13119A - AIR FILTER COVER

Part Number: 931-13119A

In stock

$10.52 Inc. GST

932-05566A - ENGINE BRAKE SPRING

Part Number: 932-05566A

In stock

$4.19 Inc. GST

951-05360A - RECOIL STARTER ASSEMBLY

Part Number: 951-05360A

In stock

$50.15 Inc. GST

951-10351A - SPARK ARRESTOR

Part Number: 951-10351A

In stock

$48.91 Inc. GST

951-11529A - AIR VANE

Part Number: 951-11529A

In stock

$6.25 Inc. GST

951-11596A - UPPER CRANKSHAFT SEAL

Part Number: 951-11596A

In stock

$5.44 Inc. GST

951-11606A - ROCKER ARM

Part Number: 951-11606A

In stock

$29.12 Inc. GST

103

951-11609A - GOVERNOR GEAR MOUNTING PLATE

Part Number: 951-11609A

In stock

$3.94 Inc. GST

951-11614A - BREATHER VALVE

Part Number: 951-11614A

In stock

$3.13 Inc. GST

951-11622A - FLEXIBLE CLAMP

Part Number: 951-11622A

In stock

$3.42 Inc. GST

951-11632A - PISTON PIN SNAP RING

Part Number: 951-11632A

In stock

$3.53 Inc. GST

951-11700A - CARBURETOR HOSE CLAMP

Part Number: 951-11700A

In stock

$3.60 Inc. GST

951-11730A - BREATHER SCREEN

Part Number: 951-11730A

In stock

$3.84 Inc. GST

951-12296A - FUEL FILTER

Part Number: 951-12296A

In stock

$8.68 Inc. GST

951-14397 - Starter/Shroud Rear Stud M6×78.5

Part Number: 951-14397

In stock

$8.66 Inc. GST

951-14398 - Starter/Shroud Front Stud M6×74

Part Number: 951-14398

In stock

$8.66 Inc. GST

951-14404 - Breather Cover Plate

Part Number: 951-14404

In stock

$12.64 Inc. GST

951-14405A - BREATHER GASKET

Part Number: 951-14405A

In stock

$7.39 Inc. GST

951-14406A - FUEL TANK GROMMET

Part Number: 951-14406A

In stock

$9.68 Inc. GST

951-14419A - AIR FILTER BASE GASKET

Part Number: 951-14419A

In stock

$7.08 Inc. GST

951-14428A - CHOKE TEMP CONTROL THERMOSTAT

Part Number: 951-14428A

In stock

$36.29 Inc. GST

951-14429A - MUFFLER ASSEMBLY

Part Number: 951-14429A

In stock

$55.88 Inc. GST

951-14432A - TAPPET

Part Number: 951-14432A

In stock

$7.49 Inc. GST

951-14437A - SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

Part Number: 951-14437A

In stock

$6.35 Inc. GST

951-14597A - ENGINE BRAKE COVER PLATE

Part Number: 951-14597A

In stock

$7.10 Inc. GST

951-14609A - VALVE COVER

Part Number: 951-14609A

In stock

$14.42 Inc. GST

951-15245 - Air Filter

Part Number: 951-15245

In stock

$13.77 Inc. GST

951-15255A - FUEL CAP W/TETHER

Part Number: 951-15255A

In stock

$23.25 Inc. GST

951-15566A - MUFFLER SHIELD

Part Number: 951-15566A

In stock

$22.71 Inc. GST

951-15580 - Stud, M6x90

Part Number: 951-15580

In stock

$5.25 Inc. GST

951-15671A - CARBURETOR INSULATOR

Part Number: 951-15671A

In stock

$6.68 Inc. GST

951-15678 - BREATHER HOSE ASSEMBLY

Part Number: 951-15678

In stock

$6.85 Inc. GST

951-15679A - CHOKE LINKAGE

Part Number: 951-15679A

In stock

$4.76 Inc. GST

107

951-15686A - LOWER CRANKSHAFT OIL SEAL

Part Number: 951-15686A

In stock

$8.60 Inc. GST

951-16027A - PUSH ROD GUIDE

Part Number: 951-16027A

In stock

$4.25 Inc. GST

NSCO - Not Serviceable/ Components Only

Part Number: NSCO

In stock

Enquire for price
