990-WU 420cc Engine
General Assembly

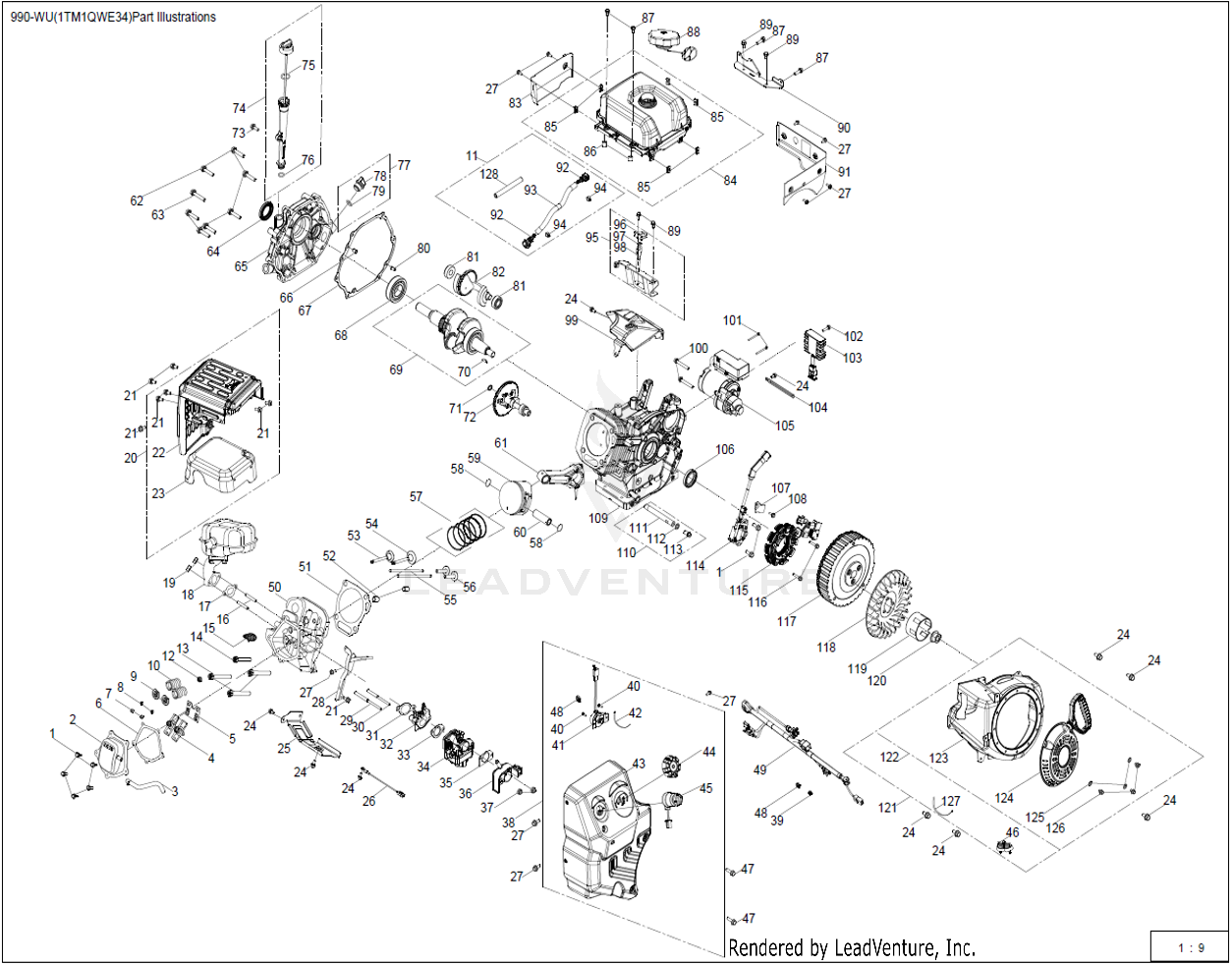

990-WU 420cc Engine General Assembly

651P06335 - FUEL TANK

Part Number: 651P06335

In stock

$238.34 Inc. GST

651P08802 - MUFFLER SHIELD

Part Number: 651P08802

In stock

$42.15 Inc. GST

113

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

710-04914 - Bolt M6×10

Part Number: 710-04914

In stock

$3.71 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04916 - Bolt M6×14

Part Number: 710-04916

In stock

$3.86 Inc. GST

102

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04921 - Bolt M8×14

Part Number: 710-04921

In stock

$4.75 Inc. GST

710-04963 - Stud M6-8×104

Part Number: 710-04963

In stock

$6.07 Inc. GST

710-04964 - Stud M8×48.5

Part Number: 710-04964

In stock

$5.48 Inc. GST

108

710-04966 - Bolt, M6 x 8

Part Number: 710-04966

In stock

$5.30 Inc. GST

100

710-04967 - Bolt M8×55

Part Number: 710-04967

In stock

$5.59 Inc. GST

710-04968 - Bolt, Flange M6 x 16

Part Number: 710-04968

In stock

$5.77 Inc. GST

116

710-04969 - Bolt M6X30

Part Number: 710-04969

In stock

$3.66 Inc. GST

710-05003 - Bolt

Part Number: 710-05003

In stock

$3.11 Inc. GST

710-05192 - SCREW M6-1 x 20 CL5.8

Part Number: 710-05192

In stock

$5.38 Inc. GST

710-06061 - BOLT M8×38

Part Number: 710-06061

In stock

$5.67 Inc. GST

710-06064 - Bolt M10×1.25×87

Part Number: 710-06064

In stock

$5.72 Inc. GST

710-06065 - Bolt M10×1.25×65

Part Number: 710-06065

In stock

$5.53 Inc. GST

710-06289 - BOLT M8×45

Part Number: 710-06289

In stock

$3.89 Inc. GST

126

710-06354 - Bolt, M6?12

Part Number: 710-06354

In stock

$5.73 Inc. GST

710-06537 - BOLT

Part Number: 710-06537

In stock

$3.23 Inc. GST

712-05015 - Nut M6

Part Number: 712-05015

In stock

$5.78 Inc. GST

120

712-05169 - Nut, M16?1.5

Part Number: 712-05169

In stock

$7.30 Inc. GST

715-04096 - Dowel Pin 9×14

Part Number: 715-04096

In stock

$3.66 Inc. GST

715-04097A - DOWEL PIN 12x20

Part Number: 715-04097A

In stock

$4.64 Inc. GST

715-04102 - DOWEL PIN 9×12

Part Number: 715-04102

In stock

$4.93 Inc. GST

723-04071A - FUEL LINE SUPPORT CLAMP

Part Number: 723-04071A

In stock

$2.77 Inc. GST

127

725-06031 - Tape, L=150mm

Part Number: 725-06031

In stock

$2.04 Inc. GST

112

736-04440A - FLAT WASHER

Part Number: 736-04440A

In stock

$6.01 Inc. GST

125

736-04455B - FLAT WASHER

Part Number: 736-04455B

In stock

$5.94 Inc. GST

736-04476 - WASHER 16×24×0.5

Part Number: 736-04476

In stock

$5.01 Inc. GST

751-15427 - Nut, M8

Part Number: 751-15427

In stock

$3.64 Inc. GST

101

751-15472 - SCREW

Part Number: 751-15472

In stock

$4.29 Inc. GST

751-20209 - STUD M6 x 123

Part Number: 751-20209

In stock

$2.45 Inc. GST

751-20216 - SCREW

Part Number: 751-20216

In stock

$2.45 Inc. GST

751-21910 - CABLE TIE

Part Number: 751-21910

In stock

$1.70 Inc. GST

751P10307A - WOODRUFF KEY

Part Number: 751P10307A

In stock

$2.01 Inc. GST

751P15428 - MUFFLER SHIELD (OUTER)

Part Number: 751P15428

In stock

$54.16 Inc. GST

751P15429A - MUFFLER SHIELD (INNER)

Part Number: 751P15429A

In stock

$29.17 Inc. GST

751P15462 - OIL PLUG

Part Number: 751P15462

In stock

$2.47 Inc. GST

751P15813A - CYLINDER HEAD

Part Number: 751P15813A

In stock

$125.53 Inc. GST

751P18286 - SPEED CONTROL KNOB

Part Number: 751P18286

In stock

$4.96 Inc. GST

110

751P19228A - OIL DRAIN PIPE

Part Number: 751P19228A

In stock

$12.19 Inc. GST

751P20068 - KEY SWITCH

Part Number: 751P20068

In stock

$16.15 Inc. GST

751P20188 - BREATHER HOSE

Part Number: 751P20188

In stock

$3.95 Inc. GST

751P20208 - TEMP SENSOR

Part Number: 751P20208

In stock

$12.22 Inc. GST

751P20210 - INSULATOR

Part Number: 751P20210

In stock

$3.53 Inc. GST

751P20211 - CARB GASKET

Part Number: 751P20211

In stock

$4.45 Inc. GST

751P20213 - AIR FILTER GASKET

Part Number: 751P20213

In stock

$4.45 Inc. GST

751P20214 - HEATER BOX

Part Number: 751P20214

In stock

$4.27 Inc. GST

751P20215 - CONTROL PANEL ASSEMBLY

Part Number: 751P20215

In stock

$18.53 Inc. GST

751P20217 - SPEED CONTROL SWITCH

Part Number: 751P20217

In stock

$17.06 Inc. GST

751P20219 - CONTROL PANEL (Plastic Body Only)

Part Number: 751P20219

In stock

$14.49 Inc. GST

751P20248 - CRANKCASE COVER

Part Number: 751P20248

In stock

$56.32 Inc. GST

751P20250 - QUICK DISCONNECT FUEL LINE

Part Number: 751P20250

In stock

$4.75 Inc. GST

751P20251 - FUEL HOSE 8 x 14 x 290

Part Number: 751P20251

In stock

$17.19 Inc. GST

751P20252 - CLAMP

Part Number: 751P20252

In stock

$2.45 Inc. GST

751P20253 - GOVERNOR GEAR BRACKET

Part Number: 751P20253

In stock

$7.36 Inc. GST

103

751P20254 - REGULATOR

Part Number: 751P20254

In stock

$54.59 Inc. GST

114

751P20256B - IGNITION COIL (RUBBER BOOT)

Part Number: 751P20256B

In stock

$33.68 Inc. GST

115

751P20257 - CHARGING COIL

Part Number: 751P20257

In stock

$46.91 Inc. GST

117

751P20258 - FLYWHEEL

Part Number: 751P20258

In stock

$113.87 Inc. GST

122

751P20262 - RECOIL START

Part Number: 751P20262

In stock

$58.97 Inc. GST

123

751P20263 - BLOWER HOUSING

Part Number: 751P20263

In stock

$24.59 Inc. GST

751P20264 - KEY

Part Number: 751P20264

In stock

$3.37 Inc. GST

751P20268 - FUEL LINE ASSEMBLY

Part Number: 751P20268

In stock

$31.06 Inc. GST

751P22715 - WIRE HARNESS

Part Number: 751P22715

In stock

$66.08 Inc. GST

751P22767 - FUEL INJECTOR

Part Number: 751P22767

In stock

$370.32 Inc. GST

751P22769 - HEAD GASKET

Part Number: 751P22769

In stock

$3.40 Inc. GST

109

751P22771 - CRANKCASE

Part Number: 751P22771

In stock

$222.19 Inc. GST

128

751P22772 - PROTECTIVE FOAM TUBE

Part Number: 751P22772

In stock

$2.27 Inc. GST

921-04663A - O-RING

Part Number: 921-04663A

In stock

$5.05 Inc. GST

931-10630A - WIRE SUPPORT CLAMP

Part Number: 931-10630A

In stock

$4.75 Inc. GST

951-05156 - Piston Ring Set

Part Number: 951-05156

In stock

$23.52 Inc. GST

951-05391A - DIPSTICK OIL ASSEMBLY

Part Number: 951-05391A

In stock

$23.25 Inc. GST

951-05392A - OIL DRAIN PLUG

Part Number: 951-05392A

In stock

$6.35 Inc. GST

951-05395 - FUEL TANK MOUNTING BRACKET

Part Number: 951-05395

In stock

$20.39 Inc. GST

124

951-05397A - RECOIL START ASSEMBLY

Part Number: 951-05397A

In stock

$49.96 Inc. GST

951-05407 - CRANKSHAFT ASSEMBLY

Part Number: 951-05407

In stock

$176.98 Inc. GST

951-10292A - Spark Plug/F6Rtc

Part Number: 951-10292A

In stock

$6.35 Inc. GST

107

951-11186 - Alt Wire Clamp Brkt

Part Number: 951-11186

In stock

$4.44 Inc. GST

951-11212A - MUFFLER GASKET

Part Number: 951-11212A

In stock

$4.81 Inc. GST

951-11220 - Valve Cover

Part Number: 951-11220

In stock

$31.06 Inc. GST

118

951-11313A - COOLING FAN

Part Number: 951-11313A

In stock

$44.17 Inc. GST

119

951-11314 - Pulley Starter

Part Number: 951-11314

In stock

$16.55 Inc. GST

951-11317 - AIR SHIELD

Part Number: 951-11317

In stock

$25.21 Inc. GST

111

951-11350 - Oil Drain Pipe Assy.

Part Number: 951-11350

In stock

$7.05 Inc. GST

951-11375A - OIL SEAL

Part Number: 951-11375A

In stock

$13.55 Inc. GST

106

951-11499A - OIL SEAL

Part Number: 951-11499A

In stock

$12.13 Inc. GST

951-11951 - CONNECTING ROD ASSEMBLY

Part Number: 951-11951

In stock

$68.39 Inc. GST

951-11953A - PISTON PIN SNAP RING

Part Number: 951-11953A

In stock

$3.42 Inc. GST

951-11954A - PISTON PIN

Part Number: 951-11954A

In stock

$7.31 Inc. GST

951-11959B - CAMSHAFT

Part Number: 951-11959B

In stock

$59.85 Inc. GST

951-11960A - O-RING

Part Number: 951-11960A

In stock

$3.13 Inc. GST

951-11962A - TAPPET

Part Number: 951-11962A

In stock

$5.88 Inc. GST

951-11964A - INTAKE VALVE SEAL

Part Number: 951-11964A

In stock

$9.96 Inc. GST

951-11965B - PUSH ROD GUIDE

Part Number: 951-11965B

In stock

$5.75 Inc. GST

951-11981A - ROCKER ARM ASSEMBLY

Part Number: 951-11981A

In stock

$35.16 Inc. GST

951-12095 - BALANCEABLE SHAFT ASSY.

Part Number: 951-12095

In stock

$105.41 Inc. GST

951-12269 - Exhaust Valve Adjuster

Part Number: 951-12269

In stock

$5.48 Inc. GST

951-14226A - PUSH ROD

Part Number: 951-14226A

In stock

$9.70 Inc. GST

951-14677 - Piston

Part Number: 951-14677

In stock

$47.15 Inc. GST

951-14911A - VALVE SPRING SEAT

Part Number: 951-14911A

In stock

$4.64 Inc. GST

951-14912A - VALVE CAP

Part Number: 951-14912A

In stock

$3.03 Inc. GST

951-15172A - FUEL CAP

Part Number: 951-15172A

In stock

$15.87 Inc. GST

951-15425 - VALVE COVER GASKET

Part Number: 951-15425

In stock

$9.59 Inc. GST

951-15426A - MUFFLER

Part Number: 951-15426A

In stock

$80.84 Inc. GST

951-15430 - RECOIL SNOW GUARD

Part Number: 951-15430

In stock

$13.06 Inc. GST

951-15434A - CARBURETOR INSULATOR GASKET

Part Number: 951-15434A

In stock

$6.24 Inc. GST

951-15455A - CRANKCASE COVER GASKET

Part Number: 951-15455A

In stock

$12.54 Inc. GST

951-15456 - BALL BEARING

Part Number: 951-15456

In stock

$24.17 Inc. GST

951-15459 - O-RING

Part Number: 951-15459

In stock

$3.56 Inc. GST

951-15463A - BALL BEARING

Part Number: 951-15463A

In stock

$8.86 Inc. GST

951-15464A - FUEL TANK BACK PANEL

Part Number: 951-15464A

In stock

$5.60 Inc. GST

951-15465A - THREADED TAB

Part Number: 951-15465A

In stock

$2.82 Inc. GST

951-15466 - BUSHING

Part Number: 951-15466

In stock

$2.94 Inc. GST

951-15469 - RUBBER GROMMET

Part Number: 951-15469

In stock

$3.38 Inc. GST

951-15470 - RUBBER GROMMET

Part Number: 951-15470

In stock

$3.71 Inc. GST

951-15471 - FUEL TANK MOUNTING BRACKET

Part Number: 951-15471

In stock

$19.19 Inc. GST

951-15474A - FUEL TANK FRONT PANEL

Part Number: 951-15474A

In stock

$10.04 Inc. GST

951-15475 - FUEL TANK BASE BRACKET

Part Number: 951-15475

In stock

$13.41 Inc. GST

105

951-15492 - ELECTRIC STARTER

Part Number: 951-15492

In stock

$386.66 Inc. GST

104

951-15645 - SUPPORT CLAMP

Part Number: 951-15645

In stock

$3.25 Inc. GST

951-15777 - Intake Vavle

Part Number: 951-15777

In stock

$17.52 Inc. GST

951-15812A - SPRING VALVE

Part Number: 951-15812A

In stock

$6.25 Inc. GST

951-15814A - EXHAUST VALVE

Part Number: 951-15814A

In stock

$15.29 Inc. GST

121

NSCO - Not Serviceable/ Components Only

Part Number: NSCO

In stock

Enquire for price
