870-J0 208cc Engine

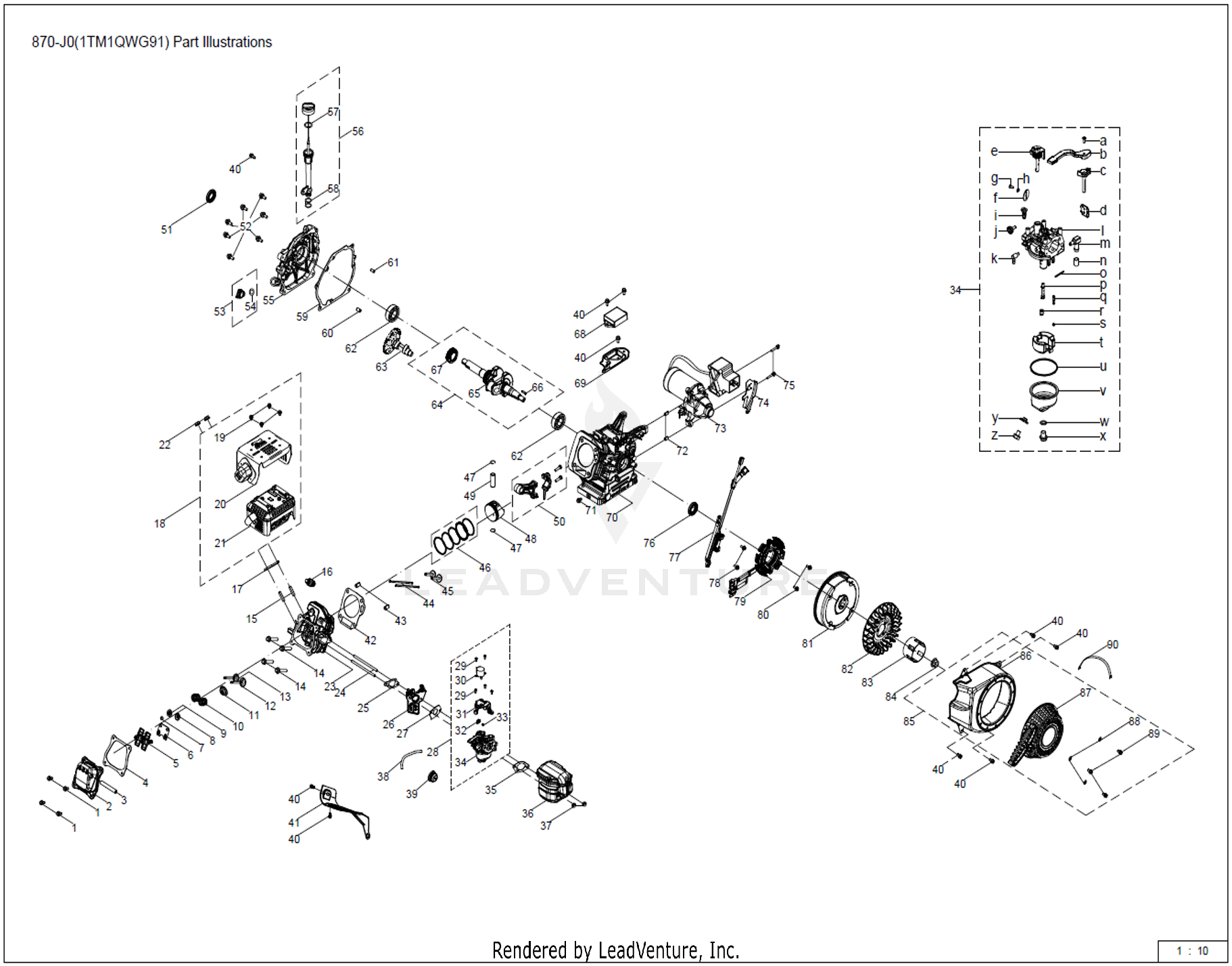

870-J0 General Assembly

870-J0 208cc Engine 870-J0 General Assembly

608P05002 - FUEL BOWL

Part Number: 608P05002

In stock

$4.92 Inc. GST

651P08874 - CARBURETOR

Part Number: 651P08874

In stock

$41.86 Inc. GST

651P08879 - HEATER BOX

Part Number: 651P08879

In stock

$4.76 Inc. GST

651P08880 - CRANKSHAFT (COMPLETE)

Part Number: 651P08880

In stock

$44.51 Inc. GST

651P08881 - CRANKSHAFT

Part Number: 651P08881

In stock

$46.10 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04932A - BOLT M8x32

Part Number: 710-04932A

In stock

$2.97 Inc. GST

710-04933 - Bolt, M8 x 55

Part Number: 710-04933

In stock

$3.42 Inc. GST

710-04938 - FUEL DRAIN PLUG

Part Number: 710-04938

In stock

$3.66 Inc. GST

710-04943 - Bolt M6×28

Part Number: 710-04943

In stock

$3.76 Inc. GST

710-04945 - Fuel Bowl Mounting Bolt

Part Number: 710-04945

In stock

$3.66 Inc. GST

710-04968 - Bolt, Flange M6 x 16

Part Number: 710-04968

In stock

$5.77 Inc. GST

710-05182 - Bolt, M6 x 32

Part Number: 710-05182

In stock

$3.61 Inc. GST

710-06119 - Bolt M5×8

Part Number: 710-06119

In stock

$5.14 Inc. GST

710-06354 - Bolt, M6?12

Part Number: 710-06354

In stock

$5.73 Inc. GST

710-06423 - STUD M6-1 x 98

Part Number: 710-06423

In stock

$4.09 Inc. GST

710-07374 - OIL DRAIN PLUG

Part Number: 710-07374

In stock

$3.00 Inc. GST

710P06038A - SPEED IDLE SCREW

Part Number: 710P06038A

In stock

$2.45 Inc. GST

710P06580 - SCREW M3x 6

Part Number: 710P06580

In stock

$2.77 Inc. GST

711P06053A - FLOAT PIN

Part Number: 711P06053A

In stock

$2.45 Inc. GST

712-04213 - Nut

Part Number: 712-04213

In stock

$5.94 Inc. GST

712-04214 - Nut, M8

Part Number: 712-04214

In stock

$3.86 Inc. GST

712-04287A - FLYWHEEL NUT M14-1.5

Part Number: 712-04287A

In stock

$5.33 Inc. GST

715-04088A - DOWEL PIN

Part Number: 715-04088A

In stock

$2.97 Inc. GST

715-04092A - DOWEL PIN 7 X 14

Part Number: 715-04092A

In stock

$2.97 Inc. GST

715-04096A - DOWEL PIN 9 X 14

Part Number: 715-04096A

In stock

$3.66 Inc. GST

715P04090A - PIN (10MMx16MM)

Part Number: 715P04090A

In stock

$2.95 Inc. GST

725-06031A - CABLE TIE 3x150

Part Number: 725-06031A

In stock

$2.04 Inc. GST

725P12065 - THROTTLE MOTOR

Part Number: 725P12065

In stock

$21.62 Inc. GST

731P19432 - CARBURETOR DAMPER

Part Number: 731P19432

In stock

$5.29 Inc. GST

732P05138A - NEEDLE VALVE SPRING

Part Number: 732P05138A

In stock

$2.63 Inc. GST

732P06906 - DAMPER SPRING

Part Number: 732P06906

In stock

$3.95 Inc. GST

736-04455B - FLAT WASHER

Part Number: 736-04455B

In stock

$5.94 Inc. GST

751-22625 - SCREW M4x8

Part Number: 751-22625

In stock

$1.70 Inc. GST

751P10307A - WOODRUFF KEY

Part Number: 751P10307A

In stock

$2.01 Inc. GST

751P11289A - MUFFLER GASKET

Part Number: 751P11289A

In stock

$1.96 Inc. GST

751P11368A - OIL SEAL

Part Number: 751P11368A

In stock

$2.70 Inc. GST

751P11369A - BEARING

Part Number: 751P11369A

In stock

$5.19 Inc. GST

751P11370A - OIL SEAL

Part Number: 751P11370A

In stock

$2.23 Inc. GST

751P11371B - CRANKCASE GASKET

Part Number: 751P11371B

In stock

$3.07 Inc. GST

751P11565B - VALVE COVER GASKET

Part Number: 751P11565B

In stock

$8.97 Inc. GST

751P11567B - CARBURETOR INSULATOR GASKET

Part Number: 751P11567B

In stock

$1.73 Inc. GST

751P11573A - CONNECTING ROD

Part Number: 751P11573A

In stock

$8.87 Inc. GST

751P11633A - PISTON PIN

Part Number: 751P11633A

In stock

$1.53 Inc. GST

751P11892A - ROCKER ARM KIT

Part Number: 751P11892A

In stock

$2.00 Inc. GST

751P11894A - INTAKE VALVE SEAL

Part Number: 751P11894A

In stock

$2.40 Inc. GST

751P11897B - CARBURETOR GASKET

Part Number: 751P11897B

In stock

$1.61 Inc. GST

751P11899A - TAPPET

Part Number: 751P11899A

In stock

$6.34 Inc. GST

751P12000A - INTAKE VALVE SPRING RETAINER

Part Number: 751P12000A

In stock

$2.15 Inc. GST

751P12002A - EXHAUST VALVE ADJUSTER

Part Number: 751P12002A

In stock

$2.36 Inc. GST

751P12003A - EXHAUST VALVE SPRING RETAINER

Part Number: 751P12003A

In stock

$2.15 Inc. GST

751P12004A - VALVE SPRING

Part Number: 751P12004A

In stock

$1.74 Inc. GST

751P12005A - CARBURETOR GASKET

Part Number: 751P12005A

In stock

$4.89 Inc. GST

751P12111A - PISTON RING SET

Part Number: 751P12111A

In stock

$5.82 Inc. GST

751P14099A - INTAKE VALVE

Part Number: 751P14099A

In stock

$3.53 Inc. GST

751P14100A - EXHAUST VALVE

Part Number: 751P14100A

In stock

$3.43 Inc. GST

751P14102 - CYLINDER HEAD

Part Number: 751P14102

In stock

$39.45 Inc. GST

751P14105A - PUSH ROD

Part Number: 751P14105A

In stock

$2.40 Inc. GST

751P15128A - CAMSHAFT

Part Number: 751P15128A

In stock

$7.27 Inc. GST

751P16487 - LOWER HOUSING

Part Number: 751P16487

In stock

$2.40 Inc. GST

751P17706 - CRANKCASE COVER

Part Number: 751P17706

In stock

$29.04 Inc. GST

751P21968 - VALVE COVER

Part Number: 751P21968

In stock

$5.36 Inc. GST

751P22627 - MOTOR BASE

Part Number: 751P22627

In stock

$4.55 Inc. GST

751P22705 - SWITCH BOX BASE

Part Number: 751P22705

In stock

$5.12 Inc. GST

751P22709 - FLYWHEEL

Part Number: 751P22709

In stock

$70.64 Inc. GST

751P22836 - BREATHER HOSE

Part Number: 751P22836

In stock

$1.58 Inc. GST

751P22845 - SPEED REGULATOR

Part Number: 751P22845

In stock

$51.40 Inc. GST

751P22846 - CRANKCASE

Part Number: 751P22846

In stock

$104.40 Inc. GST

751P22869 - IGNITION MODULE

Part Number: 751P22869

In stock

$176.48 Inc. GST

751P22870 - CHARGING COIL

Part Number: 751P22870

In stock

$16.95 Inc. GST

751P22872 - CHARGING COIL

Part Number: 751P22872

In stock

$33.91 Inc. GST

908-05017 - MUFFLER ASSEMBLY

Part Number: 908-05017

In stock

$63.97 Inc. GST

908-05055 - OUTER MUFFLER SHIELD

Part Number: 908-05055

In stock

$24.17 Inc. GST

910-06299 - STUD

Part Number: 910-06299

In stock

$4.09 Inc. GST

921-04663A - O-RING

Part Number: 921-04663A

In stock

$5.05 Inc. GST

931-09966A - OIL PLUG

Part Number: 931-09966A

In stock

$4.81 Inc. GST

951-05020B - DIPSTICK ASSEMBLY

Part Number: 951-05020B

In stock

$13.22 Inc. GST

951-10292A - Spark Plug/F6Rtc

Part Number: 951-10292A

In stock

$6.35 Inc. GST

951-10639B - PRIMER

Part Number: 951-10639B

In stock

$13.84 Inc. GST

951-10909B - COOLING FAN

Part Number: 951-10909B

In stock

$20.39 Inc. GST

951-11113 - Air Shield

Part Number: 951-11113

In stock

$8.11 Inc. GST

951-11348A - FUEL BOWL GASKET

Part Number: 951-11348A

In stock

$5.07 Inc. GST

951-11349A - FUEL DRAIN PLUG GASKET

Part Number: 951-11349A

In stock

$3.66 Inc. GST

951-11572 - CYLINDER HEAD GASKET

Part Number: 951-11572

In stock

$10.38 Inc. GST

951-11577A - O-RING 15.8 x 2.5

Part Number: 951-11577A

In stock

$2.86 Inc. GST

951-11589A - FUEL BOWL O-RING

Part Number: 951-11589A

In stock

$6.04 Inc. GST

951-11632A - PISTON PIN SNAP RING

Part Number: 951-11632A

In stock

$3.53 Inc. GST

951-12007 - Piston

Part Number: 951-12007

In stock

$31.34 Inc. GST

951-12010A - MUFFLER ASSEMBLY

Part Number: 951-12010A

In stock

$67.45 Inc. GST

951-12397 - Oil Fill Tube O-Ring

Part Number: 951-12397

In stock

$4.39 Inc. GST

951-14795 - FUEL HOSE 3.2X6.5X530

Part Number: 951-14795

In stock

$8.14 Inc. GST

951-14887 - Starter Cup

Part Number: 951-14887

In stock

$12.71 Inc. GST

951-15130A - DRIVE TIMING GEAR

Part Number: 951-15130A

In stock

$10.34 Inc. GST

951-15139 - ROCKER ARM BASE

Part Number: 951-15139

In stock

$5.70 Inc. GST

951-15160 - Insulator

Part Number: 951-15160

In stock

$6.37 Inc. GST

951-15537 - BLOWER HOUSING

Part Number: 951-15537

In stock

$34.93 Inc. GST

951-15594 - RECOIL STARTER HOUSING

Part Number: 951-15594

In stock

$47.07 Inc. GST

NSCO - Not Serviceable/ Components Only

Part Number: NSCO

In stock

Enquire for price

NSOCA - Not Serviceable/ Order Complete Assembly

Part Number: NSOCA

In stock

Enquire for price
