5X70MT 196cc Engine

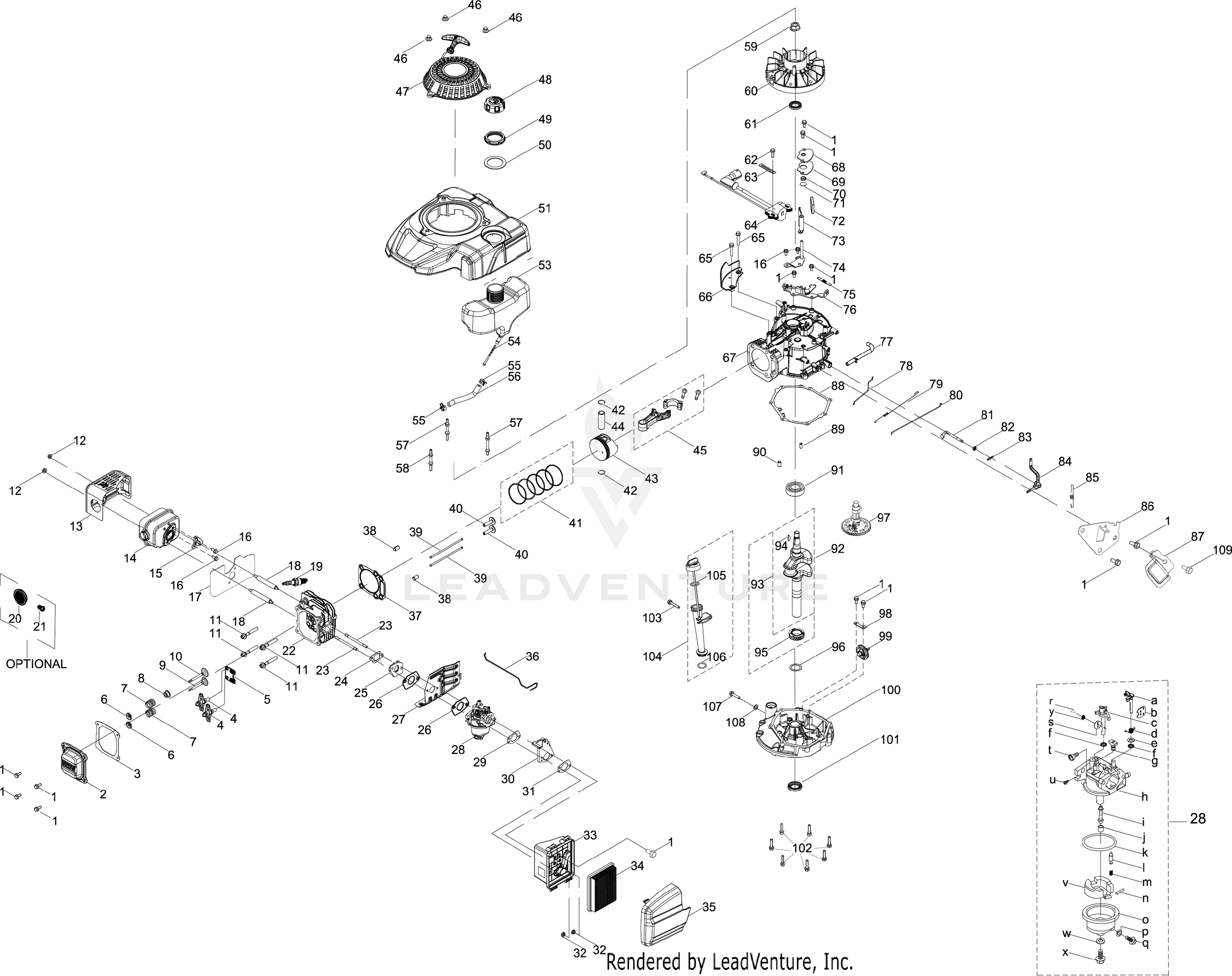

5X70MT General Assembly

5X70MT 196cc Engine 5X70MT General Assembly

631P06879 - ENGINE SHROUD

Part Number: 631P06879

In stock

$16.02 Inc. GST

651P05182 - FUEL CAP ASSEMBLY

Part Number: 651P05182

In stock

$2.60 Inc. GST

651P06795 - CRANKSHAFT

Part Number: 651P06795

In stock

$66.21 Inc. GST

107

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

109

710-04914 - Bolt M6×10

Part Number: 710-04914

In stock

$3.71 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04916 - Bolt M6×14

Part Number: 710-04916

In stock

$3.86 Inc. GST

710-04918 - Bolt M6×20

Part Number: 710-04918

In stock

$3.56 Inc. GST

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04938 - FUEL DRAIN PLUG

Part Number: 710-04938

In stock

$3.66 Inc. GST

102

710-04943 - Bolt M6×28

Part Number: 710-04943

In stock

$3.76 Inc. GST

710-04945 - Fuel Bowl Mounting Bolt

Part Number: 710-04945

In stock

$3.66 Inc. GST

103

710-04980 - Bolt M6X35

Part Number: 710-04980

In stock

$3.42 Inc. GST

710-04983 - Spark Arrestor Screw

Part Number: 710-04983

In stock

$3.65 Inc. GST

710-05094 - Muffler Stud M6x95

Part Number: 710-05094

In stock

$3.78 Inc. GST

710-06200 - SCREW M8 x 54 GR10

Part Number: 710-06200

In stock

$5.59 Inc. GST

710-06230 - SCREW-3Mx6

Part Number: 710-06230

In stock

$2.98 Inc. GST

710P06038A - SPEED IDLE SCREW

Part Number: 710P06038A

In stock

$2.45 Inc. GST

711-06043 - HINGE FLOAT PIN

Part Number: 711-06043

In stock

$0.56 Inc. GST

712-04276A - ACORN NUT M6-1

Part Number: 712-04276A

In stock

$5.38 Inc. GST

712-04287A - FLYWHEEL NUT M14-1.5

Part Number: 712-04287A

In stock

$5.33 Inc. GST

712-05015 - Nut M6

Part Number: 712-05015

In stock

$5.78 Inc. GST

714-04078A - COTTER PIN

Part Number: 714-04078A

In stock

$3.19 Inc. GST

715-04092A - DOWEL PIN 7 X 14

Part Number: 715-04092A

In stock

$2.97 Inc. GST

715-04096A - DOWEL PIN 9 X 14

Part Number: 715-04096A

In stock

$3.66 Inc. GST

715P04090A - PIN (10MMx16MM)

Part Number: 715P04090A

In stock

$2.95 Inc. GST

721P04427A - THROTTLE SHAFT GASKET

Part Number: 721P04427A

In stock

$2.45 Inc. GST

721P05941A - CARBURETOR GASKET

Part Number: 721P05941A

In stock

$2.98 Inc. GST

721P05942A - AIR FILTER BRACKET GASKET

Part Number: 721P05942A

In stock

$5.20 Inc. GST

731P09132A - FLOAT

Part Number: 731P09132A

In stock

$4.45 Inc. GST

731P20471 - FUEL TANK

Part Number: 731P20471

In stock

$10.60 Inc. GST

732-04718A - BREATHER VALVE SPRING

Part Number: 732-04718A

In stock

$3.30 Inc. GST

732P05251 - NEEDLE VALVE SPRING

Part Number: 732P05251

In stock

$1.70 Inc. GST

108

736-04440A - FLAT WASHER

Part Number: 736-04440A

In stock

$6.01 Inc. GST

736-04491A - THRUST WASHER

Part Number: 736-04491A

In stock

$3.30 Inc. GST

736-04556 - Plain Washer 6

Part Number: 736-04556

In stock

$3.56 Inc. GST

736P05209A - LOCK WASHER 3MM

Part Number: 736P05209A

In stock

$2.45 Inc. GST

751-18969A - CHOKE LINKAGE

Part Number: 751-18969A

In stock

Enquire for price

751P10307A - WOODRUFF KEY

Part Number: 751P10307A

In stock

$2.01 Inc. GST

751P11369A - BEARING

Part Number: 751P11369A

In stock

$5.19 Inc. GST

751P11633A - PISTON PIN

Part Number: 751P11633A

In stock

$1.53 Inc. GST

751P12000A - INTAKE VALVE SPRING RETAINER

Part Number: 751P12000A

In stock

$2.15 Inc. GST

751P14099A - INTAKE VALVE

Part Number: 751P14099A

In stock

$3.53 Inc. GST

751P17947 - CRANKCASE

Part Number: 751P17947

In stock

$66.46 Inc. GST

751P18586A - VALVE COVER GASKET

Part Number: 751P18586A

In stock

$3.94 Inc. GST

751P18908A - CRANKCASE COVER GASKET

Part Number: 751P18908A

In stock

$6.63 Inc. GST

751P18909A - MUFFLER GASKET

Part Number: 751P18909A

In stock

$5.60 Inc. GST

751P18910A - MUFFLER GASKET

Part Number: 751P18910A

In stock

$4.45 Inc. GST

751P18911 - AIR VANE BRACKET

Part Number: 751P18911

In stock

$5.00 Inc. GST

751P18912 - CAMSHAFT

Part Number: 751P18912

In stock

$22.84 Inc. GST

751P18913A - HEAT SHIELD

Part Number: 751P18913A

In stock

$4.92 Inc. GST

751P18914 - CRANKSHAFT

Part Number: 751P18914

In stock

$51.61 Inc. GST

793P00129A - IDLE MIXTURE SCREW

Part Number: 793P00129A

In stock

$2.45 Inc. GST

793P00165 - NEEDLE VALVE

Part Number: 793P00165

In stock

$4.13 Inc. GST

908-05001 - FLOAT BOWL

Part Number: 908-05001

In stock

$7.16 Inc. GST

908-05254 - COMPONENT BRACKET

Part Number: 908-05254

In stock

$5.71 Inc. GST

908-05255 - GOVERNOR SHIELD

Part Number: 908-05255

In stock

$4.02 Inc. GST

908-05265 - AIR FILTER BRACKET

Part Number: 908-05265

In stock

$8.03 Inc. GST

921-04237A - INTAKE VALVE SEAL

Part Number: 921-04237A

In stock

$7.20 Inc. GST

921-04257 - CYLINDER HEAD GASKET

Part Number: 921-04257

In stock

$12.04 Inc. GST

106

921-04697A - O-RING

Part Number: 921-04697A

In stock

$2.45 Inc. GST

105

921-04795A - O-RING

Part Number: 921-04795A

In stock

$3.38 Inc. GST

925-07165 - IGNITION COIL ASSEMBLY

Part Number: 925-07165

In stock

$87.72 Inc. GST

931-10290A - FUEL TANK NUT

Part Number: 931-10290A

In stock

$4.85 Inc. GST

931-13118A - AIR FILTER HOUSING BASE

Part Number: 931-13118A

In stock

$11.56 Inc. GST

931-13119A - AIR FILTER COVER

Part Number: 931-13119A

In stock

$10.52 Inc. GST

932-05566A - ENGINE BRAKE SPRING

Part Number: 932-05566A

In stock

$4.19 Inc. GST

935-05202 - FUEL HOSE

Part Number: 935-05202

Out of stock

$3.99 Inc. GST

951-05160A - GOVERNOR ARM ASSEMBLY

Part Number: 951-05160A

In stock

$5.37 Inc. GST

951-05336A - GEAR GOVERNOR

Part Number: 951-05336A

In stock

$7.77 Inc. GST

951-05360A - RECOIL STARTER ASSEMBLY

Part Number: 951-05360A

In stock

$50.15 Inc. GST

951-05530 - ENGINE BRAKE ASSEMBLY

Part Number: 951-05530

In stock

$31.61 Inc. GST

951-05538 - CARBURETOR ASSEMBLY HY-5X70A

Part Number: 951-05538

In stock

$78.50 Inc. GST

951-05539 - CONNECTING ROD ASSEMBLY

Part Number: 951-05539

In stock

$24.48 Inc. GST

104

951-05540A - OIL DIPSTICK

Part Number: 951-05540A

In stock

$17.52 Inc. GST

951-10351A - SPARK ARRESTOR

Part Number: 951-10351A

In stock

$48.91 Inc. GST

951-11258A - THROTTLE SPRING

Part Number: 951-11258A

In stock

$3.81 Inc. GST

951-11349A - FUEL DRAIN PLUG GASKET

Part Number: 951-11349A

In stock

$3.66 Inc. GST

951-11529A - AIR VANE

Part Number: 951-11529A

In stock

$6.25 Inc. GST

951-11589A - FUEL BOWL O-RING

Part Number: 951-11589A

In stock

$6.04 Inc. GST

951-11596A - UPPER CRANKSHAFT SEAL

Part Number: 951-11596A

In stock

$5.44 Inc. GST

951-11606A - ROCKER ARM

Part Number: 951-11606A

In stock

$29.12 Inc. GST

951-11609A - GOVERNOR GEAR MOUNTING PLATE

Part Number: 951-11609A

In stock

$3.94 Inc. GST

951-11614A - BREATHER VALVE

Part Number: 951-11614A

In stock

$3.13 Inc. GST

951-11621 - GOVERNOR ARM SHAFT

Part Number: 951-11621

In stock

$8.68 Inc. GST

951-11622A - FLEXIBLE CLAMP

Part Number: 951-11622A

In stock

$3.42 Inc. GST

951-11632A - PISTON PIN SNAP RING

Part Number: 951-11632A

In stock

$3.53 Inc. GST

951-11700A - CARBURETOR HOSE CLAMP

Part Number: 951-11700A

In stock

$3.60 Inc. GST

951-11730A - BREATHER SCREEN

Part Number: 951-11730A

In stock

$3.84 Inc. GST

951-11902A - OIL SEAL

Part Number: 951-11902A

In stock

$3.36 Inc. GST

951-12116A - VALVE SPRING

Part Number: 951-12116A

In stock

$2.88 Inc. GST

951-12296A - FUEL FILTER

Part Number: 951-12296A

In stock

$8.68 Inc. GST

951-14317 - Piston Ring Set

Part Number: 951-14317

In stock

$23.87 Inc. GST

951-14397 - Starter/Shroud Rear Stud M6×78.5

Part Number: 951-14397

In stock

$8.66 Inc. GST

951-14398 - Starter/Shroud Front Stud M6×74

Part Number: 951-14398

In stock

$8.66 Inc. GST

951-14401A - FLYWHEEL

Part Number: 951-14401A

In stock

$103.19 Inc. GST

951-14404 - Breather Cover Plate

Part Number: 951-14404

In stock

$12.64 Inc. GST

951-14405A - BREATHER GASKET

Part Number: 951-14405A

In stock

$7.39 Inc. GST

951-14406A - FUEL TANK GROMMET

Part Number: 951-14406A

In stock

$9.68 Inc. GST

951-14419A - AIR FILTER BASE GASKET

Part Number: 951-14419A

In stock

$7.08 Inc. GST

951-14428A - CHOKE TEMP CONTROL THERMOSTAT

Part Number: 951-14428A

In stock

$36.29 Inc. GST

951-14429 - Muffler Assembly

Part Number: 951-14429

In stock

$55.88 Inc. GST

951-14432A - TAPPET

Part Number: 951-14432A

In stock

$7.49 Inc. GST

951-14437A - SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

Part Number: 951-14437A

In stock

$6.35 Inc. GST

951-14597 - Engine Brake Cover Plate

Part Number: 951-14597

In stock

$7.10 Inc. GST

951-14609A - VALVE COVER

Part Number: 951-14609A

In stock

$14.42 Inc. GST

951-15130A - DRIVE TIMING GEAR

Part Number: 951-15130A

In stock

$10.34 Inc. GST

951-15245 - Air Filter

Part Number: 951-15245

In stock

$13.77 Inc. GST

951-15566 - MUFFLER SHIELD

Part Number: 951-15566

In stock

$24.41 Inc. GST

951-15580 - Stud, M6x90

Part Number: 951-15580

In stock

$5.25 Inc. GST

951-15669A - EXHAUST VALVE

Part Number: 951-15669A

In stock

$6.21 Inc. GST

951-15671A - CARBURETOR INSULATOR

Part Number: 951-15671A

In stock

$6.68 Inc. GST

951-15675 - PISTON ASSEMBLY

Part Number: 951-15675

In stock

$32.66 Inc. GST

951-15677A - THROTTLE LINKAGE

Part Number: 951-15677A

In stock

$4.61 Inc. GST

951-15678 - BREATHER HOSE ASSEMBLY

Part Number: 951-15678

In stock

$6.85 Inc. GST

951-15679A - CHOKE LINKAGE

Part Number: 951-15679A

In stock

$4.76 Inc. GST

951-15680 - GOVERNOR SPRING

Part Number: 951-15680

In stock

$5.95 Inc. GST

100

951-15685 - CRANKCASE COVER

Part Number: 951-15685

In stock

$77.88 Inc. GST

101

951-15686A - LOWER CRANKSHAFT OIL SEAL

Part Number: 951-15686A

In stock

$8.60 Inc. GST

951-16026 - PUSH ROD

Part Number: 951-16026

In stock

$6.88 Inc. GST

951-16027A - PUSH ROD GUIDE

Part Number: 951-16027A

In stock

$4.25 Inc. GST

951-16028A - CYLINDER HEAD

Part Number: 951-16028A

In stock

$71.09 Inc. GST
