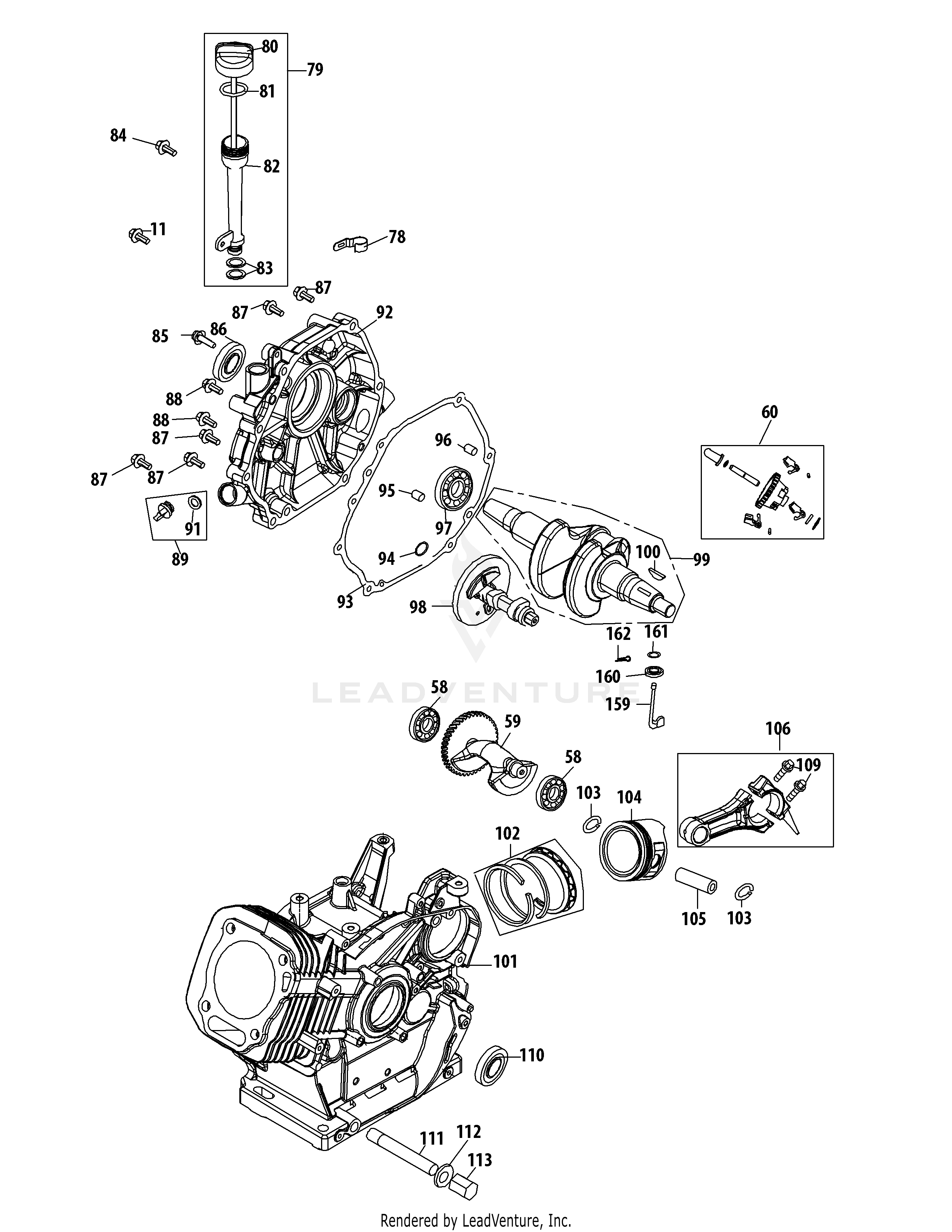

490-SUC Crankcase – KC Equipment

36 parts

79

631-05032A - DIPSTICK ASSEMBLY

631-05032A - DIPSTICK ASSEMBLY

Part Number: 631-05032A

In stock

$25.28 Inc. GST

113

710-04906 - Oil Drain Plug

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

109

710-05319 - CONNECTING ROD BOLT

710-05319 - CONNECTING ROD BOLT

Part Number: 710-05319

In stock

$4.20 Inc. GST

84

710-05349 - BOLT M6-1 x 8 GR8.8

710-05349 - BOLT M6-1 x 8 GR8.8

Part Number: 710-05349

Out of stock

$3.32 Inc. GST

87

710-06061 - BOLT M8×38

710-06061 - BOLT M8×38

Part Number: 710-06061

In stock

$5.67 Inc. GST

88

710-06063 - BOLT M8×35

710-06063 - BOLT M8×35

Part Number: 710-06063

Out of stock

$5.45 Inc. GST

85

710-06289 - BOLT M8×45

710-06289 - BOLT M8×45

Part Number: 710-06289

In stock

$3.89 Inc. GST

96

715-04092 - Dowel Pin 7×14

715-04092 - Dowel Pin 7×14

Part Number: 715-04092

In stock

$3.66 Inc. GST

95

715-04102 - DOWEL PIN 9×12

715-04102 - DOWEL PIN 9×12

Part Number: 715-04102

In stock

$4.93 Inc. GST

80

731-09316 - DIPSTICK

731-09316 - DIPSTICK

Part Number: 731-09316

In stock

$12.65 Inc. GST

82

731-09317 - OIL FILL TUBE

731-09317 - OIL FILL TUBE

Part Number: 731-09317

Out of stock

$11.77 Inc. GST

112

736-04440 - Washer 10×16×1.5

736-04440 - Washer 10×16×1.5

Part Number: 736-04440

In stock

$6.01 Inc. GST

94

736-04476 - WASHER 16×24×0.5

736-04476 - WASHER 16×24×0.5

Part Number: 736-04476

In stock

$5.01 Inc. GST

99

751-14219 - CRANKSHAFT ASSEMBLY

751-14219 - CRANKSHAFT ASSEMBLY

Part Number: 751-14219

Out of stock

Enquire for price

92

751-14220A - CRANKCASE COVER ASSEMBLY

751-14220A - CRANKCASE COVER ASSEMBLY

Part Number: 751-14220A

Out of stock

Enquire for price

101

751-14222 - CRANKCASE COMP.

751-14222 - CRANKCASE COMP.

Part Number: 751-14222

In stock

$343.20 Inc. GST

81

921-04663 - DIPSTICK O-RING

921-04663 - DIPSTICK O-RING

Part Number: 921-04663

In stock

$5.05 Inc. GST

100

951-10307 - Flywheel Key

951-10307 - Flywheel Key

Part Number: 951-10307

In stock

$2.01 Inc. GST

78

951-11320 - OIL TUBE SUPPORT BRACKET

951-11320 - OIL TUBE SUPPORT BRACKET

Part Number: 951-11320

Out of stock

$6.79 Inc. GST

89

951-11345 - OIL FILLER PLUG COMP

951-11345 - OIL FILLER PLUG COMP

Part Number: 951-11345

In stock

$8.82 Inc. GST

111

951-11350 - Oil Drain Pipe Assy.

951-11350 - Oil Drain Pipe Assy.

Part Number: 951-11350

In stock

$7.05 Inc. GST

58

951-11373 - BEARING

951-11373 - BEARING

Part Number: 951-11373

Out of stock

Enquire for price

86

951-11375 - OIL SEAL, 35×52×7

951-11375 - OIL SEAL, 35×52×7

Part Number: 951-11375

In stock

$13.55 Inc. GST

93

951-11376 - CRANKCASE COVER GASKET

951-11376 - CRANKCASE COVER GASKET

Part Number: 951-11376

In stock

$15.93 Inc. GST

83

951-11381 - Oil Fill Tube O-Ring

951-11381 - Oil Fill Tube O-Ring

Part Number: 951-11381

In stock

$4.59 Inc. GST

110

951-11499 - OIL SEAL 35×52×7

951-11499 - OIL SEAL 35×52×7

Part Number: 951-11499

In stock

$12.13 Inc. GST

106

951-11951 - CONNECTING ROD ASSEMBLY

951-11951 - CONNECTING ROD ASSEMBLY

Part Number: 951-11951

In stock

$68.39 Inc. GST

103

951-11953 - PISTON PIN SNAP RING

951-11953 - PISTON PIN SNAP RING

Part Number: 951-11953

In stock

$3.42 Inc. GST

105

951-11954 - PISTON PIN

951-11954 - PISTON PIN

Part Number: 951-11954

In stock

$8.24 Inc. GST

60

951-11956 - GOVERNOR GEAR

951-11956 - GOVERNOR GEAR

Part Number: 951-11956

In stock

$36.12 Inc. GST

98

951-11959A - CAMSHAFT ASSEMBLY

951-11959A - CAMSHAFT ASSEMBLY

Part Number: 951-11959A

In stock

$59.85 Inc. GST

91

951-11960 - O-RING 16×3

951-11960 - O-RING 16×3

Part Number: 951-11960

In stock

$3.78 Inc. GST

97

951-11969 - BEARING, 6207-P6

951-11969 - BEARING, 6207-P6

Part Number: 951-11969

Out of stock

$28.22 Inc. GST

104

951-12092 - PISTON

951-12092 - PISTON

Part Number: 951-12092

In stock

$30.43 Inc. GST

59

951-12095 - BALANCEABLE SHAFT ASSY.

951-12095 - BALANCEABLE SHAFT ASSY.

Part Number: 951-12095

In stock

$105.41 Inc. GST

102

951-12593 - PISTON RING SET

951-12593 - PISTON RING SET

Part Number: 951-12593

In stock

$23.74 Inc. GST
