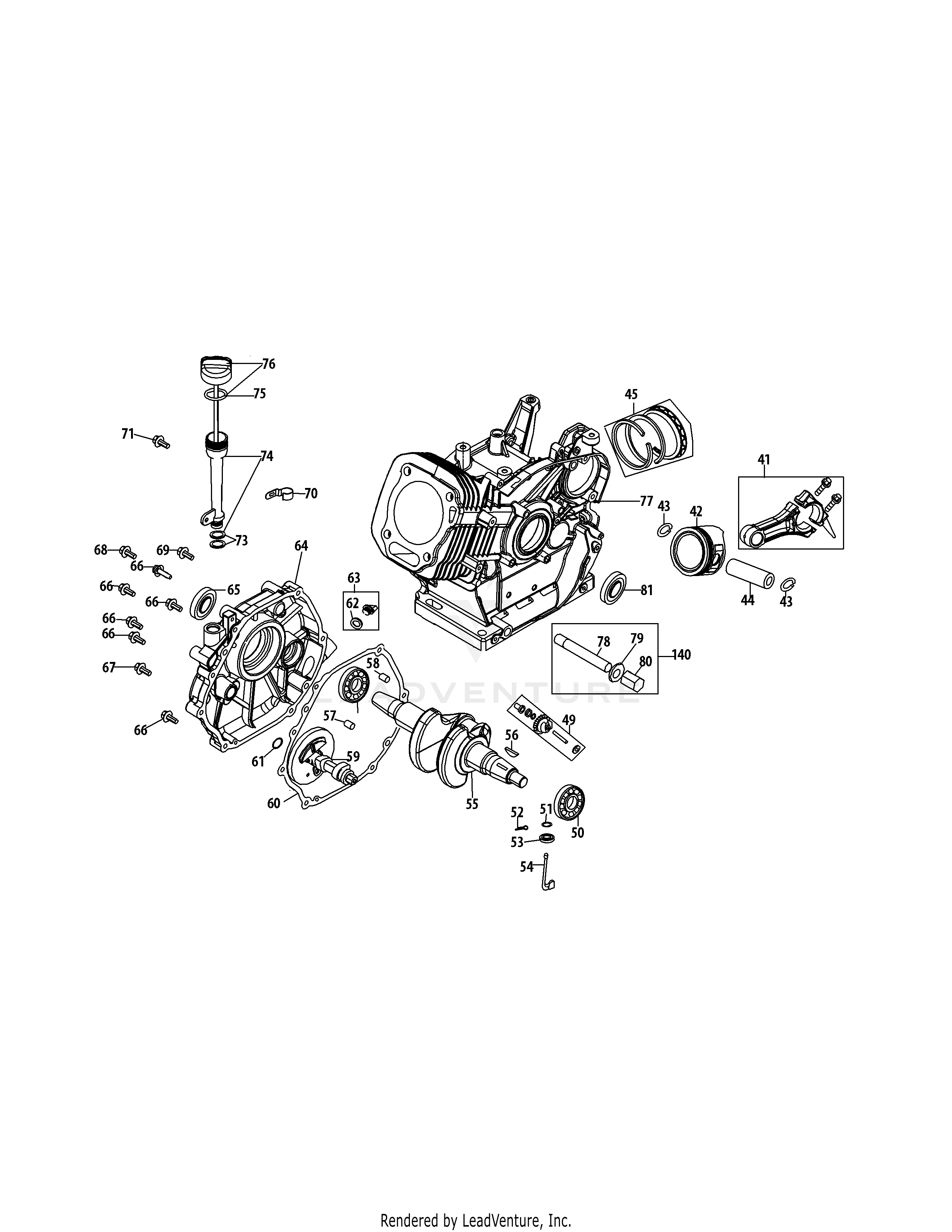

478-SUA Crankcase – KC Equipment

38 parts

80

710-04906 - Oil Drain Plug

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

69

710-04968 - Bolt, Flange M6 x 16

710-04968 - Bolt, Flange M6 x 16

Part Number: 710-04968

In stock

$5.77 Inc. GST

66

710-04971 - Bolt, M8 x 38

710-04971 - Bolt, M8 x 38

Part Number: 710-04971

In stock

$5.67 Inc. GST

67

710-04972 - BOLT-M8-1.25 x 45 GR8.8

710-04972 - BOLT-M8-1.25 x 45 GR8.8

Part Number: 710-04972

Out of stock

$5.10 Inc. GST

68

710-05052 - Bolt, M8 x 35

710-05052 - Bolt, M8 x 35

Part Number: 710-05052

Out of stock

$5.45 Inc. GST

71

710-05349 - BOLT M6-1 x 8 GR8.8

710-05349 - BOLT M6-1 x 8 GR8.8

Part Number: 710-05349

Out of stock

$3.32 Inc. GST

52

714-04077 - Cotter Pin

714-04077 - Cotter Pin

Part Number: 714-04077

In stock

$5.30 Inc. GST

58

715-04092 - Dowel Pin 7×14

715-04092 - Dowel Pin 7×14

Part Number: 715-04092

In stock

$3.66 Inc. GST

57

715-04102 - DOWEL PIN 9×12

715-04102 - DOWEL PIN 9×12

Part Number: 715-04102

In stock

$4.93 Inc. GST

79

736-04440 - Washer 10×16×1.5

736-04440 - Washer 10×16×1.5

Part Number: 736-04440

In stock

$6.01 Inc. GST

51

736-04453 - Washer

736-04453 - Washer

Part Number: 736-04453

In stock

$5.34 Inc. GST

61

736-04545 - WASHER

736-04545 - WASHER

Part Number: 736-04545

Out of stock

$3.56 Inc. GST

49

751-12068 - Governor Gear/Shaft Assembly

751-12068 - Governor Gear/Shaft Assembly

Part Number: 751-12068

In stock

$18.08 Inc. GST

56

951-10307 - Flywheel Key

951-10307 - Flywheel Key

Part Number: 951-10307

In stock

$2.01 Inc. GST

140

951-10641 - Oil Drain Assembly

951-10641 - Oil Drain Assembly

Part Number: 951-10641

In stock

$11.36 Inc. GST

77

951-11230 - Crankcase Kit

951-11230 - Crankcase Kit

Part Number: 951-11230

In stock

$299.41 Inc. GST

63

951-11283 - Oil Fill Plug Asm

951-11283 - Oil Fill Plug Asm

Part Number: 951-11283

In stock

$6.11 Inc. GST

70

951-11320 - OIL TUBE SUPPORT BRACKET

951-11320 - OIL TUBE SUPPORT BRACKET

Part Number: 951-11320

Out of stock

$6.79 Inc. GST

78

951-11350 - Oil Drain Pipe Assy.

951-11350 - Oil Drain Pipe Assy.

Part Number: 951-11350

In stock

$7.05 Inc. GST

65

951-11372 - Oil Seal 30×46×8

951-11372 - Oil Seal 30×46×8

Part Number: 951-11372

Out of stock

$13.54 Inc. GST

60

951-11374 - Crankcase Cover Gasket

951-11374 - Crankcase Cover Gasket

Part Number: 951-11374

In stock

$13.94 Inc. GST

73

951-11381 - Oil Fill Tube O-Ring

951-11381 - Oil Fill Tube O-Ring

Part Number: 951-11381

In stock

$4.59 Inc. GST

81

951-11498 - Oil Seal 30x46×8

951-11498 - Oil Seal 30x46×8

Part Number: 951-11498

In stock

$12.49 Inc. GST

62

951-11577 - O-RING 15.8 x 2.5

951-11577 - O-RING 15.8 x 2.5

Part Number: 951-11577

In stock

$3.53 Inc. GST

43

951-11632 - PISTON PIN SNAP RING

951-11632 - PISTON PIN SNAP RING

Part Number: 951-11632

In stock

$3.53 Inc. GST

75

951-11904 - Dipstick O-Ring

951-11904 - Dipstick O-Ring

Part Number: 951-11904

In stock

$3.69 Inc. GST

53

951-11958 - Governor Seal

951-11958 - Governor Seal

Part Number: 951-11958

In stock

$3.56 Inc. GST

76

951-11971A - Disptick Assembly

951-11971A - Disptick Assembly

Part Number: 951-11971A

In stock

$27.49 Inc. GST

42

951-12043 - Piston

951-12043 - Piston

Part Number: 951-12043

In stock

$31.70 Inc. GST

44

951-12044 - PISTON PIN

951-12044 - PISTON PIN

Part Number: 951-12044

Out of stock

$6.58 Inc. GST

41

951-12066 - Connecting Rod Assembly

951-12066 - Connecting Rod Assembly

Part Number: 951-12066

In stock

$65.06 Inc. GST

50

951-12069 - BEARING

951-12069 - BEARING

Part Number: 951-12069

Out of stock

$33.84 Inc. GST

54

951-12071 - GOVERNOR ARM SHAFT

951-12071 - GOVERNOR ARM SHAFT

Part Number: 951-12071

Out of stock

$5.76 Inc. GST

59

951-12072 - Camshaft Assy.

951-12072 - Camshaft Assy.

Part Number: 951-12072

Out of stock

$85.04 Inc. GST

74

951-12073 - Oil Fill Tube Assembly

951-12073 - Oil Fill Tube Assembly

Part Number: 951-12073

In stock

$10.19 Inc. GST

45

951-12387 - Piston Ring Set

951-12387 - Piston Ring Set

Part Number: 951-12387

In stock

$22.14 Inc. GST

55

951-12389 - CRANKSHAFT ASSEMBLY

951-12389 - CRANKSHAFT ASSEMBLY

Part Number: 951-12389

Out of stock

$201.80 Inc. GST

64

951-12395 - CRANKCASE COVER

951-12395 - CRANKCASE COVER

Part Number: 951-12395

Out of stock

$106.67 Inc. GST
