1X65LUA 159cc Engine

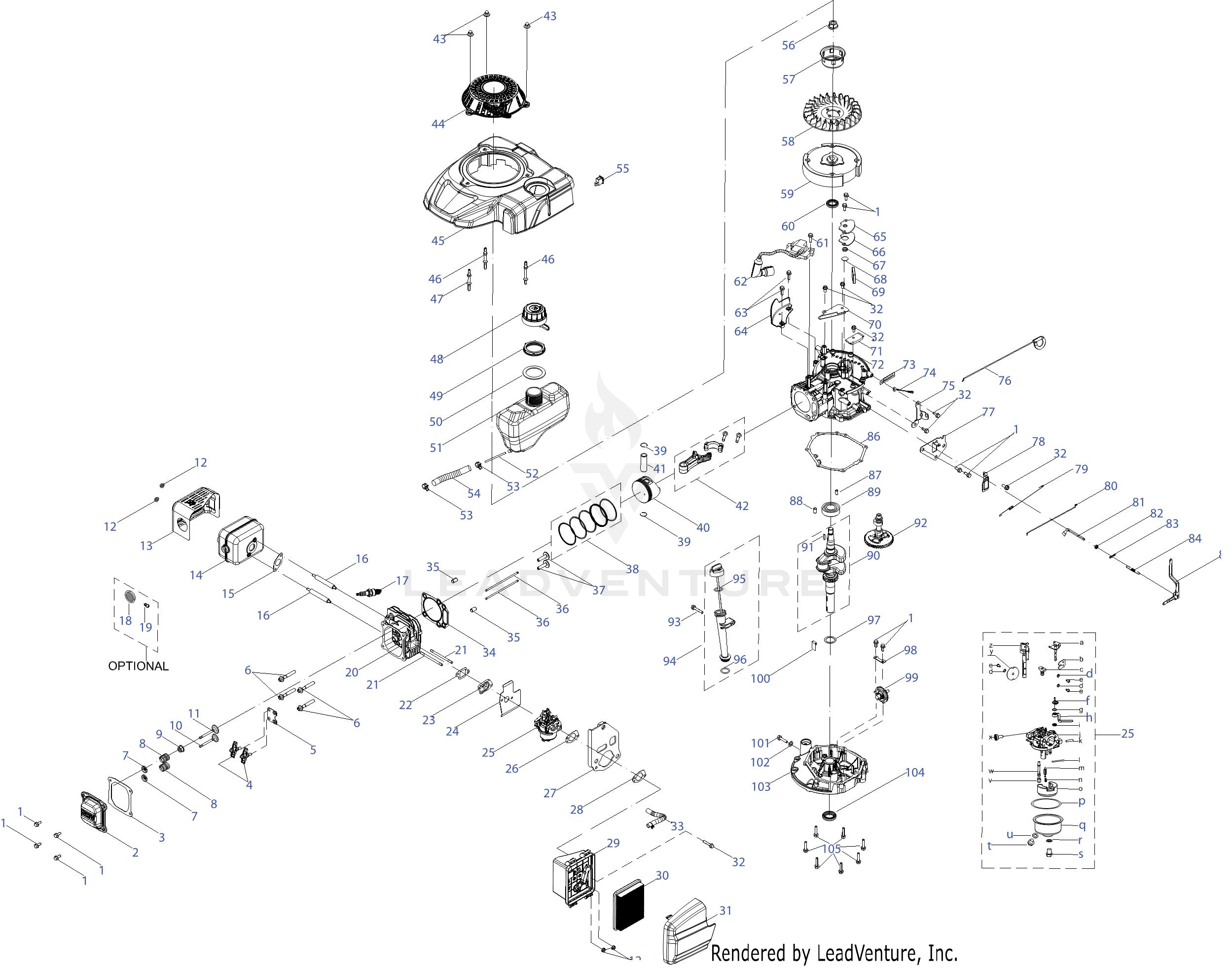

1X65LUA General Assembly

1X65LUA 159cc Engine 1X65LUA General Assembly

Downloads

Engine Manual

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04916 - Bolt M6×14

Part Number: 710-04916

In stock

$3.86 Inc. GST

710-04918 - Bolt M6×20

Part Number: 710-04918

In stock

$3.56 Inc. GST

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04938 - FUEL DRAIN PLUG

Part Number: 710-04938

In stock

$3.66 Inc. GST

105

710-04943 - Bolt M6×28

Part Number: 710-04943

In stock

$3.76 Inc. GST

710-04945 - Fuel Bowl Mounting Bolt

Part Number: 710-04945

In stock

$3.66 Inc. GST

710-04980 - Bolt M6X35

Part Number: 710-04980

In stock

$3.42 Inc. GST

710-04983 - Spark Arrestor Screw

Part Number: 710-04983

In stock

$3.65 Inc. GST

710-05094 - Muffler Stud M6x95

Part Number: 710-05094

In stock

$3.78 Inc. GST

712-04276 - Starter Acorn Nut

Part Number: 712-04276

In stock

$5.38 Inc. GST

712-04287 - Flywheel Nut M14

Part Number: 712-04287

In stock

$5.33 Inc. GST

712-05015 - Nut M6

Part Number: 712-05015

In stock

$5.78 Inc. GST

714-04078 - Cotter Pin

Part Number: 714-04078

In stock

$3.19 Inc. GST

715-04092 - Dowel Pin 7×14

Part Number: 715-04092

In stock

$3.66 Inc. GST

715-04096 - Dowel Pin 9×14

Part Number: 715-04096

In stock

$3.66 Inc. GST

715-04108 - Dowel Pin 10×16

Part Number: 715-04108

In stock

$3.65 Inc. GST

732-04718 - Breather Spring

Part Number: 732-04718

In stock

$3.78 Inc. GST

102

736-04440 - Washer 10×16×1.5

Part Number: 736-04440

In stock

$6.01 Inc. GST

736-04491 - Crankshaft Thrust Washer

Part Number: 736-04491

In stock

$3.78 Inc. GST

736-04638 - Lock Washer

Part Number: 736-04638

In stock

$2.88 Inc. GST

747-04862 - Push Rod

Part Number: 747-04862

In stock

$5.10 Inc. GST

908-05001 - FLOAT BOWL

Part Number: 908-05001

In stock

$7.16 Inc. GST

908-05251 - AIR FILTER BRACKET

Part Number: 908-05251

Out of stock

$5.89 Inc. GST

908-05252 - GROUND COVER PLATE

Part Number: 908-05252

In stock

$3.32 Inc. GST

908-05253 - CHOKE CONTROL BRACKET

Part Number: 908-05253

Out of stock

$4.49 Inc. GST

908-05254 - COMPONENT BRACKET

Part Number: 908-05254

In stock

$5.71 Inc. GST

908-05255 - GOVERNOR SHIELD

Part Number: 908-05255

In stock

$4.02 Inc. GST

910-06185 - BOLT-M8 x 54

Part Number: 910-06185

In stock

$5.88 Inc. GST

921-04237 - INTAKE VALVE SEAL

Part Number: 921-04237

In stock

$7.20 Inc. GST

921-04697 - O-RING

Part Number: 921-04697

In stock

$2.45 Inc. GST

921-04795 - O-RING

Part Number: 921-04795

In stock

$3.38 Inc. GST

925-06174 - IGNITION SWITCH

Part Number: 925-06174

In stock

$10.67 Inc. GST

925-07035 - IGNITION COIL

Part Number: 925-07035

Out of stock

$42.83 Inc. GST

925-07036 - GROUND WIRE

Part Number: 925-07036

Out of stock

$3.25 Inc. GST

931-05437 - ENGINE SHROUD ASSEMBLY

Part Number: 931-05437

Out of stock

$29.40 Inc. GST

931-10290 - Fuel Tank Nut

Part Number: 931-10290

In stock

$4.85 Inc. GST

931-12768 - AIR FILTER COVER

Part Number: 931-12768

In stock

$9.78 Inc. GST

931-12769 - AIR FILTER BASE

Part Number: 931-12769

In stock

$12.27 Inc. GST

931-12771 - FUEL TANK

Part Number: 931-12771

In stock

$43.89 Inc. GST

935-05202 - FUEL HOSE

Part Number: 935-05202

Out of stock

$3.99 Inc. GST

951-05160A - GOVERNOR ARM ASSEMBLY

Part Number: 951-05160A

In stock

$5.37 Inc. GST

951-05336 - GOVERNOR GEAR/SHAFT ASSEMBLY

Part Number: 951-05336

In stock

$7.77 Inc. GST

951-05433 - CARBURETOR ASSEMBLY HY-1X65LB

Part Number: 951-05433

Out of stock

Enquire for price

951-05435 - RECOIL STARTER ASSEMBLY

Part Number: 951-05435

Out of stock

Enquire for price

951-05438 - OIL DIPSTICK ASSEMBLY

Part Number: 951-05438

In stock

$12.27 Inc. GST

951-10307 - Flywheel Key

Part Number: 951-10307

In stock

$2.01 Inc. GST

951-10351 - Spark Arrestor

Part Number: 951-10351

In stock

$48.91 Inc. GST

951-10403 - Muffler Assembly

Part Number: 951-10403

In stock

$72.42 Inc. GST

951-10934 - Fan, Cooling

Part Number: 951-10934

In stock

$20.39 Inc. GST

951-11348 - Fuel Bowl Gasket

Part Number: 951-11348

In stock

$5.07 Inc. GST

951-11349 - Fuel Drain Plug Gasket

Part Number: 951-11349

In stock

$3.66 Inc. GST

951-11369 - Radial Ball Bearing, 6205

Part Number: 951-11369

In stock

$30.42 Inc. GST

951-11528 - Carburetor Insulator Gasket

Part Number: 951-11528

In stock

$3.90 Inc. GST

104

951-11545 - Upper Crankshaft Seal

Part Number: 951-11545

In stock

$9.07 Inc. GST

951-11551 - VALVE COVER GASKET

Part Number: 951-11551

In stock

$9.14 Inc. GST

951-11574 - GOVERNOR SEAL

Part Number: 951-11574

In stock

$3.36 Inc. GST

951-11589 - Fuel Bowl Gasket

Part Number: 951-11589

In stock

$6.04 Inc. GST

951-11596 - Upper Crankshaft Seal

Part Number: 951-11596

In stock

$5.44 Inc. GST

951-11603 - Piston Pin Snap Ring

Part Number: 951-11603

In stock

$3.53 Inc. GST

951-11606 - Rocker Arm Assembly

Part Number: 951-11606

In stock

$29.12 Inc. GST

951-11609 - Governor Gear Mounting Plate

Part Number: 951-11609

In stock

$4.44 Inc. GST

951-11614 - Breather Valve

Part Number: 951-11614

In stock

$3.53 Inc. GST

951-11621 - GOVERNOR ARM SHAFT

Part Number: 951-11621

In stock

$8.68 Inc. GST

951-11622 - FLEXIBLE CLAMP

Part Number: 951-11622

In stock

$3.42 Inc. GST

951-11687 - Push Rod Guide

Part Number: 951-11687

In stock

$6.12 Inc. GST

951-11700 - Fuel Hose Clamp

Part Number: 951-11700

In stock

$3.60 Inc. GST

951-11730 - Breather Screen

Part Number: 951-11730

In stock

$4.75 Inc. GST

100

951-11733 - Oil Return Seal

Part Number: 951-11733

In stock

$4.28 Inc. GST

951-11738 - Carburetor Insulator

Part Number: 951-11738

In stock

$4.60 Inc. GST

951-11977 - Valve Spring Retainer

Part Number: 951-11977

In stock

$3.60 Inc. GST

951-12004 - Valve Spring

Part Number: 951-12004

In stock

$1.74 Inc. GST

951-12161 - STARTER CUP

Part Number: 951-12161

Out of stock

$14.25 Inc. GST

951-12296 - Fuel Filter-Zs Ver

Part Number: 951-12296

In stock

$8.68 Inc. GST

951-12792 - Fuel Shutoff Cover

Part Number: 951-12792

In stock

$3.90 Inc. GST

951-14397 - Starter/Shroud Rear Stud M6×78.5

Part Number: 951-14397

In stock

$8.66 Inc. GST

951-14398 - Starter/Shroud Front Stud M6×74

Part Number: 951-14398

In stock

$8.66 Inc. GST

951-14404 - Breather Cover Plate

Part Number: 951-14404

In stock

$12.64 Inc. GST

951-14405 - Breather Gasket

Part Number: 951-14405

In stock

$8.96 Inc. GST

951-14406 - Fuel Tank Upper Grommet

Part Number: 951-14406

In stock

$9.68 Inc. GST

951-14409 - Throttle Linkage Spring

Part Number: 951-14409

In stock

$7.61 Inc. GST

951-14415 - Crankcase Cover Gasket

Part Number: 951-14415

In stock

$12.77 Inc. GST

103

951-14418 - Crankcase Cover

Part Number: 951-14418

In stock

$83.09 Inc. GST

951-14419 - Air Filter Base Gasket

Part Number: 951-14419

In stock

$7.08 Inc. GST

951-14422 - Choke Temp Control Bracket Gasket

Part Number: 951-14422

In stock

$6.71 Inc. GST

951-14424 - Carburetor Gasket

Part Number: 951-14424

In stock

$9.35 Inc. GST

951-14425 - Carb Stud M6×87

Part Number: 951-14425

In stock

$6.18 Inc. GST

951-14427 - Muffler Gasket

Part Number: 951-14427

In stock

$6.38 Inc. GST

951-14431 - Cylinder Head Gasket

Part Number: 951-14431

In stock

$14.44 Inc. GST

951-14432 - Tappet

Part Number: 951-14432

In stock

$7.49 Inc. GST

951-14433 - Piston Ring Set

Part Number: 951-14433

In stock

$34.45 Inc. GST

951-14434 - Piston

Part Number: 951-14434

In stock

$56.68 Inc. GST

951-14435 - Piston Pin

Part Number: 951-14435

In stock

$11.17 Inc. GST

951-14436 - Connecting Rod Assembly

Part Number: 951-14436

In stock

$61.10 Inc. GST

951-14437 - Spark Plug

Part Number: 951-14437

In stock

$7.34 Inc. GST

951-14596 - Flywheel

Part Number: 951-14596

In stock

$90.77 Inc. GST

951-14597 - Engine Brake Cover Plate

Part Number: 951-14597

In stock

$7.10 Inc. GST

951-14605 - Air Vane Cover Plate

Part Number: 951-14605

Out of stock

$5.43 Inc. GST

951-14607 - CRANKSHAFT ASSEMBLY

Part Number: 951-14607

Out of stock

$113.65 Inc. GST

951-14609 - Valve Cover

Part Number: 951-14609

In stock

$14.42 Inc. GST

951-14635 - CRANKCASE

Part Number: 951-14635

In stock

$168.31 Inc. GST

951-14639 - CYLINDER HEAD

Part Number: 951-14639

In stock

$101.40 Inc. GST

951-14640 - Intake Valve

Part Number: 951-14640

In stock

$8.71 Inc. GST

951-14641 - Exhaust Valve

Part Number: 951-14641

In stock

$8.71 Inc. GST

951-14721 - THROTTLE LINKAGE

Part Number: 951-14721

In stock

$5.88 Inc. GST

951-15245 - Air Filter

Part Number: 951-15245

In stock

$13.77 Inc. GST

951-15255 - Fuel Cap

Part Number: 951-15255

In stock

$23.25 Inc. GST

951-15566 - MUFFLER SHIELD

Part Number: 951-15566

In stock

$24.41 Inc. GST

951-15567 - BREATHER HOSE ASSEMBLY

Part Number: 951-15567

In stock

$5.25 Inc. GST

951-15569 - CHOKE CONTROL

Part Number: 951-15569

In stock

$5.70 Inc. GST

951-15570 - GOVERNOR SPRING

Part Number: 951-15570

In stock

$5.25 Inc. GST

951-15571 - CAMSHAFT ASSEMBLY

Part Number: 951-15571

In stock

$35.99 Inc. GST

951-15572 - FUEL SHUT OFF LEVER

Part Number: 951-15572

Out of stock

Enquire for price
