1T65N0 140cc Engine

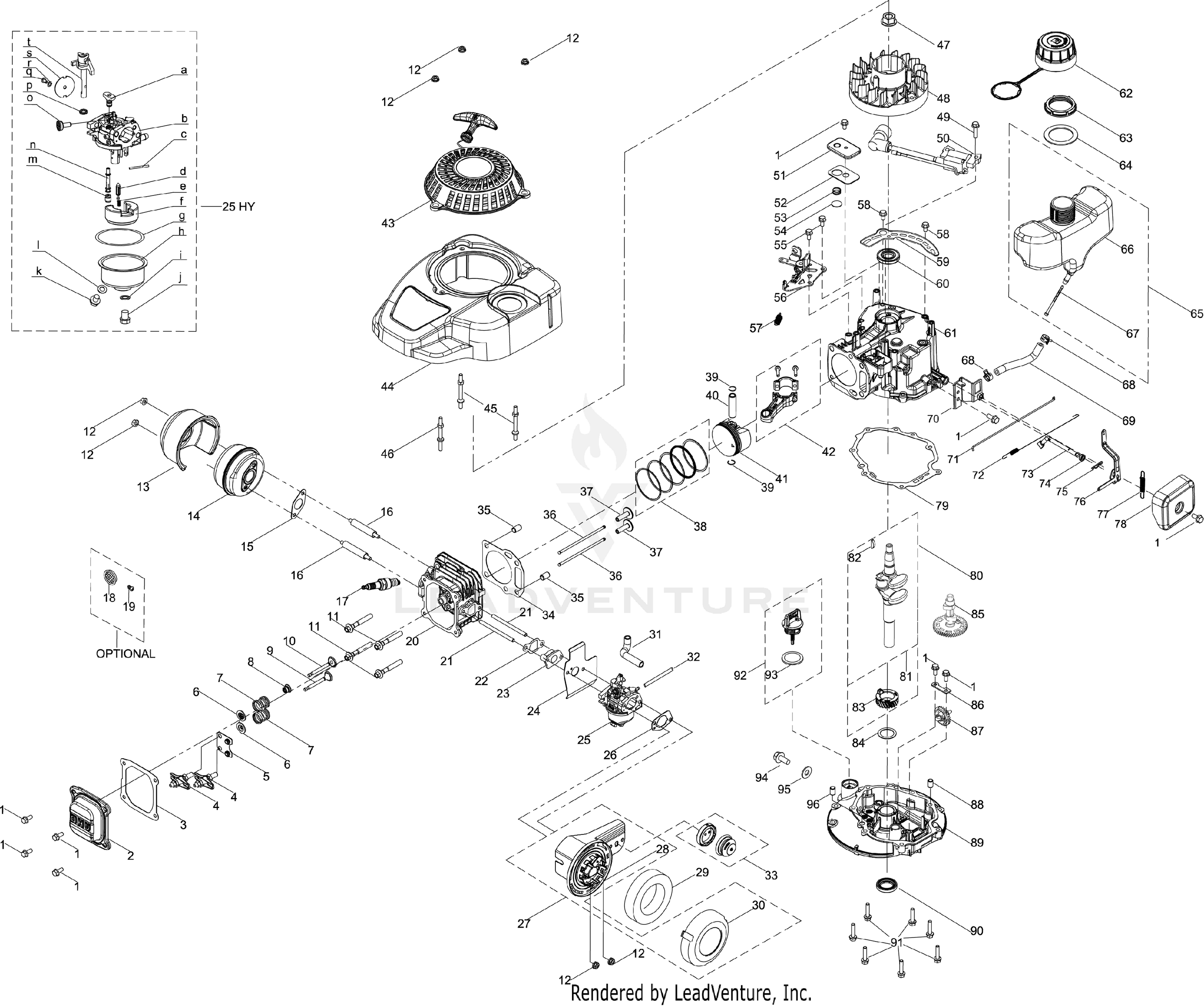

1T65N0 General Assembly

1T65N0 140cc Engine 1T65N0 General Assembly

651P06675 - CARBURETOR

Part Number: 651P06675

In stock

$48.20 Inc. GST

710-04906 - Oil Drain Plug

Part Number: 710-04906

In stock

$5.86 Inc. GST

710-04914 - Bolt M6×10

Part Number: 710-04914

In stock

$3.71 Inc. GST

710-04915 - Bolt M6×12

Part Number: 710-04915

In stock

$3.82 Inc. GST

710-04916 - Bolt M6×14

Part Number: 710-04916

In stock

$3.86 Inc. GST

710-04919 - Bolt M6×25

Part Number: 710-04919

In stock

$3.86 Inc. GST

710-04938 - FUEL DRAIN PLUG

Part Number: 710-04938

In stock

$3.66 Inc. GST

710-04943 - Bolt M6×28

Part Number: 710-04943

In stock

$3.76 Inc. GST

710-04945 - Fuel Bowl Mounting Bolt

Part Number: 710-04945

In stock

$3.66 Inc. GST

710-04983 - Spark Arrestor Screw

Part Number: 710-04983

In stock

$3.65 Inc. GST

710-06200 - SCREW M8 x 54 GR10

Part Number: 710-06200

In stock

$5.59 Inc. GST

710-06204 - STUD M6-1 x 76

Part Number: 710-06204

In stock

$5.38 Inc. GST

710-06205 - Carb Stud M6×98

Part Number: 710-06205

In stock

$5.59 Inc. GST

710-06208 - Starter/Shroud Rear Stud M6×75

Part Number: 710-06208

In stock

$5.59 Inc. GST

710-06209 - Starter/Shroud Front Stud M6×73

Part Number: 710-06209

In stock

$5.59 Inc. GST

710-06230 - SCREW-3Mx6

Part Number: 710-06230

In stock

$2.98 Inc. GST

710P06038A - SPEED IDLE SCREW

Part Number: 710P06038A

In stock

$2.45 Inc. GST

711-06043 - HINGE FLOAT PIN

Part Number: 711-06043

In stock

$0.56 Inc. GST

712-04287A - FLYWHEEL NUT M14-1.5

Part Number: 712-04287A

In stock

$5.33 Inc. GST

712-05015 - Nut M6

Part Number: 712-05015

In stock

$5.78 Inc. GST

714-04078A - COTTER PIN

Part Number: 714-04078A

In stock

$3.19 Inc. GST

715-04092A - DOWEL PIN 7 X 14

Part Number: 715-04092A

In stock

$2.97 Inc. GST

715-04096A - DOWEL PIN 9 X 14

Part Number: 715-04096A

In stock

$3.66 Inc. GST

715P04090A - PIN (10MMx16MM)

Part Number: 715P04090A

In stock

$2.95 Inc. GST

721P04427A - THROTTLE SHAFT GASKET

Part Number: 721P04427A

In stock

$2.45 Inc. GST

721P04704 - DIPSTICK O-RING

Part Number: 721P04704

In stock

$1.80 Inc. GST

731P09132A - FLOAT

Part Number: 731P09132A

In stock

$4.45 Inc. GST

731P10637 - AIR FILTER BASE

Part Number: 731P10637

In stock

$1.80 Inc. GST

732-04718A - BREATHER VALVE SPRING

Part Number: 732-04718A

In stock

$3.30 Inc. GST

732-05188 - Throttle Linkage Spring

Part Number: 732-05188

In stock

$6.05 Inc. GST

732P05251A - NEEDLE VALVE SPRING

Part Number: 732P05251A

In stock

$1.70 Inc. GST

735-05053A - FUEL HOSE

Part Number: 735-05053A

In stock

$8.96 Inc. GST

735-05055 - Breather Hose

Part Number: 735-05055

In stock

$5.48 Inc. GST

735-05056 - Primer Hose

Part Number: 735-05056

In stock

$6.38 Inc. GST

736-04440A - FLAT WASHER

Part Number: 736-04440A

In stock

$6.01 Inc. GST

736-04491A - THRUST WASHER

Part Number: 736-04491A

In stock

$3.30 Inc. GST

736P05209A - LOCK WASHER 3MM

Part Number: 736P05209A

In stock

$2.45 Inc. GST

747-04862 - Push Rod

Part Number: 747-04862

In stock

$5.10 Inc. GST

751-19748 - Crankshaft Assembly

Part Number: 751-19748

In stock

Enquire for price

751-22418 - GOVERNOR SPRING

Part Number: 751-22418

In stock

$1.70 Inc. GST

751P10307A - WOODRUFF KEY

Part Number: 751P10307A

In stock

$2.01 Inc. GST

751P12004A - VALVE SPRING

Part Number: 751P12004A

In stock

$1.74 Inc. GST

751P18586A - VALVE COVER GASKET

Part Number: 751P18586A

In stock

$3.94 Inc. GST

751P18606 - CARBURETOR INSULATOR GASKET

Part Number: 751P18606

In stock

$4.14 Inc. GST

751P18607 - CYLINDER HEAD GASKET

Part Number: 751P18607

In stock

$4.14 Inc. GST

751P18608 - CRANKCASE

Part Number: 751P18608

In stock

$69.30 Inc. GST

751P18609 - CRANKCASE COVER GASKET

Part Number: 751P18609

In stock

$5.02 Inc. GST

751P18628 - CAMSHAFT

Part Number: 751P18628

In stock

$17.80 Inc. GST

793P00165A - NEEDLE VALVE

Part Number: 793P00165A

In stock

$4.13 Inc. GST

908-04094A - VALVE RETURN SPRING

Part Number: 908-04094A

In stock

$3.20 Inc. GST

908-05001 - FLOAT BOWL

Part Number: 908-05001

In stock

$7.16 Inc. GST

908-05092 - BREATHER COVER PLATE

Part Number: 908-05092

In stock

$5.48 Inc. GST

908-05094 - VALVE COVER

Part Number: 908-05094

In stock

$8.96 Inc. GST

908-05135 - COMPONENT BRACKET

Part Number: 908-05135

In stock

$8.22 Inc. GST

908-05269 - SHROUD COVER PLATE

Part Number: 908-05269

In stock

$7.23 Inc. GST

921-04700A - UPPER SEAL

Part Number: 921-04700A

In stock

$7.39 Inc. GST

921-04703 - Breather Gasket

Part Number: 921-04703

In stock

$6.38 Inc. GST

921-04705 - Oil Seal,Valve

Part Number: 921-04705

In stock

$5.48 Inc. GST

921-04706 - Carburetor Gasket

Part Number: 921-04706

In stock

$5.10 Inc. GST

925-06190A - ENGINE FLYWHEEL

Part Number: 925-06190A

In stock

$84.73 Inc. GST

925-07231 - IGNITION COIL ASSEMBLY

Part Number: 925-07231

In stock

$64.63 Inc. GST

931-05602 - ENGINE SHROUD ASSEMBLY

Part Number: 931-05602

In stock

$22.87 Inc. GST

931-10287 - Governor Shield

Part Number: 931-10287

In stock

$8.96 Inc. GST

931-10288A - GEAR

Part Number: 931-10288A

In stock

$8.18 Inc. GST

931-10290A - FUEL TANK NUT

Part Number: 931-10290A

In stock

$4.85 Inc. GST

931-10291 - Fuel Tank

Part Number: 931-10291

In stock

$53.51 Inc. GST

932-05580 - BRAKE SPRING

Part Number: 932-05580

In stock

$5.35 Inc. GST

951-05160A - GOVERNOR ARM ASSEMBLY

Part Number: 951-05160A

In stock

$5.37 Inc. GST

951-05161 - Dipstick Assembly

Part Number: 951-05161

In stock

$8.96 Inc. GST

951-05163 - Connecting Rod Assembly

Part Number: 951-05163

In stock

$14.09 Inc. GST

951-05177A - PRIMER ASSEMBLY

Part Number: 951-05177A

In stock

$12.83 Inc. GST

951-05226 - AIR FILTER ASSEMBLY

Part Number: 951-05226

In stock

$16.26 Inc. GST

951-05320A - STARTER RECOIL ASSEMBLY

Part Number: 951-05320A

In stock

$57.94 Inc. GST

951-05336A - GEAR GOVERNOR

Part Number: 951-05336A

In stock

$7.77 Inc. GST

951-05551 - ENGINE BRAKE ASSEMBLY

Part Number: 951-05551

In stock

$28.97 Inc. GST

951-10351A - SPARK ARRESTOR

Part Number: 951-10351A

In stock

$48.91 Inc. GST

951-11348A - FUEL BOWL GASKET

Part Number: 951-11348A

In stock

$5.07 Inc. GST

951-11349A - FUEL DRAIN PLUG GASKET

Part Number: 951-11349A

In stock

$3.66 Inc. GST

951-11545A - LOWER CRANKSHAFT SEAL

Part Number: 951-11545A

In stock

$9.07 Inc. GST

951-11589A - FUEL BOWL O-RING

Part Number: 951-11589A

In stock

$6.04 Inc. GST

951-11603A - WRIST PIN CLIP

Part Number: 951-11603A

In stock

$2.90 Inc. GST

951-11606A - ROCKER ARM

Part Number: 951-11606A

In stock

$29.12 Inc. GST

951-11607A - TAPPET

Part Number: 951-11607A

In stock

$6.12 Inc. GST

951-11609A - GOVERNOR GEAR MOUNTING PLATE

Part Number: 951-11609A

In stock

$3.94 Inc. GST

951-11614A - BREATHER VALVE

Part Number: 951-11614A

In stock

$3.13 Inc. GST

951-11621 - GOVERNOR ARM SHAFT

Part Number: 951-11621

In stock

$8.68 Inc. GST

951-11687 - Push Rod Guide

Part Number: 951-11687

In stock

$6.12 Inc. GST

951-11700A - CARBURETOR HOSE CLAMP

Part Number: 951-11700A

In stock

$3.60 Inc. GST

951-11902A - OIL SEAL

Part Number: 951-11902A

In stock

$3.36 Inc. GST

951-12296A - FUEL FILTER

Part Number: 951-12296A

In stock

$8.68 Inc. GST

951-14406A - FUEL TANK GROMMET

Part Number: 951-14406A

In stock

$9.68 Inc. GST

951-14419A - AIR FILTER BASE GASKET

Part Number: 951-14419A

In stock

$7.08 Inc. GST

951-14427A - MUFFLER GASKET

Part Number: 951-14427A

In stock

$6.38 Inc. GST

951-14433A - PISTON RING SET

Part Number: 951-14433A

In stock

$34.45 Inc. GST

951-14434A - PISTION

Part Number: 951-14434A

In stock

$56.68 Inc. GST

951-14435A - PISTON PIN

Part Number: 951-14435A

In stock

$9.22 Inc. GST

951-14437A - SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

Part Number: 951-14437A

In stock

$6.35 Inc. GST

951-14627 - Air Filter Element, Foam

Part Number: 951-14627

In stock

$9.11 Inc. GST

951-14640A - INTAKE VALVE

Part Number: 951-14640A

In stock

$8.71 Inc. GST

951-14641A - EXHAUST VALVE

Part Number: 951-14641A

In stock

$8.71 Inc. GST

951-14688 - Crankcase Cover

Part Number: 951-14688

In stock

$66.28 Inc. GST

951-14689 - CYLINDER HEAD

Part Number: 951-14689

In stock

$107.46 Inc. GST

951-14692A - MUFFLER ASSEMBLY

Part Number: 951-14692A

In stock

$14.44 Inc. GST

951-14696 - Throttle Linkage

Part Number: 951-14696

In stock

$6.51 Inc. GST

951-14698 - Carburetor Insulator

Part Number: 951-14698

In stock

$9.11 Inc. GST

951-14752 - MUFFLER SHIELD

Part Number: 951-14752

In stock

$11.49 Inc. GST

951-15255A - FUEL CAP W/TETHER

Part Number: 951-15255A

In stock

$23.25 Inc. GST

NSCO - Not Serviceable/ Components Only

Part Number: NSCO

In stock

Enquire for price

NSOCA - Not Serviceable/ Order Complete Assembly

Part Number: NSOCA

In stock

Enquire for price
