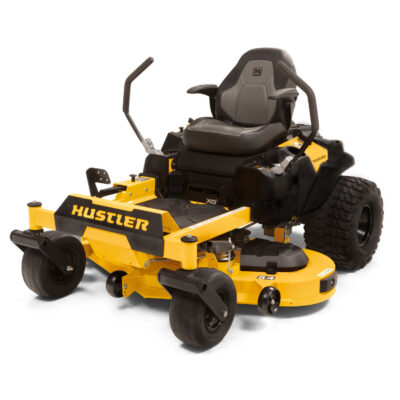

Hustler Raptor XD 54 Lap Bars Zero Turn Mower | 24hp | 54" Deck | Raptor X Series

Description

The Raptor XD 54” is a premium residential zero-turn for owners with acreage to manage. Kawasaki V-twin power drives a fabricated steel deck wide enough to shrink big lawns, at up to 7.5 mph, with Flex Fork suspension keeping the ride and the cut level across open ground.

• 54″ Cutting Width
• 3.27 Acres per Hour
• 24HP Kawasaki Engine
• 3 Year, 300 Hour Warranty for both residential and commercial use

Description

The next generation of Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, it features a 1″x3″ steel frame, 10 ga. fabricated steel deck, and large 20″ VersaTrac* drive tires. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Covers ground fast — 54” fabricated steel deck at up to 7.5 mph, with Kawasaki V-twin power behind it

Level cut on uneven ground — Flex Fork front suspension keeps the deck tracking true

Here to work — 3-year residential warranty plus a 3-year / 300-hour commercial warranty.

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Here To Work

Fabricated Cutting Deck: All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering: Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!

Accessories

• Mulch Kit SKU 130102 – Set of mulching blades are included. Suits Raptor XD with 54” deck.
• Double Bag Grass Catcher SKU 944629 – Rear mounted two bag grass catcher. Suits Raptor X / XL / XD with 42/48/54/60” deck.
• Striping Kit SKU 126828P – Provide a professionally manicured striped finish to your lawn. Suits Raptor X / XD / FasTrak / FasTrak SDX models with 48/54/60″ decks.
• Tow Hitch Kit SKU 130206 – Increase the productivity and flexibility of your Hustler with this handy Tow Hitch. Simple drop pin hitch design suits most garden trailers, poly carts etc. Suits Raptor XL / XD (944504EX, 944538EX, 944546EX, 944553EX).

Specifications

Deck Width & Construction – 54 Inch 11 Gauge Fabricated Cutting Deck
Deck Lift – Foot Operated
Blades & PTO – 3 Blades with electric PTO blade engagement
Spindles – Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
Cutting Height & Adjustment – 1.5″ – 4.5″ cutting range with foot assisted deck height adjustment
Optional Extras – Optional Mulch Kit, Optional Catcher Kit

Ground Speed – 12 Km/h Ground Speed
Acres per hour – 3.27 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity – 13.25 L
Slope Capability – 15 Degrees

Engine Type & Specifications – 24HP Kawasaki FR730V Engine. Air cooled. 726cc.
Transmission Type & Specifications – Tuff Torq TZ-350

Country of Manufacture – Made in the USA
Chassis Construction – 1.5″ x 3″ Welded Tubular Steel Frame
Rear Wheels & Tyres – 20″ x 12″ – 8″ Rear Tyres
Front Wheels, Tyres & Castors – 13″ x 6.5″ Front Tyres

Seat Type – Custom Bolstered 20″ High Back Seat with Armrests
Console Features – Cup Holder
Park Brake – Automatic Park Brake
Maintenance Access – Open rear design for easy engine maintenance
Tow Hitch – Optional Tow Hitch

Minimum Trailer Size – 5 ft wide, 7 ft Long
Length – 1798 mm
Width (Chute up) – 1496 mm (Chute up)
Height – 1148 mm
Weight – 305 kg

Disclaimer – Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Warranty

Residential Warranty – 3 Year / 300 Hr Domestic warranty
Commercial Warranty – 3 Year / 300 Hr Commercial warranty
Engine Warranty – 3 Year Engine Warranty
