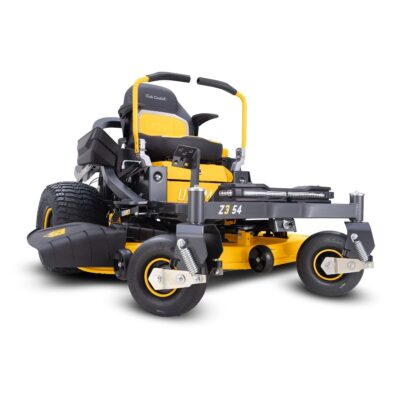

Cub Cadet Ultima Z3 54 Lap Bars Zero Turn Mower | 24hp | 54" Deck | Z3 Series

Description

Description

The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™.

The Cub Cadet® Ultima Series Z3 54 54″ 24hp Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers the uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15 degrees.

Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**.

• The Ultima Z3 54 is powered by a reliable 24hp Kawasaki® Engine* built to meet fierce demands.
• A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
• Protect against wear and tear while being the envy of your neighborhood with a continuous, 2×2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
• Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*

Features

Kawasaki® Engine: The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.

2×2 Tubular Frame: Protect against wear and tear while being the envy of your neighborhood with a continuous, 2×2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.

Front Axle: Trim with precision thanks to an offset front axle designed to deliver a quality cut.

Turf Armor® Tires: Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing.

–

Front LED Bar Headlight and Side Lights: Brighten your path with a front LED light bar with side lights built to be 5.5x as bright* to help spot obstacles and uneven terrain.

20″ High Back Seat with Arm Rests: Mow comfortably with arm rests and an automotive-styled high-back seat equipped with a seat slide and bolstered using a custom foam designed to minimize vibration.

Ergo Grips™: Comfortably control your zero-turn with overmolded rubber hand grips designed to minimize vibration.

Front Caster Suspension: Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*

AeroForce™ Reinforced Fabricated Deck: A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.

Step Assist: Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.

Smooth Drive: Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.

Specifications

Country of Manufacture – United States
Block Size – Up to 5 Acres
Engine – 24HP Kawasaki V-Twin
Transmission – Dual TZ-350
Cutting Width – 54 Inches
Cutting Deck Construction – Fabricated Steel
Cutting Deck Thickness – 11 Gauge
Cutting Height Adjustment – 15 Position
Cutting Height Maximum – 115mm
Cutting Height Minimum – 25mm
Deck Wash – No
Anti Scalp Wheels – Yes
Cruise Control – No
Blade Engagement – Electric PTO
Blade(s) – 3 Blades (S Shaped)
Seat – 20″ Bolster High Back Seat.
Turning Circle – N/A – Zero Turn
Tow Hitch – Yes
Reverse Mowing – Yes
Grass Catcher – Optional Extra
Mulch Plug – Optional Extra
Safety – Operator Presence Control
Front Tyres – 11″ x 6″ -5″
Rear Tyres – 20″ x 12″ -8″
Fuel Tank – 13.25 L
Roll Over Protection – No
Maximum Drive Speed – 12 km/h
Maximum Reverse Speed – 5.6km/h
Maximum Slope Capability – 15 Degrees
Disclaimers – *Horsepower – As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International. Engine power ratings are as certified by the engine manufacturer. Actual operating power may vary. Refer to the engine manufacturer’s website for additional information. Efficiency – Mowing identical grass conditions using a 42-inch Ultima Series zero-turn mower at a speed of 7 MPH vs. a Cub Cadet® 42-inch lawn tractor at a speed of 5 MPH. Caster Suspension – Based on each wheel taking 525 lbs of force for up to a total of 1,050 lbs. of resistance/impact loading. LED Lightbar with Side Lights – Front LED light bar with side lights vs. Cub Cadet® Classic Twin LED Front Headlights 625-05041, measured in total lumens.

Accessories

• Mulch Kit – #19A30051100 (optional)
• Triple Bagger Catcher – #19A70056100 (optional)
• Sunshade – #19A70068100 (optional)

Warranty

Unit – 3 year unit domestic warranty. 90 day unit commercial warranty.

Engine – 3 year engine domestic warranty. 90 day engine commercial warranty.
