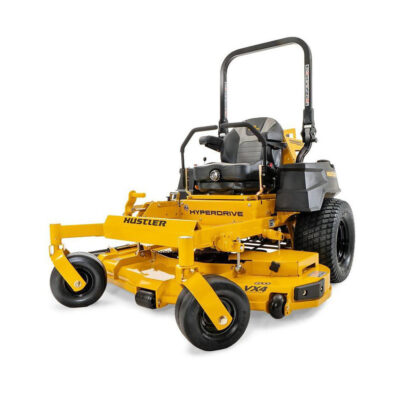

HustlerSuper Z Hyperdrive 60 EFI Commercial Lap Bars Zero Turn Mower | 38.5hp EFI | 60" Deck | Super Z Series

Description

HUSTLER COMMERCIAL PRICING

Get in touch with KC Equipment for our best quote on Hustler commercial mowing equipment. Visit the Contact Us page or enquire online.

Power meets productivity with the Hustler Super Z Series Commercial Zero Turn mowers.

With groundspeed up to an amazing 25.7 km/h the Super Z HD EFI 60 gets the job done fast, while the efficient EFI engine and huge 45L fuel tank means less stopping and more mowing.

• 60″ Cutting Width
• 7.7 Acres per Hour
• 38.5HP Kawasaki EFI Engine
• 2 Year No Hour Limit Commercial Warranty

Description

Power meets productivity with the Hustler Super Z Series Commercial Zero Turn mowers.

With groundspeed up to an amazing 25.7 km/h the Super Z HD EFI 60 gets the job done fast, while the efficient EFI engine and huge 45L fuel tank means less stopping and more mowing.

Fast groundspeed combined with a 60″ cutting deck offers super flexibility, making this model suited to both wide area applications and jobs where a narrower more nimble machine is required. The Super Z HD EFI 60 will comfortably fit on a 6″ wide trailer, for easy transportation and site access.

Hustler’s HyperDrive system ensures long term reliability and performance, with industrial grade hydro transmissions and temperature regulation to keep you going all day in hot conditions when others would give up.

VX4 Deck technolgy puts Hustler a cut above, delivering real world advantages to cut quality and speed.

The Hustler VX4 deck is engineered for extreme vacuum. The deck more efficiently draws grass and leaves up into the mower blades resulting in a consistent cut for all grass types including thin dry grass.

Operator comfort is paramount with a deluxe high back suspension seat, SmoothTrak Steering and handy oversized cup holder ensuring every shift is a comfortable one.

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Here To Work

HyperDrive System: Reducing the temperature of the oil in your wheel motors is key to extending the life of your hydraulic system. Hustler’s exclusive HyperDrive system helps do just that with temperature regulation and tough components designed to keep your mower at peak performance.

VX4 Cutting Deck: The VX4 Deck combines four performance features to help provide a quick, clean, and professional looking cut: Versatility, Velocity, Vacuum and Volume. The combination allows professionals to move grass through the deck efficiently and consistently.

Accessories

• Tow Hitch Kit – X-One, Super Z, HD, 104 SKU 123915P – Increase the productivity and flexibility of your Hustler with this handy Tow Hitch. Simple drop pin hitch design suits most garden trailers, poly carts etc. Hitch suits X-One, Super Z, Super Z Hyperdrive and Super 104 models.
• Steering Lever Extension Kit SKU 122760P – Steering Lever Extension Kit – Suits Dash XD, Raptor X, XD, XDX, Fastrak, Fastrak SDX, X-One, Super Z & Hyperdrive models. (Does not suit Super 104 model)
• Semi-Pneumatic Front Tyre – X-One, Super Z, HD SKU 607964 – Semi-Pneumatic Front Tyre. Tyre and wheel assembly 13″ x 6.5″ x 6″. Black colour. Suits X-One, Super Z and Super Z Hyperdrive models.
• Flex Forks – X-One, Super Z, HD SKU 606696 – Flex Forks provide additional impact dampening over the front wheels, resulting in a more comfortable and relaxed ride over bumpy terrain. Suits X-One, Super Z and Super Z Hyperdrive models. Note: can’t use a catcher while Flex Forks are fitted.
• Mulch Kit – 60″ X-One, Super Z, HD SKU 124314P – Mulch Kit to suit X-One, Super Z and Super Z Hyperdrive models with 60″ deck. Set of wavy mulching blades are included.

Specifications

Deck Width & Construction – 60 Inch VX4 7 Gauge Fabricated Cutting Deck
Blades & PTO – 3 Blades with electric PTO blade engagement
Spindles – Cast iron with 7 gauge steel spindle mounts and 1″ steel shaft. Greasable, with double lip sealed ball bearings.
Cutting Height & Adjustment – 1″ – 5.5″ cutting range with foot assisted deck height adjustment
Optional Extras – Optional Mulch Kit, Optional Catcher Kit

Ground Speed – 25.7 Km/h Ground Speed
Acres per hour – 7.7 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity – 45 L
Slope Capability – 15 Degrees

Engine Type & Specifications – 38.5HP Kawasaki FX1000V-EFI Engine. Air cooled. 999cc.
Transmission Type & Specifications – Dual Danfoss DDC-20 Hydro Transmissions
Wheel Motors – Parker TG280 Wheel Motors

Country of Manufacture – Made in the USA
Chassis Construction – 1.5″ x 3″ Welded Tubular Steel Frame
Roll Over Protection – Standard Roll Over Protection Bar
Rear Wheels & Tyres – 26″ x 12″ Rear Tyres
Front Wheels, Tyres & Castors – 13″ x 6.5″ Front Tyres

Seat Type – Deluxe High Back I3M Suspension Seat with Armrests
Console Features – Cup Holder
Park Brake – Automatic Park Brake
Maintenance Access – Open rear design for easy engine maintenance
Tow Hitch – Optional Tow Hitch

Minimum Trailer Size – 6 ft wide, 8 ft Long
Length – 2235 mm
Width (Chute up) – 1676 mm (Chute up)
Height (ROPS up & down) – 1867 mm (ROPS up). 1214 mm (ROPS down)
Weight – 763 kg

Disclaimer – Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Warranty

Residential Warranty – 5 Year / 500 Hr Domestic warranty
Commercial Warranty – 2 Year, No Hour Limit Commercial Warranty
Engine Warranty – 3 Year Engine Warranty
