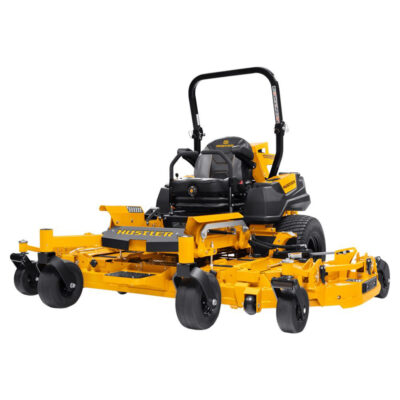

Hustler Super 104 Commercial Wide Area Zero Turn Mower | 38.5hp | 104" Hydraulic Deck

Description

HUSTLER COMMERCIAL PRICING

Get in touch with KC Equipment for our best quote on Hustler commercial mowing equipment. Visit the Contact Us page or enquire online.

The biggest zero turn mower sold by KC Equipment! Wide area mowing with Zero Turn manoeuvrability.

With its fast 17.7 km/h ground speed and huge 104″ mowing width, the Hustler Super 104 delivers immense productivity.

Complete with hydraulic fold-up deck for easy transport, the Super 104 is a flexible wide area mowing solution for commercial and fleet mowing contractors.

Capable of mowing a footfield in under 10 minutes! (Outside temperature 32℃, speed of 16kph, cutting height took off 1/4″. Exact time may vary based on environmental conditions.)

• 104″ Cutting Width
• 9.2 Acres per Hour

Description

A true no-compromise wide area Zero Turn mower, the Hustler Super 104 delivers unrivalled productivity.

Offering a fast 17.7 km/h ground speed and huge 104″ mowing width, the Hustler Super 104 cuts more grass in less time, while the industrial grade hydro transmissions, and huge 44.3L fuel tank, mean you can stay in the seat mowing for longer and get more done than you ever thought possible.

Operator comfort is second to none with a deluxe high back suspension seat, effortless hydraullic deck lift, SmoothTrak Steering and handy oversized cup holder ensuring every shift is a comfortable one.

With a cutting deck that folds up to an 80″ width for for easy site access and transport, the Super 104 also offers immense flexibility, with it’s ability to be loaded onto a standard 7″ wide tandem trailer and towed with a standard ute or van.

The Hustler Super 104 is simply an essential machine for any large area mowing contractor who wants a stress free solution for getting more mowing done in less time.

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Here To Work

HyperDrive System: Reducing the temperature of the oil in your wheel motors is key to extending the life of your hydraulic system. Hustler’s exclusive HyperDrive system helps do just that with temperature regulation and tough components designed to keep your mower at peak performance.

Wide Area Mowing: Hustler’s Super 104™ can easily handle acres of work. Offering a 104″ width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.

Wings Fold To 80″: 80″ transport width fits most trailers helping to make it easy to transport from job-to-job.

Accessories

• Tow Hitch Kit – X-One, Super Z, HD, 104 SKU 123915P – Increase the productivity and flexibility of your Hustler with this handy Tow Hitch. Simple drop pin hitch design suits most garden trailers, poly carts etc. Hitch suits X-One, Super Z, Super Z Hyperdrive and Super 104 models.
• Flex Forks Kit – Super 104 SKU 606671 – Flex Forks provide additional impact dampening over the front wheels, resulting in a more comfortable and relaxed ride over bumpy terrain. Suits Super 104 models. Must order Wing Support (SKU 123618) as well.

Specifications

Deck Width & Construction – 104 Inch Cutting Deck. Fabricated 11 Gauge steel with reinforced trim. 4 x supporting castor wheels and anti-scalp rollers.
Blades & PTO – 5 Blades with electric PTO blade engagement
Spindles – Cast iron with 7 gauge steel spindle mounts and 1″ steel shaft. Greasable, with double lip sealed ball bearings.
Cutting Height & Adjustment – 1″ – 5.5″ cutting range with hydraullic powered deck height adjustment
Optional Extras – Optional Mulch Kit

Ground Speed – 17.7 Km/h Ground Speed
Acres per hour – 9.2 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity – 44.3 L
Slope Capability – 15 Degrees

Engine Type & Specifications – 38.5HP Kawasaki FX1000V-EFI Engine. Air cooled. 999cc.
Transmission Type & Specifications – Dual Danfoss DDC-20 Hydro Transmissions
Wheel Motors – Parker TG0360 Wheel Motors

Country of Manufacture – Made in the USA
Chassis Construction – 1.5″ x 3″ Welded Tubular Steel Frame
Roll Over Protection – Standard Roll Over Protection Bar Rear Wheels & Tyres – 26″ x 12″ Rear Tyres
Front Wheels, Tyres & Castors – 15″ x 6″ Front Tyres

Seat Type – Deluxe High Back I4M Suspension Seat with Armrests
Console Features – Cup Holder
Park Brake – Automatic Park Brake
Maintenance Access – Open rear design for easy engine maintenance
Tow Hitch – Optional Tow Hitch

Minimum Trailer Size – 7 ft wide, 9 ft Long
Length – 2426 mm
Width (Chute up) – 2032 mm (Wings up), 2695 mm (Wings down / Chute up)
Height (ROPS up & down) – 1816 mm (ROPS up). 1372 mm (ROPS down)
Weight – 1134 kg

Disclaimer – Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Warranty

Residential Warranty – 5 Year / 500 Hr Domestic warranty
Commercial Warranty – 2 Year, No Hour Limit Commercial Warranty
Engine Warranty – 3 Year Engine Warranty
