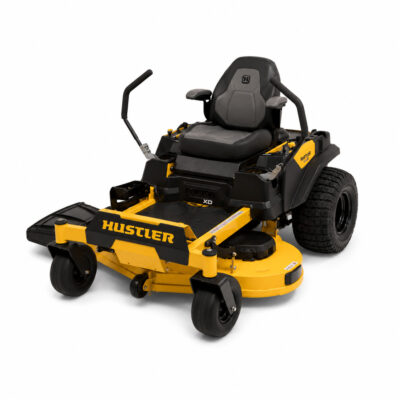

Hustler Raptor XD 60 Lap Bars Zero Turn Mower | 24hp | 60" Deck | Raptor X Series

Description

The Raptor XD 60” sits at the top of the XD range — the widest deck Hustler offers a homeowner, matched to up to 24hp of Kawasaki V-twin power. It turns five acres of lawn into a manageable afternoon without trading away control, and Flex Fork suspension keeps the finish clean at pace.

• 60″ Cutting Width
• 3.64 Acres per Hour
• 24HP Kawasaki Engine
• 3 Year, 300 Hour Warranty for both residential and commercial use

Description

The next generation of Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, it features a 1″x3″ steel frame, 10 ga. fabricated steel deck, and large 20″ VersaTrac* drive tires. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Maximum reach — 60” fabricated steel deck with up to 24hp Kawasaki V-twin behind it

Acreage made manageable — designed for properties up to five acres at up to 7.5 mph

Warranty that backs the work — 3-year residential plus 3-year / 300-hour commercial cover

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Here To Work

Fabricated Cutting Deck: All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering: Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!

Accessories

• Mulch Kit SKU 130101 – Set of mulching blades are included. Suits Raptor XD with 60” deck.
• Double Bag Grass Catcher SKU 944629 – Rear mounted two bag grass catcher. Suits Raptor X / XL / XD with 42/48/54/60” deck.
• Striping Kit SKU 126828P – Provide a professionally manicured striped finish to your lawn. Suits Raptor X / XD / FasTrak / FasTrak SDX models with 48/54/60″ decks.
• Tow Hitch Kit SKU 130206 – Increase the productivity and flexibility of your Hustler with this handy Tow Hitch. Simple drop pin hitch design suits most garden trailers, poly carts etc. Suits Raptor XL / XD (944504EX, 944538EX, 944546EX, 944553EX).

Specifications

Deck Width & Construction – 60 Inch 11 Gauge Fabricated Cutting Deck
Deck Lift – Foot Operated
Blades & PTO – 3 Blades with electric PTO blade engagement
Cutting Height & Adjustment – 1.5″ – 4.5″ cutting range with foot assisted deck height adjustment

Ground Speed – 12 Km/h Ground Speed
Acres per hour – 3.64 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity – 13.25 L

Engine Type & Specifications – 24HP Kawasaki FR730V Engine. Air cooled. 726cc.
Transmission Type & Specifications – Tuff Torq TZ-350

Country of Manufacture – Made in the USA
Chassis Construction – 1.5″ x 3″ Welded Tubular Steel Frame
Rear Wheels & Tyres – 20″ x 12″ – 8″ Rear Tyres
Front Wheels, Tyres & Castors – 13″ x 6.5″ Front Tyres

Seat Type – Custom Bolstered 20″ High Back Seat with Armrests

Minimum Trailer Size – 5 ft wide, 7 ft Long
Length – 1798 mm
Width (Chute up) – 1649 mm (Chute up)
Height – 1148 mm
Weight – 309 kg

Disclaimer – Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Warranty

Residential Warranty – 3 Year / 300 Hr Domestic warranty
Commercial Warranty – 3 Year / 300 Hr Commercial warranty
Engine Warranty – 3 Year Engine Warranty
