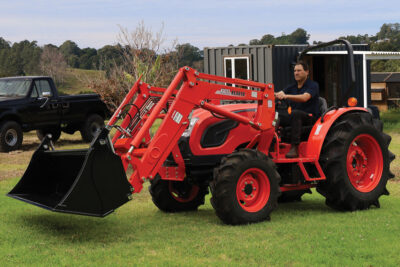

Kioti DK20 Series Compact Tractor/Utility Tractor Range | ROPS | 53hp - 58hp | Manual

Description

Description

The all-new DK20 Series from Kioti, available in both 53 hp and 58 hp models, sets a new benchmark for compact tractors. Engineered for robust performance, smooth operation, and innovative design, the DK20 Series is built to meet the diverse needs of farmers, landowners, and property managers alike. Whether you’re managing small acreage or taking on larger, more demanding projects, these tractors deliver the power, reliability, and versatility you need to get the job done. Equipped with a newly designed 16×16 transmission and a synchronized shuttle, the DK20 Series ensures smoother shifting, enhanced operational efficiency, and superior versatility. This makes it the ideal solution for a wide range of agricultural tasks, property maintenance, and everything in between. Experience a new level of performance with this Series—where innovation meets hardworking reliability.

• Manual Transmission
• High Ground Speed
• Flat Working Platform
• 4WD
• Power Steering
• Hydraulic Remote (STD)

Features

Engine

• At the heart of the DK20 Series is the Daedong 4B243DL-A / 4B243DTL-A engine — a liquid-cooled, 4-cylinder diesel powerhouse with a 2435 cc displacement. The DK5320 model produces 53 hp at 2600 rpm, while the DK5820 steps up to 58 hp at 2600 rpm. Both models feature a generous 45-litre fuel tank, allowing you to work longer with fewer stops.

Transmission

• This Series features a rugged 16×16 manual transmission with 4 speed ranges and a synchro shuttle for smooth, responsive gear changes. 4-wheel drive and a rear differential lock provide superior traction and control across all types of terrain, ensuring you stay productive no matter the conditions.

Hydraulics & Linkage

• The compact tractors are equipped with a high-performance tandem gear hydraulic pump, delivering a total hydraulic flow of 55.1 L/min for smooth and efficient operation. Featuring manual linkage control, the DK20 Series ensures precise implement management in the field. With a durable Category 1 three-point linkage, these tractors provide a maximum rear lift capacity of 1,232 kg at 610 mm behind the lift point, giving you the power and flexibility to handle a wide variety of attachments with ease. Whether you’re lifting, towing, or operating hydraulic implements, the Kioti DK20’s advanced hydraulic system is built to maximize productivity and reliability.

Power Take-Off (PTO)

• The Kioti DK20 Series compact tractors come equipped with a versatile 3-speed PTO, offering 540, 750, and 1000 RPM options. This multi-speed PTO system provides the flexibility needed to efficiently power a wide range of implements and attachments. With multiple PTO speed settings, the Kioti DK20 Series ensures optimal performance and fuel efficiency, making it the perfect choice for farmers, property owners, and professional operators looking for reliable and adaptable tractor solutions.

Brakes Wet Disc Type

• Built for tough tasks and challenging terrain, the Kioti DK20’s wet disc brakes offer low maintenance requirements and enhanced reliability compared to traditional dry brake systems.

Operator Environment on the Kioti DK20 Series

• The Kioti DK20 Series compact tractors are designed with operator comfort, safety, and visibility in mind. Featuring front work lights with indicators and brake lights, these tractors ensure excellent visibility and road safety during early morning or late evening operations. The step-through platform provides easy access to the operator’s station, while the under-bonnet muffler design helps to reduce noise and improve visibility over the hood. A comfortable seat with an integrated seat belt keeps operators secure during long working hours, and the foldable ROPS (Roll-Over Protective Structure) adds crucial safety while allowing for easy storage and access to low-clearance areas. With the Kioti DK20 Series, every detail of the operator environment is built for maximum comfort, safety, and productivity.

Travel Speeds

• The Kioti DK20 Series compact tractors offer a wide range of travel speeds to suit any task. With a forward speed range of 0.36 to 33.03 km/h and a reverse speed range of 0.35 to 32.17 km/h, these tractors provide the flexibility needed for both precision work and faster transport. Whether you’re performing detailed field tasks or moving quickly between job sites, the Kioti DK20 Series ensures smooth, efficient operation across all speed ranges.

Dimensions of the Kioti DK20 Series

• The compact tractors are built with an ideal balance of size, stability, and ground clearance to handle a wide range of tasks with ease. Key dimensions include: – Overall Length (including 3-point linkage): 3,180 mm -Overall Height (including ROPS): 2,293 mm -Overall Width (minimum tread): 1,592 mm -Wheelbase: 1,810 mm -Minimum Ground Clearance: 350 mm -Operating Weight: 1,700 kg With its compact footprint and solid construction, the Kioti DK20 Series delivers excellent maneuverability, durability, and stability for both field and property work.

Tyres on the Kioti DK20 Series

• The compact tractors come equipped with heavy-duty agricultural tyres designed for optimal performance on a variety of terrains. The front tyres measure 9.5-16, while the rear tyres are sized 13.6-26. These high-quality ag tyres provide excellent traction, stability, and durability, making them perfect for both fieldwork and property management. With the right tyre size and design, the Kioti DK20 Series ensures superior performance, enhanced grip, and a smoother ride across rough and uneven surfaces.

Models

DK5320M ROPS
DK5820M ROPS

Specifications

Please download the Kioti DK20 Series brochure for more information.
