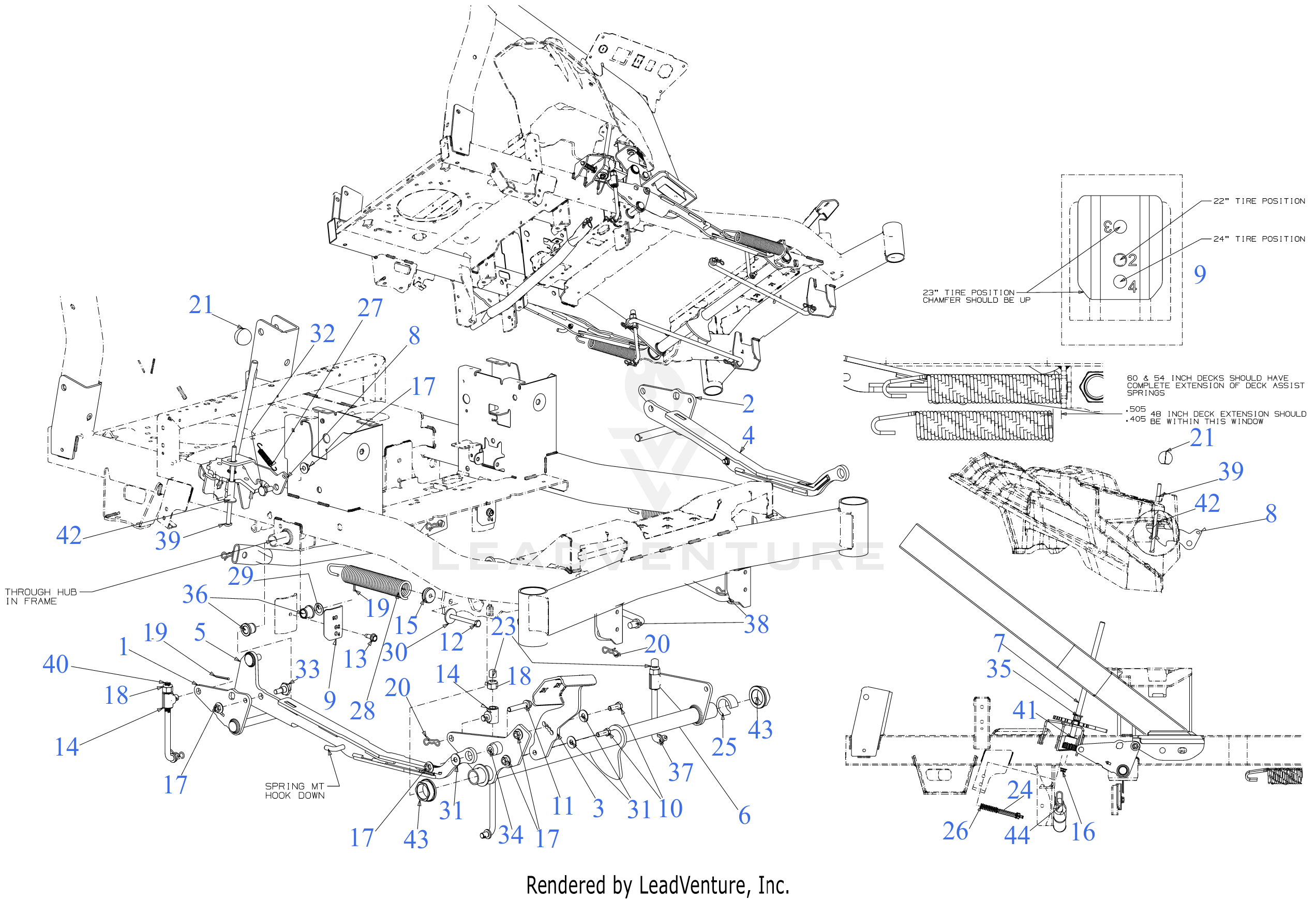

ZTX5-48 KW FAB (47AIAAA6330) (2021) (ULTIMA ZTX5) · Deck Lift
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Kawasaki FR691V-FS52 |
| Engine Oil Type | SAE 10W30 |
| Engine Oil Capacity | 74 oz |
| Deck Size | 48-Inch |
| Manual | 769-25923 |
Showing all 24 results
-
603-06599 – DECK LIFT PEDAL
DECK LIFT PEDAL -
603E06379 – BELLCRANK BRACKET (RH)
BELLCRANK BRACKET (RH) -
603E06380 – BELLCRANK BRACKET (LH)
BELLCRANK BRACKET (LH) -
603E06619A – LIFT LINK (LH)
LIFT LINK (LH) -
603E06639A – LIFT LINK (RH)
LIFT LINK (RH) -
647E05333 – LIFT TUBE (FRONT)
LIFT TUBE (FRONT) -
647Z05353B – DECK HEIGHT ADJUSTMENT ROD
DECK HEIGHT ADJUSTMENT ROD -
703E19945 – TRAVEL LOCK PLATE
TRAVEL LOCK PLATE -
703E22844 – UPSTOP BRACKET
UPSTOP BRACKET -
710-1207 – SCREW 5/16-18 x 3.50 GR5
SCREW 5/16-18 x 3.50 GR5 -
711-09782 – LIFT SPRING INSERT
LIFT SPRING INSERT -
731-18771 – LIFT TUBE SPACER
LIFT TUBE SPACER -

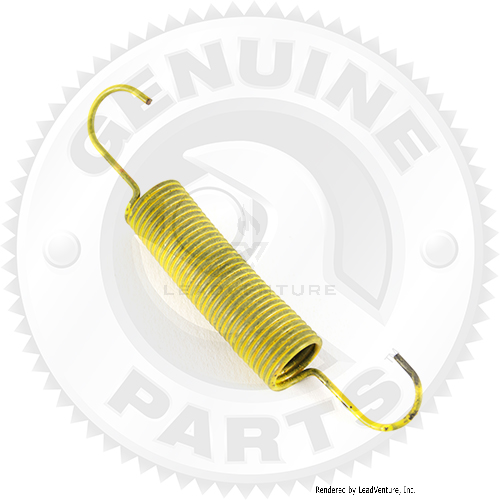

732-05150A – EXTENSION SPRING 2.675″
EXTENSION SPRING 2.675" -
732-07288A – EXTENSION SPRING
EXTENSION SPRING -

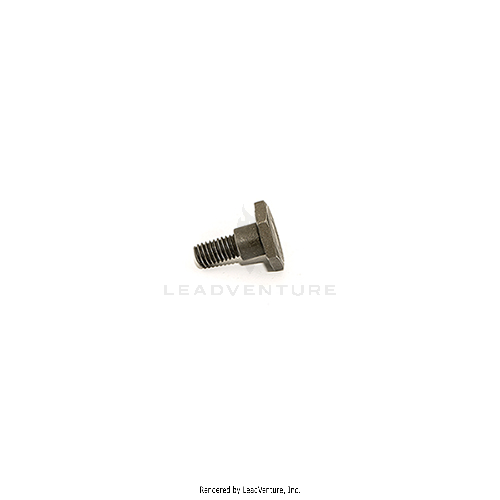

738-04266 – SHOULDER SCREW .50 x .385
SHOULDER SCREW .50 x .385 -
738-06114 – SHOLUDER SPACER
SHOLUDER SPACER -
741-04108 – HEX FLANGE BEARING .506ID x .590LG
HEX FLANGE BEARING .506ID x .590LG -
747-07490 – DECK LIFT ROD 6.875″
DECK LIFT ROD 6.875" -
747-08670 – DECK CONTROL ROD
DECK CONTROL ROD -
747-09150 – TRAVEL LOCK ROD
TRAVEL LOCK ROD -
747-10650 – DECK LIFT ROD 6.562″
DECK LIFT ROD 6.562" -
748-05824 – DECK HEIGHT DETENT HUB
DECK HEIGHT DETENT HUB -
748-06304 – LOCK ROD SLEEVE SPACER
LOCK ROD SLEEVE SPACER -
749E07974 – DECK STABILIZER TUBE
DECK STABILIZER TUBE
