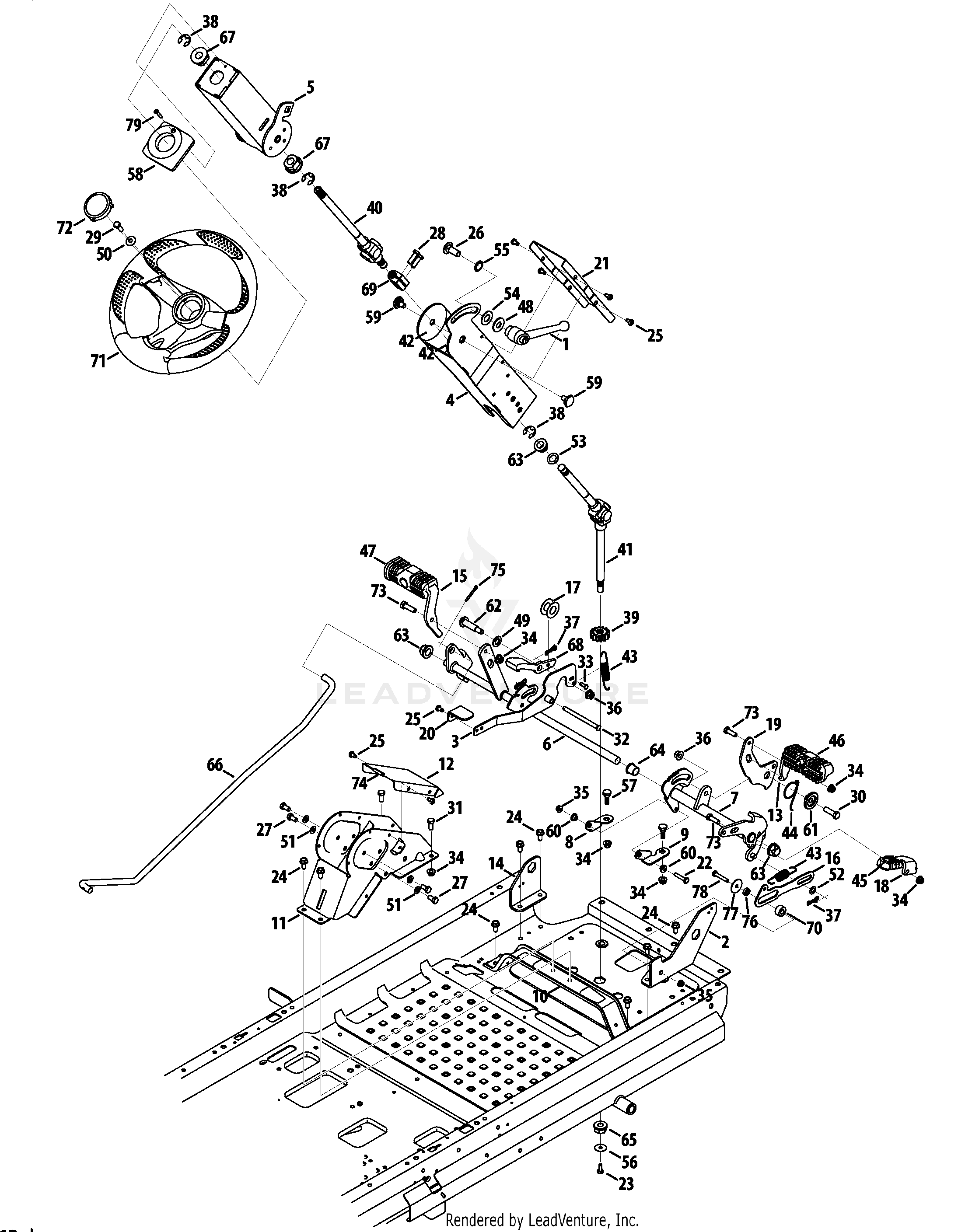

PRO Z 100 EFI 148-S (53AWEFJF330) (2016) · Steering Column & Pedal Controls
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Kohler EZT740-3014 |
| Engine Oil Type | SAE 10W30 |
| Engine Oil Capacity | 64 oz |
| Deck Size | 48-Inch |
| Manual | 769-11438 |
| IPL Manual | 769-11467 |
Showing 1–40 of 45 results
-
603-05040-0637 – CRUISE/BRAKE ARM (POWDER BLACK)
CRUISE/BRAKE ARM (POWDER BLACK) -
603-05076 – LOWER COLUMN ASSEMBLY
LOWER COLUMN ASSEMBLY -
603-05128A – UPPER PIVOT COLUMN
UPPER PIVOT COLUMN -
647-05042A – BRAKE SHAFT ASSEMBLY
BRAKE SHAFT ASSEMBLY -
703-08604-0637 – PEDAL SHAFT BRACKET (LH)
PEDAL SHAFT BRACKET (LH) -
703-08606-0637 – PEDAL SHAFT BRACKET (RH)
PEDAL SHAFT BRACKET (RH) -
703-08620A – STEERING SUPPORT BRACKET
STEERING SUPPORT BRACKET -
703-08646B – FORWARD DRIVE PEDAL
FORWARD DRIVE PEDAL -
703-08656-0637 – BEARING SUPPORT BRACKET
BEARING SUPPORT BRACKET -
703-08675A – BRAKE PEDAL
BRAKE PEDAL -
703-08694B – REVERSE DRIVE PEDAL
REVERSE DRIVE PEDAL -
703-09147 – TILT STEERING PEDAL
TILT STEERING PEDAL -
703-09279 – STEERING COLUMN COVER
STEERING COLUMN COVER -
703-10408A – PEDAL BEARING BRACKET (RH)
PEDAL BEARING BRACKET (RH) -
703-10573 – LOWER STEERING COLUMN
LOWER STEERING COLUMN -
703-10582 – LOWER COLUMN COVER
LOWER COLUMN COVER -
710-05375 – CARRIAGE BOLT 1/2-13 x 1.25 GR5
CARRIAGE BOLT 1/2-13 x 1.25 GR5 -
710-0538 – SCREW 5/16-18 x .62 GR5
SCREW 5/16-18 x .62 GR5 -
710-1245B – SCREW 5/16-24 x .875 GR5
SCREW 5/16-24 x .875 GR5 -
710-1331 – SCREW #10-16 x 1.25
SCREW #10-16 x 1.25 -
711-05670 – CLEVIS PIN .224 x .625
CLEVIS PIN .224 x .625 -
717-04960 – STEERING GEAR 14T
STEERING GEAR 14T -
717-05247 – UPPER STEERING SHAFT
UPPER STEERING SHAFT -
717-05248 – LOWER STEERING SHAFT
LOWER STEERING SHAFT -
731-09831 – COLUMN PLATE
COLUMN PLATE -
731-11491A – STEERING COLUMN COVER
STEERING COLUMN COVER -
732-04748 – EXTENSION SPRING
EXTENSION SPRING -
732-04949 – TORSION SPRING
TORSION SPRING -
736-04602 – FLAT WASHER NYLON 5/8
FLAT WASHER NYLON 5/8 -
738-04130A – SHOULDER SCREW .625X.165X3/8-16
SHOULDER SCREW .625X.165X3/8-16 -
738-04483 – SHOULDER SPACER
SHOULDER SPACER -
738-04552B – SHOULDER SPACER 1.50X.38X.38
SHOULDER SPACER 1.50X.38X.38 -
738-0929 – SHOULDER SCREW .496X1.44 3/8-16
SHOULDER SCREW .496X1.44 3/8-16 -
741-05052 – FLANGE BEARING
FLANGE BEARING -
747-05654A – FRONT BRAKE ROD
FRONT BRAKE ROD -
748-05045 – STEERING SHAFT COUPLING
STEERING SHAFT COUPLING -
750-06497 – SPACER .267×1.00x.36
SPACER .267x1.00x.36 -
903-09837A – NEUTRAL RETURN LINK
NEUTRAL RETURN LINK -
903-10338A – FORWARD PEDAL BRACKET
FORWARD PEDAL BRACKET -
916-0231 – E-RING
E-RING
