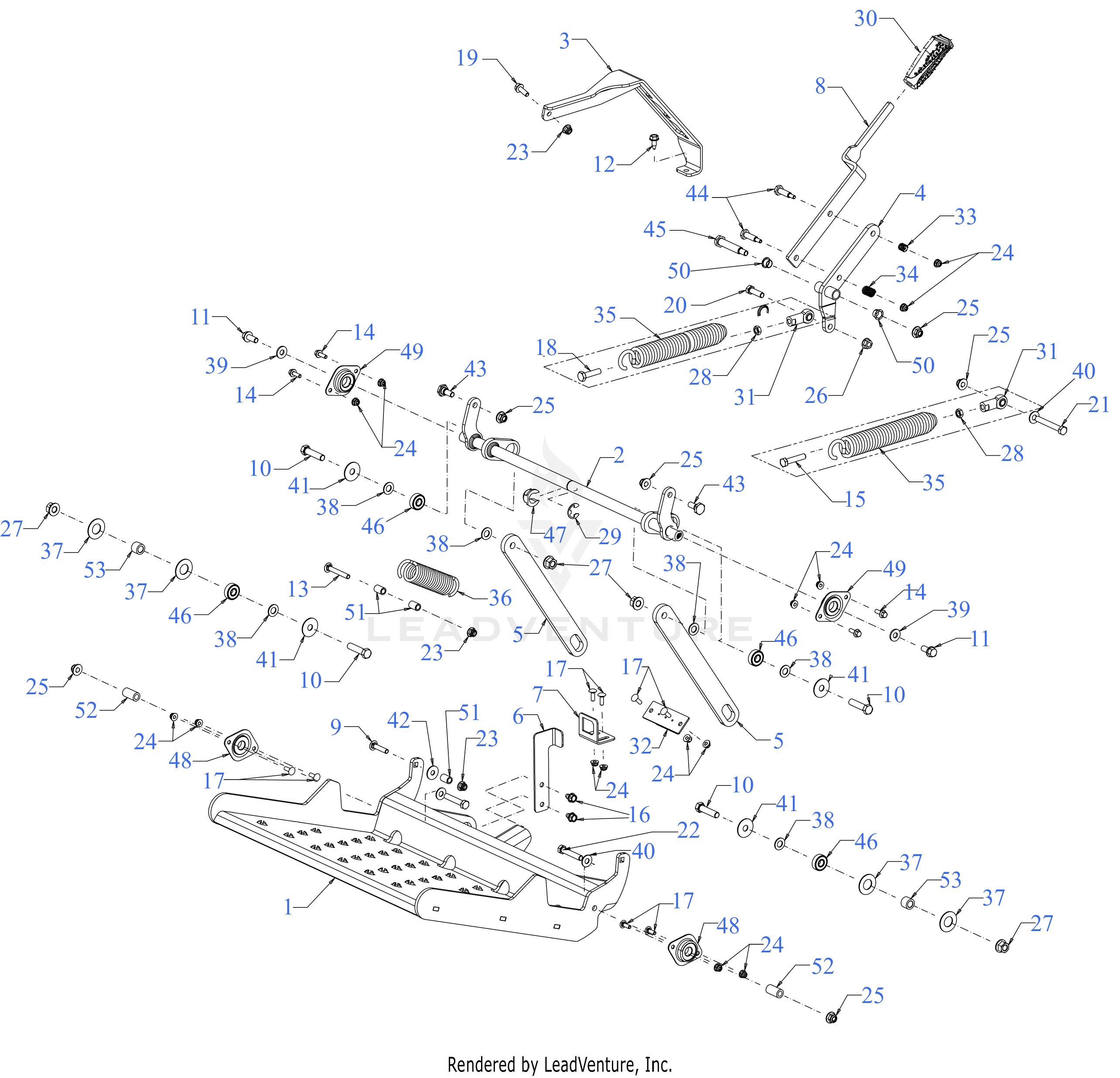

PRO X 600 KW 648 (53AI8CSF330) (2023) · Platform
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Kawasaki FX691V-CS32 |
| Engine Oil Type | SAE 10W30 |
| Engine Oil Capacity | 60 oz |
| Deck Size | 48-Inch |
| Manual | 769-26740 |
Showing all 25 results
-
680-00715 – PLATFORM ASSEMBLY
PLATFORM ASSEMBLY -
680E01514 – ROLLER LINK
ROLLER LINK -
680E01714 – ADJUSTMENT INDEX
ADJUSTMENT INDEX -
680E01754 – ADJUSTMENT ARM
ADJUSTMENT ARM -
703E19407 – SUSPENSION LINK
SUSPENSION LINK -
703E19785 – SWITCH BRACKET
SWITCH BRACKET -
703E19984 – SWITCH BRACKET MOUNT
SWITCH BRACKET MOUNT -
703E20365 – ADJUSTMENT SPRING LEVER
ADJUSTMENT SPRING LEVER -

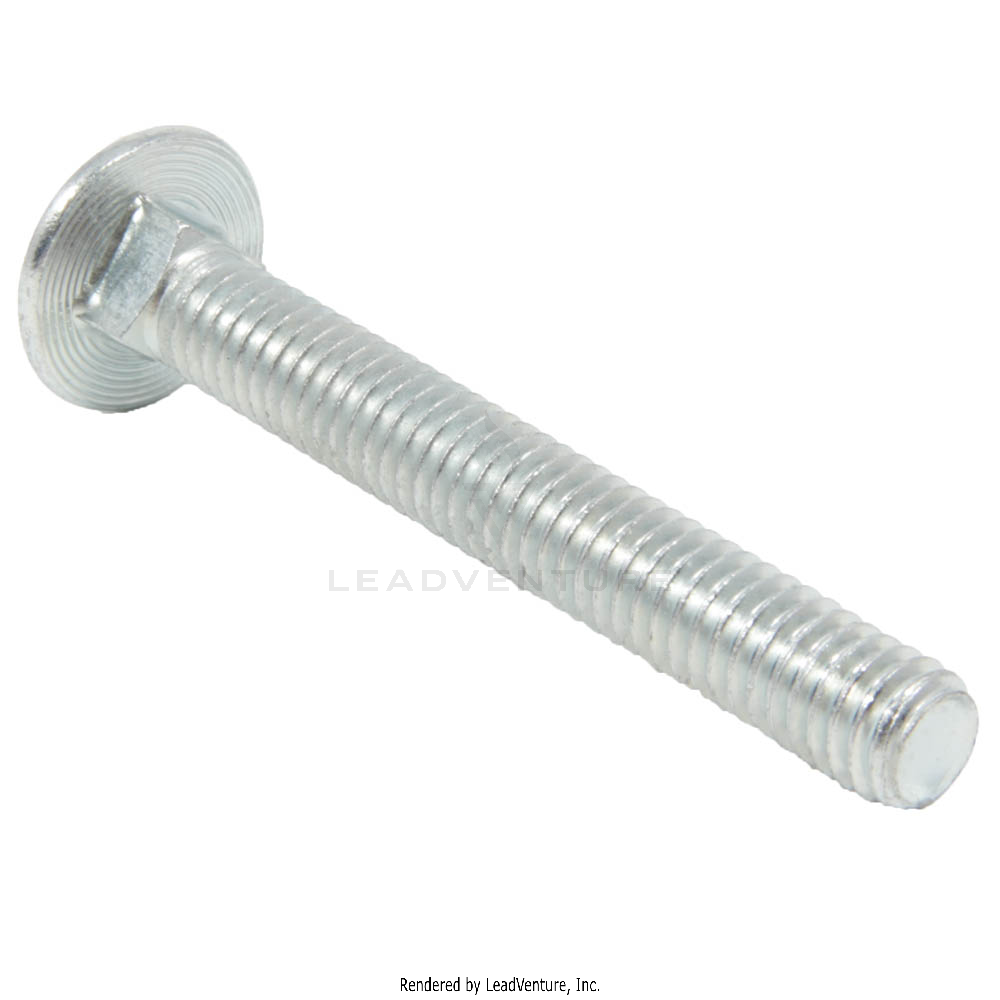

710-0572 – BOLT 5/16-18 x 2.50 GR1
BOLT 5/16-18 x 2.50 GR1 -
716-0231 – E-RING
E-RING -
723-04038 – ROD END 3/8 ID
ROD END 3/8 ID -
731-04016 – SUSPENSION BUMPER
SUSPENSION BUMPER -
732-04756 – COMPRESSION SPRING
COMPRESSION SPRING -
732-04959 – ADJUSTMENT SPRING
ADJUSTMENT SPRING -
732P07126 – EXTENSION SPRING 1.478 x 5.729
EXTENSION SPRING 1.478 x 5.729 -

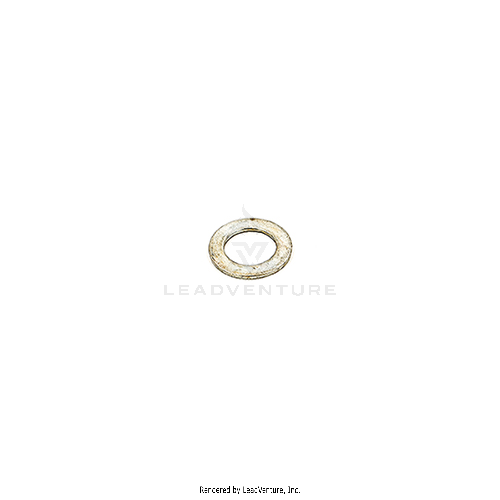

736-3024 – FLAT WASHER .469X.750X.054
FLAT WASHER .469X.750X.054 -
738-0572 – SHOULDER SCREW
SHOULDER SCREW -
741-04566 – BALL BEARING
BALL BEARING -
741-04569 – BALL BEARING
BALL BEARING -
741P04245 – BALL BEARING
BALL BEARING -

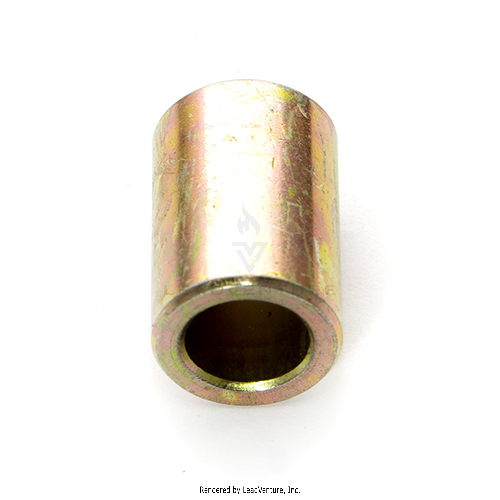

750-06170 – SLEEVE .33X.50X.75 LG
SLEEVE .33X.50X.75 LG -
750-08410 – SPACER .380x.624×1.040
SPACER .380x.624x1.040 -
750-08850 – SPACER .465x.760x.550
SPACER .465x.760x.550 -

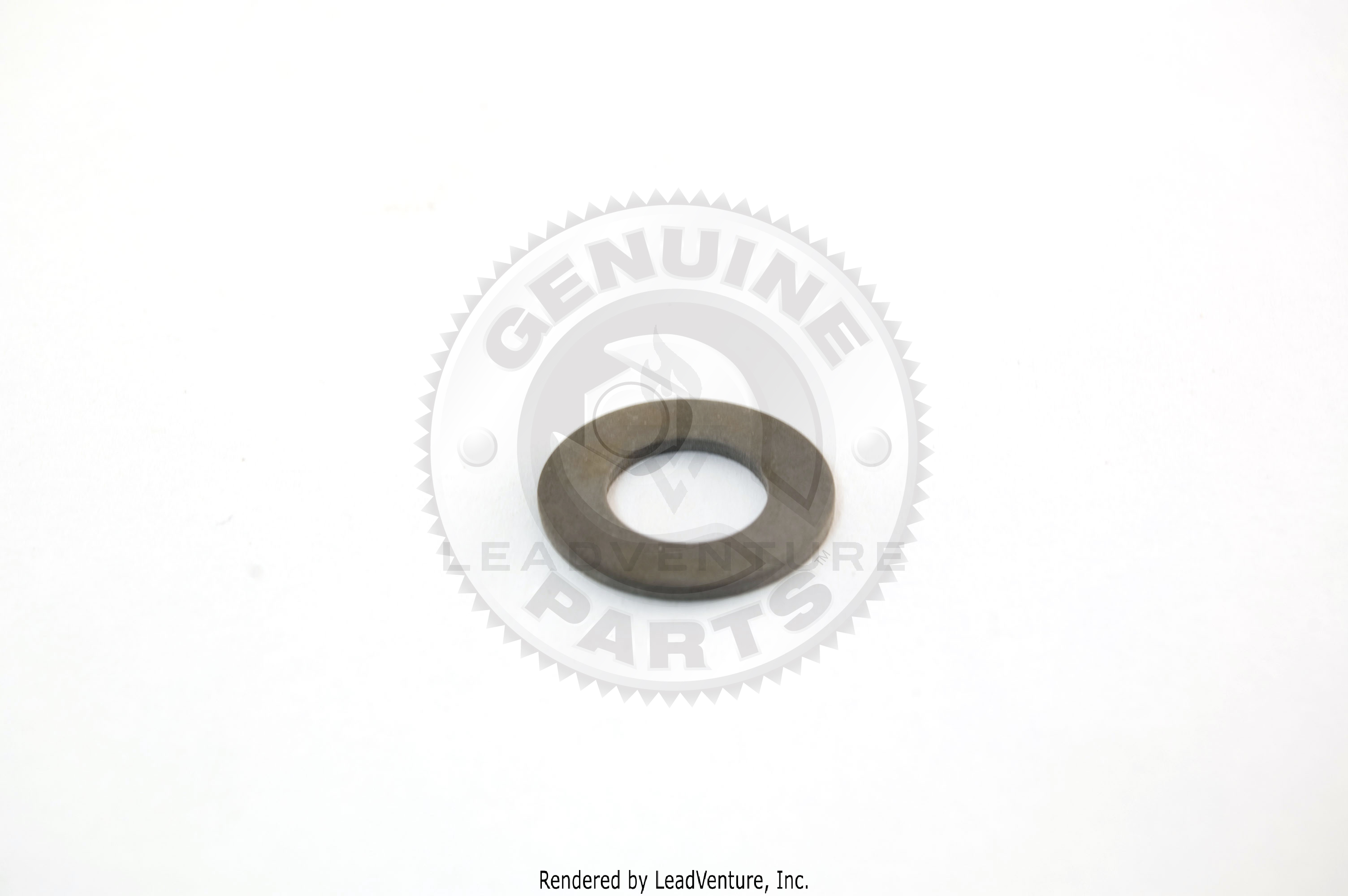

936-0226 – FLAT WASHER
FLAT WASHER -

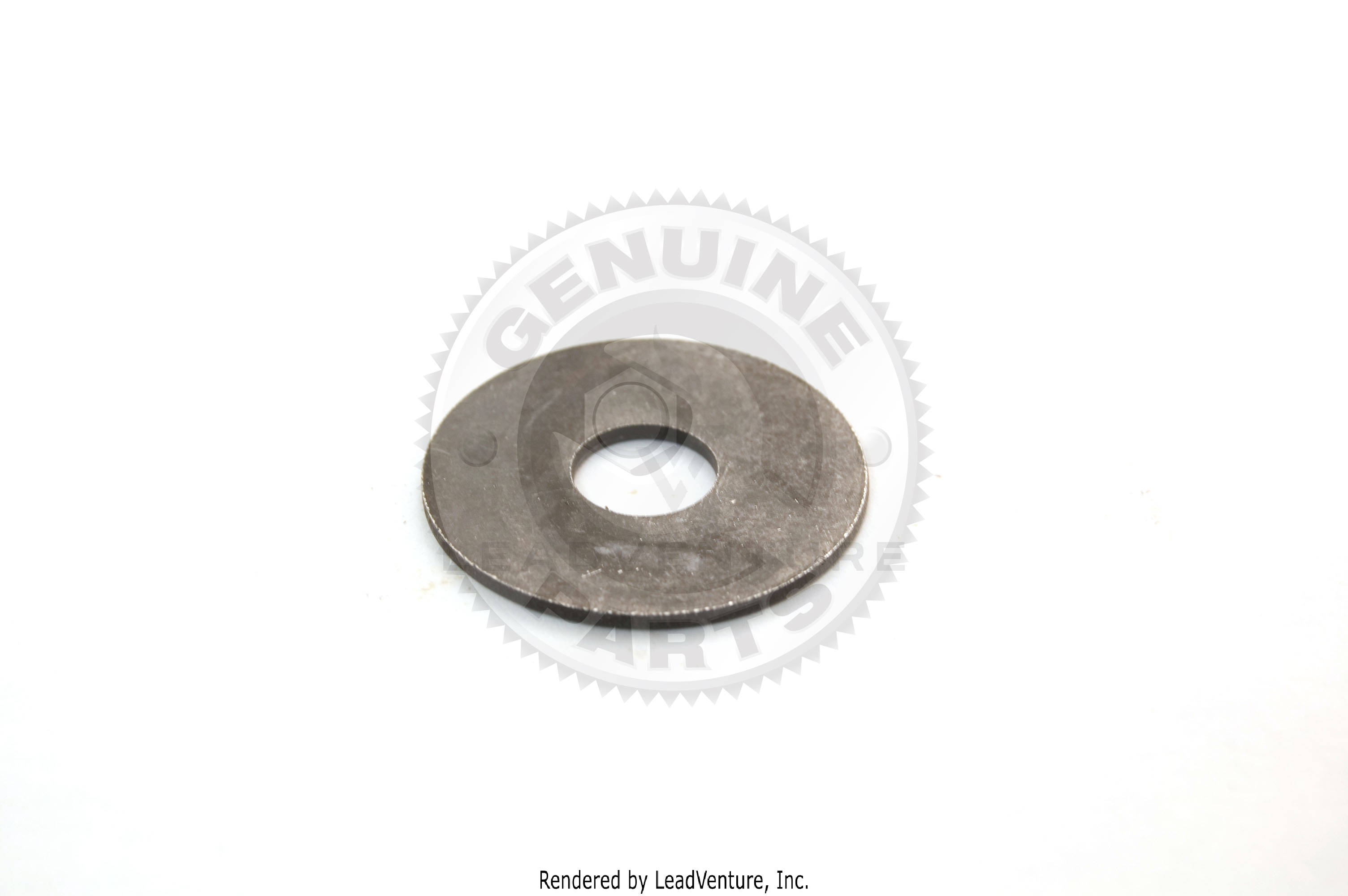

936-0406 – FLAT WASHER
FLAT WASHER
