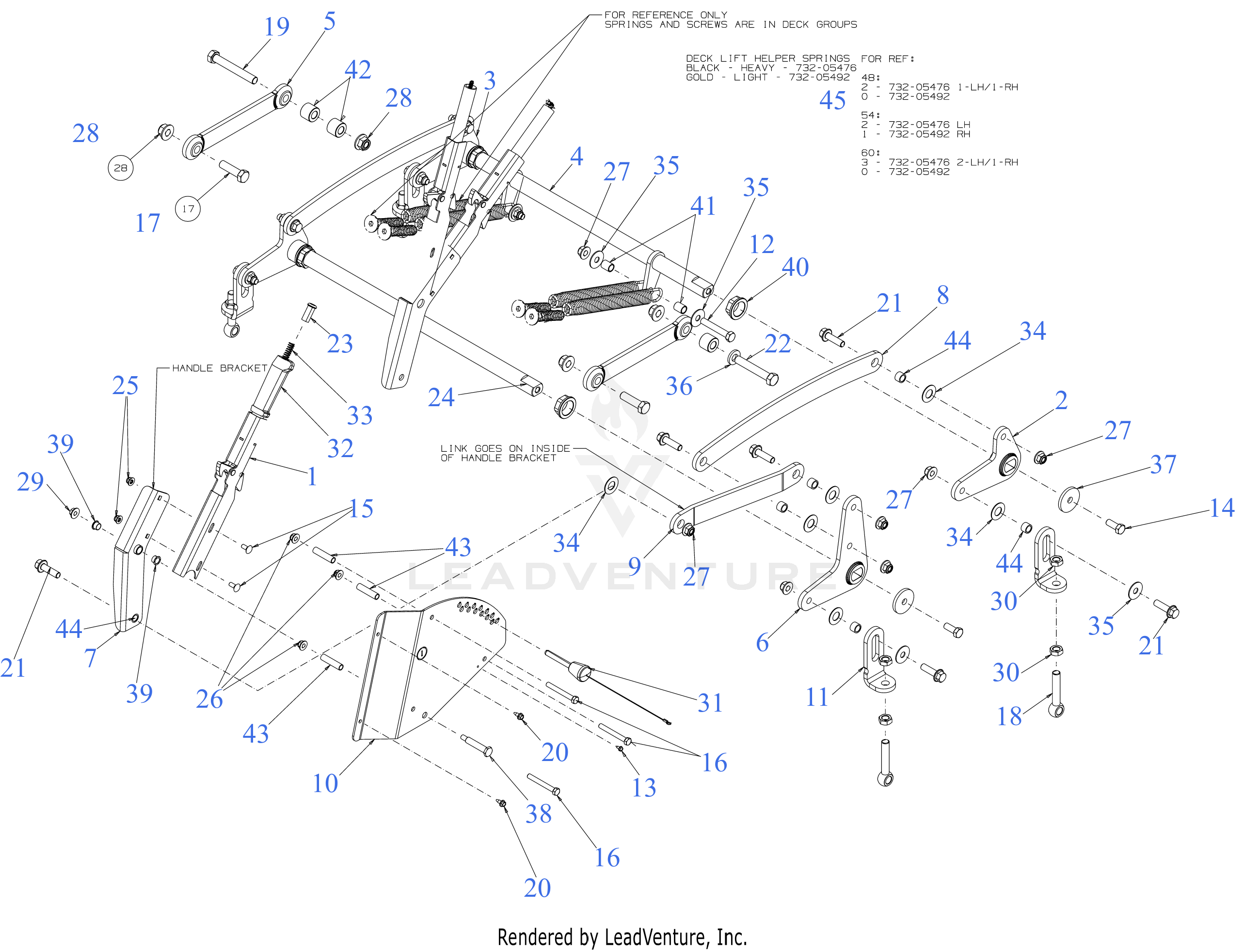

PRO X 600 KW 648 (53AI8CSF330) (2023) · Deck Lift

Specifications

Brand Name	Cub Cadet
Engine	Kawasaki FX691V-CS32
Engine Oil Type	SAE 10W30
Engine Oil Capacity	60 oz
Deck Size	48-Inch
Manual	769-26740

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

680-00375 – DECK LIFT BELLCRANK ASSEMBLY (RH)

680-00393 – DECK LIFT BELLCRANK ASSEMBLY (LH)

680-01094 – DECK CONTROL ROD

680-01114 – DECK LIFT BELLCRANK (RH)

680-01134A – DECK LIFT HANDLE

680E01074 – DECK LIFT SHAFT

703-10178 – DECK LIFT LINK

703-14701 – DECK LIFT LINK

703-14721 – INDEX PLATE

703-22384 – ADJUSTMENT ARM

710-04186 – SCREW 1/2-13 x 1.25 GR5

710-06047 – SCREW 5/8-11 x 2.25 GR5

710-06428 – EYE BOLT 5/8-11 x 3.63

710-07874 – SCREW 5/8-11 X 4.5 GR5

710-3067A – FLANGE BOLT 1/2-13:1.75:GR5

710-3240A – SCREW 5/8-11 x 3.75 GR5

711-09882 – DECK LIFT SHAFT

712-04151 – FLANGE LOCK NUT

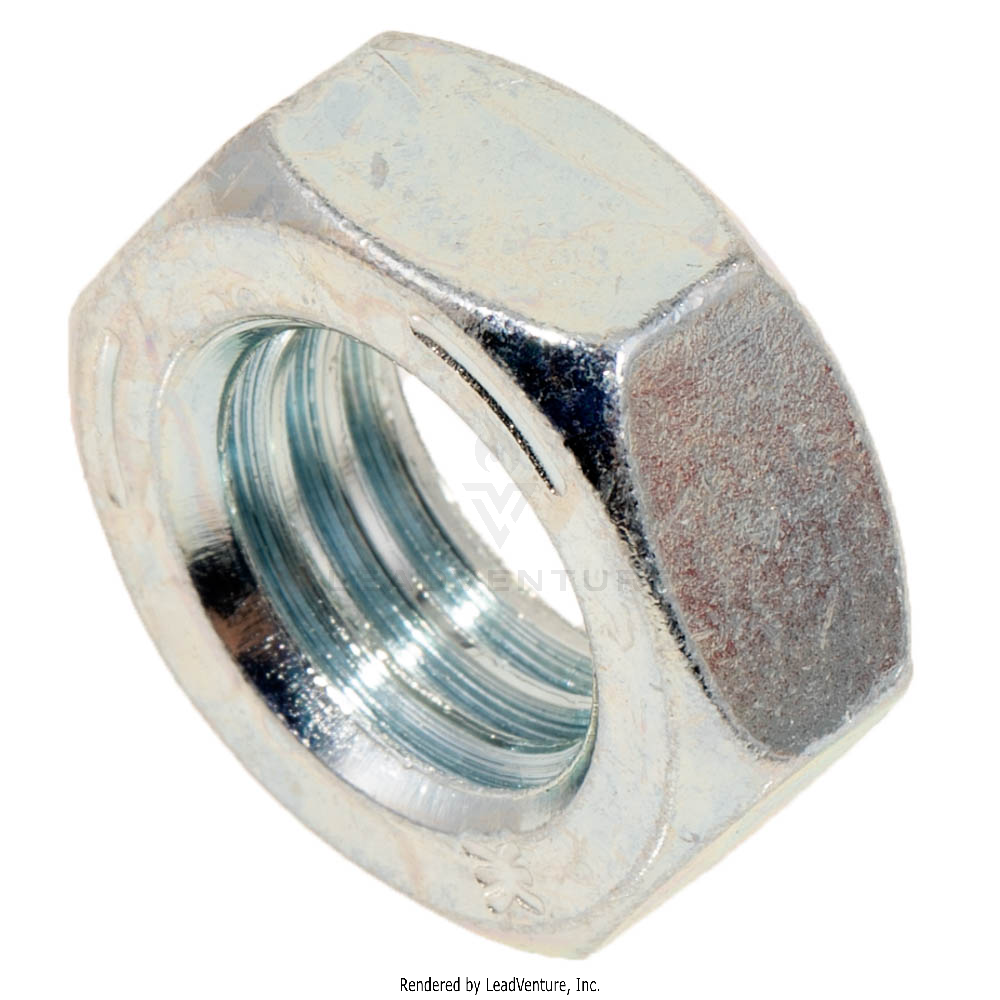

712-3015 – HEX NUT

720P05841 – MAGNETIC DECK LOCK KNOB

732-05476 – EXTENTION SPRING 1.20 x 11.35

732-05492 – EXTENSION SPRING 1.44 OD x 11.36

736-04088 – FLAT WASHER .635 x 1.24 x .181

736-0445 – FLAT WASHER

736-05642 – FLAT WASHER .53″x2.125″x.25″

750-06078 – SPACER 0.535 x 0.68 x 0.83

750-07690 – SPACER 0.630×1.25×1.00LG

750-07750 – SPACER .38 ID x .50 OD x 2.06 LG

750-1206 – SPACER

903-05143A – LATCH HANDLE

948-3051A – FLANGE BEARING
