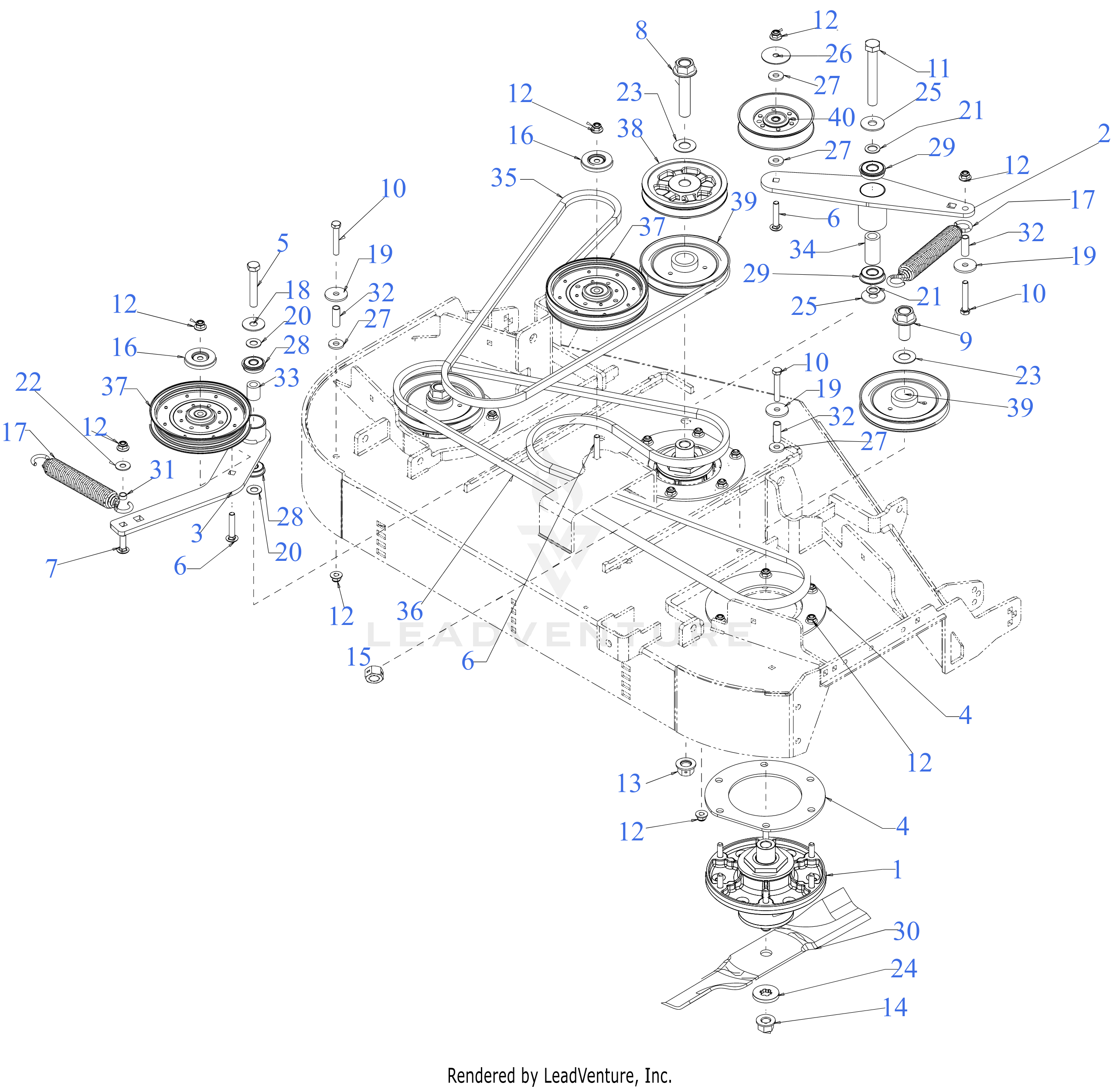

PRO X 600 KW 648 (53AI8CSF330) (2023) · Belts, Blades & Spindles
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Kawasaki FX691V-CS32 |
| Engine Oil Type | SAE 10W30 |
| Engine Oil Capacity | 60 oz |
| Deck Size | 48-Inch |
| Manual | 769-26740 |
Showing all 29 results
-
02005017-X – BLADE-HI LIFT 17.0
BLADE-HI LIFT 17.0 -
490-110-C185 – Cub Cadet 48″ HI LIFT BLADE SET
Cub Cadet 48" HI LIFT BLADE SET -
680E00874 – IDLER BRACKET
IDLER BRACKET -
680E01994 – 48″ DECK IDLER BRACKET
48" DECK IDLER BRACKET -
703E11199 – SPINDLE SUPPORT BRACKET TOP/BTM
SPINDLE SUPPORT BRACKET TOP/BTM -

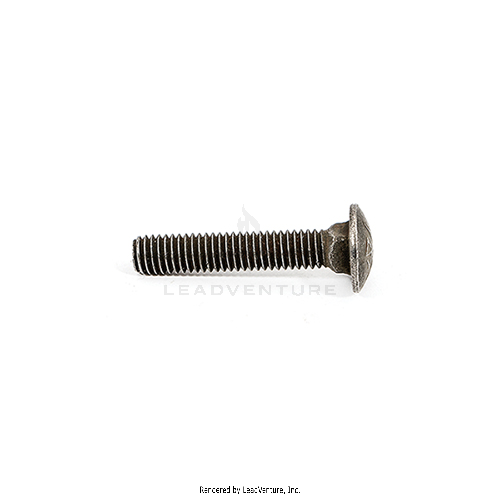

710-04157 – CARRIAGE BOLT 3/8-16 x 2
CARRIAGE BOLT 3/8-16 x 2 -
710-05408 – CARRIAGE BOLT 3/8-16 X1.25 GR5
CARRIAGE BOLT 3/8-16 X1.25 GR5 -
710-08054 – CAP SCREW-HHFLG 3/4-10 X 3.50 GR8
CAP SCREW-HHFLG 3/4-10 X 3.50 GR8 -
710-08055 – CAP SCREW-HHFLG 3/4-10 X 1.50 GR8
CAP SCREW-HHFLG 3/4-10 X 1.50 GR8 -

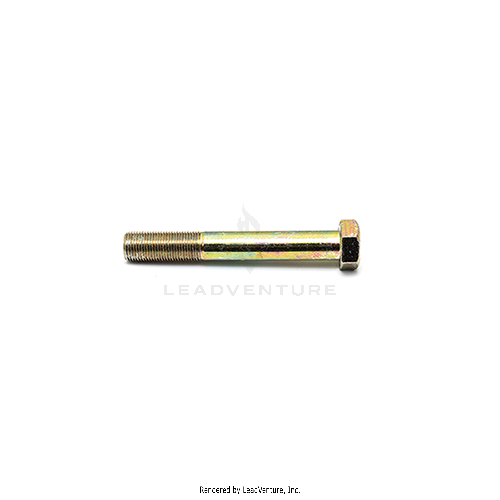

710-3151A – SCREW 5/8-18X4.5 GR5
SCREW 5/8-18X4.5 GR5 -
721-04516 – PULLEY CAP
PULLEY CAP -

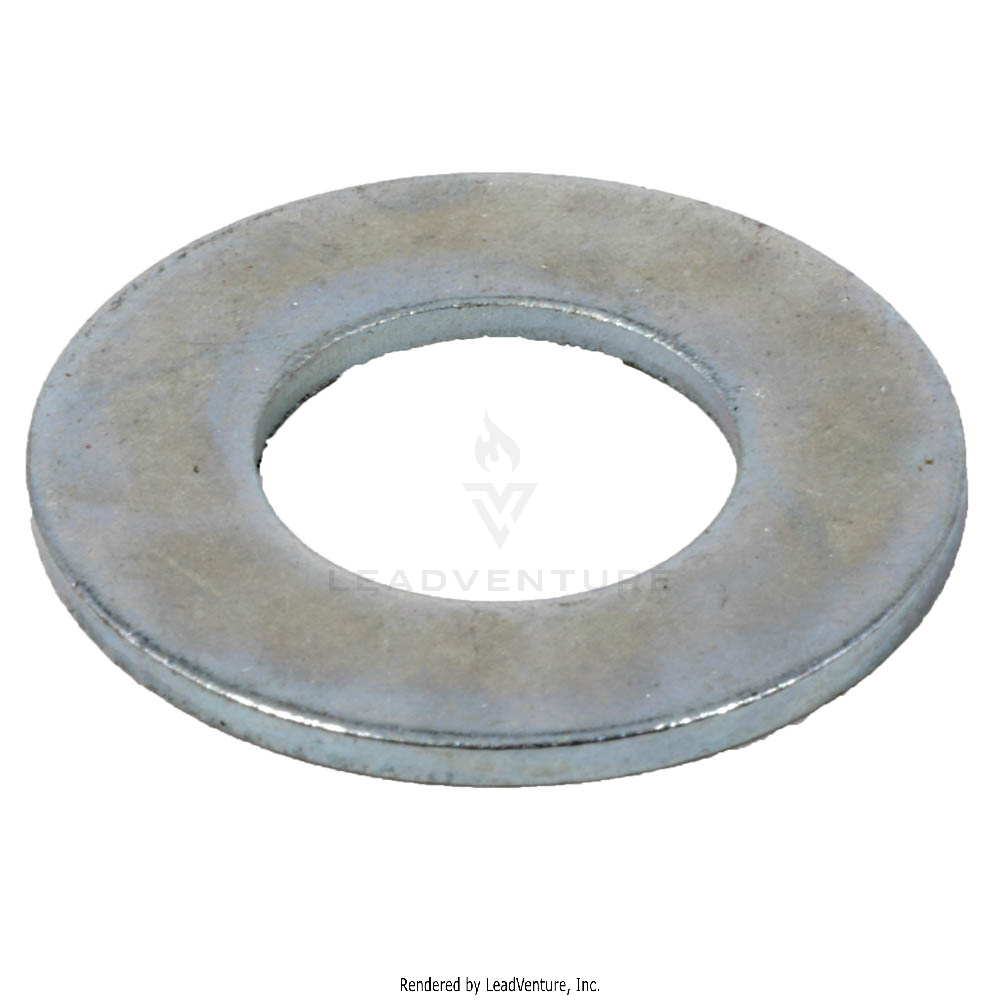

736-0272 – FLAT WASHER .510 x .995
FLAT WASHER .510 x .995 -
736-04183 – WASHER-.395 x 1.0 x .62
WASHER-.395 x 1.0 x .62 -
736-0445 – FLAT WASHER
FLAT WASHER -
736-05210 – FLAT WASHER 0.635xX1.755×0.110
FLAT WASHER 0.635xX1.755x0.110 -
736-05255 – THRUST WASHER .635×1.750×0.055
THRUST WASHER .635x1.750x0.055 -
741-05247 – ROLLER BEARING .5X1.37X.44
ROLLER BEARING .5X1.37X.44 -
742P04417-L – LOW-LIFT 17″ BLADE (48″DECK)
LOW-LIFT 17" BLADE (48"DECK) -
750-05673 – SPACER
SPACER -
750-06330 – SPACER 0.51 x 0.88 x 1.00
SPACER 0.51 x 0.88 x 1.00 -
754P06034 – BELT B SEC x 87.30
BELT B SEC x 87.30 -
754P06514 – BELT B SEC X 109.9
BELT B SEC X 109.9 -
756-04487 – IDLER PULLEY
IDLER PULLEY -
756-04497 – DRIVE PULLEY
DRIVE PULLEY -
756-04500 – SPINDLE PULLEY 6″
SPINDLE PULLEY 6" -
918-08473 – SPINDLE ASSEMBLY
SPINDLE ASSEMBLY -
942-04278A – 17″ BLADE (MULCH)
17" BLADE (MULCH) -
942-04417 – 17″ BLADE (HI LIFT)
17" BLADE (HI LIFT) -
942-04417-ES – 17″ HI-LIFT BLADE 0.756 ID
17" HI-LIFT BLADE 0.756 ID
