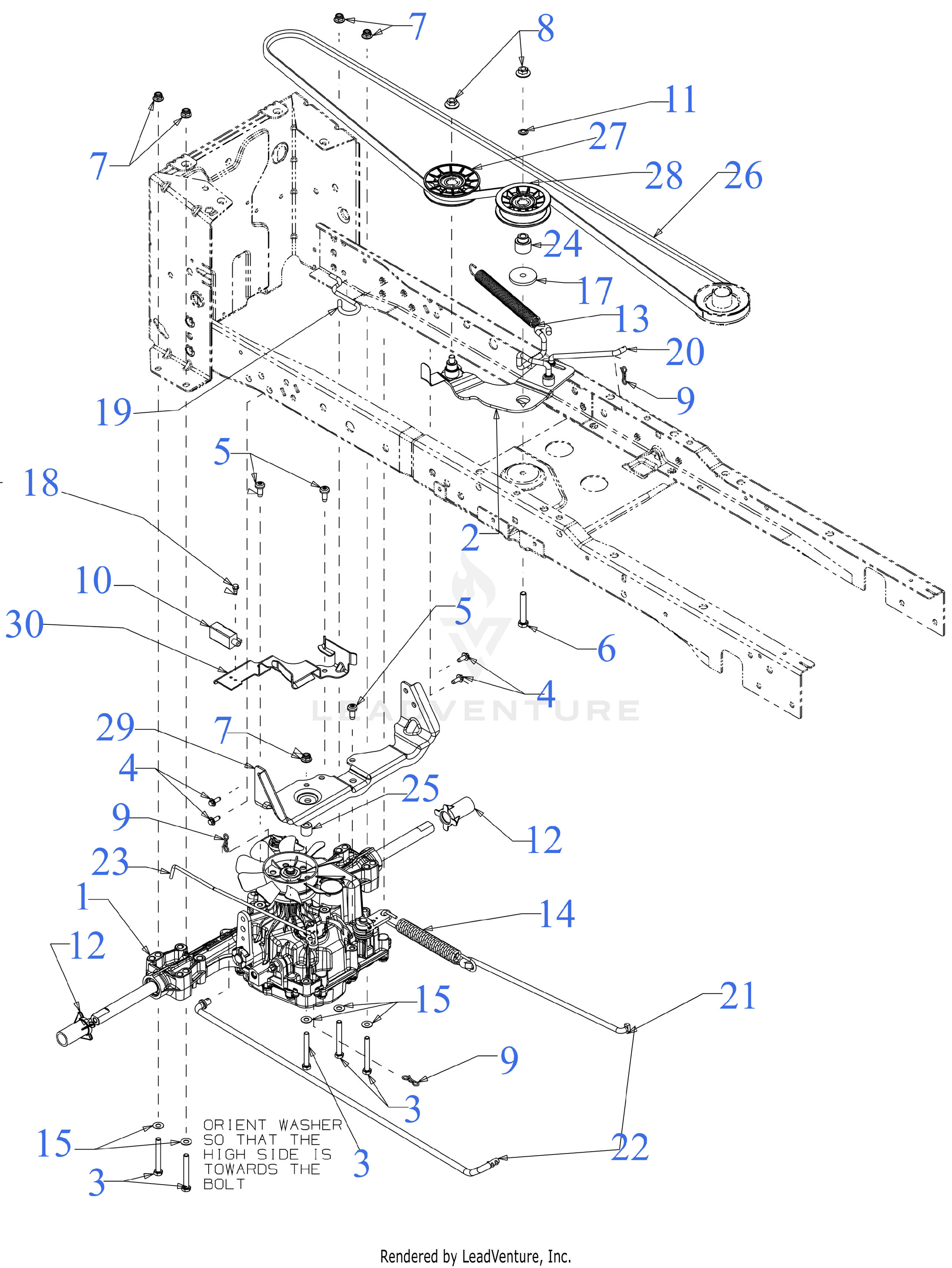

XT1-18/42 KW (13AGA9TS330) (2025) · Drive
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Kawasaki FR600V-GS06 |
| Engine Oil Type | SAE 5W 30 SYN |
| Engine Oil Capacity | 52 oz |
| Deck Size | 42-Inch |
| Manual | 769-26989A |
Showing all 18 results
-
618-08373A – HYDRO TRANSMISSION
HYDRO TRANSMISSION -
731-08237 – AXLE SLEEVE .765 ID X 2.11 LG
AXLE SLEEVE .765 ID X 2.11 LG -
732-05108A – EXTENSION SPRING .790 DIA X 8.41
EXTENSION SPRING .790 DIA X 8.41 -
736-0278 – FLAT WASHER
FLAT WASHER -

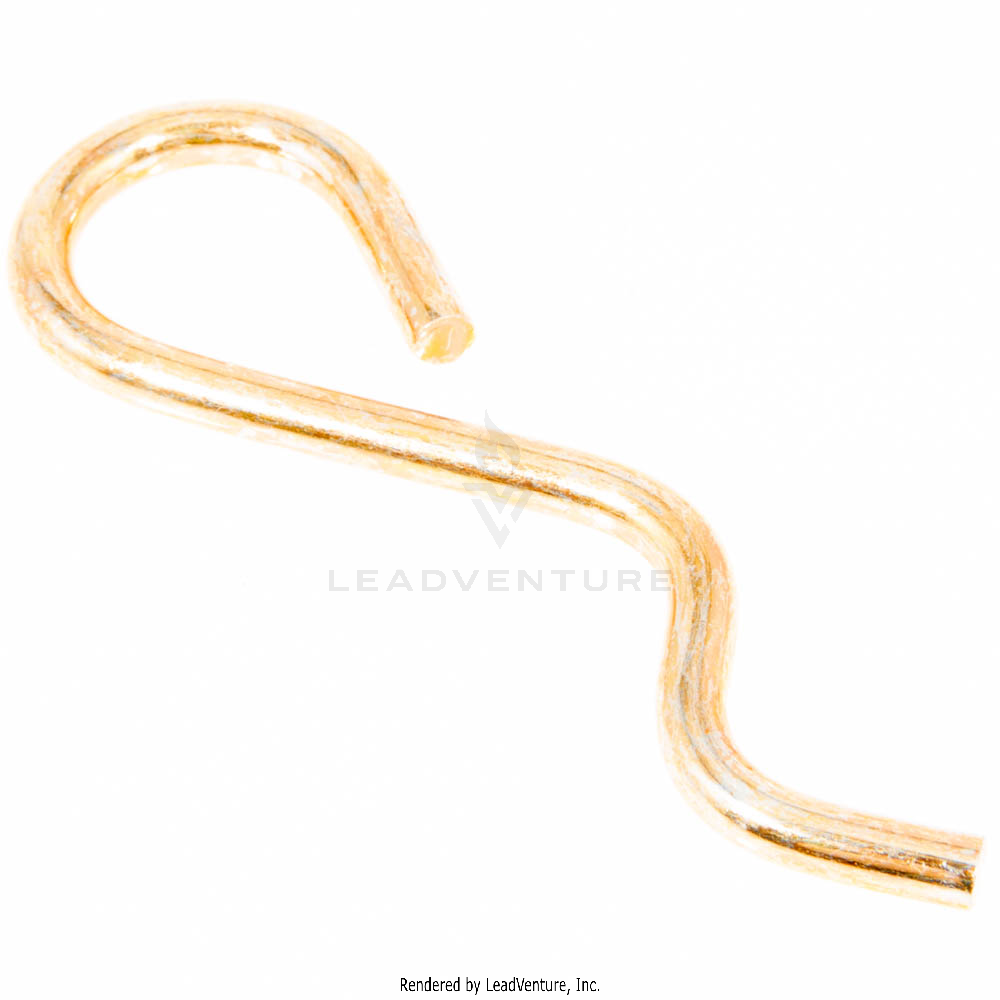

747-05608A – DECK SPRING HOOK
DECK SPRING HOOK -
747-06193B – IDLER BRACKET ROD
IDLER BRACKET ROD -
747-06251C – BRAKE ROD
BRAKE ROD -
747-06281B – HYDRO CONTROL ROD
HYDRO CONTROL ROD -
747-06447 – HYDRO DISENGAGEMENT ROD
HYDRO DISENGAGEMENT ROD -

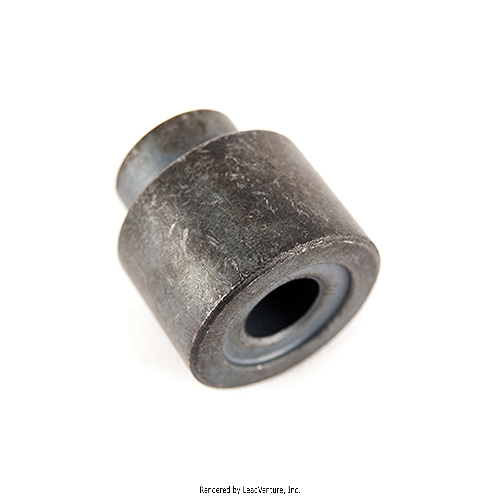

748-05037B – SHOULDER SPACER
SHOULDER SPACER -
750-06201 – SPACER .34 X .75 X .63 LG
SPACER .34 X .75 X .63 LG -
750-0890 – SPACER
SPACER -
756-05024 – V-IDLER PULLEY 3.56 OD
V-IDLER PULLEY 3.56 OD -
756-05032 – FLAT IDLER PULLEY 3.00 OD
FLAT IDLER PULLEY 3.00 OD -
783-08463A – TRANSMISSION MOUNTING BRACKET
TRANSMISSION MOUNTING BRACKET -
783-08991A – BELT KEEPER BRACKET
BELT KEEPER BRACKET -
954-05027B – V-BELT A SEC x 90.90
V-BELT A SEC x 90.90 -
983-05090A – IDLER BRACKET ASSEMBLY
IDLER BRACKET ASSEMBLY
