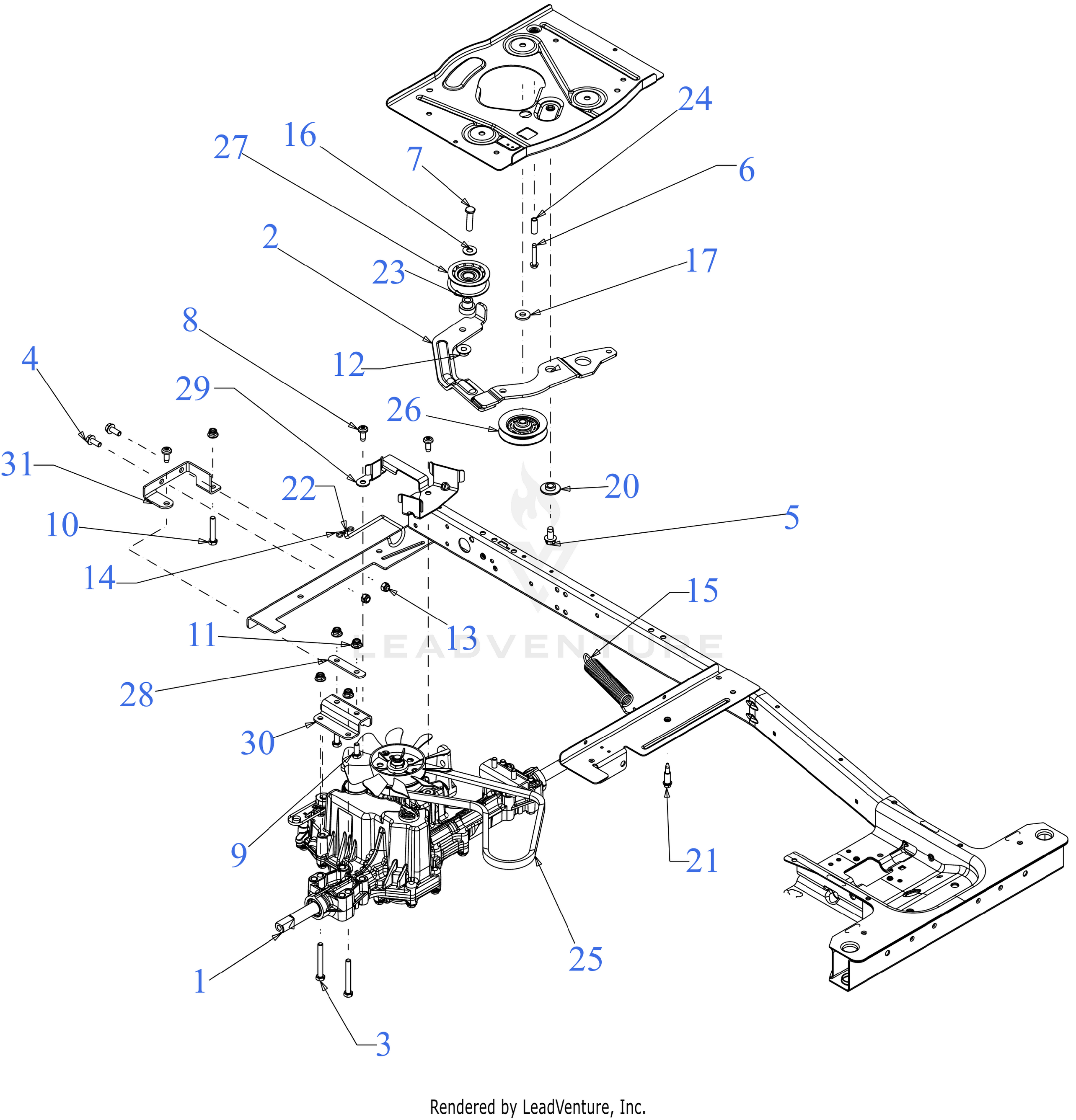

CC30H (131721JD330) (2025) · Drive
Specifications
| Brand Name | Cub Cadet |
| Engine | Cub Cadet OHV 7T84JHA |
| Engine Oil Type | SAE 5W 30 SYN |
| Engine Oil Capacity | 54 oz |
| Deck Size | 30-Inch |
| Manual | 769-27073 |
Showing all 19 results
-
618-10103 – TRANSMISSION
TRANSMISSION -
683-07022 – DRIVE IDLER
DRIVE IDLER -
710-0378 – SCREW 5/16-18 x 2.5 GR 5
SCREW 5/16-18 x 2.5 GR 5 -
710-11674A – HEX CAP SCREW 3/8-16 x 1.50
HEX CAP SCREW 3/8-16 x 1.50 -
712-04217 – FLANGE LOCK NUT
FLANGE LOCK NUT -
732-05573A – EXTENSION SPRING .99 OD x 6.18
EXTENSION SPRING .99 OD x 6.18 -
736-0267 – FLAT WASHER .38X.88
FLAT WASHER .38X.88 -
736-3072 – WASHER
WASHER -
738-04363 – SHOULDER SPACER
SHOULDER SPACER -
738-05016A – SHOULDER SCREW .368 x .75 x 1/4-20
SHOULDER SCREW .368 x .75 x 1/4-20 -
747-11829 – HYDRO BYPASS ROD
HYDRO BYPASS ROD -

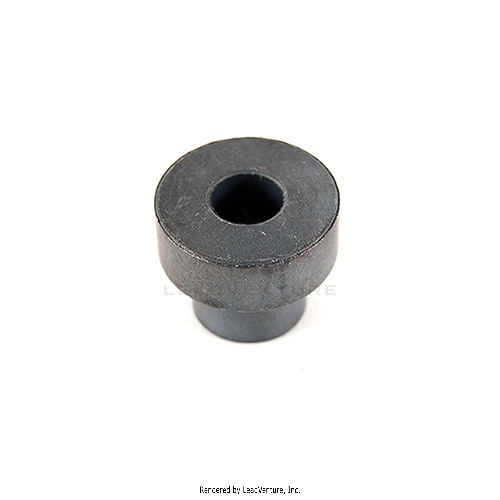

748-05029A – SHOULDER SPACER
SHOULDER SPACER -
754P07163 – V-BELT A SEC x 36.50
V-BELT A SEC x 36.50 -

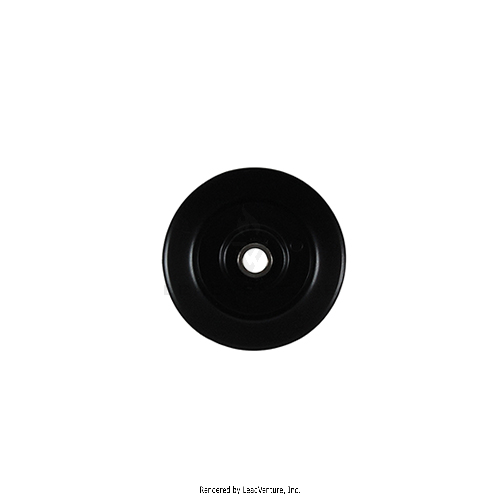

756-04325 – V-IDLER PULLEY A x 3.06 OD
V-IDLER PULLEY A x 3.06 OD -

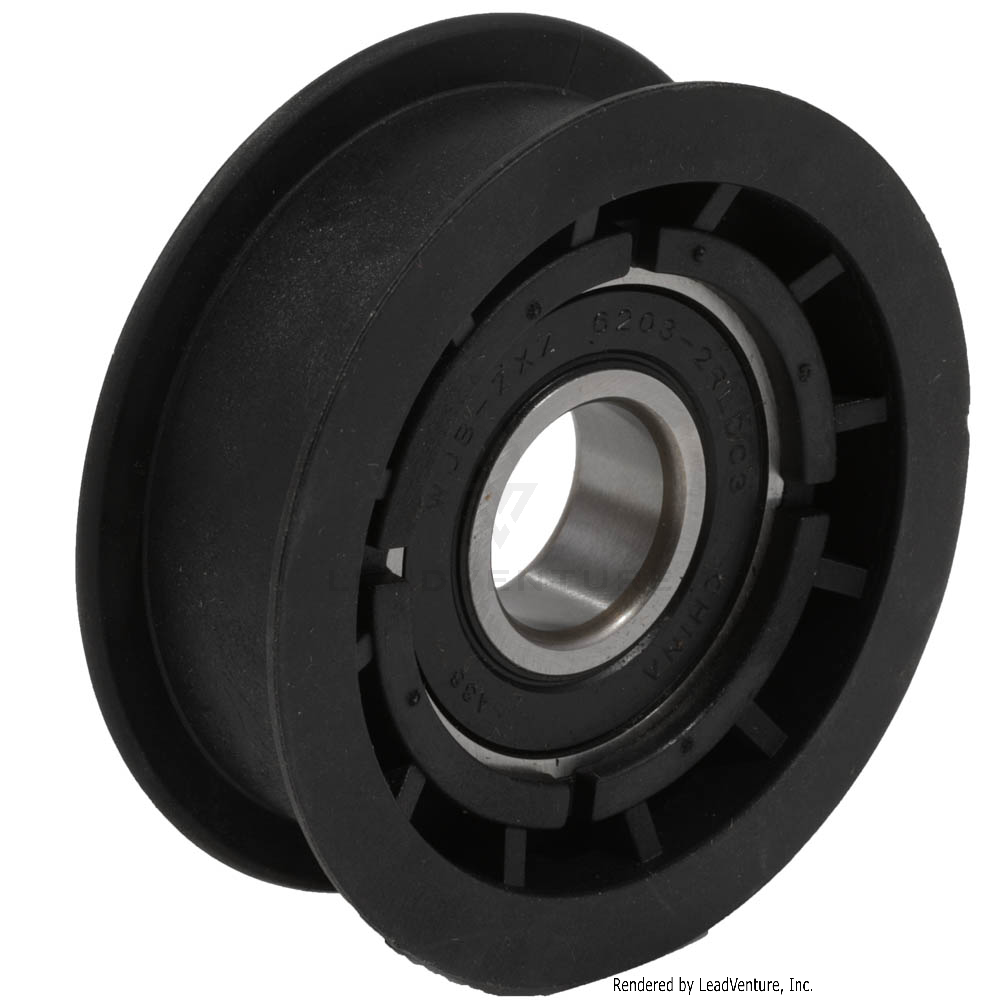

756-05209 – FLAT IDLER PULLEY
FLAT IDLER PULLEY -
783-08131-0637 – TRANSAXLE BRACKET
TRANSAXLE BRACKET -
783-14009 – BELT KEEPER BRACKET
BELT KEEPER BRACKET -
783-14017 – TRANSMISSON MOUNTING BRACKET
TRANSMISSON MOUNTING BRACKET -
783-14022 – TRANSMISSON BRACKET
TRANSMISSON BRACKET
