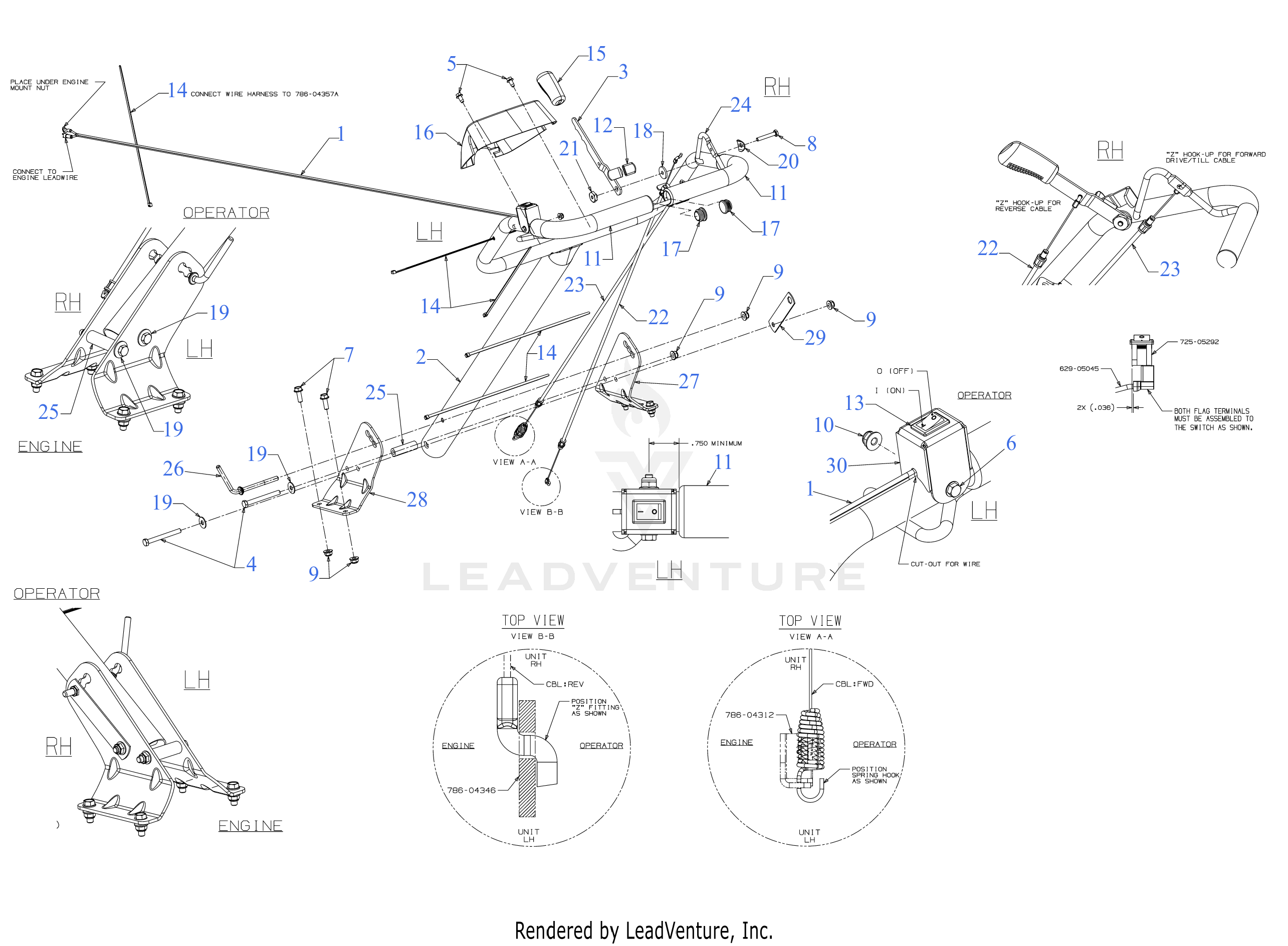

21AA40M8327 RT45 (2022) · Handle
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Cub Cadet OHV 170-AUC |
| Engine Oil Type | 10W30 |
| Engine Oil Capacity | 20oz |
| Manual | 769-12653B |
Showing all 27 results
-
629-05045 – HARNESS ASSEMBLY
HARNESS ASSEMBLY -
649-04098B – UPPER HANDLE ASSEMBLY
UPPER HANDLE ASSEMBLY -
686-04135 – REVERSE HANDLE ASSEMBLY
REVERSE HANDLE ASSEMBLY -
710-0189 – HEX SCREW 5/16-18 x 3.00
HEX SCREW 5/16-18 x 3.00 -
710-06774 – SCREW HEX HD WASHER (#10-32 x 1.50)
SCREW HEX HD WASHER (#10-32 x 1.50) -
710-1238 – SCREW 5/16-18 x .875 GR5
SCREW 5/16-18 x .875 GR5 -
710-3288 – BOLT 1/4-20X1.62 GR5
BOLT 1/4-20X1.62 GR5 -
712-04113 – HEX NUT
HEX NUT -
720-0278A – FOAM GRIP .970 x 11.0
FOAM GRIP .970 x 11.0 -
725-05292 – POSITIVE SWITCH- ON/OFF
POSITIVE SWITCH- ON/OFF -
726-04047 – CABLE TIE
CABLE TIE -
731-04735 – BRAKE HANDLE GRIP
BRAKE HANDLE GRIP -
731-06253B – HANDLE COVER W/O SWITCH HOLE
HANDLE COVER W/O SWITCH HOLE -
735-04105A – END PLUG
END PLUG -
738-0440 – SHOULDER SPACER
SHOULDER SPACER -
747-04789A – CLUTCH BAIL
CLUTCH BAIL -
750-0885A – SPACER
SPACER -
786-0340B – CRANK ADJUST HANDLE
CRANK ADJUST HANDLE -
786-04344 – HANDLE BRACKET (RH)
HANDLE BRACKET (RH) -
786-04345 – HANDLE BRACKET (LH)
HANDLE BRACKET (LH) -
786-04358 – RETURN BRACKET
RETURN BRACKET -
786-05252 – SWITCH MOUNT BRACKET
SWITCH MOUNT BRACKET -
920-04173 – REVERSE HANDLE GRIP
REVERSE HANDLE GRIP -
936-0176 – FLAT WASHER
FLAT WASHER -
936-0451 – SADDLE WASHER
SADDLE WASHER -
946-04504 – REVERSE CABLE
REVERSE CABLE -
946-04506 – FORWARD CABLE
FORWARD CABLE
