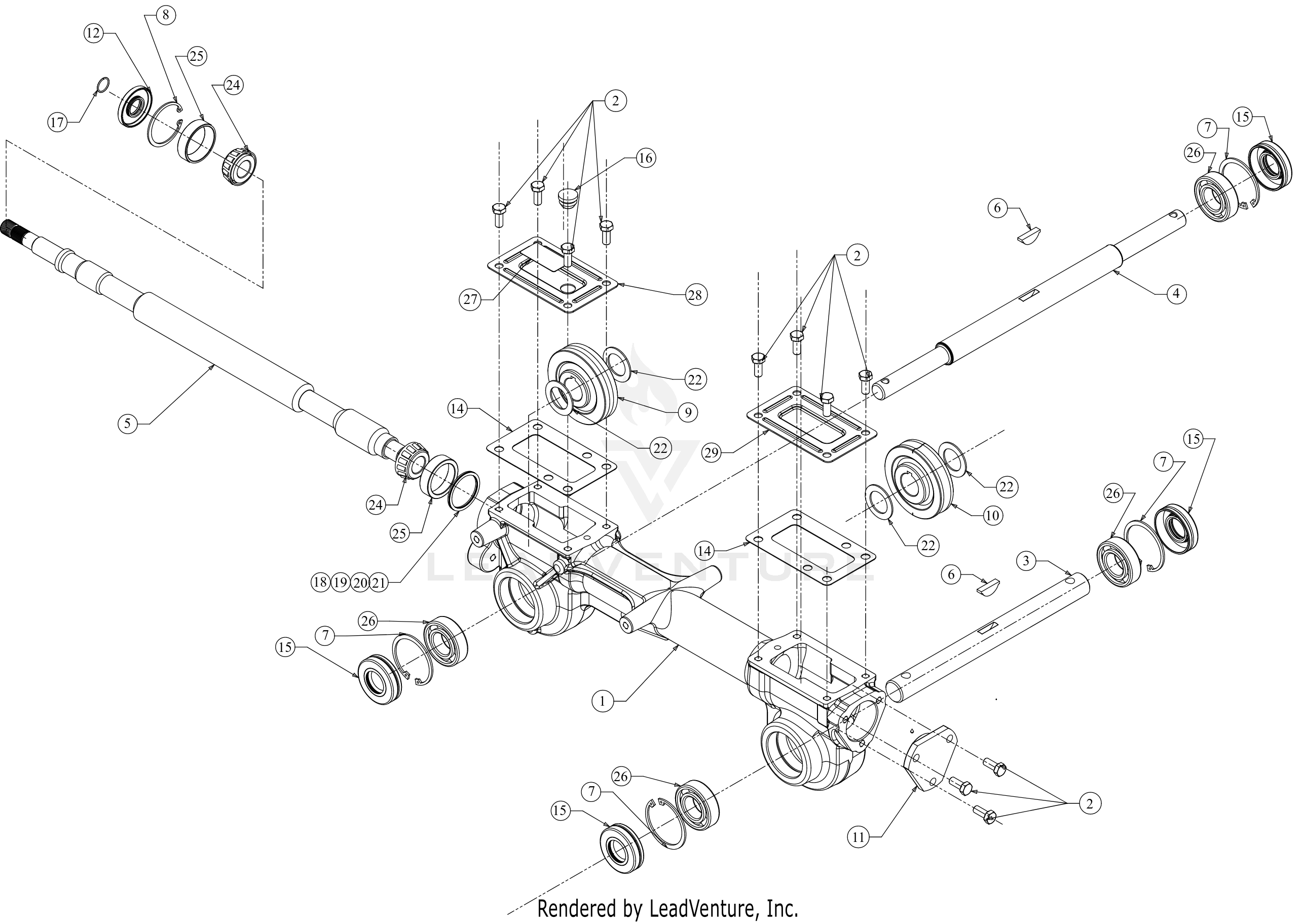

21AA40M8327 RT45 (2022) · Gearcase
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Cub Cadet OHV 170-AUC |
| Engine Oil Type | 10W30 |
| Engine Oil Capacity | 20oz |
| Manual | 769-12653B |
Showing all 22 results
-
714-04059 – KEY-HI PRO .25 x 1
KEY-HI PRO .25 x 1 -
721-04232 – OIL SEAL 1.00 SHF x 2.00 BORE
OIL SEAL 1.00 SHF x 2.00 BORE -
721-04271 – RUBBER OIL PLUG
RUBBER OIL PLUG -
732-0614 – WIRE RING
WIRE RING -
736-04305 – FLAT WASHER 1.500X1.750X.062
FLAT WASHER 1.500X1.750X.062 -
736-04306 – FLAT WASHER 1.500X1.750X.005
FLAT WASHER 1.500X1.750X.005 -
736-04307 – FLAT WASHER 1.500X1.750X.030
FLAT WASHER 1.500X1.750X.030 -
736-04308 – FLAT WASHER 1.500X1.750X0.010
FLAT WASHER 1.500X1.750X0.010 -
786-04366 – TRANSMISSION COVER
TRANSMISSION COVER -
786-04392 – TRANSMISSION COVER
TRANSMISSION COVER -
911-04844 – TILLER SHAFT TUFFY
TILLER SHAFT TUFFY -
911-04854 – TILLER SHAFT PONY
TILLER SHAFT PONY -
911-05028 – WORM SHAFT
WORM SHAFT -
917-04380 – WORM GEAR (RH) 61 TEETH
WORM GEAR (RH) 61 TEETH -
917-04381 – WORM GEAR (LH) 30 TEETH
WORM GEAR (LH) 30 TEETH -
918-04435 – BEARING COVER
BEARING COVER -
918-04815A – TRANSMISSION
TRANSMISSION -
919-04184A – HOUSING ASSEMBLY
HOUSING ASSEMBLY -
921-04030 – OIL SEAL .750ID x 1.783OD
OIL SEAL .750ID x 1.783OD -
921-04229 – GEAR HOUSING GASKET
GEAR HOUSING GASKET -
941-04298 – BEARING CONE
BEARING CONE -
941-04299 – BEARING CUP
BEARING CUP
