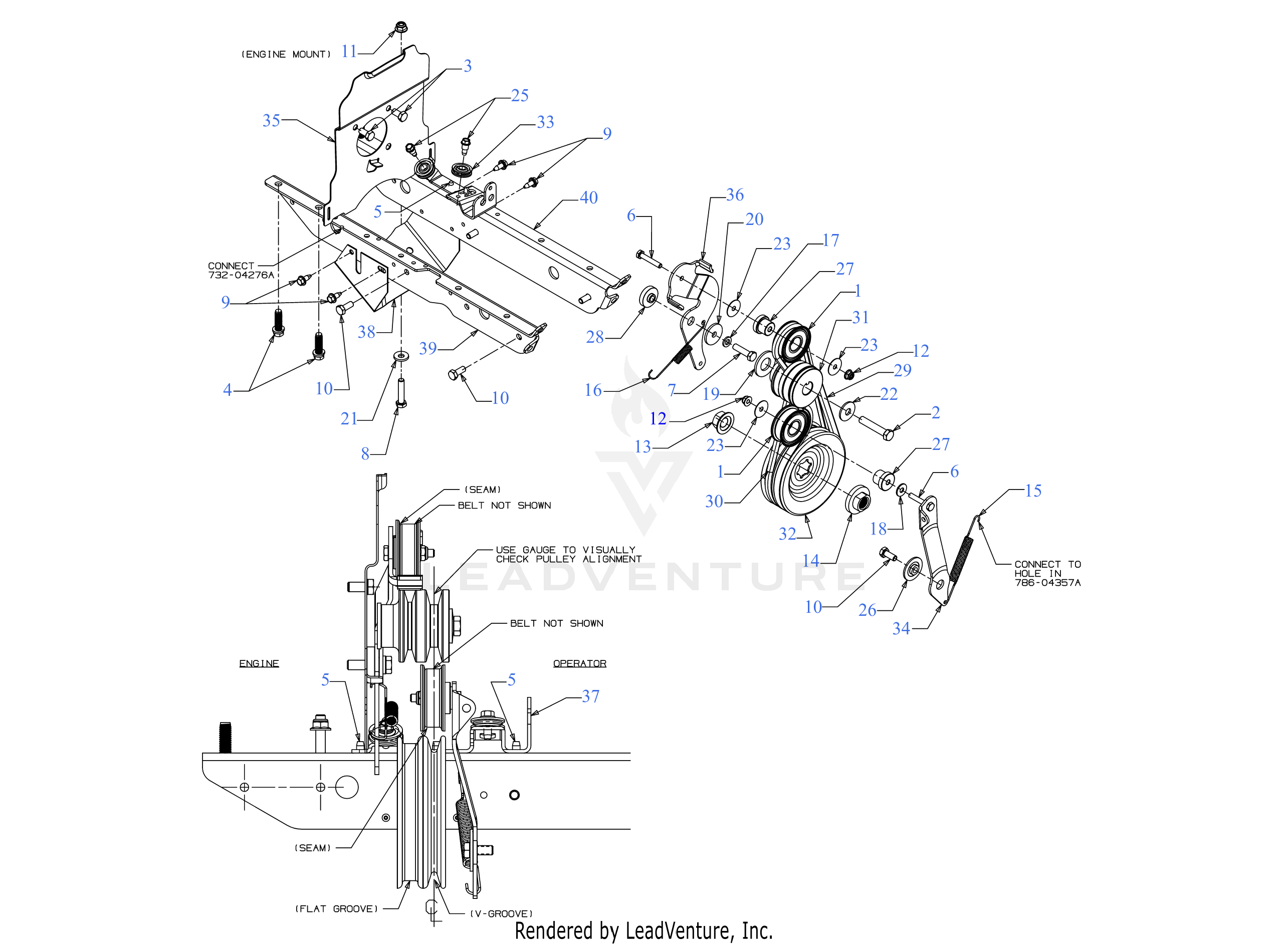

21AA40M8327 RT45 (2022) · Drive
Downloads
Specifications
| Brand Name | Cub Cadet |
| Engine | Cub Cadet OHV 170-AUC |
| Engine Oil Type | 10W30 |
| Engine Oil Capacity | 20oz |
| Manual | 769-12653B |
Showing all 30 results
-
684-04168 – IDLER PULLEY ASSEMBLY
IDLER PULLEY ASSEMBLY -
710-0502A – SCREW 3/8-16 x 1.250
SCREW 3/8-16 x 1.250 -
710-05183A – SCREW 5/16-24 x 1.25 GR5
SCREW 5/16-24 x 1.25 GR5 -
710-0672 – SCREW 5/16-24 x 1.25 GR5
SCREW 5/16-24 x 1.25 GR5 -
710-0896 – SCREW 1/4-14 x .625
SCREW 1/4-14 x .625 -
710-1880 – SCREW 5/16-18 x .750
SCREW 5/16-18 x .750 -
712-0700 – FLANGE NUT W/HUB
FLANGE NUT W/HUB -
718-04407 – PULLEY HUB
PULLEY HUB -
732-04085 – RETURN SPRING
RETURN SPRING -
732-04276A – EXTENSION SPRING
EXTENSION SPRING -
736-0315 – FLAT WASHER
FLAT WASHER -
736-0343 – WASHER-5/16 x 1.25X 1.27
WASHER-5/16 x 1.25X 1.27 -
736-04193 – BELLVILLE WASHER .827 x .331 x .098
BELLVILLE WASHER .827 x .331 x .098 -
736-04268 – FLAT WASHER 0.315×1.255×0.060 HD
FLAT WASHER 0.315x1.255x0.060 HD -
736-3092 – FLAT WASHER
FLAT WASHER -
748-04087A – PIVOT IDLER SPACER
PIVOT IDLER SPACER -
750-04571 – SHOULDER SPACER
SHOULDER SPACER -
750-04907 – PIVOT IDLER SPACER
PIVOT IDLER SPACER -
756-04198A – ENGINE PULLEY
ENGINE PULLEY -
756-04355 – TRANSMISSION PULLEY
TRANSMISSION PULLEY -
756-0625 – CABLE GUIDE ROLLER
CABLE GUIDE ROLLER -
786-04312 – FORWARD IDLER BRACKET
FORWARD IDLER BRACKET -
786-04343 – REVERSE IDLER BRACKET
REVERSE IDLER BRACKET -
786-04346 – REVERSE IDLER BRACKET
REVERSE IDLER BRACKET -
786-04357A – CABLE BRACKET ROLLER
CABLE BRACKET ROLLER -
786-04371 – PULLEY SHIELD
PULLEY SHIELD -
786-04415D – FRAME (LH)
FRAME (LH) -
786-04416B – FRAME (RH) 400/460/480/VTT
FRAME (RH) 400/460/480/VTT -
954-04090 – V-BELT 4L x 25.375
V-BELT 4L x 25.375 -
954-04091 – V-BELT 3L x 29.125
V-BELT 3L x 29.125
