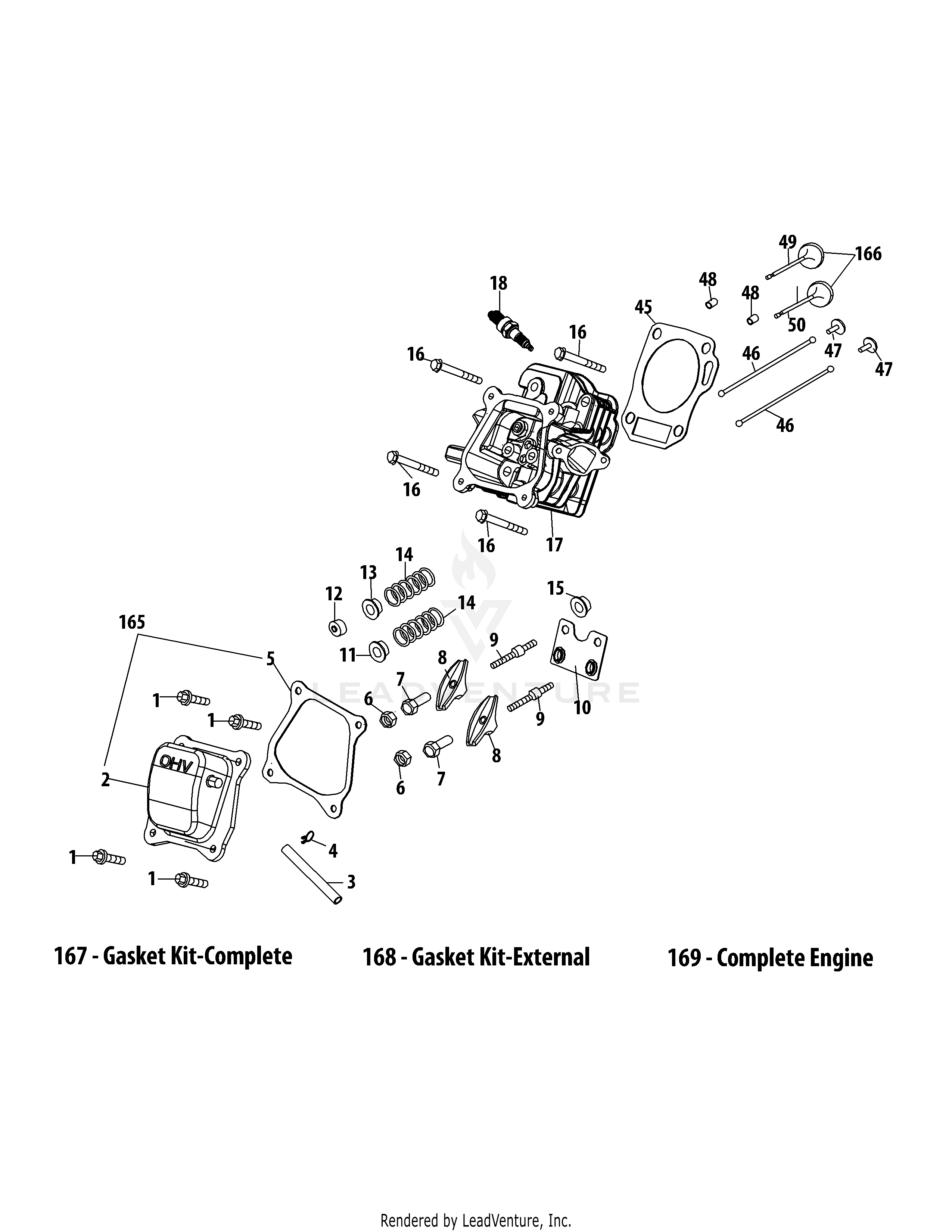

270-BU 208cc Engine · 270-BU Cylinder Head
Downloads
Showing all 29 results
-
710-04902 – PIVOT STUD
PIVOT STUD -
710-04968 – BOLT M6 x 16
BOLT M6 x 16 -
710-06080 – BOLT-M8-1.25 x 60 GR10.9
BOLT-M8-1.25 x 60 GR10.9 -
715-04108 – DOWEL PIN
DOWEL PIN -
726-04101 – BREATHER HOSE CLAMP
BREATHER HOSE CLAMP -
751-11123 – VALVE ADJUST NUT
VALVE ADJUST NUT -
751-11124 – PIVOT LOCKING NUT
PIVOT LOCKING NUT -
931-09541 – VENTING HOUSE
VENTING HOUSE -
951-05029 – CYLINDER HEAD ASSEMBLY
CYLINDER HEAD ASSEMBLY -
951-05032 – GASKET KIT (COMPLETE)
GASKET KIT (COMPLETE) -
951-05033 – VALVE COVER KIT
VALVE COVER KIT -
951-10292 – SPARK PLUG
SPARK PLUG -
951-10647A – VALVE KIT
VALVE KIT -
951-10648 – PUSH ROD KIT
PUSH ROD KIT -
951-11054B – VALVE COVER
VALVE COVER -
951-11565 – VALVE COVER GASKET
VALVE COVER GASKET -
951-11893 – Rocker Arm
Rocker Arm -
951-11894 – INTAKE VALVE SEAL
INTAKE VALVE SEAL -
951-11895 – PUSH ROD GUIDE
PUSH ROD GUIDE -
951-11899 – TAPPET
TAPPET -
951-12000 – INTAKE VALVE SPRING RETAINER
INTAKE VALVE SPRING RETAINER -
951-12002 – EXHAUST VALVE ADJUSTER
EXHAUST VALVE ADJUSTER -
951-12003 – EXHAUST VALVE SPRING RETAINER
EXHAUST VALVE SPRING RETAINER -
951-12004 – VALVE SPRING
VALVE SPRING -
951-12026A – GASKET KIT (EXTERNAL)
GASKET KIT (EXTERNAL) -
951-14099 – INTAKE VALVE
INTAKE VALVE -
951-14100 – EXHAUST VALVE
EXHAUST VALVE -
951-14316 – CYLINDER HEAD GASKET
CYLINDER HEAD GASKET -
952Z270-BU – COMPLETE ENGINE 208cc
COMPLETE ENGINE 208cc
