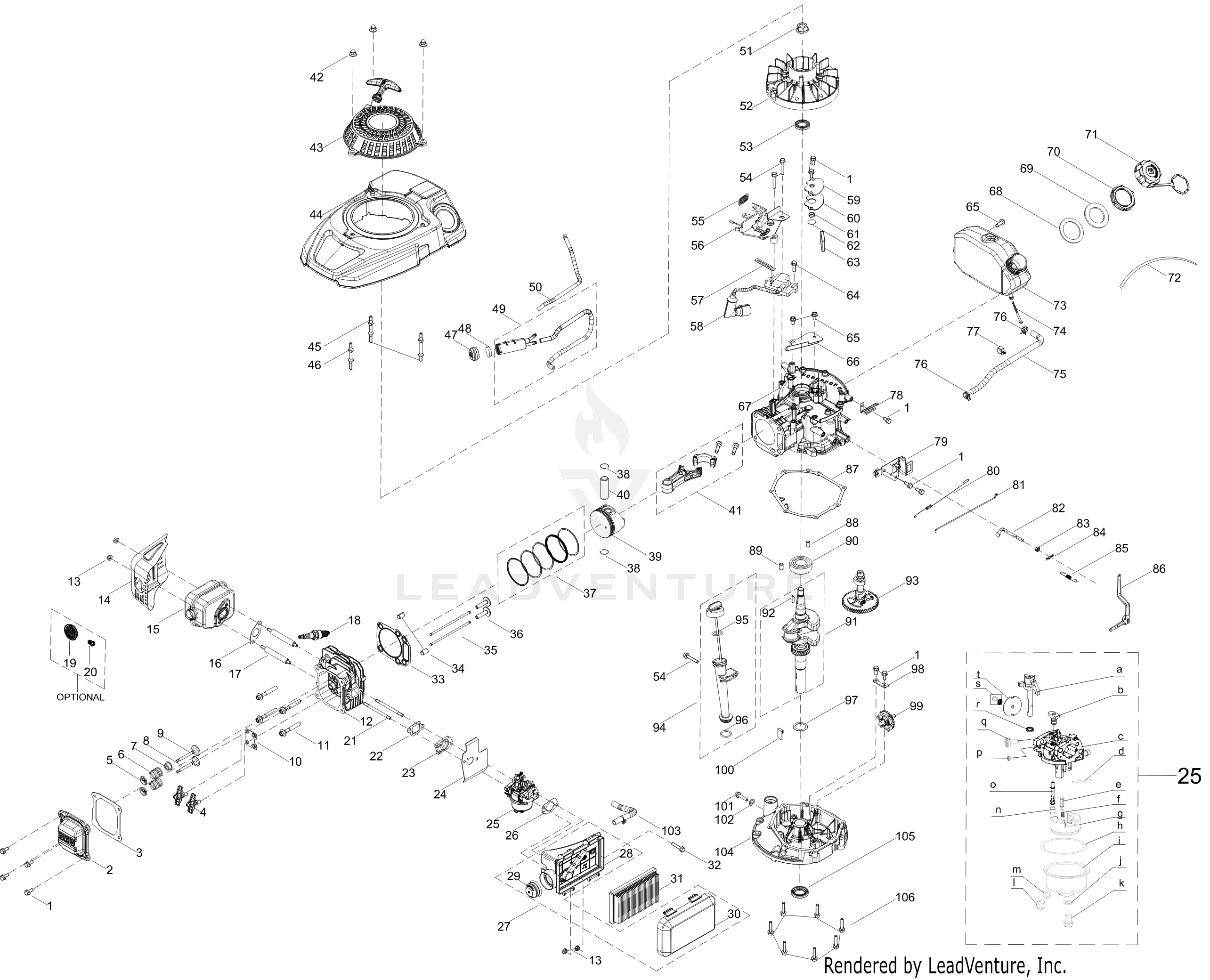

1X65RH General Assembly

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

490-200-M075 – Genuine Factory Parts AIR FILTER

490-202-M006 – Genuine Factory Parts FUEL FILTER

490-250-C014 – Cub Cadet SPARK PLUG-F5RTC

490-250-M014 – Genuine Factory Parts SPARK PLUG (14437)

710-04906 – OIL DRAIN PLUG

710-04915 – BOLT M6-1 x 12 GR8.8

710-04916 – BOLT M6-1 x 14 GR8.8

710-04918 – BOLT M6-1 x 20 GR8.8

710-04943 – BOLT-M6-1 x 28 GR8.8

710-04969 – BOLT-M6-1 x 30 GR8.8

710-04980 – BOLT M6-1 x 35 GR8.8

710-04983 – SCREW M3.5 x 9.5

710-05094 – STUD M6-1 x 95

712-04276 – ACORN NUT

712-04287 – FLYWHEEL NUT

712-05015 – HEX NUT

714-04078 – COTTER PIN

715-04092 – DOWEL PIN

715-04096 – DOWEL PIN

715-04108 – DOWEL PIN

721-04709 – FLOAT BOWL GASKET

721-04710 – FLOAT BOWL O-RING

723-04071 – FUEL LINE SUPPORT CLAMP

725-06031 – CABLE TIE – 3 x 150

731-08104 – FUEL TANK NUT

731-08133 – FUEL TANK LOWER GROMMET

731-12551 – FUEL TANK

732-04718 – BREATHER VALVE SPRING

732P05251 – NEEDLE VALVE SPRING

736-04440 – WASHER

736-04491 – THRUST WASHER

747-04862 – PUSH ROD

751-14747 – PRIMER BULB, VENTED

751-15529 – FOAM CANISTER

752Z1X65RH – COMPLETE ENGINE 159cc

793P00165 – NEEDLE VALVE

908-05001 – FLOAT BOWL

910-06185 – BOLT-M8 x 54

921-04237 – INTAKE VALVE SEAL

921-04697 – O-RING
