1P70L0A-11 Crankcase – KC Equipment

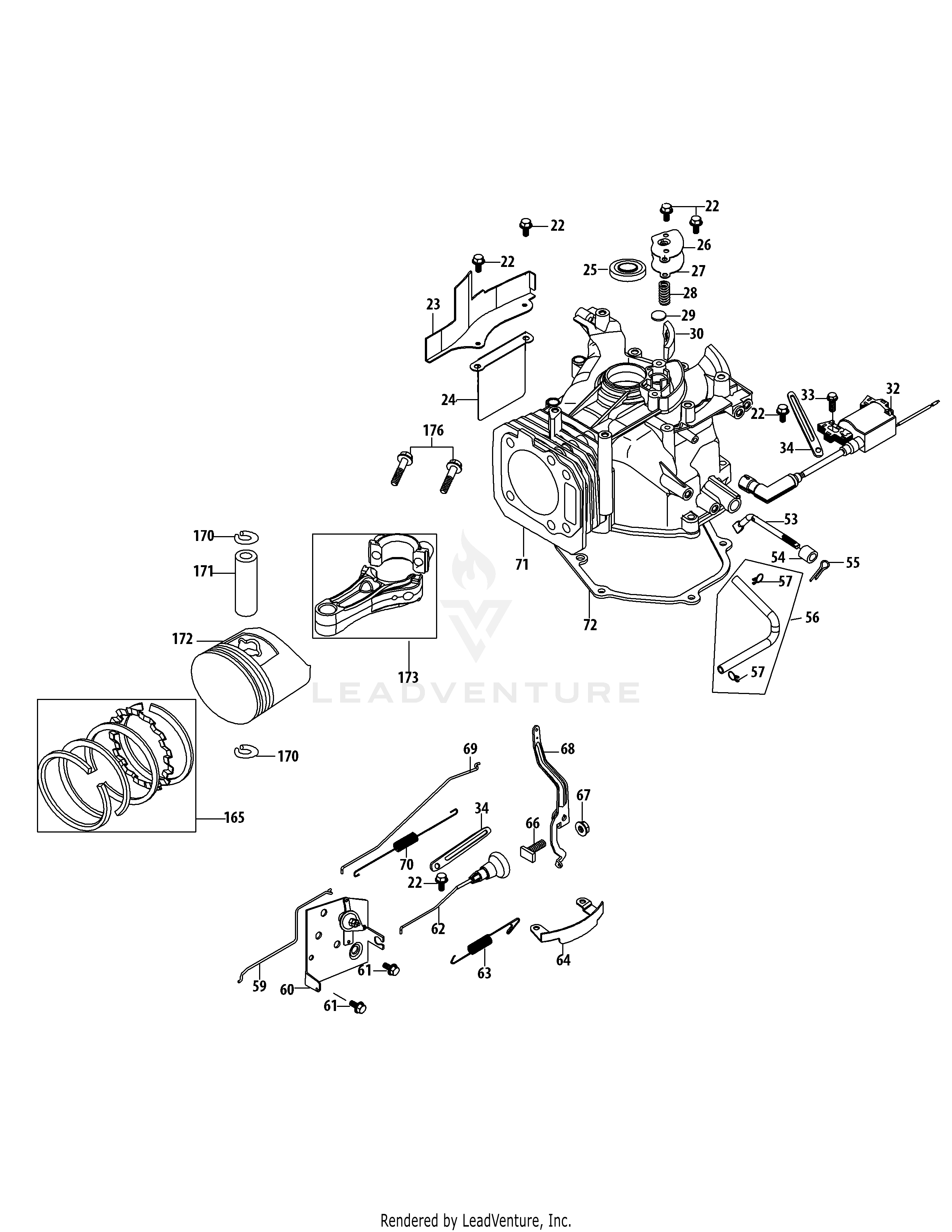

1P70L0A-11 Engine · 1P70L0A-11 Crankcase

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

710-04908 – BOLT M6-1 x 21

710-04916 – BOLT M6-1 x 14 GR8.8

710-04941 – BOLT M6 x 12

710-04979 – BOLT M6 x 18

710-05162 – CONNECTING ROD BOLT

712-04212 – HEX NUT

714-04074 – PIN

726-04101 – BREATHER HOSE CLAMP

732-04718 – BREATHER VALVE SPRING

951-10387 – GOVERNOR RETURN SPRING

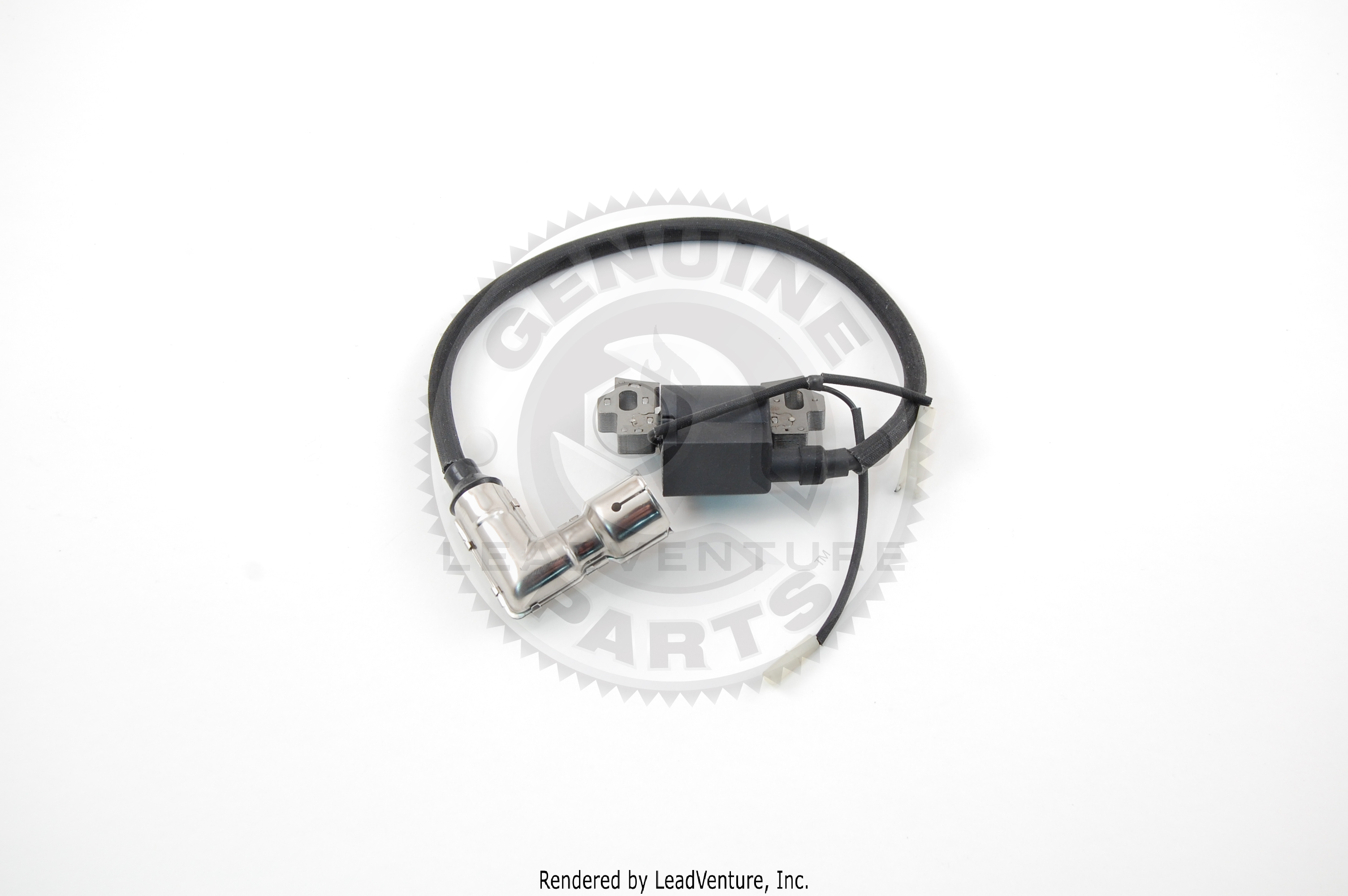

951-10931 – IGNITION COIL

951-11258 – THROTTLE SPRING

951-11259 – THROTTLE LINKAGE ROD

951-11260 – BREATHER HOSE ASSEMBLY

951-11545 – LOWER CRANKSHAFT SEAL

951-11574 – GOVERNOR SEAL

951-11602 – BRACKET

951-11608 – GOVERNOR ARM SHAFT

951-11612 – BREATHER COVER

951-11613 – BREATHER GASKET

951-11614 – BREATHER VALVE

951-11632 – PISTON PIN SNAP RING

951-11633 – PISTON PIN

951-11634 – PISTON

951-11680 – FLEXIBLE CLAMP

951-11762 – BREATHER SCREEN

951-11763 – CRANKCASE COVER GASKET

951-11768 – CONNECTING ROD ASSEMBLY

951-11770 – GASKET KIT (COMPLETE)

951-11772 – GASKET KIT (EXTERNAL)

951-11992 – SHORTBLOCK ASSEMBLY

951-12104 – AIR GUIDE BRACKET

951-12107 – CHOKE LINKAGE

951-12111 – PISTON RING SET

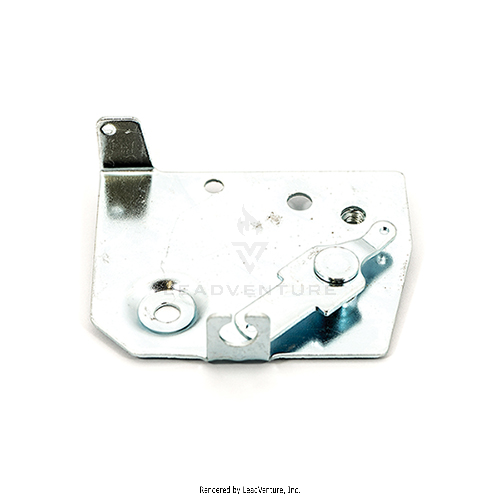

951-12170 – VAR SPEED CONTROL ROD BRACKET

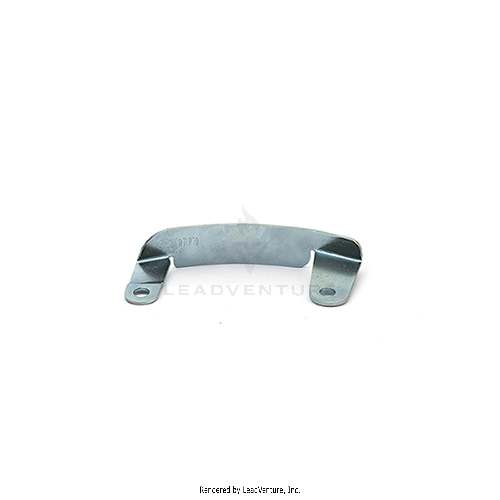

951-12171 – GOVERNOR ARM SHIELD

951-12172 – GOVERNOR ARM

951-12178 – CARBURETOR KIT (MAJOR)

951-12187 – CHOKE CONTROL KNOB

952Z1P70L0A-11 – COMPLETE ENGINE 173cc
