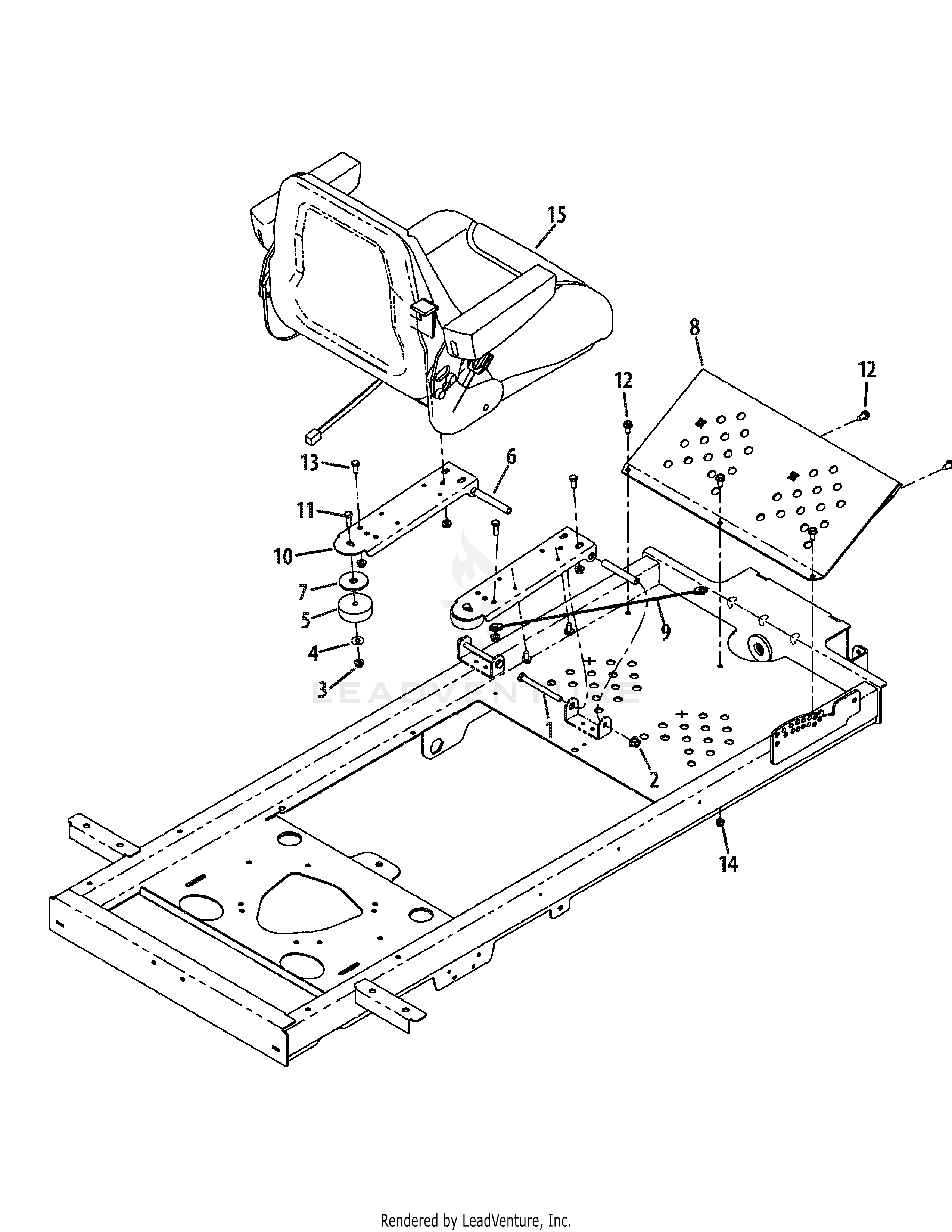

Z-Force Pro 48-KH (53BH3AGN330) 22HP Kohler · Seat Assembly
Downloads
Specifications
| Engine | Kohler CV670-0013 |
| Engine Oil Type | 15W40 |
| Deck Size | 48-Inch |
| Manual | 769-05052A |
| IPL Manual | 769-05957 |
Showing all 15 results
-
00011925 – HEX SCREW 3/8-16 x 4.00
HEX SCREW 3/8-16 x 4.00 -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
01002753 – RUBBER BUMPER
RUBBER BUMPER -
01009872 – SPACER .370X.500X
SPACER .370X.500X -
02001098 – WASHER-.53IDX2.13O
WASHER-.53IDX2.13O -
02002960-0637 – FOOT REST BRACKET
FOOT REST BRACKET -
02004062P – CABLE-LIFT
CABLE-LIFT -
703-06691-0637 – SEAT MOUNT BRACKET
SEAT MOUNT BRACKET -
710-0376 – SCREW 5/16-18 x 1.0 GR5
SCREW 5/16-18 x 1.0 GR5 -
710-04484 – SCREW 5/16-18 x .750
SCREW 5/16-18 x .750 -
710-3008 – SCREW 5/16-18 x .75 GR5
SCREW 5/16-18 x .75 GR5 -
712-3004A – HEX FLANGE NUT
HEX FLANGE NUT -
757-04138 – SEAT-ENFORCER
SEAT-ENFORCER -
912-0429 – HEX NUT INS
HEX NUT INS -
936-0425 – BELL WASHER
BELL WASHER
