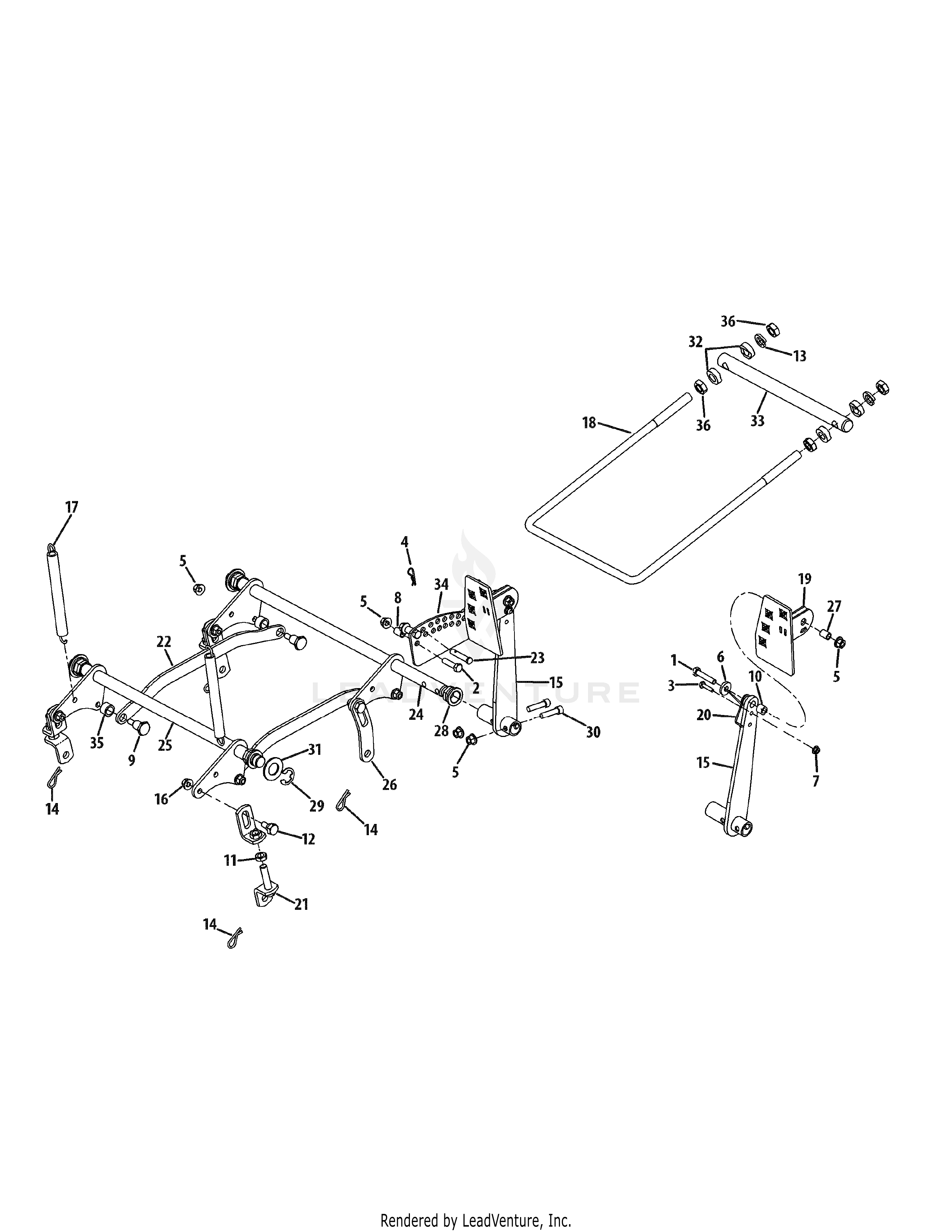

Z-Force Pro 48-KH (53BH3AGN330) 22HP Kohler · Lift Assembly
Downloads
Specifications
| Engine | Kohler CV670-0013 |
| Engine Oil Type | 15W40 |
| Deck Size | 48-Inch |
| Manual | 769-05052A |
| IPL Manual | 769-05957 |
Showing all 36 results
-
00008495 – SCREW 3/8-16X1.75:GR8:Z
SCREW 3/8-16X1.75:GR8:Z -
00011438 – HEX SCREW HEAD 3/8-16 x 1.50
HEX SCREW HEAD 3/8-16 x 1.50 -
00013416 – HEX SCREW 1/4-20 x 1.00
HEX SCREW 1/4-20 x 1.00 -
00021956 – HAIR PIN
HAIR PIN -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
00083192 – FLAT WASHER
FLAT WASHER -
01003468 – SPACER .375X.50X.750
SPACER .375X.50X.750 -
01003536 – SHOULDER BOLT
SHOULDER BOLT -
01007312 – SPACER .385
SPACER .385 -
01008658 – HEX JAM NUT
HEX JAM NUT -
02000393 – SHOULDER SCREW 3/8
SHOULDER SCREW 3/8 -
02000671 – LOCK WASHER
LOCK WASHER -
02000673 – HAIRPIN
HAIRPIN -

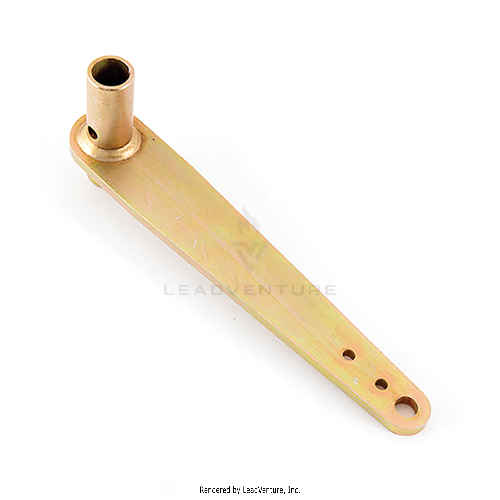

02002374 – PIVOT ASSEMBLY – FOOT L
PIVOT ASSEMBLY - FOOT L -

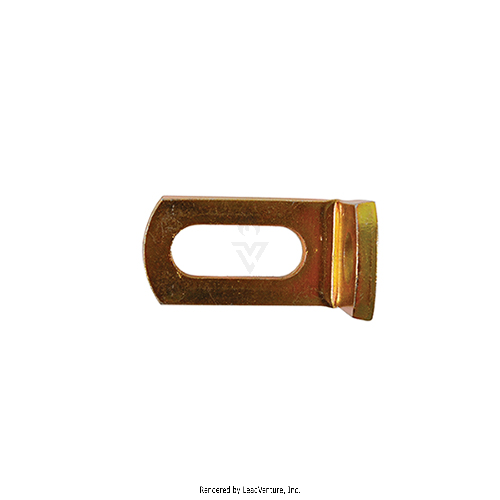

02002382 – DECK LIFT BRACKET
DECK LIFT BRACKET -

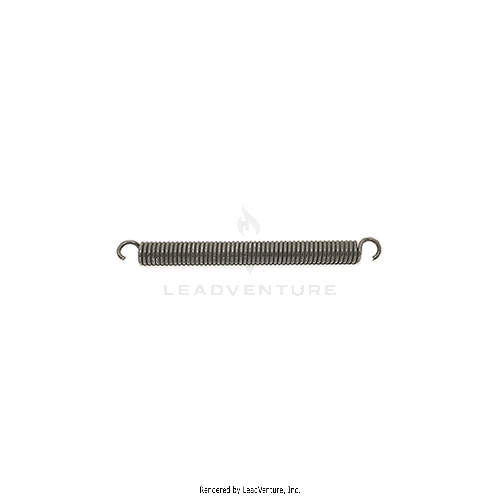

02002629 – EXTENSION SPRING
EXTENSION SPRING -

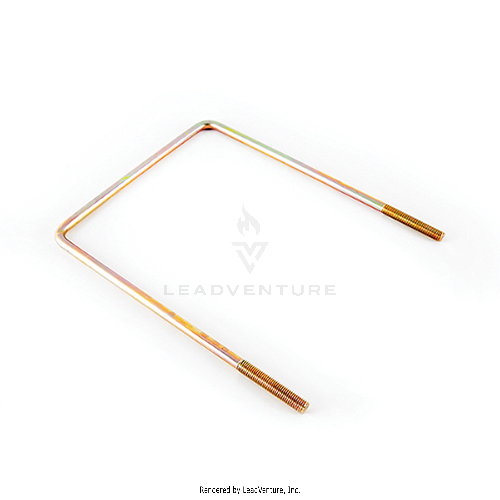

02002879 – FRONT LIFT ROD
FRONT LIFT ROD -
02002880-0637 – PEDAL ASSEMBLY-FOOT
PEDAL ASSEMBLY-FOOT -

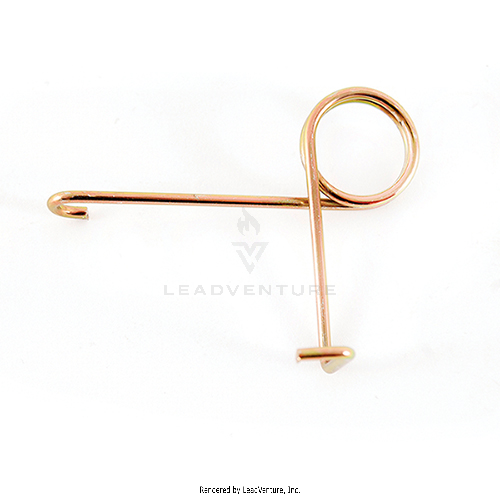

02002882 – TORSION SPRING
TORSION SPRING -

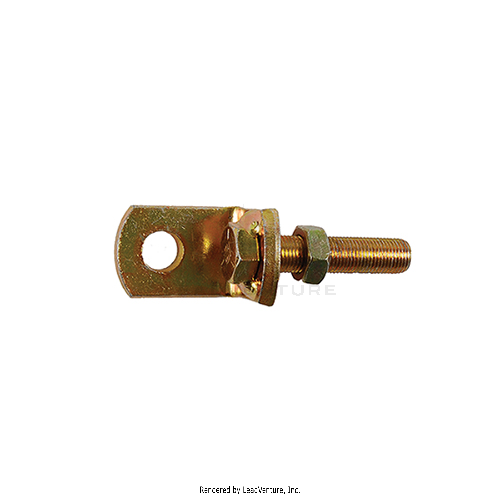

02002890 – BRACKET ASSEMBLY-LOWER
BRACKET ASSEMBLY-LOWER -

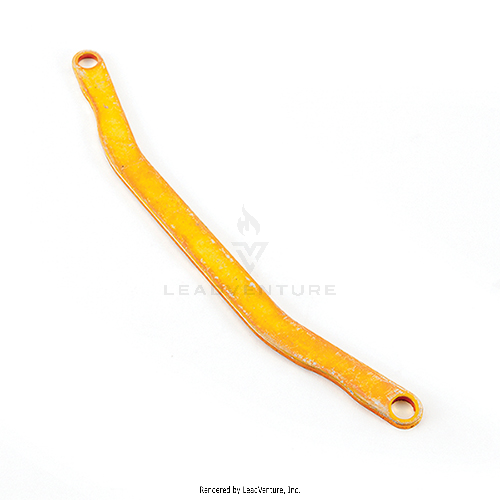

02002893 – LIFT LINK
LIFT LINK -
02002907 – CLEVIS PIN
CLEVIS PIN -

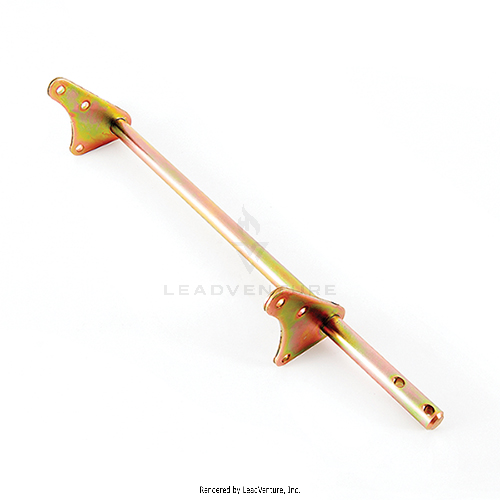

02002915 – SHAFT ASSEMBLY-FRONT
SHAFT ASSEMBLY-FRONT -
02002916 – SHAFT ASSEMBLY-REAR
SHAFT ASSEMBLY-REAR -

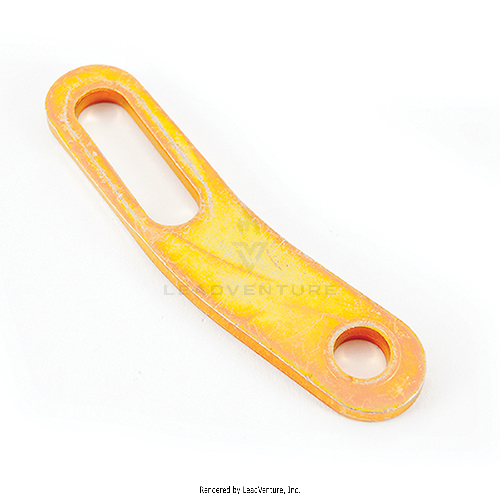

02002979 – PLATE-LINK
PLATE-LINK -
02003436 – SPACER-.380 ID X
SPACER-.380 ID X -

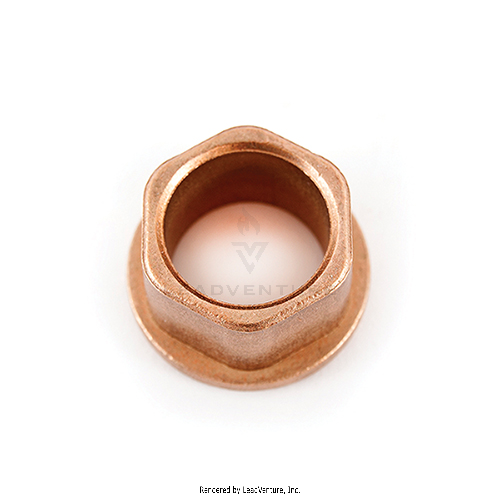

02003685 – HEX FLANGE BEARING
HEX FLANGE BEARING -
02003716 – CLIP – .875
CLIP - .875 -
02003717 – SCREW-CAP 3/8-16 X
SCREW-CAP 3/8-16 X -
02003720 – FLAT WASHER .94
FLAT WASHER .94 -

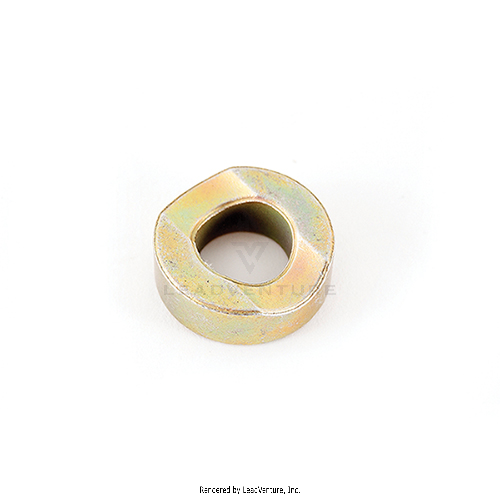

02003751 – SPACER-0.635IDD X
SPACER-0.635IDD X -

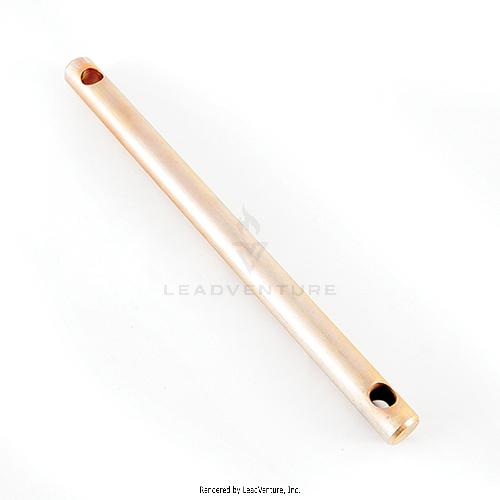

02004227 – ROD-TRAIL LINK
ROD-TRAIL LINK -
02004694-0637 – PLATE-INDEX
PLATE-INDEX -

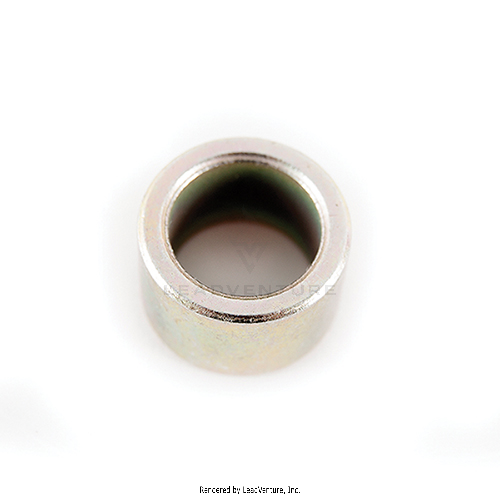

02005535 – SPACER – .632 x .8
SPACER - .632 x .8 -
912-3015 – HEX JAM NUT
HEX JAM NUT -
912-3027 – LOCK NUT 1/4
LOCK NUT 1/4
