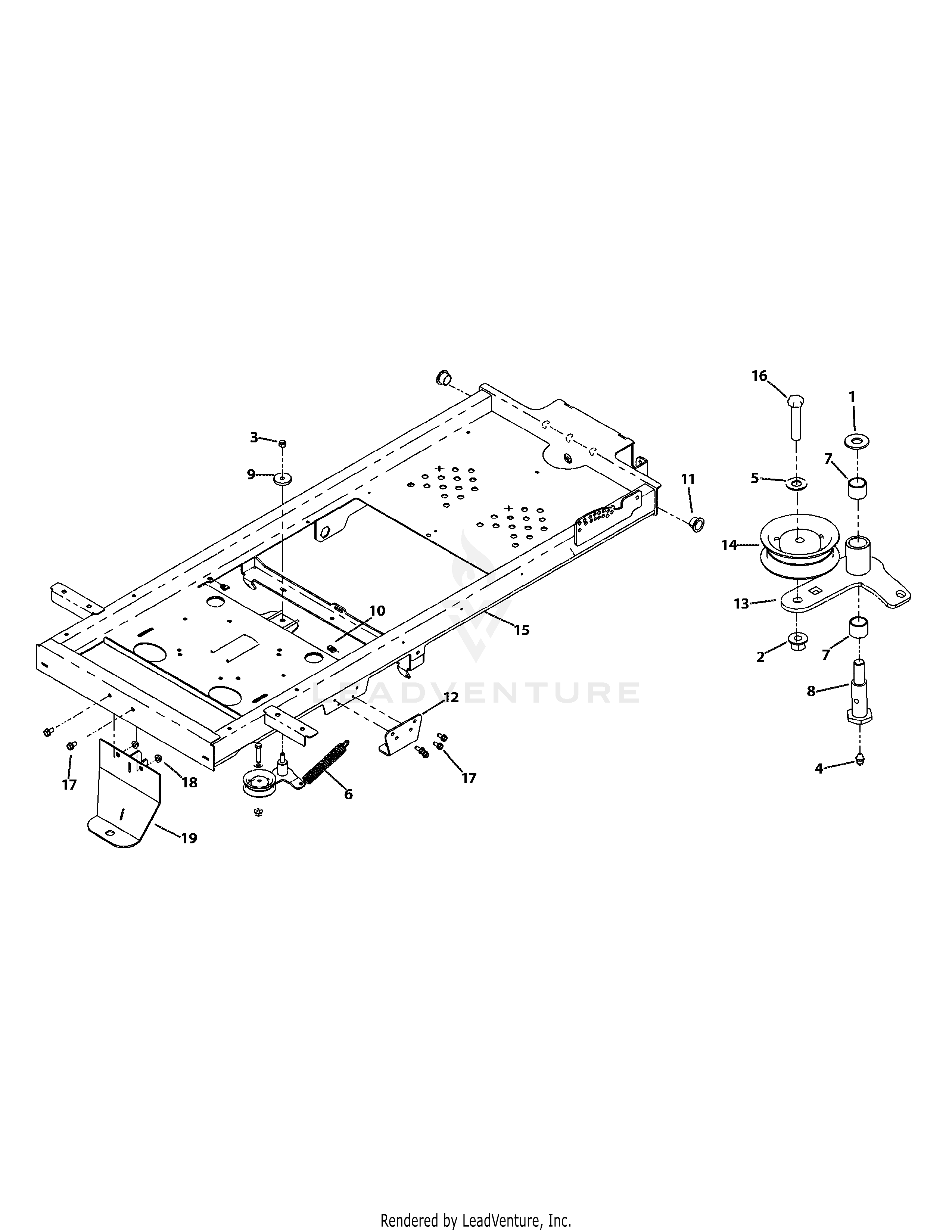

Z-Force Pro 48-KH (53BH3AGN330) 22HP Kohler · Frame Assembly
Downloads
Specifications
| Engine | Kohler CV670-0013 |
| Engine Oil Type | 15W40 |
| Deck Size | 48-Inch |
| Manual | 769-05052A |
| IPL Manual | 769-05957 |
Showing all 19 results
-
00006168 – FLAT WASHER
FLAT WASHER -
00061053 – FLAT WASHER .416 x .375 x .046
FLAT WASHER .416 x .375 x .046 -
01000199 – Extension Spring, 1.00 x 5.00 x .125
Extension Spring, 1.00 x 5.00 x .125 -
01003269 – Washer, .438 x 1.75 x .250
Washer, .438 x 1.75 x .250 -
01008539P – U-NUT
U-NUT -
02002563-0637 – HITCH-ENFORCER
HITCH-ENFORCER -
02002641-0637 – BRACKET-TRANSMISSION MOUNT
BRACKET-TRANSMISSION MOUNT -

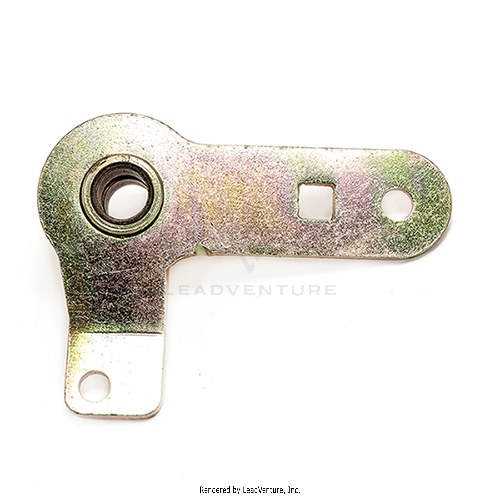

02003641 – IDLER ARM
IDLER ARM -
02004558 – FLAT IDLER PULLEY
FLAT IDLER PULLEY -
02004865-0637 – FRAME ASSEMBLY
FRAME ASSEMBLY -
710-0347 – HEX SCREW 3/8-16 x 1.75 GR5
HEX SCREW 3/8-16 x 1.75 GR5 -
710-04484 – SCREW 5/16-18 x .750
SCREW 5/16-18 x .750 -
712-0290 – HEX NUT
HEX NUT -
712-05007 – NUT-CTRLCK FLG HEX
NUT-CTRLCK FLG HEX -
712-3004A – HEX FLANGE NUT
HEX FLANGE NUT -
737-04345 – GREASE ZERT 1/4-28
GREASE ZERT 1/4-28 -
738-3108 – SHOULDER BOLT
SHOULDER BOLT -

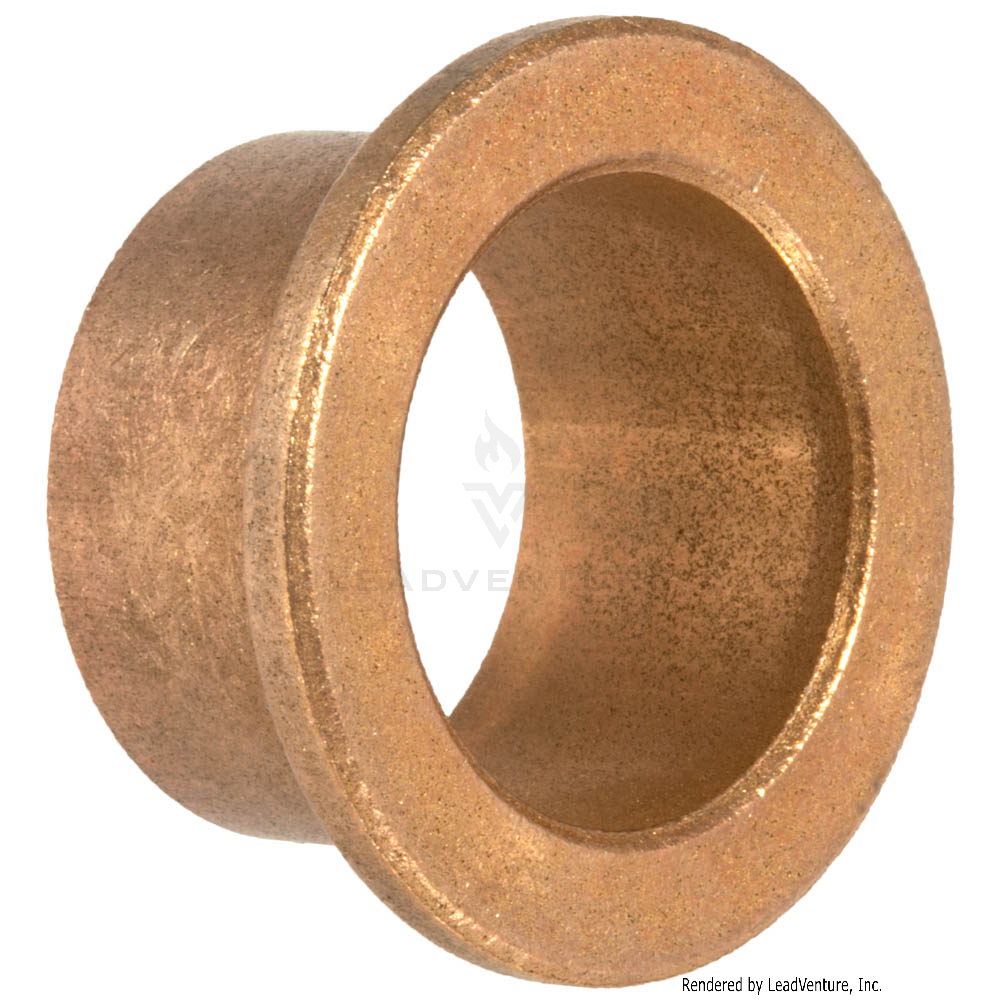

741-04552 – BUSHING
BUSHING -
741-04555 – SLEEVE BEARING
SLEEVE BEARING
