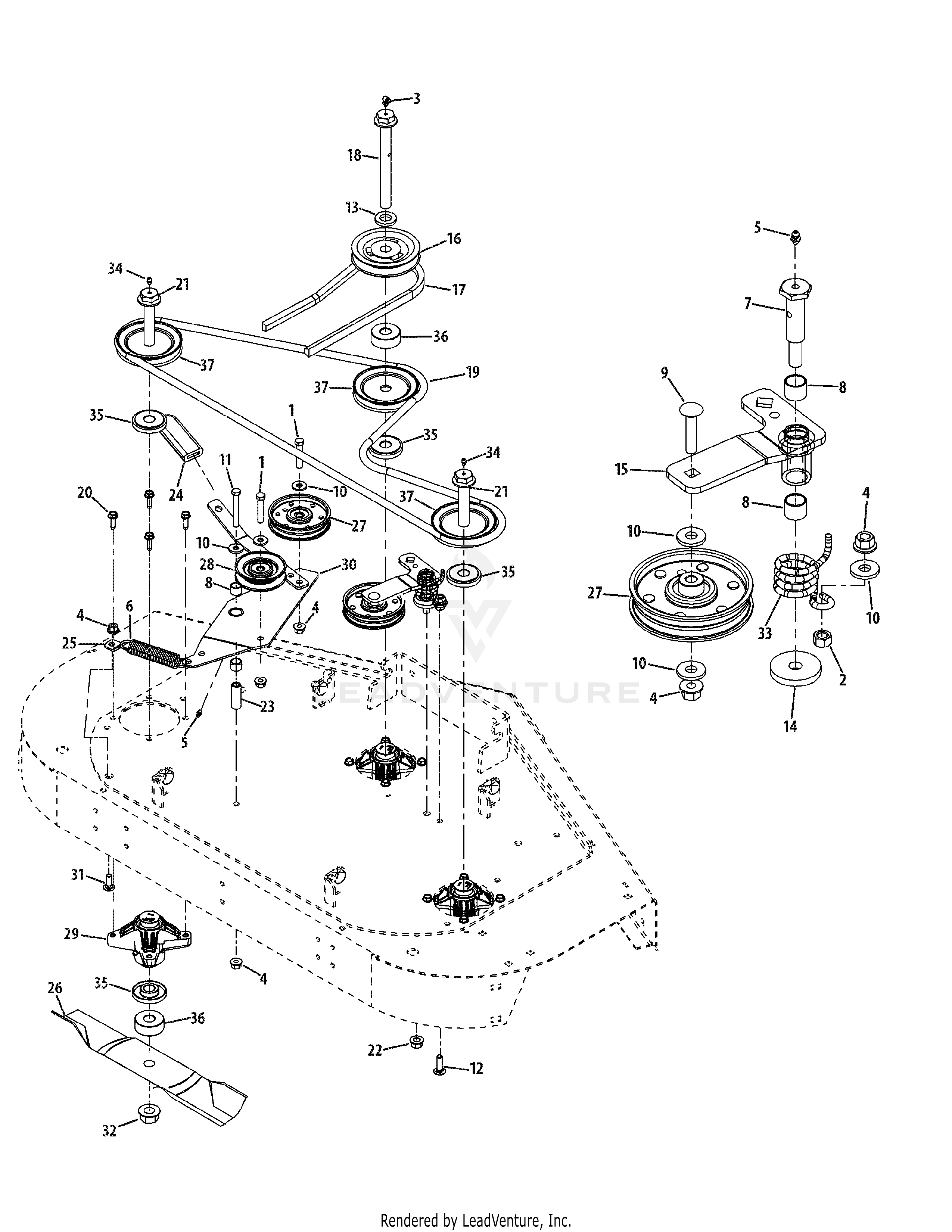

Z-Force Pro 48-KH (53BH3AGN330) 22HP Kohler · Deck Spindle Assembly
Downloads
Specifications
| Engine | Kohler CV670-0013 |
| Engine Oil Type | 15W40 |
| Deck Size | 48-Inch |
| Manual | 769-05052A |
| IPL Manual | 769-05957 |
Showing 1–40 of 42 results
-
00002528 – SCREW 3/8-16X2.00:GR5
SCREW 3/8-16X2.00:GR5 -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
01000199 – Extension Spring, 1.00 x 5.00 x .125
Extension Spring, 1.00 x 5.00 x .125 -
01000302 – Shoulder Bolt, .625 x 1.95
Shoulder Bolt, .625 x 1.95 -
01000308 – Sleeve Bearing, .628 x .753 x .625
Sleeve Bearing, .628 x .753 x .625 -
01003123 – SPACER .812 ID x .218
SPACER .812 ID x .218 -
01003269 – Washer, .438 x 1.75 x .250
Washer, .438 x 1.75 x .250 -
01005012 – V-Belt (54 Inch Deck)
V-Belt (54 Inch Deck) -
01005201 – Pulley (54 Inch Deck)
Pulley (54 Inch Deck) -
01005202 – Pulley (48 Inch Deck)
Pulley (48 Inch Deck) -
01005737 – Idler Arm Assembly
Idler Arm Assembly -
01009787 – V-Belt (48 Inch Deck)
V-Belt (48 Inch Deck) -
02000071 – Hex Screw, 3/4-16 x 7.16
Hex Screw, 3/4-16 x 7.16 -
02000154 – V-Belt (48 Inch Deck)
V-Belt (48 Inch Deck) -
02000653 – V-Belt (54 Inch Deck)
V-Belt (54 Inch Deck) -
02000762 – Hex Flange Screw, 5/16-18 x 1.00
Hex Flange Screw, 5/16-18 x 1.00 -
02000819 – Hex Flange Screw, 3/4-16 x 5.4
Hex Flange Screw, 3/4-16 x 5.4 -
02000948 – Flange Counterlock Nut, 7/16-14
Flange Counterlock Nut, 7/16-14 -

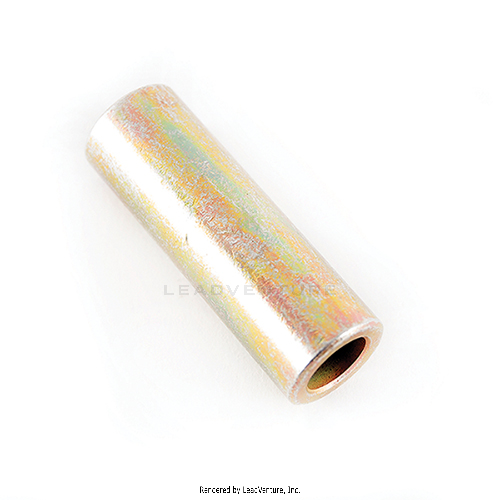

02003640 – SPACER .39 ID X
SPACER .39 ID X -
02003740 – PARKING BRAKE GRIP
PARKING BRAKE GRIP -
02004195 – Spring Mount Bracket
Spring Mount Bracket -
02005017 – BLADE-HI LIFT 1
BLADE-HI LIFT 1 -

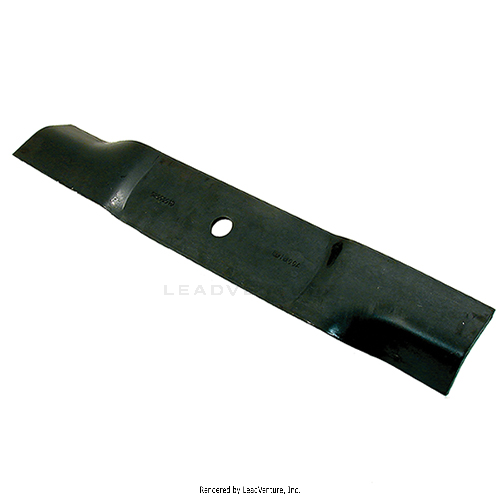

02005018 – BLADE-19.0″ HI
BLADE-19.0" HI -
02005077 – PULLEY-FLAT
PULLEY-FLAT -

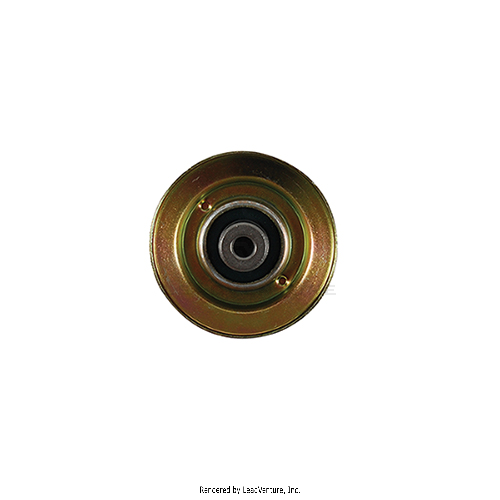

02005078 – V-PULLEY 3.5 OD
V-PULLEY 3.5 OD -
710-0560 – CARRIAGE BOLT 3/8-16 x 1.75 GR1
CARRIAGE BOLT 3/8-16 x 1.75 GR1 -
710-3022 – SCREW 3/8-16 x 2.75 GR5
SCREW 3/8-16 x 2.75 GR5 -
710-3034 – CARRIAGE BOLT 3/8-16X1.25 GR1
CARRIAGE BOLT 3/8-16X1.25 GR1 -
710-3168 – CARRIAGE BOLT 3/8-16 x 1.00 GR5
CARRIAGE BOLT 3/8-16 x 1.00 GR5 -
712-3078 – HEX FLANGE NUT 3/4
HEX FLANGE NUT 3/4 -
732-3067 – TORSION SPRING
TORSION SPRING -
736-3052 – FLAT WASHER .406ID X1.0 OD
FLAT WASHER .406ID X1.0 OD -
737-04345 – GREASE ZERT 1/4-28
GREASE ZERT 1/4-28 -
737-3004 – Grease Fitting, 1/4-28 x .788
Grease Fitting, 1/4-28 x .788 -

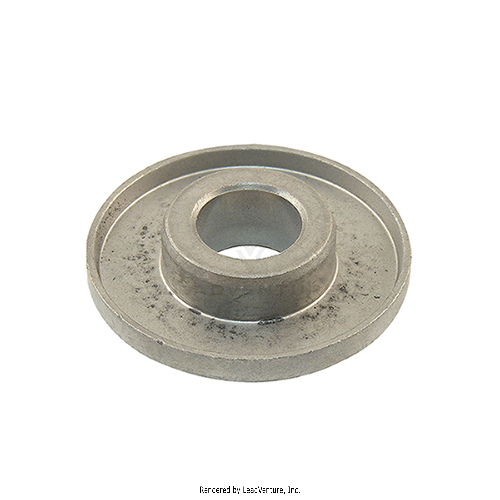

748-3065A – DECK SPINDLE SPACER
DECK SPINDLE SPACER -

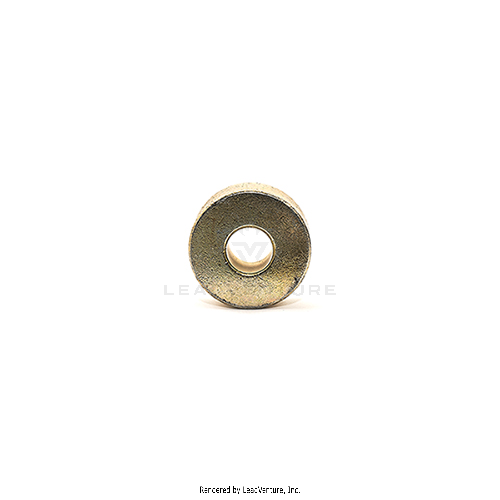

750-05184 – SPACER .76X2.00X.79
SPACER .76X2.00X.79 -

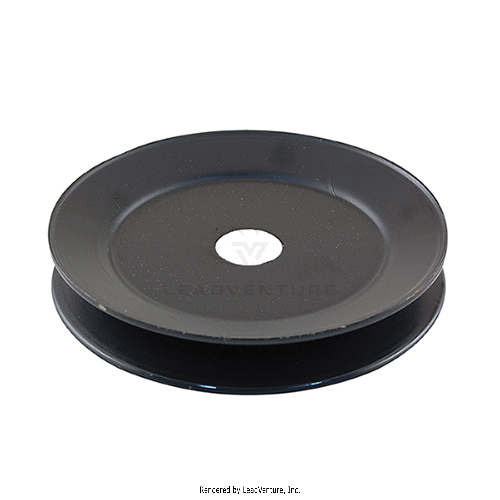

756-3089 – PULLEY-4.50 OD
PULLEY-4.50 OD -

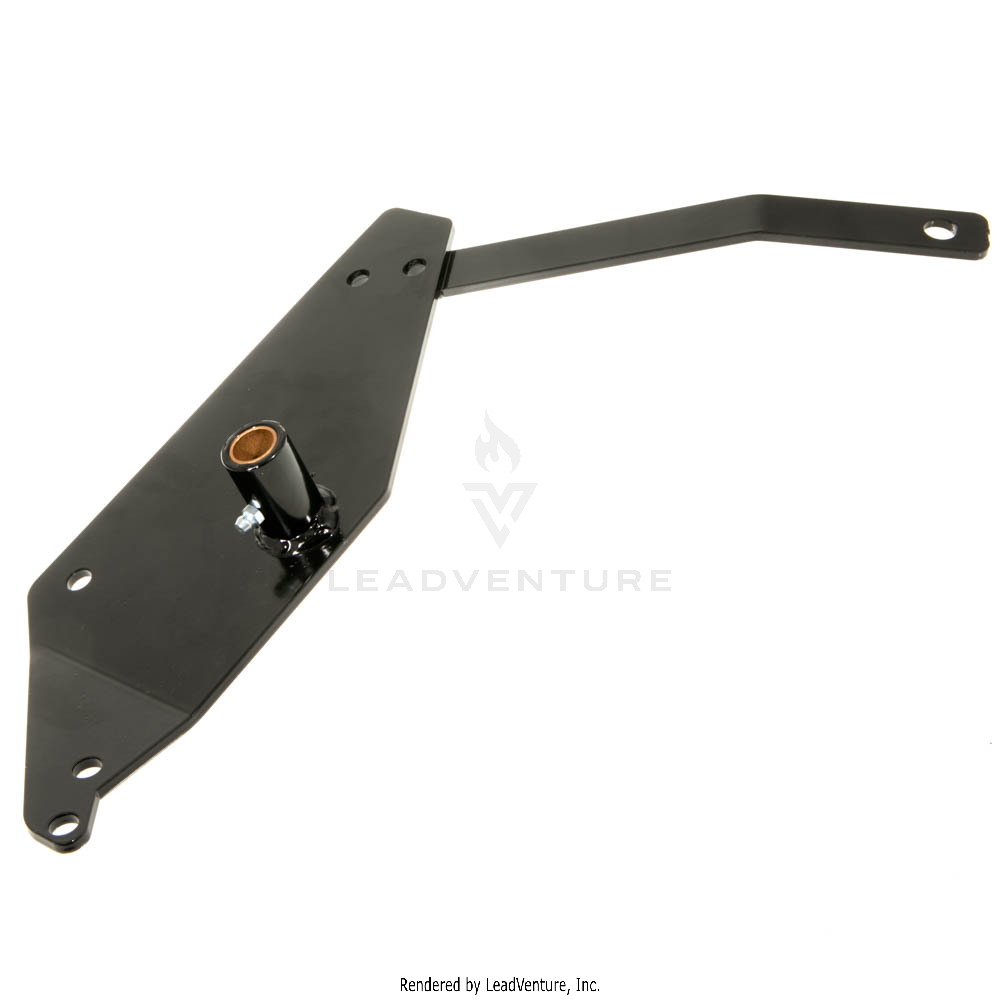

853-000029 – ARM ASSEMBLY – IDLER
ARM ASSEMBLY - IDLER -
912-3017 – HEX NUT
HEX NUT -

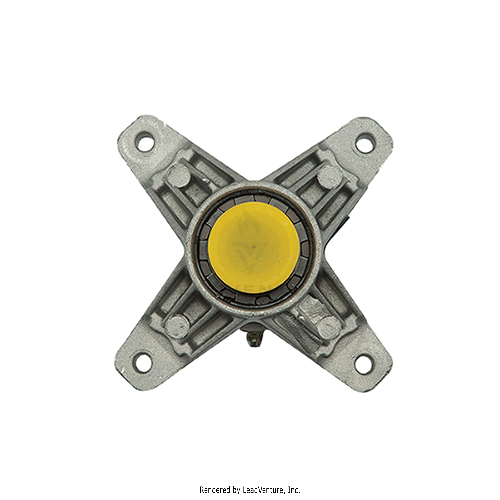

918-04426 – BLADE SPINDLE ASSEMBLY
BLADE SPINDLE ASSEMBLY
