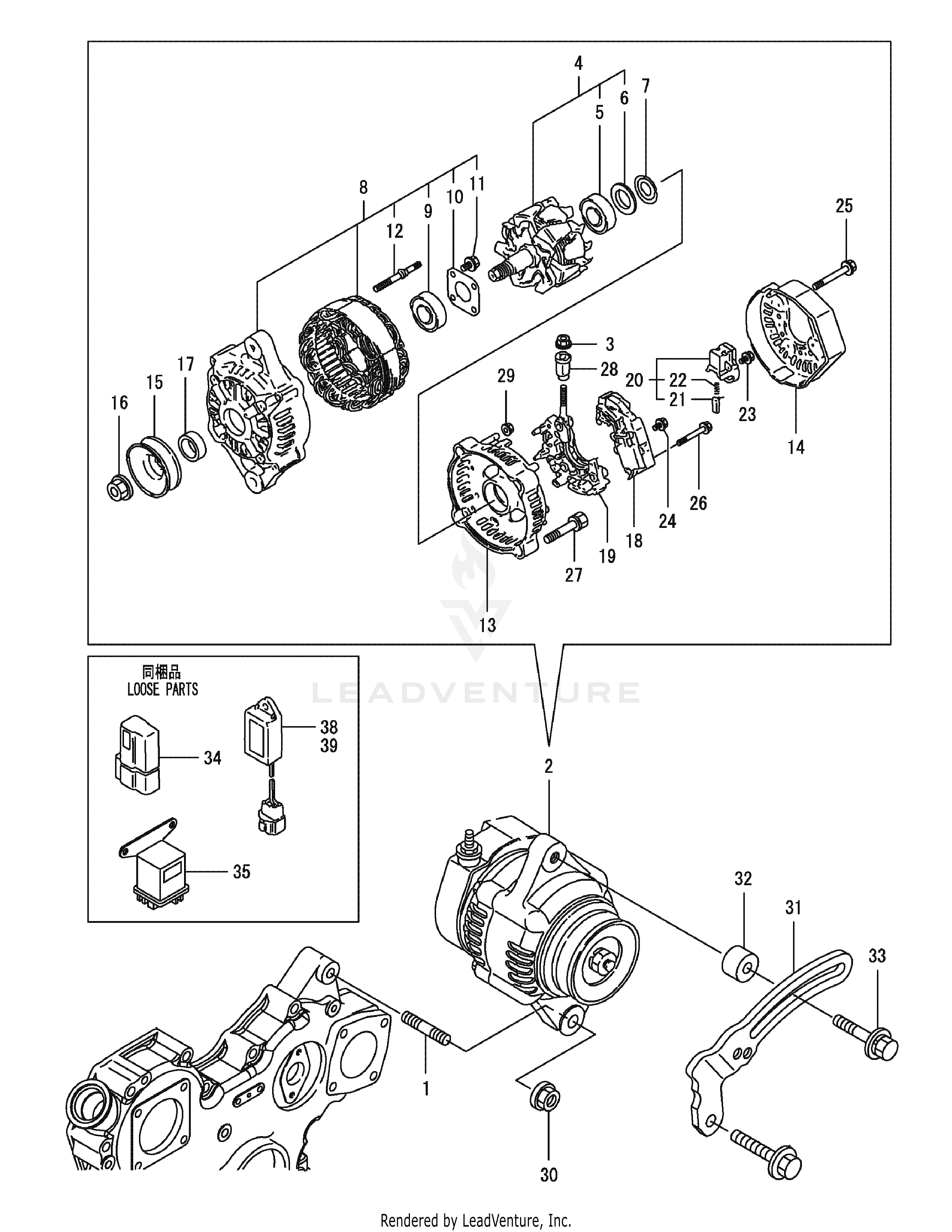

S7232-D (53AY8DU8330) (Tank S) 31.2HP Yanmar Diesel · Yanmar 3TNV82A-BDCB Generator
Downloads
Specifications
| Engine | Yanmar 3TNV82A-BDCB |
| Engine Oil Type | 15W40 |
| Deck Size | 72-Inch |
| Manual | 769-05598A |
| IPL Manual | 769-05978 |
Showing all 37 results
-
YA-119620-77201 – GENERATOR-40A
GENERATOR-40A -
YA-119620-77380 – ROTOR ASSEMBLY
ROTOR ASSEMBLY -
YA-119620-77421 – FLAME ASSEMBLY-DRIVE
FLAME ASSEMBLY-DRIVE -
YA-119620-77440 – FLAME ASSEMBLY-REAR
FLAME ASSEMBLY-REAR -
YA-119620-77450 – COVER-REAR END
COVER-REAR END -
YA-119620-77461 – PULLEY
PULLEY -
YA-119620-77471 – NUT
NUT -
YA-119620-77480 – BRUSH ASSEMBLY
BRUSH ASSEMBLY -
YA-119620-77490 – COLLAR
COLLAR -
YA-119620-77710 – REGULATOR ASSEMBLY
REGULATOR ASSEMBLY -
YA-119620-79200 – BALL BEARING
BALL BEARING -
YA-119620-79210 – PLATE-RETAINER
PLATE-RETAINER -
YA-119620-79220 – SCREW
SCREW -
YA-119620-79230 – STUD
STUD -
YA-119620-79250 – COVER-BEARING
COVER-BEARING -
YA-119620-79260 – HOLDER
HOLDER -
YA-119620-79270 – HOLDER-BRUSH
HOLDER-BRUSH -
YA-119620-79280 – SPRING
SPRING -
YA-119620-79290 – SCREW
SCREW -
YA-119620-79300 – SCREW
SCREW -
YA-119620-79310 – BOLT
BOLT -
YA-119620-79320 – SCREW
SCREW -
YA-119620-79330 – BOLT
BOLT -
YA-119620-79340 – BUSH-INSULATION
BUSH-INSULATION -
YA-119620-79350 – NUT
NUT -
YA-119620-79360 – THRUST WASHER
THRUST WASHER -
YA-119643-66900 – DIODE
DIODE -
YA-119650-77910 – RELAY-GLOW PLUG
RELAY-GLOW PLUG -
YA-123501-79240 – BALL BEARING
BALL BEARING -
YA-128300-77920 – TIMER
TIMER -
YA-129064-77330 – ADJUSTER-BELT
ADJUSTER-BELT -
YA-129067-77340 – SPACER
SPACER -
YA-129211-77920 – TIMER
TIMER -
YA-129795-01900 – STUD
STUD -
YA-129972-77341 – BOLT-ADJUSTER
BOLT-ADJUSTER -
YA-26306-100002 – NUT – M10
NUT - M10 -
YA-X9490561001 – NUT
NUT
