Seat Assembly – KC Equipment

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Engine	Yanmar 3TNV82A-BDCB
Engine Oil Type	15W40
Deck Size	72-Inch
Manual	769-05598A
IPL Manual	769-05978

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

00002528 – SCREW 3/8-16X2.00:GR5

00012158 – FLAT WASHER

00012168 – LOCK WASHER

00012180 – SCREW 5/16-18 x 1.00 GR8

00013116 – SCREW 5/16-18 x 1.25 GR8

00022547 – CENTER LOCK NUT 5/16-18

00022560 – FLANGE NUT 3/8-16 GRF

01008140P – SPRING-HANDLE (LH)

01009459 – SHOULDER BOLT

02002091 – SHOULDER BOLT

02002963 – RUBBER STOP WITH

02002964 – SCREW-CAP 10-24 X

02003732 – BRACKET-LATCH LEVEL

02003738-0637 – BRACKET-LATCH

02003745 – STUD-ADJUSTABLE

02004228 – SEAT W/ SEAT BELT

680-00087-4021 – FLOOR PANEL ASSEMBLY (CUB YELLOW 2)

680-00096-0637 – SEAT BRACKET ASSEMBLY (POWDER BLACK)

680-00110 – 24″ FOLDING ROPS ASSEMBLY

703-07490 – SEAT LOCK BRACKET

703-07491 – SEAT PIVOT BRACKET

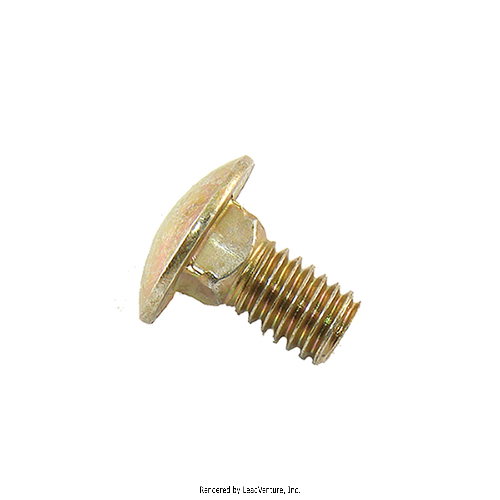

710-0260A – CARRIAGE BOLT 5/16-18 x .62 GR5

710-0599 – SCREW 1/4-20 X.500

710-3015 – SCREW 1/4-20X.75 GR5

712-0161 – HEX NUT

712-04190 – NUT 5/16-18

712-3004A – HEX FLANGE NUT

735-04159 – GROMMET-.38 ID x .75 OD x .75

736-3052 – FLAT WASHER .406ID X1.0 OD

749-04613 – LINK TUBE

750-3119 – SPACER .406 x 1.00 x .38

912-0429 – HEX NUT INS

912-3017 – HEX NUT

912-3027 – LOCK NUT 1/4
