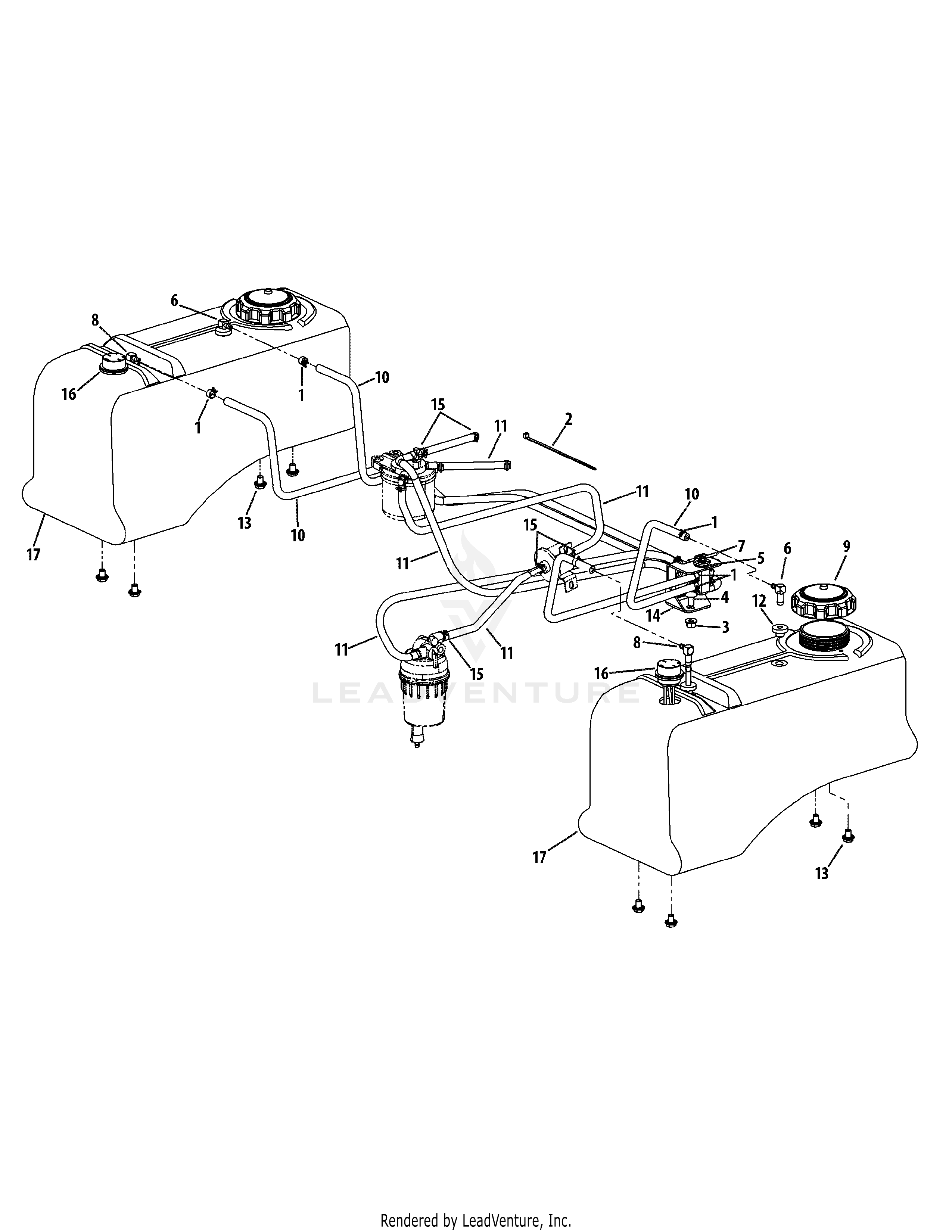

S7232-D (53AY8DU8330) (Tank S) 31.2HP Yanmar Diesel · Fuel Tank Assembly
Downloads
Specifications
| Engine | Yanmar 3TNV82A-BDCB |
| Engine Oil Type | 15W40 |
| Deck Size | 72-Inch |
| Manual | 769-05598A |
| IPL Manual | 769-05978 |
Showing all 17 results
-
00012235 – HOSE CLAMP
HOSE CLAMP -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
01004340 – IGNITION SWITCH WASHER
IGNITION SWITCH WASHER -
01009809P – FUEL FITTING RETURN
FUEL FITTING RETURN -
01009812 – FUEL SHUT OFF VALVE
FUEL SHUT OFF VALVE -
01009821P – PICK UP ASSEMBLY -F
PICK UP ASSEMBLY -F -
02001081 – FUEL CAP CAT
FUEL CAP CAT -
02001911-5 – HOSE – FUEL 1/4″
HOSE - FUEL 1/4" -
02002004-3 – HOSE – FUEL 5/16″
HOSE - FUEL 5/16" -
02002253 – GROMMET-FUEL TANK
GROMMET-FUEL TANK -
02005013 – SCREW
SCREW -
680-00086-0637 – FUEL VALVE BRACKET (POWDER BLACK)
FUEL VALVE BRACKET (POWDER BLACK) -
710-3178 – CARRIAGE BOLT 3/8-16 x .75
CARRIAGE BOLT 3/8-16 x .75 -
725-0157 – 7″ CABLE TIE
7" CABLE TIE -
726-0205 – HOSE CLAMP 1/20
HOSE CLAMP 1/20 -
751-11322 – FUEL GAUGE
FUEL GAUGE -
751-11325 – FUEL TANK (6.5 GAL)
FUEL TANK (6.5 GAL)
