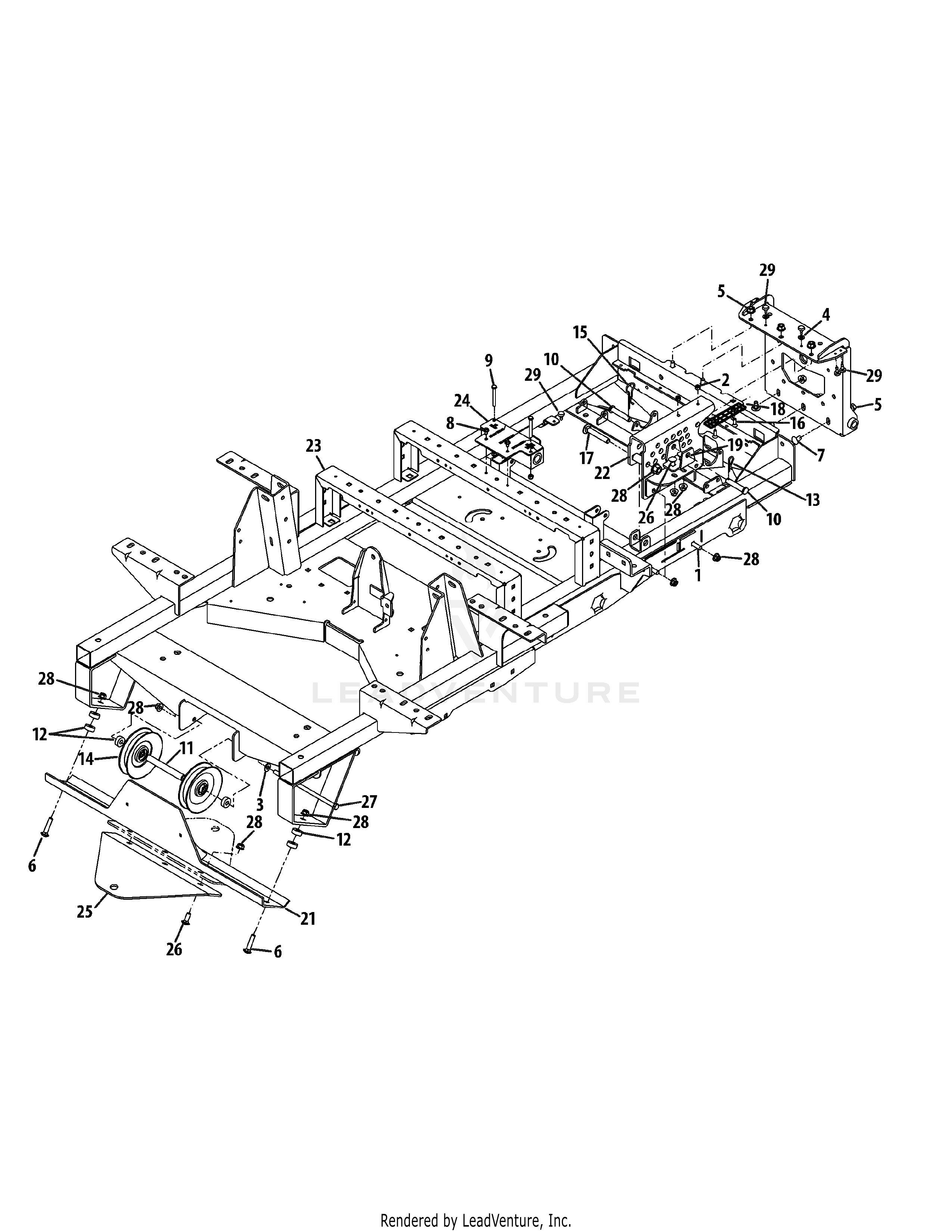

S7232-D (53AY8DU8330) (Tank S) 31.2HP Yanmar Diesel · Frame
Downloads
Specifications
| Engine | Yanmar 3TNV82A-BDCB |
| Engine Oil Type | 15W40 |
| Deck Size | 72-Inch |
| Manual | 769-05598A |
| IPL Manual | 769-05978 |
Showing all 29 results
-
00005765 – CARRIAGE BOLT 3/8
CARRIAGE BOLT 3/8 -
00012152 – Nut, 1/4-20
Nut, 1/4-20 -
00012158 – FLAT WASHER
FLAT WASHER -
00012169 – FLAT WASHER
FLAT WASHER -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
02000673 – HAIRPIN
HAIRPIN -
02003074 – PIN-HITCH .120 x 3
PIN-HITCH .120 x 3 -
02003505 – SCREW-FLAT HEAD CA
SCREW-FLAT HEAD CA -
02003563 – CARRIAGE BOLT 1/2
CARRIAGE BOLT 1/2 -
02003749 – PLATE-LIFT WEAR
PLATE-LIFT WEAR -
02005357-0637 – BRACKET – CYLINDER
BRACKET - CYLINDER -
603-04668-0637 – FRAME BRACKET (POWDER BLACK)
FRAME BRACKET (POWDER BLACK) -
680-00065-0637 – PULLEY GUARD BRACKET ASSEMBLY (POWDER BLACK)
PULLEY GUARD BRACKET ASSEMBLY (POWDER BLACK) -
680-00094-0637 – LIFT INDEX HOUSING ASSEMBLY (POWDER BLACK)
LIFT INDEX HOUSING ASSEMBLY (POWDER BLACK) -
680-00124-0637 – MAIN FRAME (POWDER BLACK)
MAIN FRAME (POWDER BLACK) -
703-07098-0637 – MANIFOLD BRACKET
MANIFOLD BRACKET -
703-07204-0637 – HITCH BRACKET
HITCH BRACKET -
710-0560 – CARRIAGE BOLT 3/8-16 x 1.75 GR1
CARRIAGE BOLT 3/8-16 x 1.75 GR1 -
710-0599 – SCREW 1/4-20 X.500
SCREW 1/4-20 X.500 -
710-0641 – SCREW 1/4-20 x 2.25 GR5
SCREW 1/4-20 x 2.25 GR5 -
710-3168 – CARRIAGE BOLT 3/8-16 x 1.00 GR5
CARRIAGE BOLT 3/8-16 x 1.00 GR5 -
710-3178 – CARRIAGE BOLT 3/8-16 x .75
CARRIAGE BOLT 3/8-16 x .75 -
710-3248 – SCREW 3/8-16 x 8.5 GR5
SCREW 3/8-16 x 8.5 GR5 -
711-0761 – CLEVIS PIN
CLEVIS PIN -
712-04065 – NUT
NUT -
750-05474 – SPACER – .385 ID x .75 OD x 4.89 L
SPACER - .385 ID x .75 OD x 4.89 L -
750-3119 – SPACER .406 x 1.00 x .38
SPACER .406 x 1.00 x .38 -
935-0199A – RUBBER BUMPER
RUBBER BUMPER -
956-3045 – PULLEY
PULLEY
