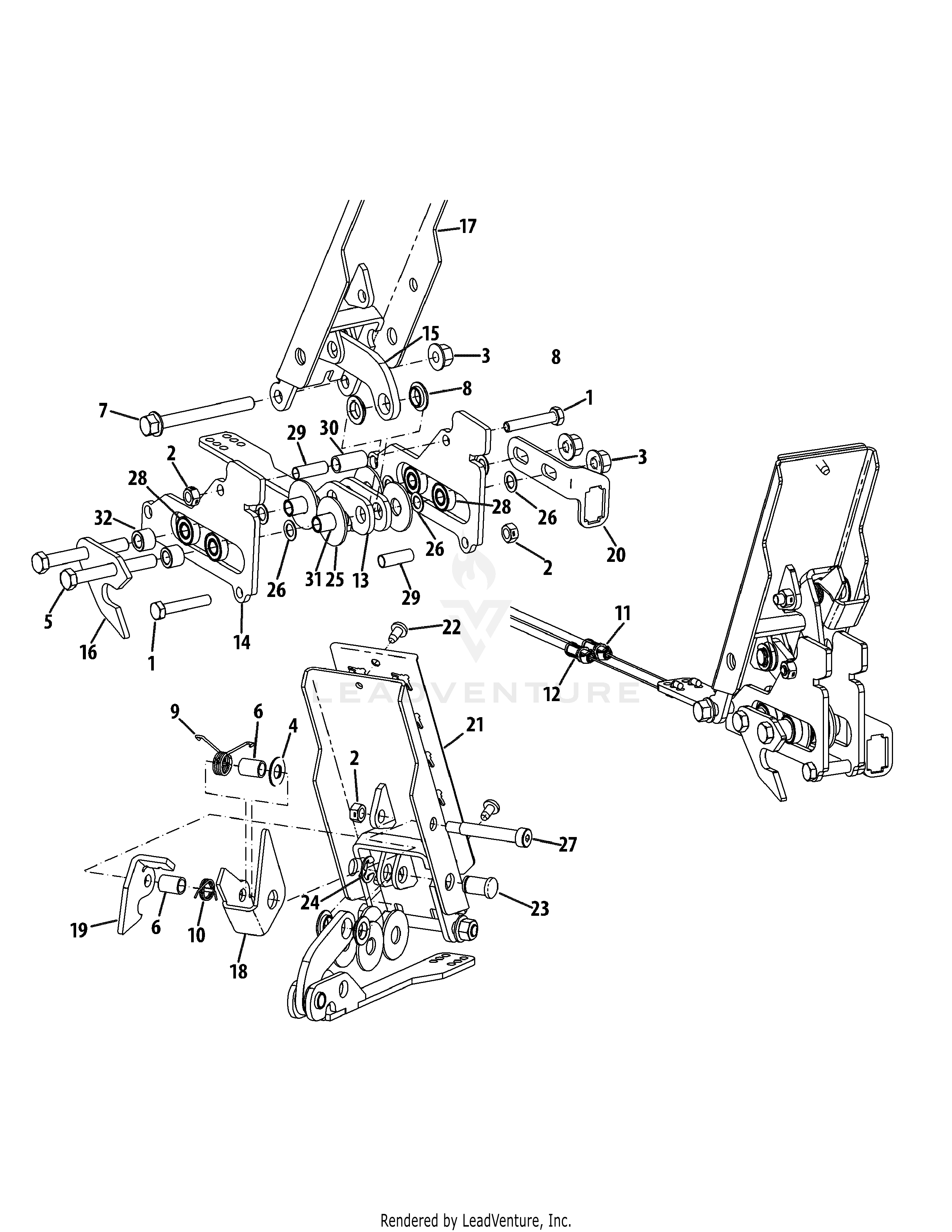

Brake Pedal Assembly – KC Equipment

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Engine	Yanmar 3TNV82A-BDCB
Engine Oil Type	15W40
Deck Size	72-Inch
Manual	769-05598A
IPL Manual	769-05978

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

00006129 – SCREW 5/16

00022547 – CENTER LOCK NUT 5/16-18

00022560 – FLANGE NUT 3/8-16 GRF

00061053 – FLAT WASHER .416 x .375 x .046

01004127 – SCREW 3/8-16X3.00 GR5

02003436 – SPACER-.380 ID X

02003666 – SCREW 3/8

02005568 – FLANGE BEARING .50

02005591 – SPRING – TORSION

02005592 – SPRING – TORSION

02005606P – CABLE – BRAKE (LH)

02005607P – CABLE – BRAKE (RH)

02005612-0637 – CARRIAGE ASSEMBLY

02005703 – BRACKET – ROLLER

02005714 – LINK – BRAKE CONTROL

02005718 – PLATE – LOCK OUT C

603-04639-0637 – BRAKE PEDAL ASSEMBLY (POWDER BLACK)

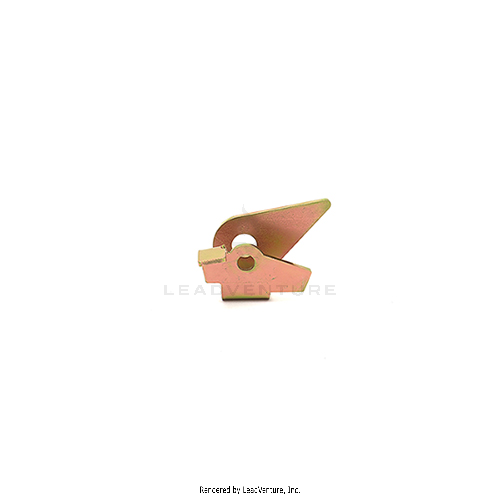

703-06762 – PARK ENGAGE BRACKET

703-06766 – BRAKE BRACKET

703-06975-0637 – BRAKE SWITCH MOUNT BRACKET(POWDER BLACK)

703-07762-4021 – BRAKE PEDAL GRIP

710-05070 – SCREW 1/4-20 x .5

711-05058 – PIN .50 x .804

736-04407 – FLAT WASHER .531ID x 1.50D x .08

736-04418 – WASHER .39 x .62 x OD x .03

738-04360 – SHOULDER SCREW .375 x 2 x 5/16-18

741-04371 – FLANGE BEARING .375 ID x .875 OD

750-05071 – SPACER- .319 x .375 x 1.056

750-05072 – SPACER- .384 x .500 x 1.00

750-05178 – SPACER- .38 ID x .50 OD x .955

750-05180 – SPACER-.385 ID x .625 OD x .458 LG

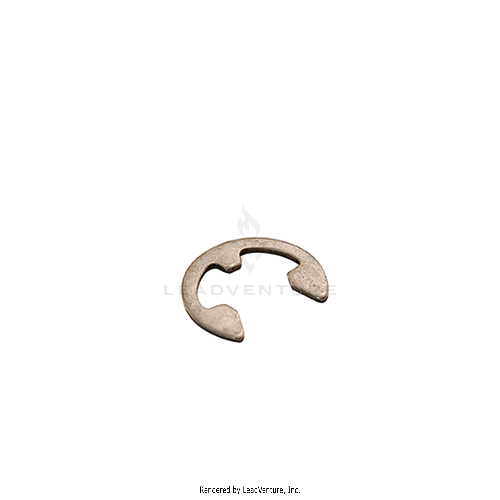

916-0104 – E-RING FOR .500 SHAFT
