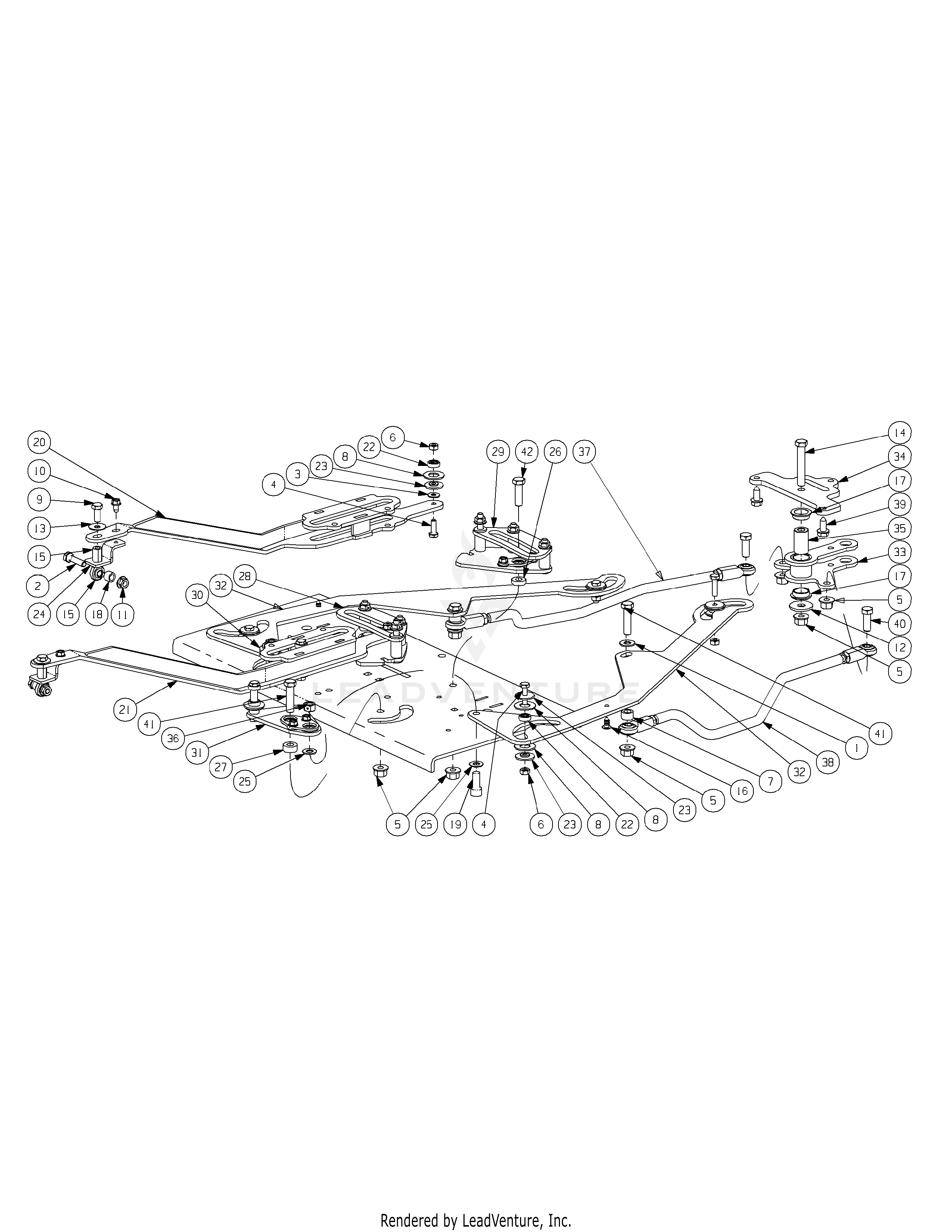

Control Assembly – KC Equipment

Make sure you have the correct model number

Finding the model number of your equipment is crucial for ensuring you get the right parts and service. Typically, the model number is on the product identification label, which is usually affixed to the body of the machine.

Model number locations

Manual	02005361 09-0
IPL Manual	02005362 09-0

Browse by category

Browse by application

Browse by Brand

Additional links

Browse by category

Browse by brand

Additional links

Call our branches

Yatala

Lismore

Murwillumbah

00012158 – FLAT WASHER

00013116 – SCREW 5/16-18 x 1.25 GR8

00022560 – FLANGE NUT 3/8-16 GRF

00023041 – NUT-SIDE LOCK 1/4

00081551 – SPACER-.625 OD x .40 x .375

01000101 – TEFLON WASHER .565

01000627 – SCREW – 5/16-24 x .75

01001366 – SCREW 3/8-16×2.25 Gr5

01008410P – END-5/16 ROD (RH)

01008801 – NYLON RIVET

02003163 – FLANGE BEARING .75

02003170 – SPACER- .334 X

02003309 – SCREW-SOCKET HEAD

02003327 – BRACKET ASSEMBLY – (RH) P

02003330 – BRACKET ASSEMBLY – (LH) PUMP

02003377 – BALL BEARING .25ID

02003379 – SHOULDER SPACER .2

02003384 – BRACKET – SUPPORT

02005054 – SPACER- .381 x .75

02005055 – SPACER- .381 X

02005056 – SPACER – .381 x .7

02005290 – LH Speed Control Cam Assembly

02005291 – SHAFT – CAM SPEED

02005292 – LH Steering Pivot Assembly

02005293 – PIVOT ASSEMBLY – STEERI

02005463 – PLATE – CONTROL LI

02005468 – PIVOT ASSEMBLY – FRONT

02005482 – PLATE – MOUNT PIVO

02005483 – SPACER- .385 x .75

02005566 – NUT – HEX 3/8-16 C

603-04618 – CONTROL ROD ASSEMBLY (LH)

603-04619 – CONTROL ROD ASSEMBLY (RH)

710-04484 – SCREW 5/16-18 x .750

710-0514 – SCREW 3/8-16 x 1 GR5

710-0520 – SCREW 3/8-16 x 1.50

710-0597 – SCREW 1/4-20 X1.00 GR5

710-0599 – SCREW 1/4-20 X.500

710-3005 – SCREW 3/8-16 x 1.25 GR5

712-3004A – HEX FLANGE NUT

936-0133 – FLAT WASHER
