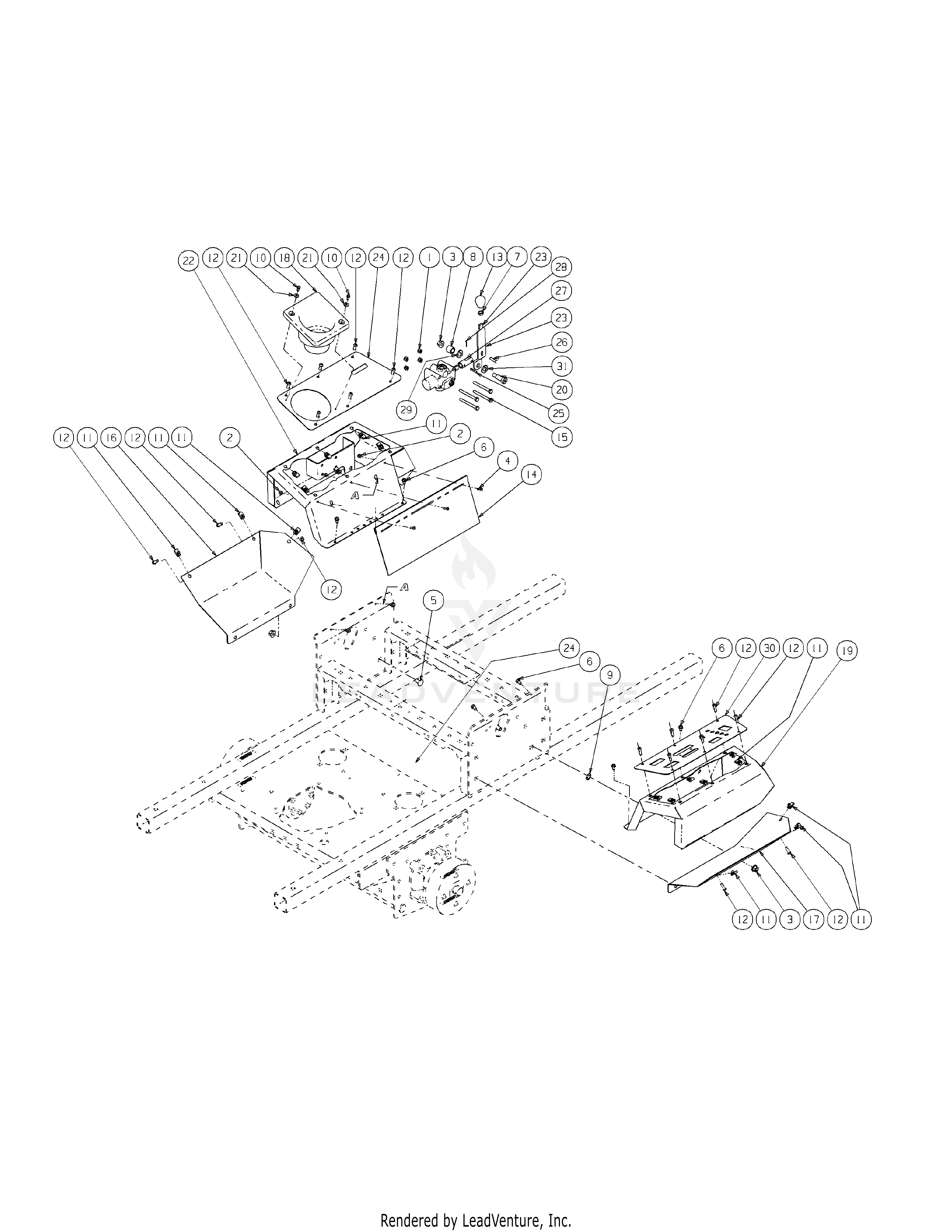

S6031-KW (53AI8DU6050) (Tank S) 31HP Kawasaki · Brake Assembly
Downloads
Specifications
| Model Alias | 53AI8DU6050 |
| Manual | 02005361 09-0 |
| IPL Manual | 02005362 09-0 |
Showing all 31 results
-
00012152 – Nut, 1/4-20
Nut, 1/4-20 -
00014608 – NUT #10-32
NUT #10-32 -
00022560 – FLANGE NUT 3/8-16 GRF
FLANGE NUT 3/8-16 GRF -
00030906 – PHILLIP HEAD SCREW
PHILLIP HEAD SCREW -
01002511 – HEX JAM NUT 3/8-16 GR2
HEX JAM NUT 3/8-16 GR2 -
01004546 – SPACER- .510 x .75
SPACER- .510 x .75 -
01008225 – PUSH RETAINER
PUSH RETAINER -
01008531P – SCREW-SELF TAP 10-
SCREW-SELF TAP 10- -
01008539P – U-NUT
U-NUT -
01009369 – KNOB-ON/OFF LEVER
KNOB-ON/OFF LEVER -
02000362 – BAG-DEBRIS/STORAGE
BAG-DEBRIS/STORAGE -
02000925 – SCREW 1/4-
SCREW 1/4- -
02002785-4021 – PANEL-LOWER (LH)
PANEL-LOWER (LH) -
02002786-4021 – PANEL-LOWER (RH)
PANEL-LOWER (RH) -
02002874 – HOLDER-CUP
HOLDER-CUP -
02002970-4021 – PANEL-CONTROL (RH)
PANEL-CONTROL (RH) -
02003603 – SHOULDER BOLT 1/2
SHOULDER BOLT 1/2 -
02003725 – WASHER-3/16
WASHER-3/16 -
02004136-4021 – PANEL – (LH) CONTROL
PANEL - (LH) CONTROL -
02004142-4021 – COVER – CONTROL
COVER - CONTROL -
02004622 – PIN
PIN -
703-07179 – LIFT VALVE BRACKET
LIFT VALVE BRACKET -
703-07603-4021 – CONTROL PANEL COVER
CONTROL PANEL COVER -
710-04064 – SCREW 1/4-20X.75
SCREW 1/4-20X.75 -
710-0599 – SCREW 1/4-20 X.500
SCREW 1/4-20 X.500 -
710-3178 – CARRIAGE BOLT 3/8-16 x .75
CARRIAGE BOLT 3/8-16 x .75 -
711-04214 – CLEVIS PIN .25X .937
CLEVIS PIN .25X .937 -
711-1614 – VALVE CONNECT LINK
VALVE CONNECT LINK -
714-0127 – COTTER PIN-1/16 DIA x .75
COTTER PIN-1/16 DIA x .75 -
936-0160 – FLAT WASHER
FLAT WASHER -
936-0253 – BELL WASHER
BELL WASHER
