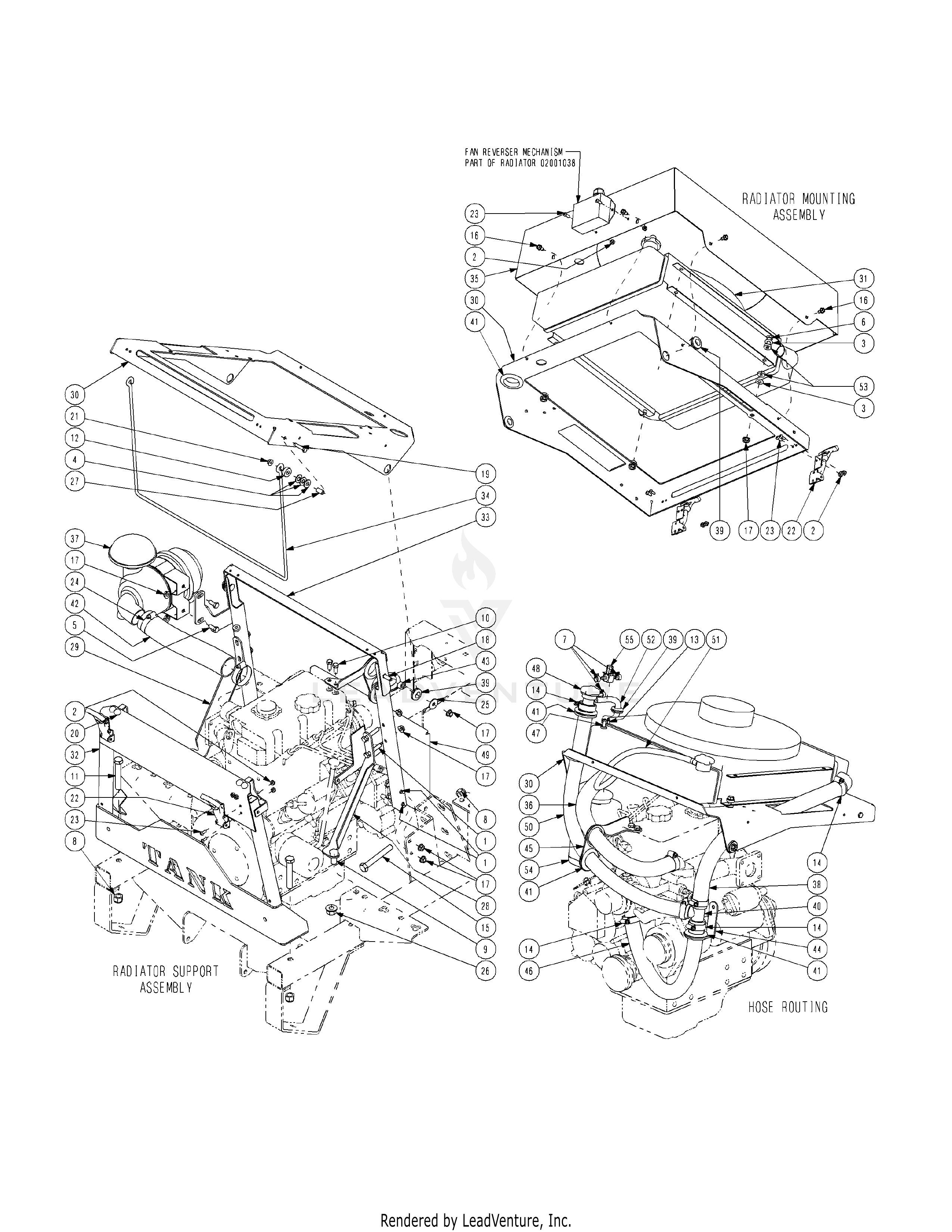

M72-CT (53AB5JEZ630) (Tank) 28 HP Caterpillar 3-Cylinder OHV Diesel · Radiator Assembly
Downloads
Electrical Schematic Tank Caterpillar Engine
Instruction Sheet Tow Hitch Kit 590-864
Owner's Manual M72-CT
Pre-Delivery Check List (769-02658G)
SBCC-506 Hydraulic In-Tank Filter
SBCC-559A PTO Deck Idler Kit
SBCC-574 Positive Battery Routing
SBCC-580 Glow Plug Timer
SBCC-584 Battery Drain
SBCC-682 Chute Spring
SBCC-686 Hour Meter
Service Kit 02003759 Idler Kit
Service Manual M48, M50, M54, M60, M72
Specifications
| Manual | 02002386 Rev 06-0 |
Showing 1–40 of 59 results
-
00006129 – SCREW 5/16
SCREW 5/16 -
00009812 – FLAT WASHER 5/16
FLAT WASHER 5/16 -
00012158 – FLAT WASHER
FLAT WASHER -
00012179 – SCREW 5/16-18 x .750 GR8
SCREW 5/16-18 x .750 GR8 -
00012180 – SCREW 5/16-18 x 1.00 GR8
SCREW 5/16-18 x 1.00 GR8 -
00012235 – HOSE CLAMP
HOSE CLAMP -
00012428 – HEX LOCK NUT 1/2-13
HEX LOCK NUT 1/2-13 -
00013851 – HEX SCREW
HEX SCREW -
00014517 – SCREW M8-1.25 x 18 GR8
SCREW M8-1.25 x 18 GR8 -
00030046 – SCREW 1/2-13 x 3.00 GR5
SCREW 1/2-13 x 3.00 GR5 -
00071691 – CONTROL ROD SPACER
CONTROL ROD SPACER -
01000215 – HOSE CLAMP
HOSE CLAMP -
01000217 – HOSE CLAMP- # 12
HOSE CLAMP- # 12 -
01000226 – SCREW 1/2-13 x 3.50 GR5
SCREW 1/2-13 x 3.50 GR5 -
01000641 – CARRIAGE BOLT 5/16-18 x 1.00 G5
CARRIAGE BOLT 5/16-18 x 1.00 G5 -
01000913 – SCREW 1/4-20X1.25 GR5
SCREW 1/4-20X1.25 GR5 -
01009363 – SCREW
SCREW -
01009895 – HOSE CLAMP
HOSE CLAMP -
01009937 – FLAT WASHER 5/16 X
FLAT WASHER 5/16 X -
01010119 – NUT-FLANGE LOCK 1
NUT-FLANGE LOCK 1 -
02000697 – SPACER
SPACER -
02001029 – GUSSET-RADIATOR
GUSSET-RADIATOR -
02001030 – GUSSET-RADIATOR
GUSSET-RADIATOR -

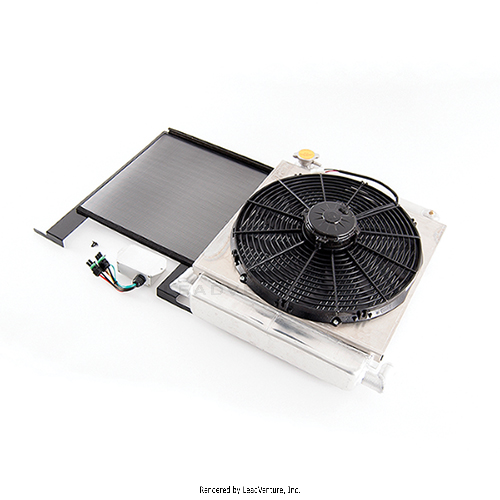

02001038P – RADIATOR – CAT
RADIATOR - CAT -
02001041 – MOUNT ASSEMBLY-RADIATOR
MOUNT ASSEMBLY-RADIATOR -
02001043 – MOUNT ASSEMBLY-RADIATOR
MOUNT ASSEMBLY-RADIATOR -
02001051 – BRACKET-MOUNT
BRACKET-MOUNT -
02001056 – STAND-RADIATOR CAT
STAND-RADIATOR CAT -
02001090 – HOSE-RADIATOR 1.12
HOSE-RADIATOR 1.12 -
02001097 – AIR FILTER ASSEMBLY
AIR FILTER ASSEMBLY -
02001110 – HOSE-RADIATOR
HOSE-RADIATOR -
02001124 – SHROUD ASSEMBLY-RADIATO
SHROUD ASSEMBLY-RADIATO -
02001127 – GROMMET-.62IDX1.13
GROMMET-.62IDX1.13 -
02001128 – ADAPTER-“T” CAT
ADAPTER-"T" CAT -
02001134 – GROMMET-1.5IDX2.13
GROMMET-1.5IDX2.13 -
02001138 – HOSE-AIR 1.75ID
HOSE-AIR 1.75ID -
02001142 – SPACER-.662ODX.407
SPACER-.662ODX.407 -
02001147 – BRACKET-RADIATOR
BRACKET-RADIATOR -
02001149 – BRACKET-RADIATOR
BRACKET-RADIATOR -
02002442 – HOSE-RADIATOR 1.12
HOSE-RADIATOR 1.12
